The Through Hole Assembly, also known as thru hole assembly, process uses the latest models with the quickest possible turnaround rate in the industry. Assembling excellent stable sequencing performance with easy operating software utilizing its high precision through hole assembly both by hand and automation to create electronic solder connections.
Automatic PIN/ Eyelet/Terminal insertion:
ManualPIN/ Eyelet/Terminal insertion:

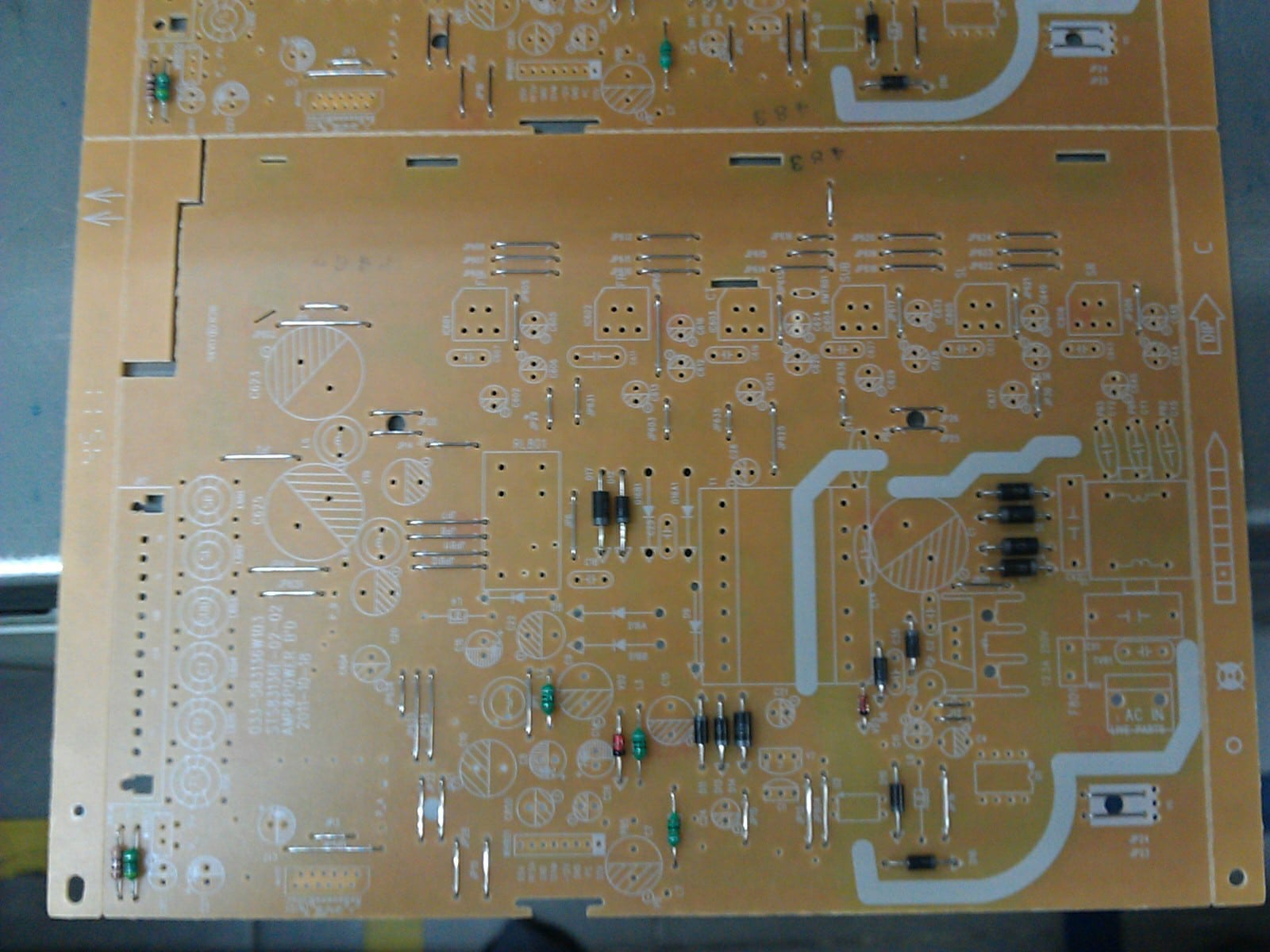

Axial Sequencer – The axial sequencer machine takes axial leaded through-hole components from reels and creates a tape chain of components in order of insertion for use on the axial insertion machine.
Component Lead Hole Guidelines
PCBs should be punched or drilled for component lead insertion to the following recommended hole diameters for optimum performance:
Hole Diameter = Lead Diameter + 0.48 mm (0.019 in.) ± 0.08 mm (0.003 in.)
Hole sizes:
• Less than recommended – Might result in reduced insertion reliability
• Greater than recommended – Might result in loose components in the PCB
Holes used for board error correction should be 1.0 mm (0.040 in.) ± 0.5 mm (0.020 in.). Plated holes or translucent PCBs might affect performance

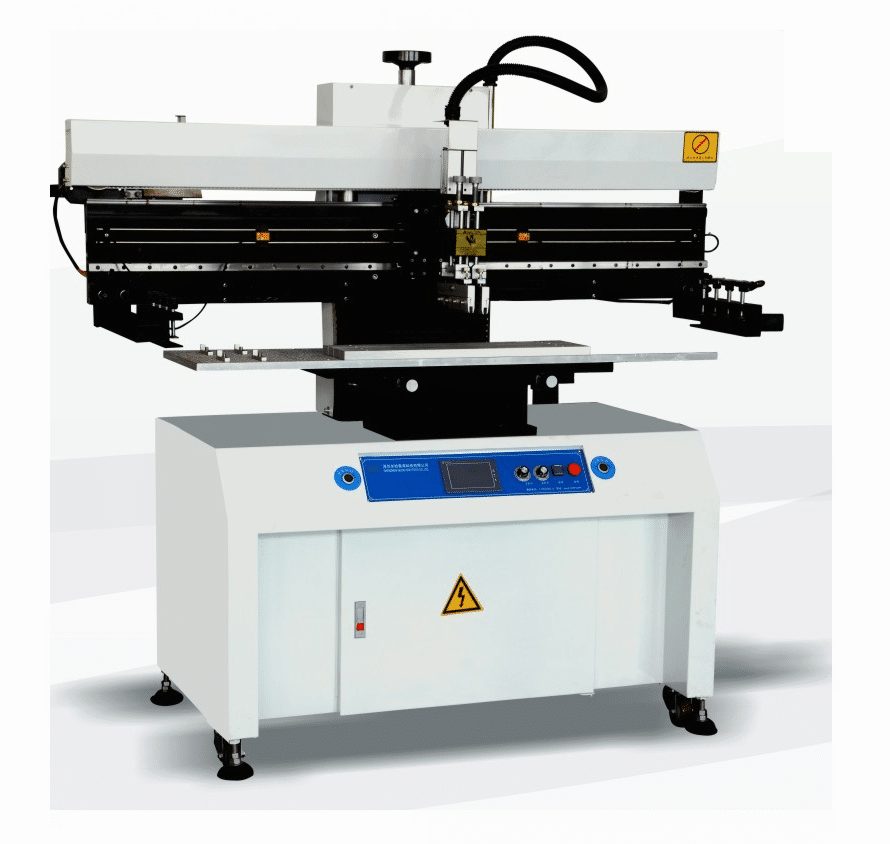

A Solder Paste Screen Printer for SMT is needed to screen solder paste onto the printed circuit board (PCB) before placement of surface mount components.
Solder Paste Screen Printer for SMT have been widely used in electronics by the PCB industry for screen solder mask. This equipment / machine has also been extensively used in the hybrid industry for screening solder paste. However, different equipment is used for the screening of solder mask and solder paste. The cost of screen printers can vary widely, depending on their degree of automation and the size of boards they can handle.
Solder Paste Printing Systems are available in three configurations: manual, semi-automatic and fully automatic. The machine can be table mounted, stand-alone, or in-line. Many semi-automatic printers offer manual vision alignment capability, while fully automatic printers offer automatic vision alignment.

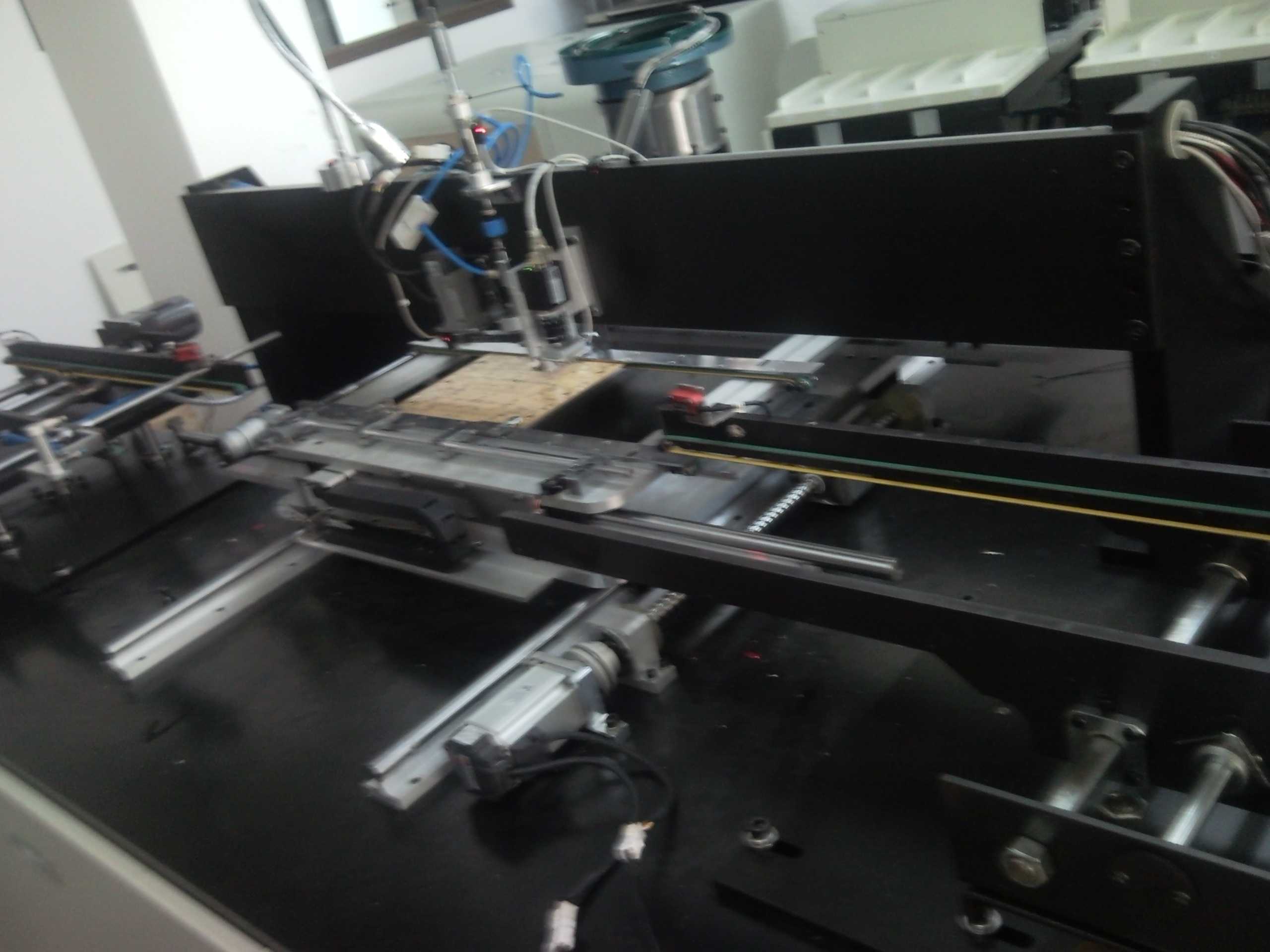

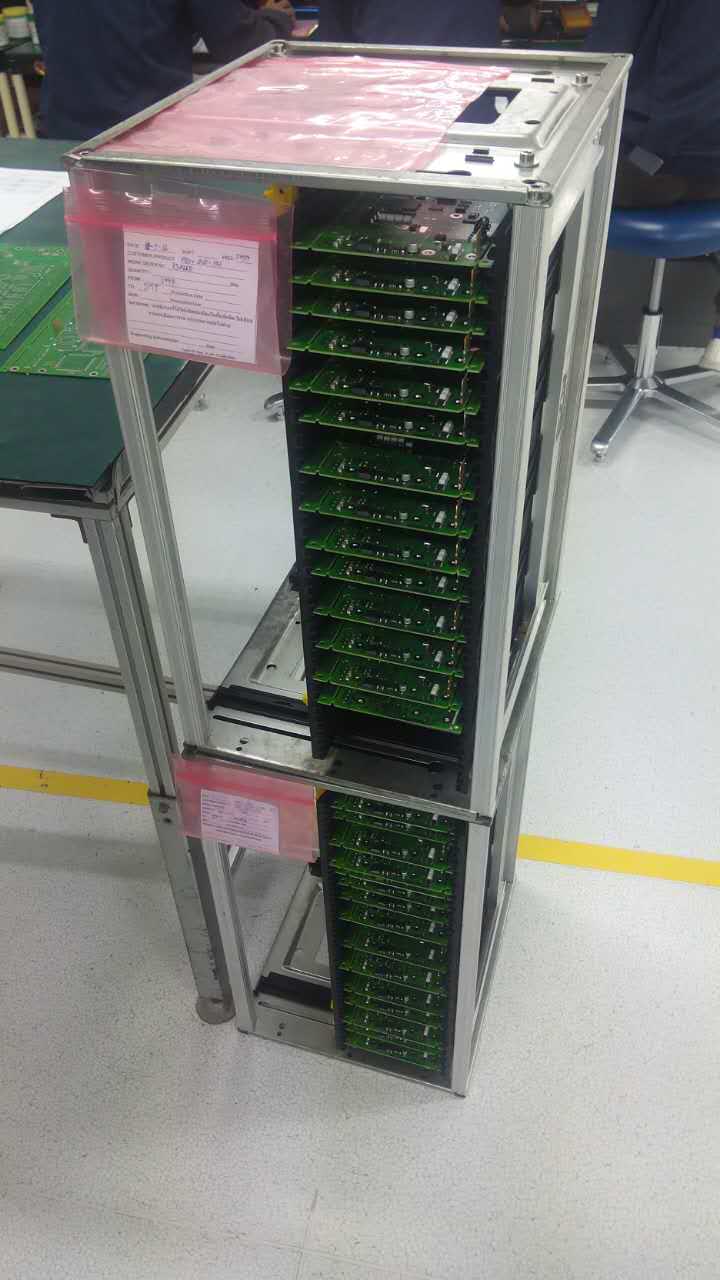

PCBA Auto Insertion – Axial, DIP, Radial, Pin, Odd-Form
The primary sources for (new) automated through hole component insertion or through hole component assembly equipment today, are: Contact Systems, Fuji, Panasonic, TDK and Universal Instruments. All (5) OEMs have contributed to the advancements in equipment and technology that we use today to assemble printed circuit boards, and all provide spare parts and varying levels of technical support.
Contact System’s semi-automatic component insertion systems are capable of processing a wide range of components, including: axial, radial, dip, sip and even many odd-form devices. Although Contact’s machine are most commonly used to augment fully automatic assembly processes, it is not unusual to see the Contact Systems CS 400D and CS 400E component locators being used as the primary means of assembling printed circuit boards at many low to moderate volume manufacturing facilities. All CS 400 systems are ergonomically designed to minimize operator fatigue and maximize productivity by combining a convenient operator to machine interface with several types of parts delivery systems, including their: CS 210 Rotary Bin, CS 400LPD – Large Parts Dispenser, CS 241 Lighted DIP Dispenser and the CS 740 JIT Component Delivery Systems which are available in single ( CS 740BS ) and double picker ( CS 740BD ) configurations.
Contact System’s Ultra Clinch offers the unique feature of allowing the user to program lead lengths and clinch angles for each and every component being assembled.
Component insertion rates of 600 pph to 1,500 pph are typical.
Universal Instruments Corporation manufactures a complete line of through hole insertion equipment. Also known as Insertion Mounted Component ( IMC ) and pin in hole assembly equipment, UIC offers automatic component insertion platforms for: Axial, DIP, Pin, Radial, SIP, LED, Transistor and Odd-form devices.
Universal’s IMC line of axial component processing equipment includes:
Axial component sequencers that are available in the following models: 2596R, 2596A, 2596B, 2596C and 2596D. The expandable axial sequencers can be configured with: 20 to 220 stations using (20) station add-on modules, expanded range verifiers (ERV), refire, pass-thru or single board transfer – SBT . The typical yield rate of a Universal sequencer ranges from 12,000 pph to 25,000 pph.
To compliment the 2596 sequencer, Universal offers the following axial component insertion systems: 6285, 6287, 6287A, 6287B, Generation 8, VCD single head 8 and model 6295 dual head VCD. Other VCD based inserters include the Jumper wire single head 8 and Jumper wire dual head 8. The cycle rates of these machines range from 8,500 pph to 40,000 pph depending on their configuration and vintage. Aside from cycle rates their operating parameters are similar.
As an alternative to stand alone equipment, Universal also offers a combined sequencer/inserter for axial leaded devices. Referred to as: 6241, 6241A, 6241B, 6241C, 6241D, 6248/48F, VCD Sequencer 8 Inserter, these axial lead sequencer / inserters can be configured with the same features as stand alone equipment.
Universal’s DIP Inserter product line include: Uni-module, Multi-module and SIP platforms. Available options include: 4 Pin DIP LED Tooling, DIP/Socket tooling, Autostick, and Single Board Transfer. The single head Uni-mod or model 6796 will typically yield 2,500 pph to 3,200 pph. The dual head Multi-mod or model 6772 typically yields 3,400 pph to 4,200 pph.
Universal’s Radial Sequencer/Inserter product line inserts radially taped and reeled components with body diameters up to 13mm and lead spans of 2.5/5mm at speeds ranging from 6,500 pph to 11,000 pph. Often referred to as Rad 1, Rad 2, Rad 3, Rad 5 and Rad 8 machines, these platforms can be configured with: 20 to 80 stations, single board transfer – SBT and expanded range verifiers – ERV. Model numbers associated with the Radial products include: 6346, 6348, 6358, 6360 and 6380.
Fuji, Panasonic Factory Automation and TDK offer competitive products, including: Fuji’s Flexible Board Assembler – FBA, Panasonic’s RH & AV and TDK’s RH.
Let’s grow our ‘circle of friends’ .
http://www.chinadaily.com.cn/china/2015-12/31/content_22890743.htm
BEIJING – President Xi Jinping highlighted poverty reduction and China’s international role in his New Year speech Thursday.
In an address transmitted live by state broadcasters, Xi called for confidence and hard work for a good beginning in the home stretch of building a “moderately prosperous society in all respects.”
Xi said that a meeting of the Communist Party of China (CPC) in late October set out a promising and encouraging blueprint for development over the next five years.
Xi noted that lifting tens of millions of rural people out of poverty was his top concern, and called for joint efforts to achieve this goal.
“We should care for all people facing difficulties, making them feel warm from the bottom of their hearts,” Xi said.
It is the third New Year speech Xi has given since 2013.
PAINS AND GAINS
Xi extended his New Year wishes to Chinese people of all ethnic groups, compatriots in Hong Kong and Macao, compatriots in Taiwan and overseas Chinese, as well as friends from other countries and regions.
“In 2015, Chinese people gave a lot, and we received a lot too,” Xi said, citing the fact that the country’s economic growth continues to be among the fastest in the world, reforms are in full swing and there has been deepened judicial reform.
The “three stricts and three earnests” campaign and anti-corruption fight have also been improving the country’s political environment.
Xi recalled the large-scale commemoration for the 70th anniversary of victory in the Chinese People’s War of Resistance Against Japanese Aggression and in the World Anti-Fascist War. During the event, Xi announced China will cut troops by 300,000.
“Our commemorative activities and the grand military parade showcased the truth that justice will prevail, peace will prevail and the people will prevail,” Xi said.
Xi noted that his meeting with Ma Ying-jeou in Singapore in November and their handshake, the first between leaders of the two sides of the Taiwan Strait in 66 years, reflected the common wish of compatriots from both sides for the peaceful development of cross-Strait relations.
The president cited more milestone moments, including Beijing winning the bid to host the 24th Winter Olympics, the RMB’s inclusion into the currency basket of the Special Drawing Rights of the International Monetary Fund, China’s first homemade large passenger aircraft C919 rolling off the assembly line, Tianhe-2 supercomputer remaining the world’s most powerful system for the sixth consecutive time, the country’s first space telescope to search for signals of dark matter sent into space and Tu Youyou winning the Nobel Prize in Physiology or Medicine.
“All these show us that, as long as we persevere, dreams will come true,” Xi said.
“This year, we had joys, but we also had sorrows,” Xi said, recalling cruise ship Eastern Star capsizing, catastrophic fires and explosions at a chemical warehouse in Tianjin and the Shenzhen landslide.
“These accidents led to many lives lost, and it’s also deeply harrowing that our compatriots were cruelly killed by terrorists,” Xi said. “We mourn them, and hope that the deceased rest in peace and the living are safe and healthy.”
Recognizing that people still have difficulties and troubles, Xi vowed that the Party and the government will continue to make concrete efforts to protect people’s lives and property, improve their livelihoods and ensure their health.
INT’L PLAYER
China must not be absent from international affairs, as the world is looking forward to voices and answers from China, Xi said.
“The world is so big, the challenges so complicated, ” he said.
“For those people torn by hardship and war, we need to offer not only sympathy and compassion, but also responsibility and action,” Xi said.
“China will always welcome the world with an open embrace, and we will also extend our hand to those in difficulty as best as we can, and our ‘circle of friends’ will grow,” Xi said, borrowing a term from the popular messaging app WeChat.
Throughout 2015, Xi said, China’s leaders have taken active part in international conferences and diplomatic activity, bringing substantial progresses in the “Belt and Road Initiative,” while contributing to the United Nations 2030 agenda for sustainable development and the global fight against climate change.
He said, “We have only one earth, one home for the peoples of all nations.”
Xi expressed his earnest hope that the international community could work together for peace, in a spirit of cooperation. “By turning antagonism to synergy, hostility to friendship, together we will forge a community of shared destiny for all humankind,” said the president.

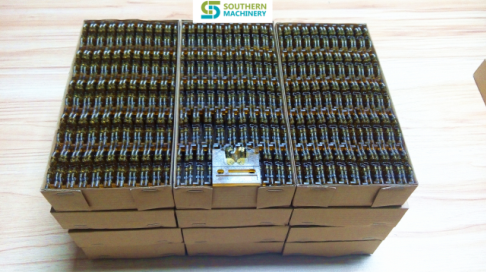

Critical 1 Spare Parts Definition
What are Critical 1 Spare Parts?
Critical 1 (C1) parts are parts that may fail with no warning, may not show signs of wear, or may cause other parts to fail. They cause a machine failure with no work around. These are the parts that most concern our customers as their failure can stop a production line.
C1 parts are identified by engineering and product support teams during the product development/introduction process.
C1 lists are generated and tracked as part of the development cycle and are made available prior to shipments of production volumes to customers.
As a guideline C1 parts will not be duplicated in RPKs. There may be exceptions that will require cross functional agreement.
What is NOT typically considered a Critical 1 Spare Part:
Consumables or wear parts
High usage spares
Exceptionally robust parts or assemblies
General Hardware (typically)
What is the key difference between Critical 1 and Replacement Parts Kits (RPK)?
Replacement parts kits (RPK) include items customers are expected to need within 6 months of use. Examples of parts in the RPK includes consumables items, wearable parts and predictable failures.
Typical RPK items:
Fuses
Light bulbs
Belts
Wearable tooling
Hardware associated with general maintenance

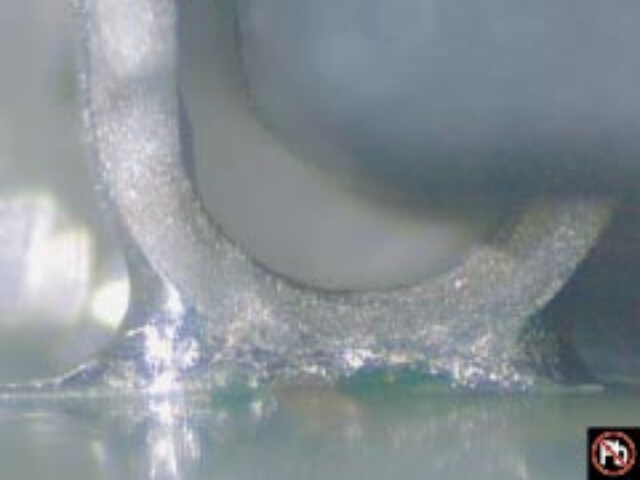

Acceptability for Electronic Assemblies :Soldering Acceptability Requirements
Target-Class1,2,3
.Solder fillet appears generally smooth and exhibits good wetting of the solder to the parts being joined.
.Outline of the parts is easily determined.
.Solder at the part being joined creates a feathered edge.
.Fillet is concave in shape.
See pic for examples of soldering anomalies.
Acceptable-Class1,2,3
.There are materials and processes,e.g.,lead free alloys and slow cooling with large mass PCBs, that may produce dull
matte,gray,or grainy appearing solders that are normal for the material or process involved.These solder connections
are acceptable.

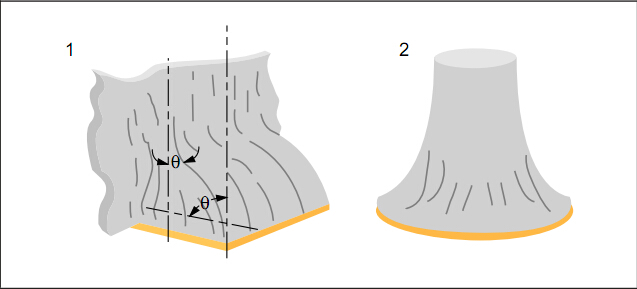

.The solder connection wetting angle (solder to component and solder to PCB termination do not exceed 90°(Figure).
.As an exception,the solder connection to a termination may exhibit a wetting angle exceeding 90°(Figure)when it is
created by the solder contour extending over the edge of the solder able termination area or solder resist.

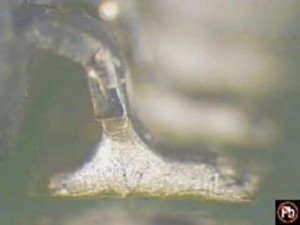

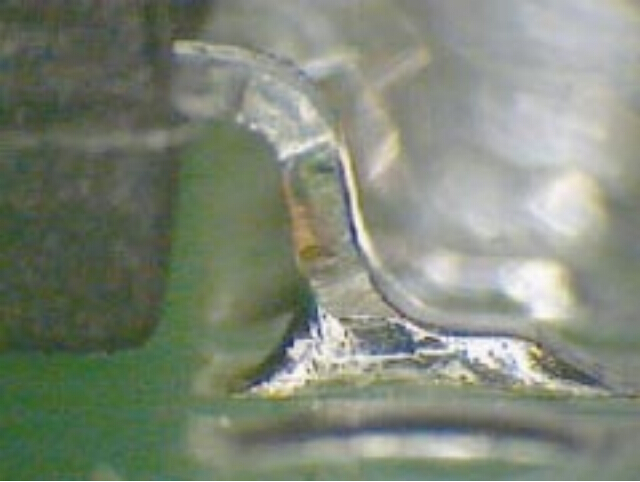

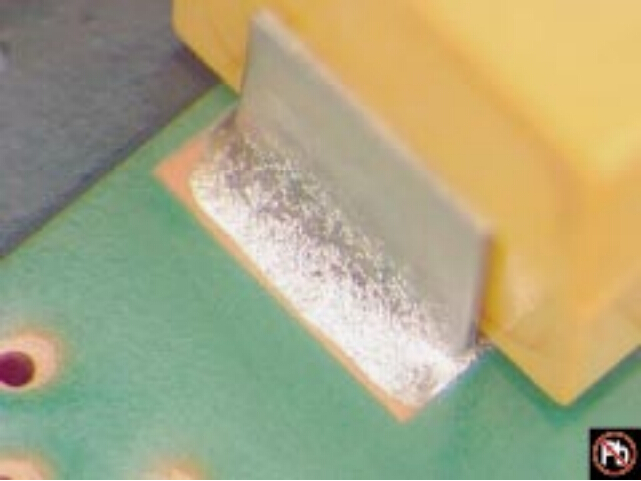

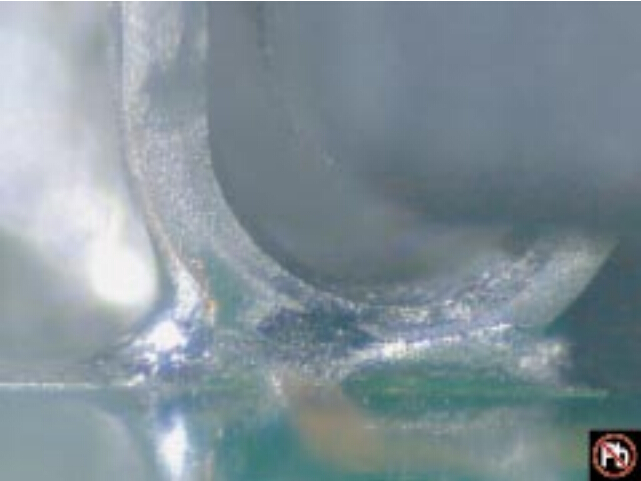

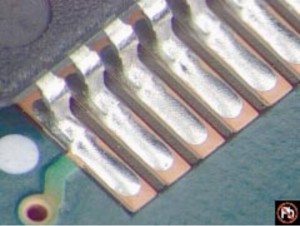

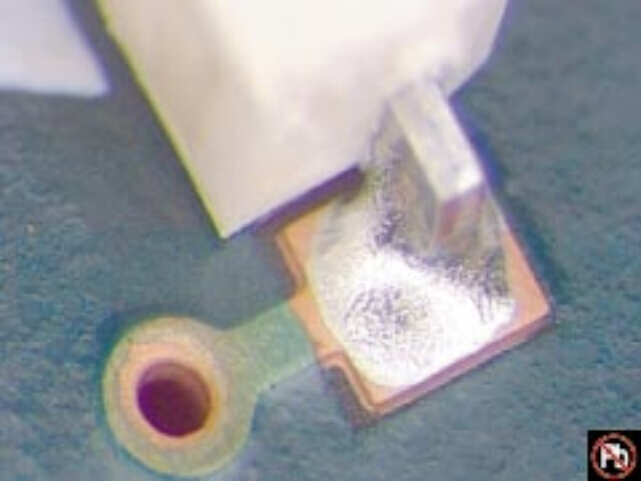

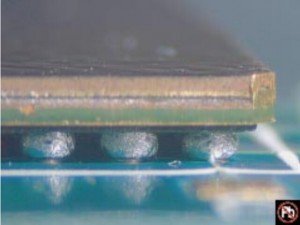

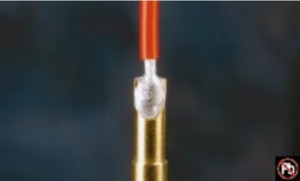

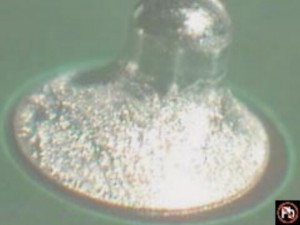

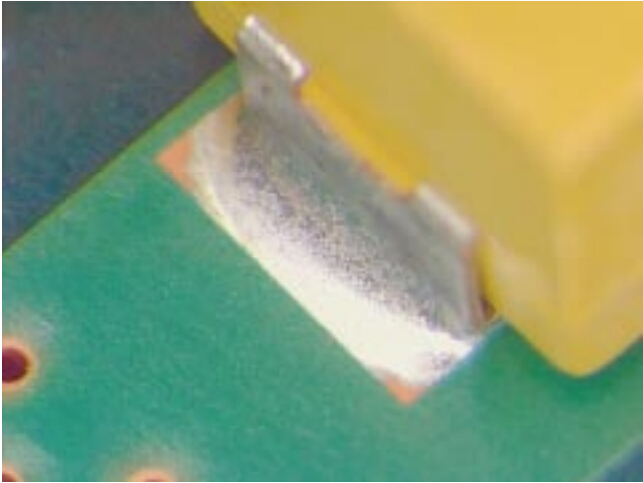

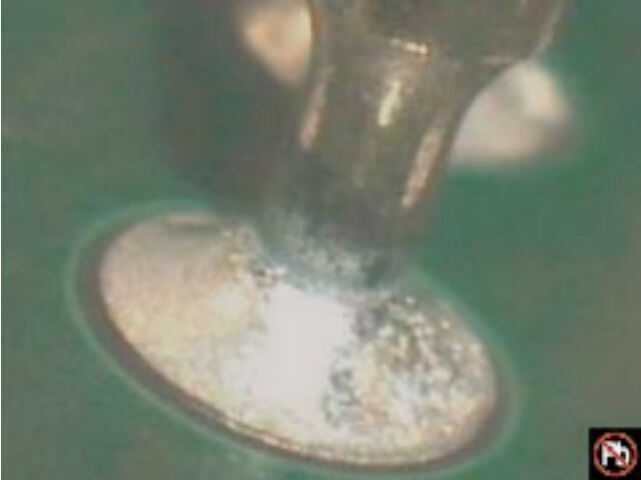

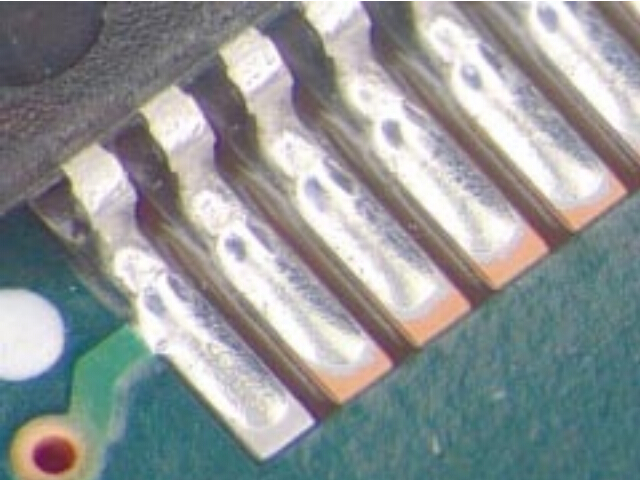

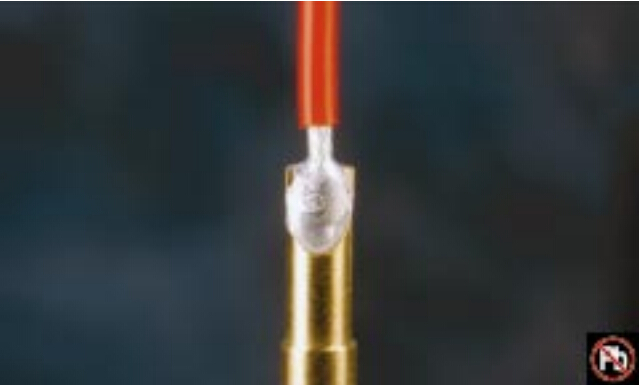

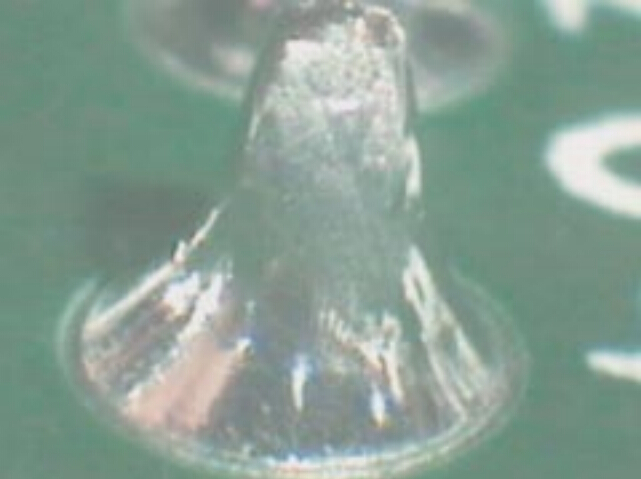

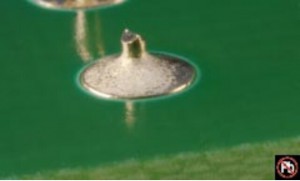

Figures below illustrate acceptable solder connections with various solder alloys and process conditions.
SnPb Solder； No Clean Process SnAgCu Solder;No Clean Process
SnPb Solder;Water Soluble Flux SnAgCu Solder;Water Soluble Flux
SnPb Solder; Water Soluble Flux SnAgCu Solder;Water Soluble Flux
SnAgCu Solder;No Clean Process,N2 Reflow SnAgCu Solder,No Clean Process;Air Reflow
SnPb Solder;No Clean Process SnAgCu Solder;No Clean Process
SnPb Solder;No Clean Process SnAgCu Solder;No Clean Process
SnPb Solder SnAgCu Solder
SnPb Solder SnAgCu Solder

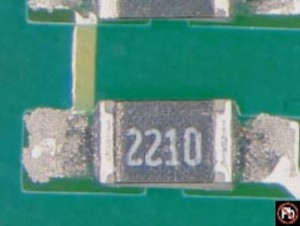

SnPb Solder ; OSP Finish SnAgCu Solder; OSP Finish
SnAg CuSolder SnAg CuSolder
SnAgCu Solder SnAgCu Solder

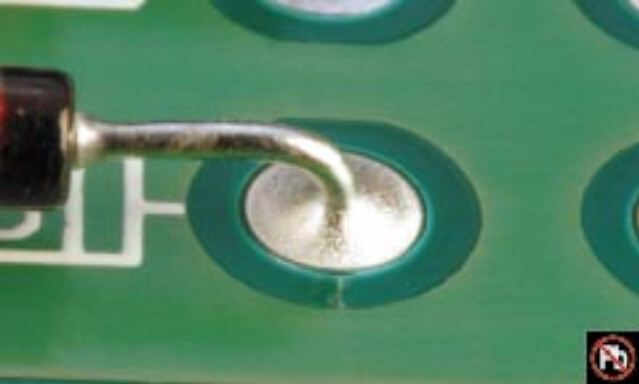

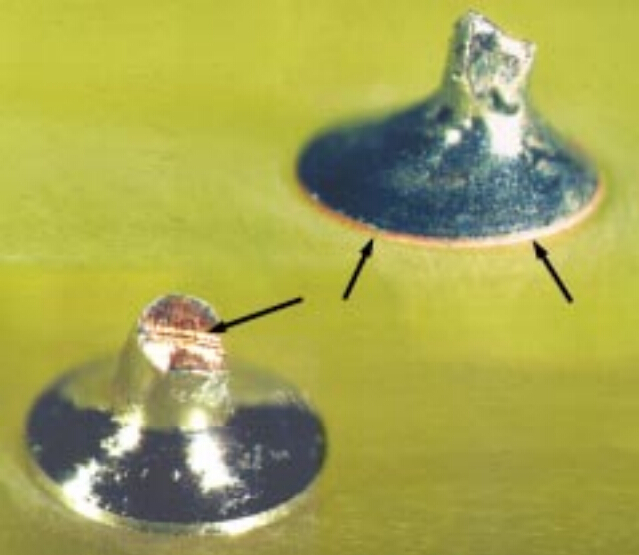

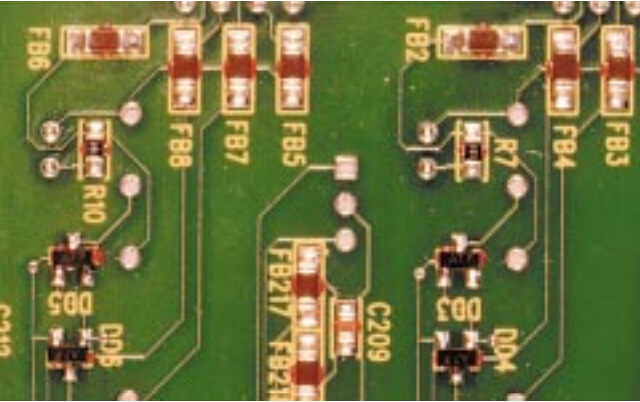

Soldering Anomalies-Exposed Basis Metal
Exposed basis metal on component leads,conductors or land surfaces from nicks,scratches,or other conditions cannot exceed
there quirements of 7.1.2.3 for leads and 10.2.9.1 for conductors and lands.
Component leads,sides of land patterns,conductors,and use of liquid photo image able solder resist,can have exposed basis
metal per original designs.
Some printed circuit board and conductor finishes have different wetting characteristics and may exhibit solder wetting only to
specific areas. Exposed basis metal or surface finishes should be considered normal under these circumstances,provided the
achieved wetting characteristics of the solder connection areas are acceptable.
Acceptable-Class 1,2,3
.Exposed basis metal on:
.Vertical conductor edges.
.Cut ends of component leads or wires.
.Organic Solderability Preservative (OSP) coated lands.
.Exposed surface finishes that are not part of the required solder fillet area.
Acceptable-Class 1
Process Indicator-Class 2,3
.Exposed basis metal on component leads,conductors or land surfaces from nicks or scratches provided conditions
do not exceed the requirements of7.1.2.3 for leads and 10.2.9.1 for conductors and lands.

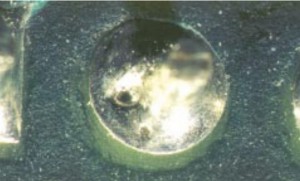

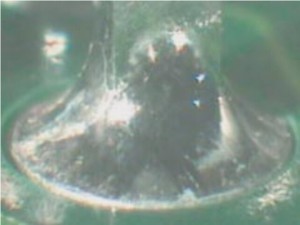

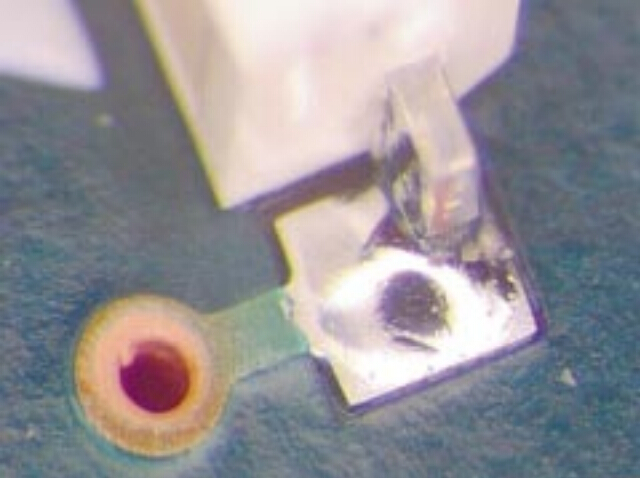

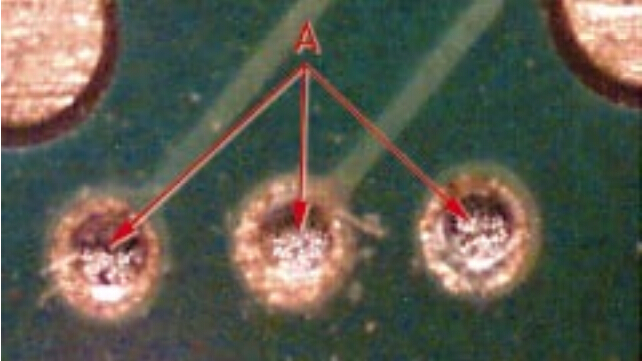

Soldering Anomalies-Pin Holes/Blow Holes
Acceptable-Class1
ProcessIndicator-Class2,3
.Blowholes (Figures 1,2),pinholes (Figure 3),voids (Figures 4,5),etc.,providing the solder connection meets all other requirements.
1 2
3 4
5
Defect-Class 2,3
Solder connections where pin holes,blowholes,voids,etc.
reduce the connections below minimum requirements(not shown).

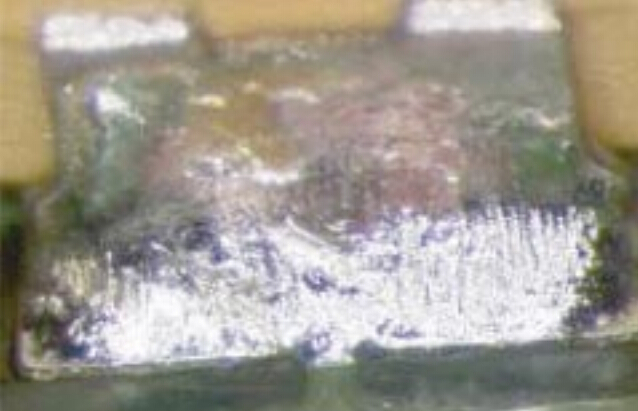

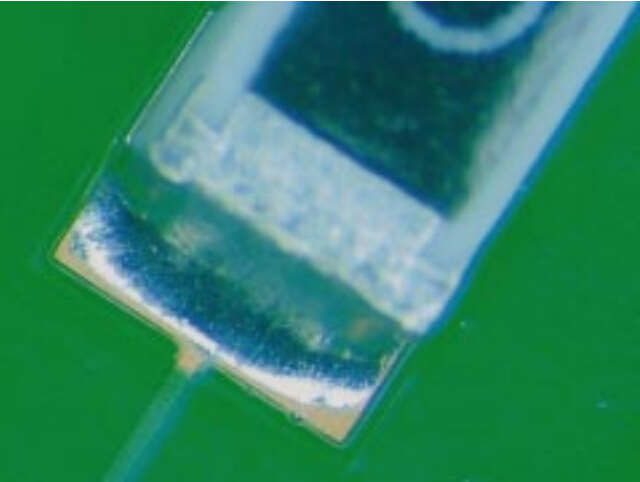

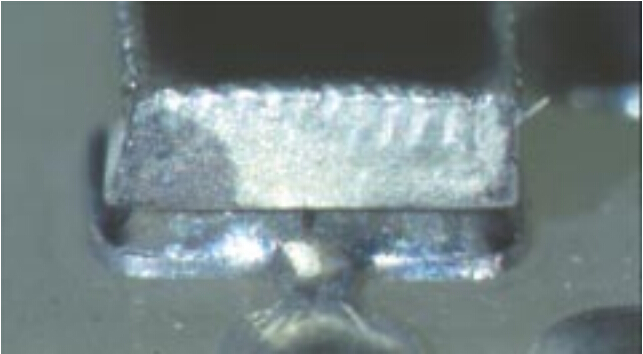

Soldering Anomalies-Reflow of Solder Paste
Defect-Class1,2,3
.Incomplete reflow of solder paste.
Soldering Anomalies-Nonwetting
IPC-T-50 defines nonwetting as the inability of molten solder to form a metallic bond with the basis metal.In this Standard,that
includes surface finishes.
Defect-Class 1,2,3
.Solder has not wetted to the land or termination where solder is required.
.Solder coverage does not meet requirements for this termination type.

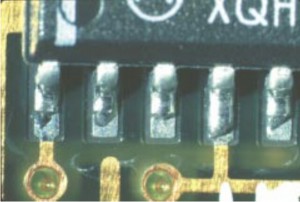

Soldering Anomalies-Dewetting
Defect-Class 1,2,3
.Evidence of dewetting that causes the solder connection to not meet the SMT and thru-hole solder fillet requirements.

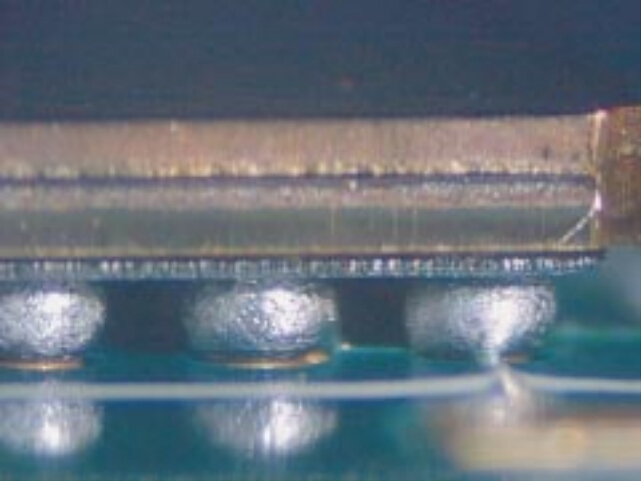

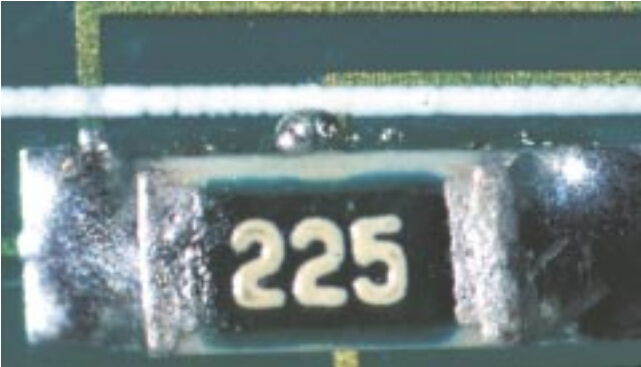

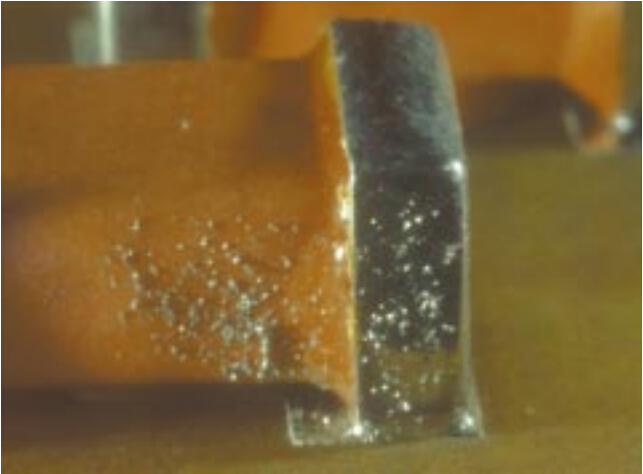

Soldering Anomalies-Excess Solder-Solder Balls/Solder Fines
Solder balls are spheres of solder that remain after the soldering process.Solder fines are typically small balls of the original
solder paste metal screen size that have splattered around the connection during there flow process.
Target-Class 1,2, 3
.No evidence of solder balls on the printed wiring assembly.
Acceptable-Class 1,2,3
.Solder balls are entrapped/encapsulated and do not violate minimum electrical clearance.
Note:Entrapped/encapsulated/attached is intended to mean that normal service environment of the product will not cause a solder ball to become dislodged.
Defect- Class 1,2,3
.Solder balls violate minimum electrical clearance.
.Solder balls are not entrapped in no-clean residue or encapsulated with conformal coating,
or not attached(soldered)to a metal surface.

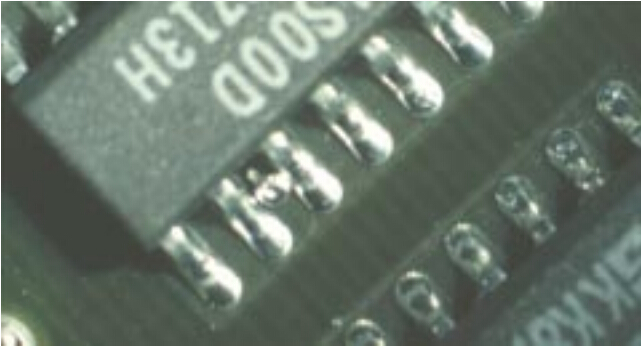

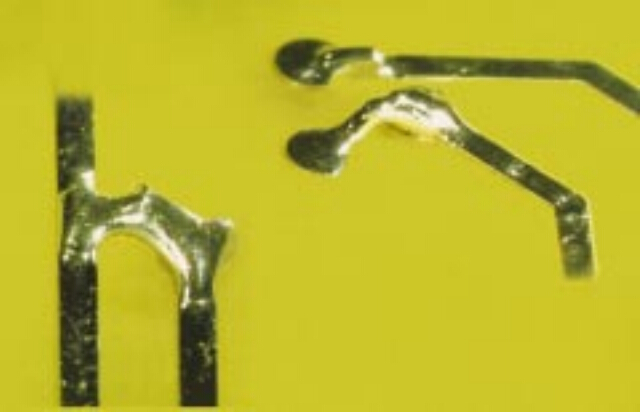

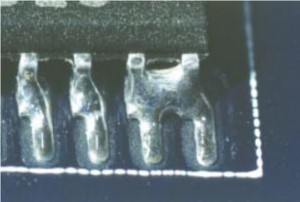

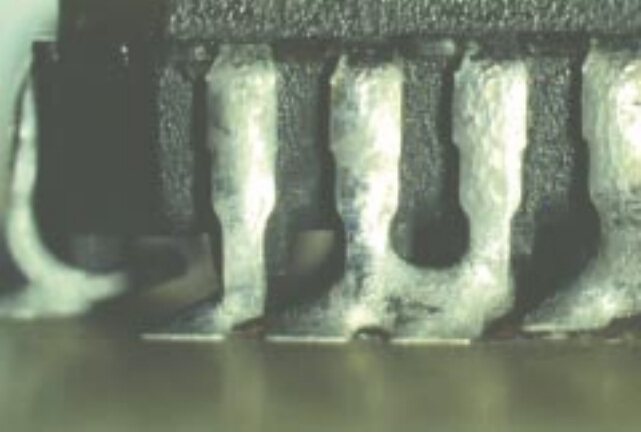

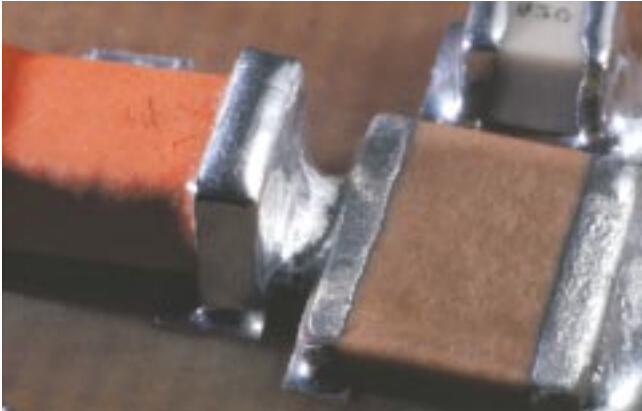

Soldering Anomalies-Excess Solder-Bridging
Defect-Class 1,2,3
.A solder connection across conductors that should not be joined.
.Solder has bridged to adjacent noncommon conductoror component.

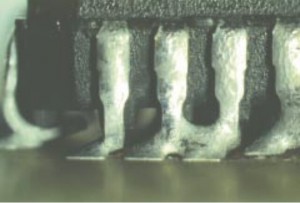

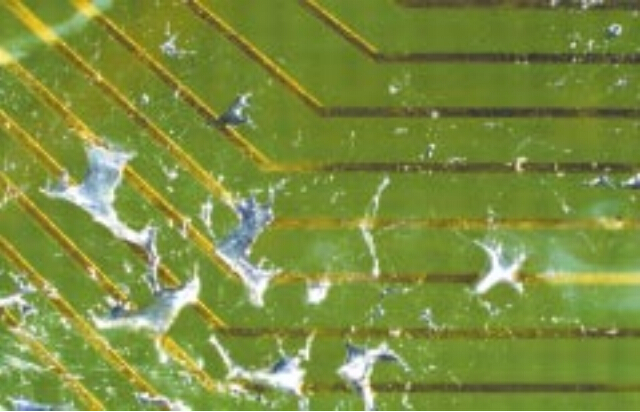

Soldering Anomalies-Excess Solder-Solder Webbing/Splashes
Defect-Class 1,2,3
.Solder splashes/webbing.

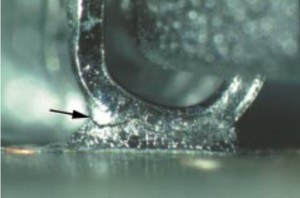

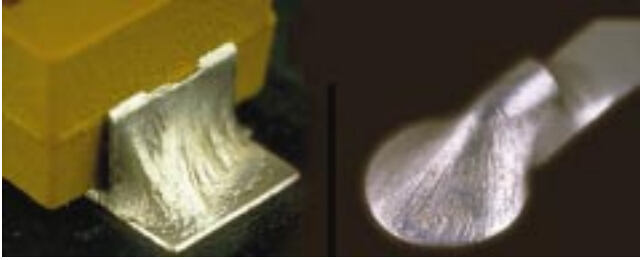

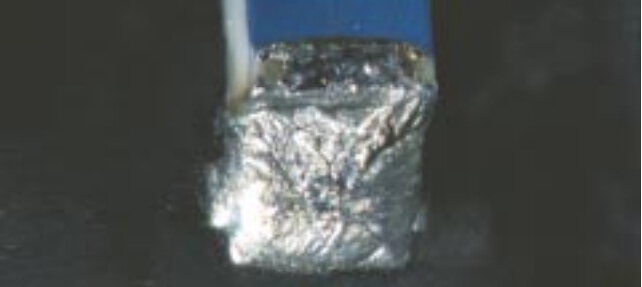

Soldering Anomalies-Disturbed Solder
Surface appearance with cooling lines as shown in Acceptable pic is more likely to occur in lead free alloys and is not a disturbed solder condition.
Defect-Class 1,2,3
Characterized by stress lines from movement in the connection (SnPb alloy).
Soldering Anomalies-Fractured Solder
Defect-Class 1,2,3
Fractured or cracked solder.

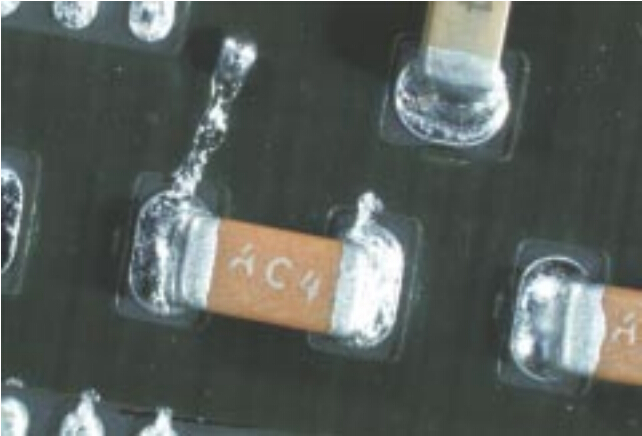

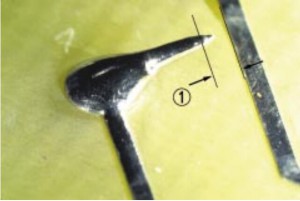

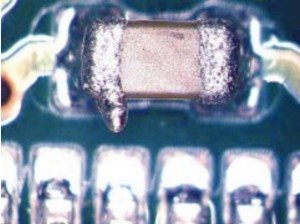

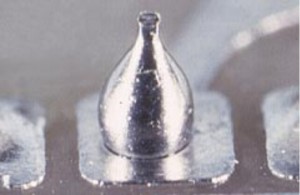

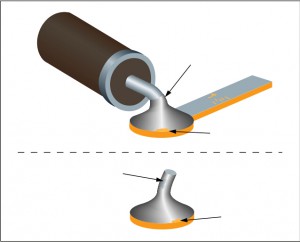

Soldering Anomalies-Solder Projections
Defect-Class 1,2,3
.Solder projection,figure 1,violates assembly maximum
height requirements or lead protrusion requirements.
.Projection,figure 2,violates minimum electrical clearance(1).
1 2
Soldering Anomalies-Lead Free Fillet Lift
Acceptable-Class 1,2.3
.Fillet lifting-separation of the bottom of the solder and the
top of the land(primary side of plated-through hold connection).
Process Indicator-Class 2
Defect-Class3
.Fillet lifting-separation of the bottom of the solder and the top of the land(secondary side of plated-through hold connection)(not shown).
Defect-Class 1,2,3
.Fillet lifting damages the land attachment.

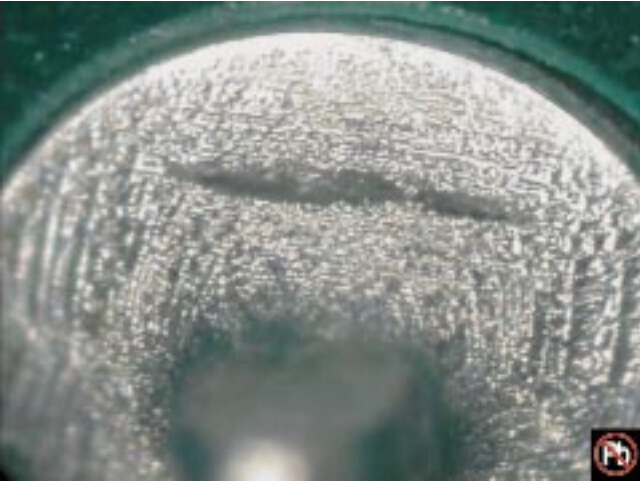

Soldering Anomalies-Hot Tear/Shrink Hole
Acceptable-Class1,2,3
.For connections made with lead free alloys:
.The bottom of the tear is visible.
.The tear or shrink hole does not contact the lead,land or
barrel wall.
Defect-Class 1,2,3
.Shrink holes or hot tear in connections made with SnPb solder alloys:
.For connections made with lead free alloys:
.The bottom of the shrink hole or hot tear is not visible.
.The tear or shrink hole contacts the lead or land.
end
UBUG Users Guide ( Debugger reference manual )
for Radysis Motion Controler
The
UBUG monitor is a stand alone software package designed to allow
evaluation and debugging of the UIMC 68EC030 based motion controller
PCB. It has the capability to load and execute user code and includes
an assembler/disassembler designed for quick program patchwork. The
monitor operates in a user interactive command driven mode signified by
the UIC> prompt. The command line entered after this prompt
determines which operation is performed.
UBUG MONITOR
TABLE OF CONTENTS
1. GENERAL INFORMATION
1.1 Description of UBUG………………….. 3
2. THE UBUG COMMAND SET
2.1 Introduction………………………… 3
2.2 Auto Null (an)……………………… 4
2.3 Assembler/Disassembler (as) ………….. 4
2.4 Block of Memory Fill (bf)…………….. 6
2.5 Block of Memory Move (bm)…………….. 6
2.6 Break Point (br)…………………….. 6
2.7 Block Search (bs)……………………. 7
2.8 Counter Test (ct)………………. 7
2.9 DAC16, ADC8 Test (dac16t)……………. 7
2.10 Data Conversion (dc)…………………. 8
2.11 Go (go)…………………………….. 8
2.12 Help (?/he/help)…………………….. 8
2.13 IO Access (io)……………….. 8
2.14 Load S-Records (lo)………………….. 9
2.15 Memory Display (md)………………….. 9
2.16 Memory Modify (mm)…………………… 10
2.17 Memory Test (mt)………………….. 10
2.18 Register Display (rd)………………… 10
2.19 Register Modify (rm)…………………. 11
2.20 Symbol Define (sd)…………………… 11
2.21 Test – Diagnostic (test)………………. 11
2.22 Transparent Mode ™………………… 12
2.23 Trace (tr)………………………….. 12
3 USING THE ONE-LINE ASSEMBLER/DISASSEMBLER
3.1 Introduction ………………………. 12
3.2 Entering and Modifying Source Program …. 12
3.3 Entering a Source Line……………….. 13
3.4 Entering a Change of Flow Instr ……… 14
3.5 Entering Register Lists ……………… 15
3.6 Entering Floating Point Immediate Data … 16
3.7 Entering MMU Instructions ……………. 17
1. GENERAL INFORMATION
1.1 DESCRIPTION OF UBUG
The
UBUG monitor is a stand alone software package designed to allow
evaluation and debugging of the UIMC 68EC030 based motion controller
PCB. It has the capability to load and execute user code and includes
an assembler/disassembler designed for quick program patchwork. The
monitor operates in a user interactive command driven mode signified by
the UIC> prompt. The command line entered after this prompt
determines which operation is performed.
2. THE UBUG COMMAND SET
2.1 INTRODUCTION
This
section explains the UBUG monitor commands and their associated syntax.
Table 2.1 summarizes the available commands and shows the section where
the command is explained in greater detail.
|
TABLE 2.1 UBUG MONITOR COMMANDS |
||
|
Command/Mnemonic |
Name |
Section |
|
an |
Auto Null |
2.2 |
|
as |
Assembler/Disassembler |
2.3 |
|
bf |
Block of Memory Fill |
2.4 |
|
bm |
Block of Memory Move |
2.5 |
|
br |
Breakpoint |
2.6 |
|
bs |
Block of Memory Search |
2.7 |
|
ct |
Counter Test |
2.8 |
|
dac16t |
DAC16, ADC8 Test |
2.9 |
|
dc |
Data Conversion |
2.10. |
|
go |
Go |
2.11 |
|
?/he/help |
Help |
2.12 |
|
io |
IO Access |
2.13 |
|
lo |
Load S-Records |
2.14 |
|
md |
Memory Display |
2.15 |
|
mm |
Memory Modify |
2.16 |
|
mt |
Memory Test |
2.17 |
|
rd |
Register Display |
2.18 |
|
rm |
Register Modify |
2.19 |
|
sd |
Symbol Define |
2.20. |
|
test |
Test – Diagnostic |
2.21 |
|
tm |
Transparent Mode |
2.22 |
|
tr |
Trace |
2.23 |
The command line is composed of:
<COMMAND IDENTIFIER>: specifies which command (ex. br )
<SP>: at least one space
OPTION LIST: an option may use delimiter(-) with options if non-default
options are allowed and are being used. (ex.
[<-r>])
<SP>: at least one space
ARGUMENTS: any required arguments specified by the command separated
by commas/spaces as shown in the command
description. (ex. <ADDR,ADDR>)
where “<>” enclose symbols that are required on the command line
and “[<>]” enclose symbols that are optional on the command
line. Note, in the above examples the -r option was an example of an
optional symbol and that the ADDR fields are requirements on the
command line. The options available with a given command are fully
explained in the section that describes that command. The monitor is
not case sensitive to input from the terminal. All input from the
terminal is converted to lower case before being used internally (except
text following a text delimiter; See TEXT below). The arguments of a
given command are described using the following symbols:
<EXP>: An expression can be any numerical expression which may
be evaluated using only the arithmetic + and – operators.
Ex. 1000
Ex. 1+3
Note: Numbers may be preceded with a base designator if the default
(hexadecimal) is not desired. These designators are shown below in Table
2.2:
TABLE 2.2 BASE DESIGNATORS
|
Base |
Designator |
|
Hexadecimal |
$ |
|
Decimal |
& |
|
Octal |
@ |
|
Binary |
% |
<ADDR>: Address field is any valid expression. Note: This
address field should not be confused with the source and
destination addresses required using the Assembler/Disassembler.
<COUNT>: Count field is any valid expression preceded by a COUNTDEL (count delimiter ie. “:”)
Ex. :100
<RANGE>: A range of memory locations denoted by either ADDR,ADDR or ADDR:COUNT.
Ex. 0,100
Ex. 0:50
<TEXT>: An ASCII string of up to 255 characters preceded by a TEXTDEL (text delimiter i.e.. “;”)
Ex. ;sample text
<SIZE>: Can be either:
byte (8 bit) ====> -b
word (16 bit ) ====> -w
long (32 bit) ====> -l
**Note: ====> stands for “is represented by” or “returns”
<DATA>: Data can be any valid expression.
<MASK>: A mask may be any expression. After evaluating the
expression 0’s represent don’t cares. A mask is sometimes
used to qualify
<DATA>. See section 2.6 for an example of usage.
2.2 AUTO NULL
an <AXIS>
The auto null function performs a nulling of the zero offset of the 16bit DAC of the axis specified.
Examples of use:
an 1 ( nulls axis one )
2.3 ASSEMBLER/DISASSEMBLER
as <ADDR>
The assembler/disassembler is invoked at the address given and
disassembles the object code at that location. Use of the
Assembler/Disassembler is fully described in chapter 3.
2.4 BLOCK OF MEMORY FILL
bf [<SIZE>] <RANGE> <DATA>
The block fill command fills the specified range of memory with the
data listed. If the size option is not specified the default size used
is word. If a multiple of the <SIZE> of <DATA> does not
fit evenly in the <RANGE> the command leaves the last partial
word or long word unchanged.
Examples of use:
bf 100,110 &10
bf 100:8 &10
bf -w 100:8 a
bf -l 100,110 a000a
**Note: All of these examples perform the same memory fill.
(ie. $00000100: $000a $000a $000a $000a $000a $000a
$0000010C: $000a $000a $0000 $0000 $0000 $0000 )
2.5 BLOCK OF MEMORY MOVE
bm [<SIZE>] <RANGE> <ADDR>
The block move command allows the user to copy segments of memory to
different locations in memory. The execution of this command does not
destroy the original version unless the location moved to <ADDR>
is within the range <RANGE> of the code being copied. The size
option is only available when range is described as
<ADDR>:<COUNT> . If range is being described with the
<ADDR>,<ADDR> mode the size defaults to byte. The size
field represents the size transfer that is used to accomplish the memory
move.
Examples of use:
bm 1000,2000 10000
bm 1000:800 10000
bm -l 1000:400 10000 **Note: This variation executes the fastest
**Note: All of these examples perform the same memory move.
2.6 BREAKPOINT
br
br <ADDR>
br <ADDR> <:COUNT>
br -r [<ADDR>]
br -r
The breakpoint command allows the user to list, insert or delete
breakpoints in the target code. This allows the user to stop executing a
program and return to the monitor environment when the specified
<ADDR> is prefetched. The different uses of this command are
summarized below:
br list all known breakpoints
br <ADDR> insert a breakpoint at this address
br <ADDR> <:COUNT> insert a breakpoint at this address, however, return to the monitor environment only after encountering the
breakpoint <COUNT> number of times.
br -r [<ADDR>] remove the breakpoint at this address
br -r remove all breakpoints
2.7 BLOCK SEARCH
bs [<SIZE>] <RANGE> <DATA>
bs [<SIZE>] <RANGE> <DATA> <MASK>
The block search command allows the user to find a specific pattern
within memory. The search area may extend beyond the <RANGE>
specified if a pattern is started within <RANGE>. There are two
primary types of searches:
bs [<SIZE>] <RANGE> <DATA> searches the range for an exact match of <DATA>.
bs [<SIZE>] <RANGE> <DATA> <MASK> searches
the range for any pattern that matches <DATA>
where there is a “1” in the binary representation of the
mask.
Ex. With memory at location $100 as shown below, executing
“bs 100,118 $1234 $ffbf” ====>
Starting address: $00000100
Ending address: $00000117
Found at: $00000110:$1234
Found at: $00000114:$1274
Memory for the example above:
$00000100: $0000 $0000 $0000 $0000 $0000 $0000
$0000010C: $0000 $0000 $1234 $0000 $1274 $0000
2.8 COUNTER TEST
ct
The counter test command performs a diagnostic test on the 4 axis counters and pass/fail information is returned.
2.9 DAC16, DAC8 TEST
dac16t <AXIS #>
The dac16t command performs a diagnostic test of the 16bit DAC and the
8 bit ADC for the axis specified by using the diagnostic wrap around
capability of the UIMC. Pass/fail information is returned.
2.10 DATA CONVERSION
dc <EXP>
The data conversion command allows the user to evaluate an input
expression and determine its hexadecimal and decimal equivalent.
Examples of use:
**NOTE: The following symbols have been defined earlier in order
to be used in the examples below:
Ex 1. uses /start= 0
Ex 2. uses /start= – $18
Ex 3. uses /finish= 10000 and /start=$10000
(see section 2.17 )
Ex. 1 dc $17+/start ====> $17 = &23
Ex. 2 dc $17+/start ====> UNSIGNED : $FFFFFFFF =
&4294967295 SIGNED
: -$1 = -&1
Ex. 3 dc $/finish-/start ====> $10000 = 65536
2.11 GO go [<ADDR>]
The go command allows the user to execute target programs. If an
address is not specified on the command line then the current PC value
is used. This value is either:
1.) the initialized PC value if no target code has been run.
2.) the last value of the PC used in executing target code.
3.) the value placed into the PC register by a RM command (Register Modify see section 2.16 ).
If an address is included on the command line then the PC is modified
to be the specified addr. and execution begins at this address. In
both cases, the register state that the microprocessor is initialized
to, before executing the target code at this location, can be viewed by
executing a rd command (See section 2.15).
2.12 HELP
? [<symbol>]
he [<symbol>]
help [<symbol>]
The help command allows the user to view a list of allowable commands
and the syntax associated with them. Symbols used to describe the
command usage can be looked up also.
Examples of use:
?,he or help ====> return a complete listing of all commands with usage
? as ====> AS <addr> help addr ====> <number>
he number ====> <hex> || <dec> || <oct> || <bin> || <symbol>
** Note: <number> may also be an expression
2.13 IO ACCESS
io
The IO access command allows the user to access various options of the
UIMC motion controller. Upon issue of the IO command the user will be
presented with the following list of choices:
I/O Interface Menu:
i – View Inputs ( Debugger displays current state of the digital inputs)
o – Modify Outputs ( Debugger allows user to modify outputs)
c – Modify Counters ( Debugger displays current state of counters and allows user to modify the contents )
r – Modify Relays ( Debugger allows user to modify the state of the relays )
x – Modify 16bit DACs ( Debugger allows user to modify the 16bit DAC outputs )
y – Modify 8bit DACs ( Debugger allows user to modify the 8bit DAC
outputs ) z – View 8bit ADCs ( Debugger displays current state of
ADCs )
After selection of one of the above the user will be prompted appropriately.
2.14 LOAD S-RECORD
lo [<port>] [<OFFSET>] ;<TEXT>
The load command allows the user to download S-Records from the host
system. If an offset is present on the command line then the target
address is the offset added to the address determined by the S-Record.
In normal mode the command sends the <TEXT> beyond the “;” to the
HOST. It then expects the HOST to begin sending S-Records to the
terminal. If the ‘t’ option is used no ; is necessary and the debugger
expects the terminal to begin sending an S-Record.
Examples of use:
lo ;cat ubug.mx
**Note: The “cat” command is a UNIX command that concatenates
and then prints the specified files using standard output.
This effectively sends the contents of the file to the terminal. The
monitor then loads the contents of the S-Records in the file to
the addresses determined by the S-Records via the Host port.
.
lo a0000 ;cat ubug.mx
**Note: This command downloads the same S-Record file used in
the first example except that it is down loaded into memory at the
address determined by the S-Record + $a0000 (i.e.. the offset is
added in).
lo t
**Note: This command uses ‘t’ for terminal for the S-Record load port.
2.15 MEMORY DISPLAY
md [<SIZE>] <addr>
md [<SIZE>] <RANGE>
md -di <addr>
The memory display command allows the user to view memory. The size
used to display the memory is determined by the size option. If no
option is used the default is word. If the range exceeds the screen
capacity, output to the screen is suspended until any key is pressed.
Examples of use:
md -l 100,110
md -l 100:4
md 100:8
md -di 100
**Note: This command begins to disassemble the memory at
this location.
2.16 MEMORY MODIFY
mm [<SIZE>] [<verify>] <ADDR>
mm <CONTROL>
The memory modify command allows the user to view and modify memory.
The size used to display the memory is determined by the size option.
The size default is word. The write only option is determined by the
verify option. The default is read/write and an ‘n’ is used for write
only. Memory is displayed beginning at the address specified followed
by a ‘?’ prompt. The user may type in an <exp> to replace that
memory value or hit return to view the next memory value. To exit the
command, type “. <cr>” (period <carriage return>). Other
available <CONTROL> characters are summarized below in Table 2.3:
TABLE 2.3 CONTROL CHARACTERS
Control Character Designator
– <EXP> backup <EXP> memory locations
+ <EXP> advance ” ” “
= <NUMBER> do not advance Will not advance to next memory location
Examples of use:
mm -l 100 ====> $00000100 $00000000 ?
mm 100 ====> $00000100 $0000 ?
(i.e.. uses the default “word” size)
mm n 100 ====> $00000100 ?
(i.e.. does not read from location)
2.17 MEMORY TEST
mt <start> <finish>
The memory test performs a bit by bit memory test on the range of RAM specified and pass/fail information is returned.
2.18 REGISTER DISPLAY
rd
rd -f Note: Coprocessor registers displayed if present
The register display command allows the user to view the contents of the registers of the mpu/fpu.
2.19 REGISTER MODIFY
rm [<REGISTER> [<New Value>]]
The RM command allows the user to the modify the contents of the registers of the mpu.
Examples of use:
To change the PC value:
rm pc 3000 ====> changes the PC value to 3000
or
rm ====> Which register?
pc ====> PC=00004000NEW VALUE?
3000 ====> changes the PC value to 3000
or
rm pc ====> PC=00004000NEW VALUE?
3000 ====> changes the PC value to 3000
2.20 SYMBOL DEFINE
sd [<SYMBOL> <EXP>]
sd -r <SYMBOL>
The symbol define command allows the user to define symbols. These
symbols can then be used within expressions. Using a symbol in an
expression results in the symbol being substituted with the expression
that was used to define it. Once defined, the symbol is available
until the monitor is reset. If a symbol is defined multiple times the
monitor uses the first definition.
Examples of use:
sd ====> lists which symbols are already known
sd /reset 10000 ====> defines /reset to be $10000 whenever it is
used in an expression. sd /start -$18 ====> defines
/start to be -$18 whenever it is used in an expression. sd -r
/start ====> removes the first definition of /start from the
list
**NOTE: Symbols that have been defined using the sd command
can be used in any expressions. An example of this is to use a
symbol defined to enter source code while in the
assembler (i.e.. bsr /startsub after defining /startsub).
2.21 TEST – DIAGNOSTIC
test [<LOOP #>]
The test command initiates a series of diagnostic test consisting of
an auto null function, counter test, RAM test, and DAC16/ADC8 test and
returns pass/fail information. The number of times the diagnostic test
are performed is determined by the loop # specified. If no loop # is
specified the command cycles infinitely.
2.22 TRANSPARENT MODE
tm
The transparent mode command places the user into transparent mode by
establishing a software connection between the HOST and TERMINAL.
Transparent mode preempts normal communication between the TERMINAL and
the debugger. While in this mode all keyboard input is relayed directly
to the HOST. HOST responses, in turn, are returned to the screen.
Typing a CTRL A returns the user to the monitor environment.
2.23 TRACE
tr [<ADDR>][<COUNT>]
The trace command allows the user to trace though target code and
observe the registers after executing the command line. If count is
specified then the microprocessor executes <COUNT> number of
instructions before returning to the monitor environment. Trace begins
from the <ADDR> listed on the command line or from the current PC
if an <ADDR> is not included. The trace instruction can be
continued by hitting a carriage return. To exit, a “.” must be entered.
Examples of use:
tr ====> traces 1 instruction from the current PC
tr :10 ====> executes 10 instructions past the current PC then returns to
the monitor environment
tr 1000====> traces 1 instruction starting at $1000
3.0 USING THE ONE-LINE ASSEMBLER/DISASSEMBLER
3.1 INTRODUCTION
Included in the UBUG monitor is an assembler/disassembler command
which can be executed as detailed in the previous section. This
assembler/disassembler allows the user to modify target code. Each
source line that is typed in by the user is entered into memory at the
displayed address. This line is then disassembled so that the user can
verify the actual code entered into memory. If no change is desired a
<CR> moves the user to the next opcode in memory.
CAUTION: This assembler/disassembler does not insert code into the
source program; it merely overwrites memory at that location. As a
result, a program patch that requires code insertion can be accomplished
by first Block Moving code to free up an insertion area and then
inserting into that area.
3.2 ENTERING AND MODIFYING SOURCE PROGRAM
In order to enter and modify source code, the as command should be
executed as detailed in section 2.2 (i.e.. as <ADDR>). This
places the user into the Assembler/Disassembler routine.
Table 3.1 summarizes the commands that can be executed within this routine:
TABLE 3.1 ASSEMBLER/DISASSEMBLER SUB COMMANDS
Command Designator
BACKUP <EXP> – <EXP>
ADVANCE <EXP> + <EXP>
FINISH .
HELP ?
STEP PAST carriage return
DEFINE CONSTANT DC #<EXP>
**Note: Executing a ‘?’ while in the assembler/disassembler returns
the DEVICE that the assembler/disassembler is supporting.
3.3 ENTERING A SOURCE LINE
After executing an as <ADDR> command, the assembler/disassembler
returns with the disassembly of the code found at that location. At
this time the user may execute an assembler command shown in section 3.2
or type in the source line that is to replace the displayed source
code. While entering source the standard MOTOROLA effective addressing
modes are used. These modes are summarized below in Table 3.2:
TABLE 3.2 ASSEMBLER/DISASSEMBLER EFFECTIVE ADDRESSING MODES
Effective Addressing Mode Syntax
Register Direct Dn
Address register direct An
Address register indirect (An)
Address register indirect with Postincrement (An)+
Address register indirect with Predecrement -(An)
Address register indirect with Displacement (d16,An)
Address register indirect with Index (d8) (d8,An,Xn.SIZE*SCALE)
Address register indirect with Index (base disp) (bd,An,Xn.SIZE*SCALE)
Memory indirect Post-indexed ([bd,An],Xn.SIZE*SCALE,od)
Memory indirect Pre-indexed ([bd,An,Xn.SIZE*SCALE],od)
PC indirect with displacement (d16,PC)
PC indirect with index (d8) (d8,PC,Xn.SIZE*SCALE)
PC indirect with index (bd) (bd,PC,Xn.SIZE*SCALE)
PC memory indirect Post-indexed ([bd,PC],Xn.SIZE*SCALE,od)
PC memory indirect Pre-indexed
([bd,PC,Xn.SIZE*SCALE],od) Absolute Short Address
(xxx).W
Absolute Long Address (xxx).L
Absolute Address xxx optimizes (bwl)
Immediate Data #xxx
While using the POST or PRE indexed modes, fields may be skipped by using a comma. An example is shown below:
Ex. andi #12,([,],,) ====> andi.b #$12,([$0,ZA0],ZD0.W*1,$0)
Other examples of source lines are shown below:
Ex. ori.l #12,(a1) ====> ori.l #$12,(a1)
Ex. addq #1,(a1) ====> addq.b #$1,(a1)
There are only limited error screening abilities included within the monitor. Examples of this are shown below:
Ex. jmp (123).w ====> jmp ($123).W
**Note: When executed results in a bus error.
Ex. bsr (123) ====>
ERROR 10:illegal change of flow ===> bsr (123)
Note: The bsr instruction does check for illegal
changes of flow.
NOTE: Flow may not be changed to an odd addr.
Upper digits of data are NOT truncated when a mismatch between size
and immediate data is found if the byte or word size option was
specifically entered. If the long size option is specified and data
exceeds this range then upper digits ARE truncated.
Ex. addi.b #12345678,(a1) ====>
ERROR 11:immediate data/size option error ===> addi.b #12345678,(a1)
Ex. addi.l #123456789,(a1) ====> addi.l #$23456789,(a1)
Ex. addi #123456789,(a1) ====> addi.l #$23456789,(a1)
(defaults to the long option)
truncated————–^
Upper digits of data are truncated on commands that have a limited
field in the opword to store the immediate data. Examples of this are
shown below.
Ex. addq #10,(d0) =====> addq.b #$0,(d0)
Ex. trap #10 =====> trap #$0 input is hex default
Ex. trap #&10 =====> trap #$A
3.4 ENTERING CHANGE OF FLOW INSTRUCTIONS
Since the assembler/disassembler does not use labels, all instructions
that use <label> as an effective addressing mode must have their
displacement determined. If initially unknown, space for this
displacement must be reserved and then the user needs to come back and
enter the displacement. Once the displacement has been determined it
may be entered as shown in the following example:
Ex. In this example the location of the target instruction of a branch
is known to be $100000 and a BRA is needed at location 0. After
executing “AS 0” and obtaining the disassembly found at 0 the user
could type:
BRA 100000 or BRA (100000) or BRA.l #ffffe
The absolute addressing mode can be used if the target address of a
branch is known (as in the first 2 examples) or the displacement (last
example) can be entered using the immediate data addressing mode.
CAUTION: In some instances unexpected results can occur while using
change of flow statements. These instances are summarized below
with examples.
Ex.
1 If the degenerate case of a branch statement is used (i.e..
attempting to use a short branch to branch to the following instruction)
the assembler mistakenly assembles this .b option. However, since the
displacement is zero this is a .w opcode and the disassembler correctly
displays this fact to the user.
$00004000 nop ? bra.b ====> results in an INCORRECT assembly
Ex. 2 If the user attempts to force a particular size branch
statement and the actual branch requires a greater displacement than was
reserved then the assembler prints an error message: “ERR0R 16: OUT OF
DISPLACEMENT RANGE” .
$00004000 nop ?bra.w (100000)
One
way to assure this does not occur is to not enter a size option. This
allows the assembler to choose the correct size for the displacement.
3.5 ENTERING REGISTERS and REGISTER LISTS
The move multiple register instruction (movem) uses a register list as
an effective address. This list may be entered in the following
method:
Ex. a0 ====> single address register
d3 ====> single data register
a0-a3 ====> series of registers
a0-a3/a7 ====> combination of previous examples
a0-a7/d0-d7 ====> all of the registers
If coprocessor support is specified then the floating point registers
can be entered as shown below:
Ex. fp0 ====> single floating point register
fp0-fp2 ====> series of registers
fp0-fp3/fp7 ====> combination of previous examples
Many of the commands require the entering of registers other than data
or address registers. Tables 3.3 show listings of the registers that
are used and the abbreviations accepted by the assembler:
TABLE 3.3 68030 REGISTERS ( MMU Registers not availiable on 68EC030 )
Name Syntax
User Stack Pointer USP
Status Register SR
Condition Code Register CCR
Program Counter PC
Master Stack Pointer MSP
Interrupt Stack Pointer ISP
Vector Break Register VBR
Source Function Code Register SFC
Destination Function Code Register DFC
Cache Control Register CACR
Cache Address Register CAAR
CPU Root Pointer Register CRP
Supervisor Root Pointer Register SRP
Translation Control Register TC
Transparent Translation Register 0 TT0
Transparent Translation Register 1 TT1
MMU Status Register PSR
TABLE 3.4 FLOATING POINT REGISTERS ( Available if coprocessor is present )
Name Syntax
Floating Point Control Register FPCR
Floating Point Status Register FPSR
Floating Point Inst. Address Register FPIAR
Floating Point Data Register FP0-FP7
3.6 ENTERING/EVALUATING FLOATING POINT IMMEDIATE DATA
Floating point immediate data must be entered using a decimal point
with at least one (1) digit in front of the decimal place (even if it
is a ‘0’). Ex. 0.0012. Since the C compiler used was not based on the
draft proposed version of ANSI C the software is incapable of
performing the ‘assembling’ of extended immediate data to extended
precision. The monitor makes the correct conversion up to double
precision and places this result in an extended format. If the
compiler that is being used does conform to allowing a ‘long double’
type then changing the type of the variable ‘weight’ in the allowed
routine (in the asm68.c file) from double to long double should provide
the added precision. Examples of floating point immediate data shown
below:
Ex. fmove.s #5.0,fp0 ====> fmove.s 1_400000_E_2,FP0
The format on the disassembly is integer part_fraction
field_E_exponent field, where the fraction bits represent weighting of
1/2 ,1/4,….etc. from the left to the right. The exponent bits
represent the unbiased power that 2 should be raised to. A conversion to
decimal can be accomplished by evaluating:
integer + evaluated fraction x 2^exponent field
In the above example this equates to:
(1 + .25) x 2^2 = 5.0
NOTE: The monitor uses the round toward zero rounding mode in the assembler when assembling floating point immediate data.
3.7 ENTERING MMU INSTRUCTIONS ( Not available on the 68EC030 )
MMU instruction should NOT be entered with a size descriptor. The assembler defaults to the correct size.
Ex. pmove (a0),tt1 ;asssembles
pmove.l (a0),tt1 ;does not assemble even though the operation
;is a long operation.
