AI/SMT spare parts

Profesional in AI/SMT machine and spare parts of AI/SMT .
1.We have original drawing ,what we can make is almost  the same quality with original spare parts.
2.All the process when manufactured ,our engineer would give guide and test the quality.
3.Only when the qulity is passed will we let the parts into our store.
4.Also we can control our spare parts in a very low price, when control it on a good quality.

AI accessaries4UEDF(J45NAM7Z9K`_OX{N6

Do you want to build a LED SMT line ?

We are especially good at designing special-purpose equipment according to the customer’s requirements. With our effort and hard work, we are becoming one of the experienced and powerful electronic equipment suppliers in China.
The product range covers computer lead-free reflow soldering, computer lead-free wave soldering, complete set of illuminating lamps (Their aging, a dry thread on the light wave spreading t4 t5, t8, tube, ballast aging and led the aging of the inspection and etc), SMT relevant equipment, factory product line, and all kinds of large assembly lines.
PCB assembly LED SMT line LED SMT line

How does SMT electronics assembly work?

Electronics manufacturing using surface-mount technology (SMT) simply means that electronic components are assembled with automated machines that place components on the surface of a board (printed circuit board, PCB).

SMT车间

Electronics manufacturing using surface-mount technology (SMT) simply means that electronic components are assembled with automated machines that place components on the surface of a board (printed circuit board, PCB). In contrast to conventional through-hole technology (THT) processes, SMT components are placed directly on the surface of a PCB instead of being soldered to a wire lead. When it comes to electronic assembly, SMT is the most frequently used process in the industry.

Electronic assembly encompasses not only placing and soldering components to the PCB, but also the following production steps:

  • Applying soldering paste, which is made of tin particles and flux, to the PCB
  • Placing SMT components to the soldering paste on the PCB
  • Soldering the boards with a reflow process.

Applying Soldering Paste

Applying soldering paste is one of the first steps in the SMT assembly process. Soldering paste is “printed” on the boards using the silk-screen method. Depending on the design of the board, different stainless-steel stencils for “printing” the paste onto the board and various product-specific pastes are used. Using a laser cut stainless-steel stencil custom made for the project, the soldering paste to be applied only to the areas where components will be soldered. After the soldering paste is on the boards, a 2D-soldering paste inspection is performed to ensure that the paste is evenly and correctly applied. Once the accuracy of the soldering paste application has been confirmed, the boards are transferred to the SMT assembly line, where the components will be soldered.

AI spare parts、Universal Parts,UIC,TDK.VCD Sequencer.SMT,THT,PCB,PCBA,AI,wave soldering,reflow oven,nozzle,feeder,wave soldering,PCB Assembly, LED, LED lamp, LED display AI spare parts、Universal Parts,UIC,TDK.VCD Sequencer.SMT,THT,PCB,PCBA,AI,wave soldering,reflow oven,nozzle,feeder,wave soldering,PCB Assembly, LED, LED lamp, LED display

Component  Placement and Assembly

The electronic components to be assembled come in trays or reels, which are then loaded into the SMT machine. During the loading process, intelligent software systems ensure that components are not inadvertently switched or misloaded. The SMT assembly machine then automatically removes each component with a vacuum pipette from its tray or reel and places it on its correct position on the board using precise pre-programmed X-Y coordinates. Our machines are capable of assembling up to 25,000 components per hour. After the SMT assembly is completed, the boards are moved on to the Reflow ovens for soldering, which affixes the components to the board.

S-320 pick&place machine

SMT line

Component Soldering

To solder electronic components, we use two different methods, each of which has distinct advantages depending on the order quantity. For series production orders, the Reflow-soldering process is used. During this process, boards are put in a nitrogen atmosphere and are gradually warmed up with heated air until the soldering paste melts and the flux vaporizes, which fuses the components to the PCB. After this stage, the boards are cooled off. As the tin in the soldering paste hardens, the components become permanently affixed to the board and the SMT assembly process is completed.

For prototypes or highly sensitive components, we have a specialized vapor-phase soldering process. In this process, boards are heated until the specific melting point (Galden) of the soldering paste is reached. This allows us to solder at lower temperatures or solder different SMT components at different temperatures depending on their individual soldering temperature profiles.

PastedGraphic-59

AOI and Visual Check

Soldering is the second-to-last step of the SMT assembly process. In order to ensure the quality of the assembled boards, or to catch and correct a mistake, AOI visual inspections are performed for almost all series production orders. Using several cameras, the AOI system automatically checks each board and compares the appearance of each board with the correct, pre-defined reference image. If there are any deviations, the operator of the machine is informed of the potential problem, who then corrects the mistake or pulls the board from the machine for further inspection. The AOI visual check ensures consistency and accuracy in the SMT assembly production process.

Dimensons_floor _layout - A_cmyk

Pay more attention to safety hazard during operating auto machine!

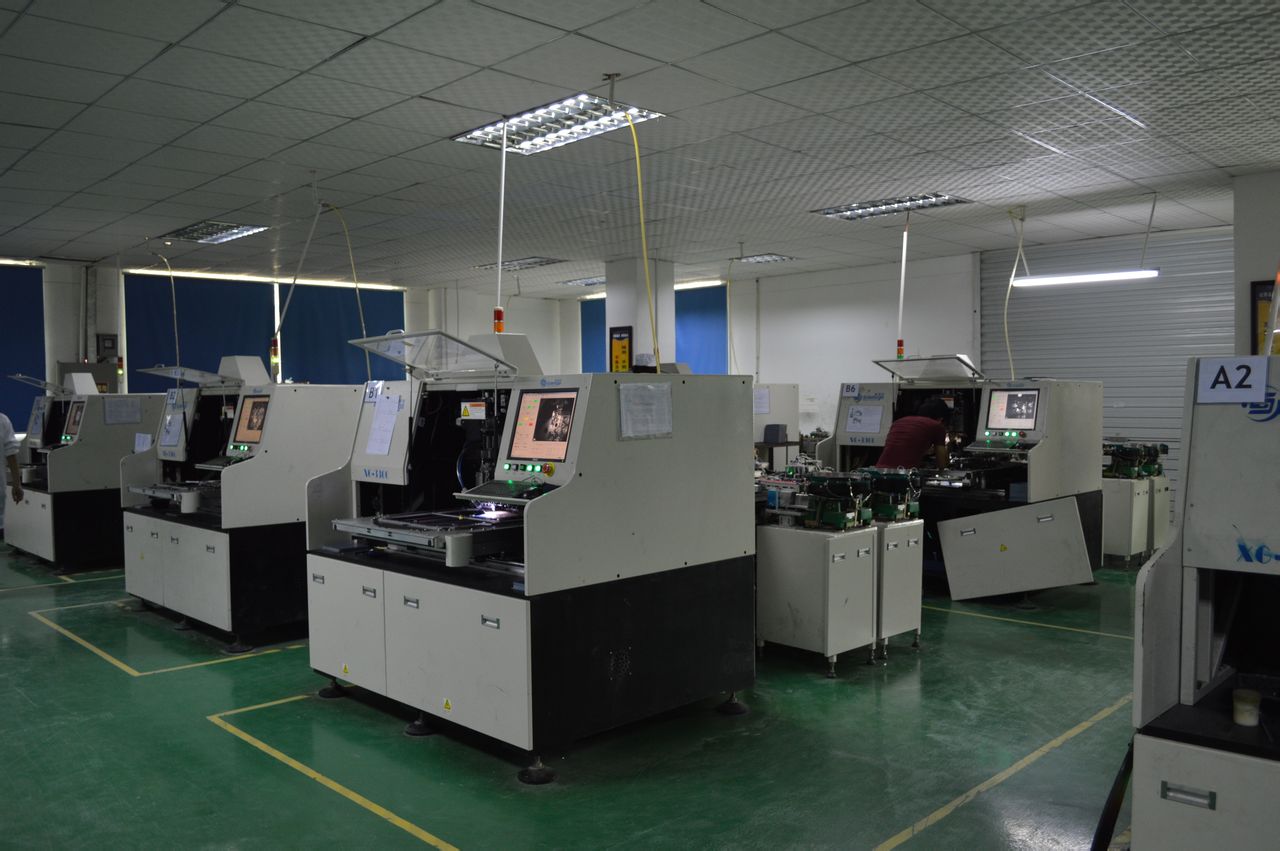

e4dde71190ef76c6420b6a0e9f16fdfaaf51673e (2)







Automation technique is applied to the development of mechanical manufacturing industry ,which  can greatly improve productivity, in other hands, the machinery manufacturing automation technology is currently one of the most valuable in the world of science and technology, it is to promote the development of social productivity and also make people’s life become more quickly, play an important role in improving people’s living standard.

But with the development of mechanical processing manufacturing, also can not avoid artificial operating machinery and equipment, and always heard the sad news, such as workers injury or death when operating the machine.On May 29, a factory ‘s worker body is stuck to the machine unfortunately when operating the machine, while firefighters rushed to the rescue, the women were taken to a hospital successful, but the last,the woman died of his wounds.This let us deep thinking.

So in our SMT/AI industry,every workers must to know the machine security issues and safety guidelines,it‘s very important,we must ensure the safety of workers!

SMT车间











 Security issues and  safety guidelines:

1 Tooling cuff requirements beam, work shoes should be prevented slippery, and can’t wear high heels.

2 When  working alongside the material stack, must press the STOP button bright women scarves.

3 The woman should on long hair to disk, and the men tie to close firmly, prevent into the machine at work.

4 Single machine operation, it is strictly prohibited to many people at the same time.

5 Hands in upper and lower, inside the machine components to use pliers or tweezers (axial element), hands, hands after leaving the plug-in area, then operate the control panel.

6  Must sure to remove all tools sundry machine worktable when start to operate the machine.

7 Work in it is prohibited to put any goods on the worktable, so as not to damage the machine.

8 In the work such as unexplained machine stopped suddenly, may not be reached below the plug-in head.

9 Plug-in mistakes in normal production, may not be reached to the head.

10 For the automatic machine, the machine in normal production, it is forbidden to reach into to send slab bridge.

11 To understand the mesa machine movement area, not collision.

Maybe there are more things we should care,safety is the basis of the production.So please every factory ’s leader pay more attention to the Security issues and the workers must be more care.



35000 CPH ! High Speed SMT pick&Place machine

 S-520 Pick&Place machine
Thickening marble platform,No shaking when working? guarantee the fuselage stability and accuracy !
Core motor adopts imported servo motor, 35000 CPH !
PCB max size: 1200 * 390, meet the demand of market LED diversity !

http://mentalhealthdrugs.com pick&place machine ” href=”//www.slideshare.net/XiaochanLiang/s520-pickplace-machine” target=”_blank”>S-520 pick&place machine from Liang Chan
SMT line
Provide SMT whole line solution

Do you really know how to build a SMT dust-free workshop in LED solution?

Before manufacturing led lights, it’s very important to conduct SMT factory planning, especially for any newly-built SMT factory. New factories have little experience in SMT factory design layout and SMT workshop design so there may be some details lost during the set-up phase. After production begins, discovering problems after the fact can cause unnecessary losses. So why not design your SMT factory layout and plan with these potential issues in mind and prepare in advance? Learn SMT clean mounting workshop production requirements in this article.

LED SMT车间

 SMT workshop production requirements:

1. Workshop bearing capacity, vibration, noise requirements:
Factory ground bearing capacity should be greater than 8 kn/m2.
Vibration should be controlled in less than 70 db, the maximum value of no more than 80db.
The noise should be controlled within 70 dba.
2.  Power supply:
General requirements of single-phase AC220 (220 + / – 10%, 0/60 hz), three-phase AC
380 (380 + / – 10%, 50/60 hz), more than double the power consumption of power supply of power than.
3. Air:
According to the requirement of the equipment configuration of air pressure, can use plant air, and  also be configured individually oil-free compressed air machine, general pressure is greater than 7 kg/cm2.
For clean, dry cleaning the air, so the need for compressed air to oil, dust and water treatment.Made from stainless steel or pressure plastic air duct.
4. Exhaust:
Reflow soldering and wave soldering equipment need exhaust fan.For hot blast stove, exhaust pipe of the minimum flow rate value is 500 cubic feet per minute (14.15 m3 / min).
5. Lighting:
In the ideal of the plant Illumination is 800 ~ 1200 lux, at least not less than 300 lux, when low intensity of illumination, in the inspection, repair, measurement work areas should install local lighting.

6. Work environment:
Factory to keep clean, no dust, no corrosivegas.Production workshop should have cleanliness control, control the cleanliness: the class of 500000.
Production workshop environment temperature to 23 + / – 3 ℃ is the best, average of 17 ~ 28℃,relative humidity is 45% ~ 45% RH.

Save

S600-OF SERIES AUTO INSERT&SURFACE MOUNTING MACHINE

S600-OF SERIES

AUTO INSERT&SURFACE MOUNTING MACHINE

The s-600-of is a revolutionary new concept from southern machinery.
that allows the placement or insertion of both http://tadalafiltablets.net surface mount
and through-hole components.

Nozzle: 6 PCS
?PCB Size:400*360mm
?Speed:12000-15000CPH

?Insert Object:Capacitor,Switch,
Connector, etc.
?Mounting Objet:Standard SMD
CLICK HERE TO SEND ME A EMAIL

How to protect our Earth– Stencil cleaning

[su_heading size=”25″ margin=”10″] More Reasons to Choose the Pneumatic Stencil Cleaner S-1688: [/su_heading]

1.  Zero pollutants from SMT stencil cleaning machine; protects our earth.

2. 2-grade filter for SMT stencil cleaning machine cleaning fluid circulation use.

3. 3 minutes to complete a SMT stencil cleaning cycle.

4. Improves the quality of your electronic products and PCBA welding effect.

5. Saves Energy & Eliminates Fire hazard (no electrical cord).

6. No VOCs, protection of the environment above regulatory standards.

7. Reduces costs on cleaning solutions, as it is recycled back into the closed system.

[su_button url=”mailto: chan@smthelp.net” background=”#00a3b3″ size=”5″]CLICK HERE TO SEND US AN EMAIL[/su_button]

http://www.slideshare.net/Jessicaxiong4/s1688-stencil-cleaner-machine-2016


Save

Save

Save

Save

Save

Save

Save

One fast and safe way cleaning stencil without electricity

Automatic Pheumatic Stencil Cleaner
1, Zero pollutant of SMT stencil cleaning machine, protect our earth.
2, 2 grade filter for SMT stencil cleaning machine cleaning fluid circulation use.
3, 3 minutes to complete a SMT stencil cleaning, improving the quality of your electronic products.
4, Zero power consumption , to save energy.
5,Environmental protection, please use our full pneumatic SMT stencil cleaning machine.
6, Improve PCBA welding effect, use our full pneumatic SMT stencil cleaning machine.
7, No need electronic power, no fire and detonate caused.

stencil cleaner,stencil cleaning clean2_副本clean1_副本
