LED insertion machine

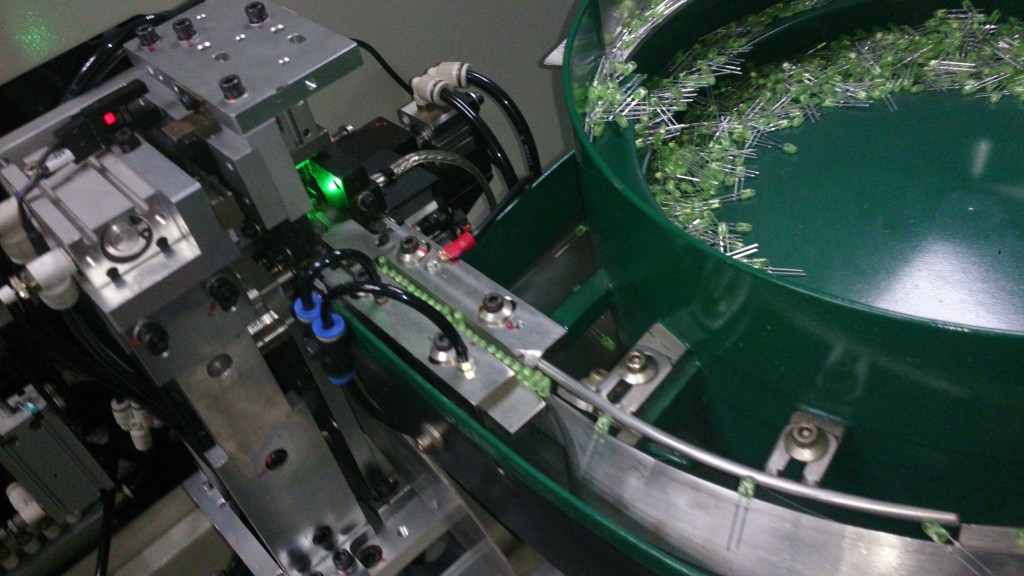

High-speed LED Insertion – S3000 Radial Insertion machine. Bulk feeder machine on the market for LED

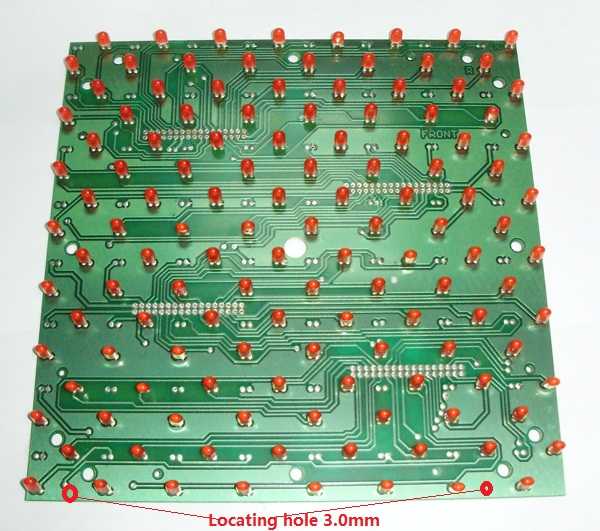

Dedicated 2.5 tooling provides very high density insertion
Large form factor machine for fluorescent tubes (up to 1.2 meter)
Largest inventory of parts http://genericclomid.net available on-line
Low power consumption
Low air consumption – all major sub-systems are servo
Proven platform with stable design
Slotted Clinching for LED Penal
The beautiful solution for led of Light twist,Cast and Huaping on insertion PCB
Direction-folding zero degree pin cutting
Currently ,the monitor of outdoor is using 6380series of Sciencgo insertion machines for mainstream,there are inside and outside shear-foots. Folding degree for 45degree and cutting foot length for 1.0-1.8mm. However they have existed some questions of quality for Light twist,Cast and Huaping etc. But they no true to production for the same order by more than a insertion machine,so “no mixed insertion”.due to over efficient the quality of production and the product efficiency.
1.Arrange of using for Direction-folding zero degree pin cutting:
Direct-folding pin cutting is a “a line mode” pin cutting. Which is use of Sciencgo radial insertion machine, and was professional designed and manufactured for LED out-monitor,professional number for 201320823140.X ,and basic on 6380series of Sciencgo insertion machine.which out size is same with inside and outside pin cutting.only if have a lit difference on cutting way and instruction designing.so the direct-folding zero degree pin cutting can be used for any insertion machine to PCB
2.”Light-twist” for analysis and solution:
——Seeing follow schematic diagram:
45° inside Folding
45°Inside Folding
Both foot are not a line,so LED is “Light-twist”
——Seeing the schematic diagram of Direct-folding zero degree pin cutting:
zero degree Direct-folding
zero degree folding——Seeing the true efficiency picture:
LED inserted schematic diagram
AI Quality Control
Quality Control
This section describes the machine Performance Certificate, a result of the Quality Acceptance Test (QAT), which is produced for all Axial products.
Every Axial machine is subjected to a Quality Acceptance Test (QAT) before being shipped to its customer. There are 4 phases to a QAT:
Phase I – Pre-Dry Cycle
The appropriate pattern program is loaded and the machine performs a short part run with all motions and mechanisms functioning to check setups and speed. All data is recorded on the machine's event log.
Phase II – Dry Cycle
Can only occur after successful completion of the Pre-Dry Cycle. The machine is run with all motions and mechanisms functioning but without boards or inserting components for a pre-specified period of time. All data is recorded on the machine's event log.
Phase III – Integrity Run (Final Run)
Can only occur after successful completion of the Dry Cycle. This is a simulated production run to check insertion performance and speed. Results are recorded on the machine's event log.
