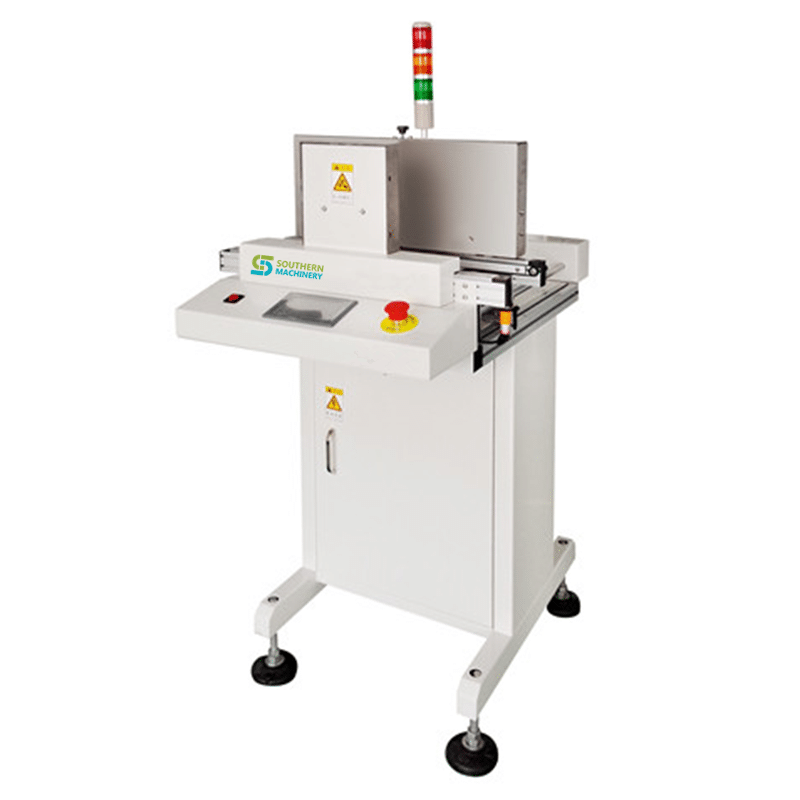

User friendly touch screen control panel;
Uninterrupted loading;
Smooth and parallel with adjustments
Small machine footprint;
Automatically senses stack height
Pass-through function
SMEMA compatible
PCB Size – 50 mm L x 50 mm W to 400 mm L x 350 mm W ( Optional: 460mm width)
PCB Stack Capacity – 400 pcs. (0.6 mm thickness) or 240 mm (9.45″)
stack height PCB Thickness – 0.4 mm min. (0.016″ min.)2.5 mm max. (0.098″ max.)
Conveyor Direction – Left to right (standard) or right to left (optional) operation
Conveyor – 3 mm Edge Belt
Air Supply Pressure – 5-6 Kg/cm2 (70-85 psi)
Air Consumption – 30 l/min (1 CFM)
Voltage – 220 VAC, 50/60 Hz Power 150 VA max.
Machine Dimensions – 728 mm L x 700 mm W x 1127 mm H
Net Weight – 160kg
Shipping Weight – 200 Kg
