描述

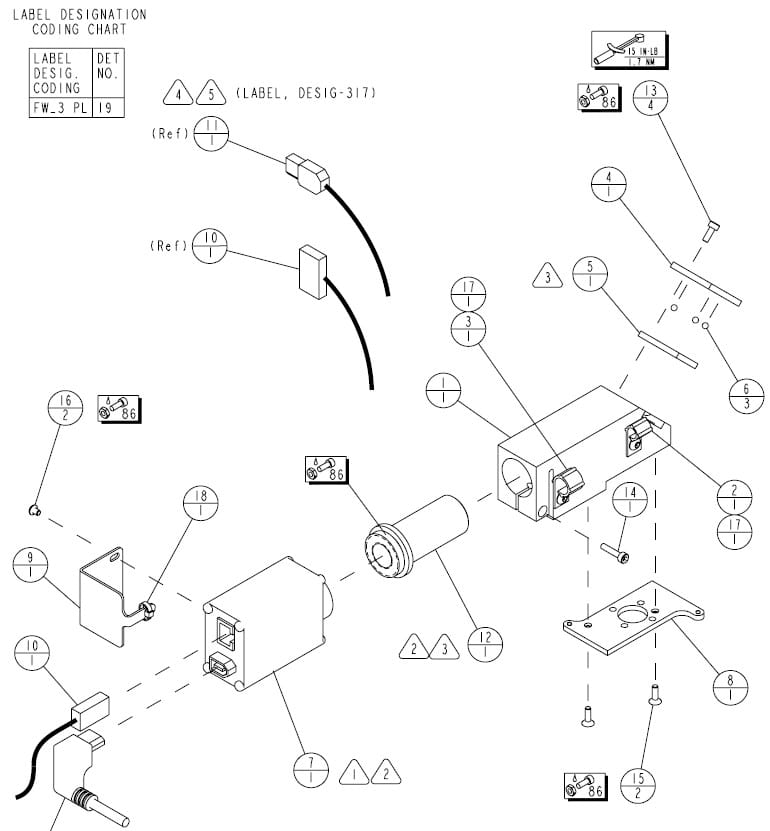

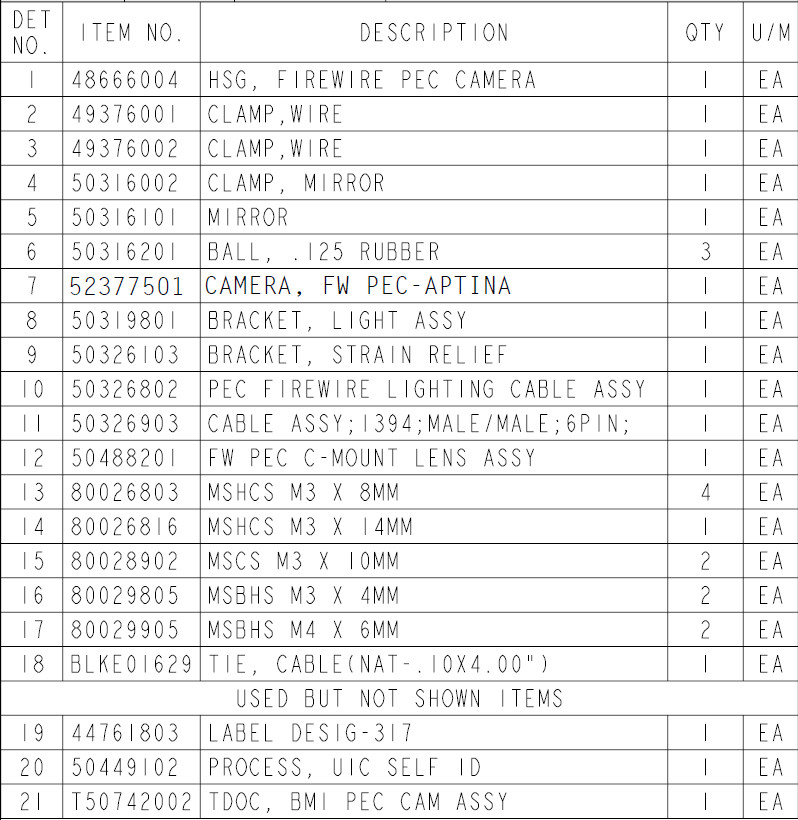

| Beam 1 FW PEC Camera Assembly – T50742101 Rev. E |
| This Document Supports Assembly 50742101 Rev. B |
The PEC (Pattern Error Correction) Camera Assembly, also referred to as the downward looking camera, is comprised of a camera, lens and an illumination module. The PEC camera is used in conjunction with a vision system and specific algorithms to find/locate substrate targets (also referred to as fiducials, pad sites or user defined shapes). Product materials vary from application to application stressing the importance of robust illumination and algorithm schemes.
The PEC illumination offers design merits of wavelength, symmetry, and multiple angles of illumination. Illumination schemes are individually selectable or in concert from the user interface providing optimal contrast from the basic to most challenging of substrate materials. Image accomplishments include but are not limited to: ceramics, organics and polyimide, all of which come in many forms, colors and coatings. Refer to the following chart for a description of the relationship between lighting type and fiducial type:
| Light Type | Optical | Color | Fiducial Type |
| 1 | Inner | Red | Shiny tinned, pads |
| 2 | Outer 1 | Green | Tinned, bare copper, other |
| 3 | Outer 2 | Blue | Polyamide (red/orange flex) |
Maintenance Concept
The following table defines the recommended Maintenance Concept for this assembly. For a more detailed explanation of the Maintenance Concept and its structure refer to the Prerequisite Information/Introduction module.
| Maintenance Procedures | Recommended Frequency | Minimum Skill Required | Spares Kit Required | Tool Kit Required |
| Advanced Support Information | ||||
| Replace the PEC Camera Assembly | As Required | UIC Field Engineer | No | No |
| Replace the PEC Lighting Assembly | As Required | UIC Field Engineer | No | No |
Related Information
Beam 1 PEC Camera Assembly
FW PEC Lighting Assembly
| Beam 1 FW PEC Camera Assembly – T50742101 Rev. E |
| This Document Supports Assembly 50742101 Rev. B |
Replace the PEC Camera Assembly
If the PEC Camera Assembly is damaged or experiences an electrical or optical failure, the camera must be replaced.
|
|
CAUTION |
|---|---|
|
Use caution when handling the PEC Camera and Lighting Assemblies. These assemblies are very sensitive to sudden shock. Also use ESD precautionary measures when handling the PEC Camera and Lighting Assemblies. A properly grounded ESD wrist strap is recommended. |
Prerequisites
Make sure that the following items are available before beginning the procedure:
- A new PEC Camera Assembly
- A calibration kit and a new PEC gray card
Remove the PEC Camera Assembly
To remove the faulty PEC Camera Assembly from the head cage, perform the following procedure:
- Power down the machine andperform Lockout/Tagout according to localprocedures.
WARNING – LOCKOUT/TAGOUT The machine must be powered down and your site’s Lockout/Tagout procedure executed during this procedure to ensure personal safety. - Open the access cover.
- Move the beam to a location where the PEC camera can be easily accessed.
- Disconnect the PEC_VIDEO/PWRPL and PEC_LED_CTRPL cables from the Head Cage Interface PCA.
- Remove all cable ties securing the PEC camera cables to the head cage.
- Remove the PEC camera cables from the cable clamps on the bottom of the head cage.
- Remove the screws that secure the PEC lighting to the PEC camera. Let the lighting hang loose from the hole in the carriage plate.
- Disconnect the PEC lighting cable from the PEC lighting. Set aside the PEC lighting.
- Remove the screws that secure the PEC camera to the carriage plate.
- Lift the PEC camera out of the head cage and discard.
Install the New PEC Camera Assembly
To install the new PEC Camera Assembly, perform the following procedure:
- Slide the new PEC camera into the head cage.
- Apply Loctite 222 to the PEC camera mounting screws.
- Install the PEC camera mounting screws and torque to 1,36 Nm (12.0 in-lb.).
- Connect the PEC lighting cable to the PEC lighting.
- Install the PEC lighting to the new PEC camera and secure with the screws removed earlier.
- Route the PEC cables through the cable clamps on the bottom of the head cage.
- Connect the PEC_VIDEO/PWRPL and PEC_LED_CTRPL cables to the Head Cage Interface PCA.
- Install new cable ties to secure the PEC cables to the head cage. Do not over-tighten the cable ties.
- Close the access cover.
- Power up the machine.
Post-Requisites
The following tasks must be performed after completing the procedure:
- For machines running UPS+ 8.x and Cognex PC vision software, update the camera drivers. See the Update the Camera Drivers help topic in Voyager.
- Calibrate the PEC camera and lighting. See the PEC Calibration: Camera and Lighting (Multifunction Machines) help topic in Voyager for more information.
Use a 1394 cable connect to PC USB port,then install drivers can check this camera works well or not like a normal IP camera.
Camera Support for VisionPro 5.2
Thursday, February 05, 2009 6:00:04 PM
The following tables describe the cameras and video formats that VisionPro 5.2 supports. The tables are arranged in three sections:
Caution:
The MVS-8000 series hardware manuals list the Cognex camera cables required by each frame grabber or CVM. Cameras must be connected using the Cognex cables shown in the respective hardware manual. Using non-Cognex camera cables could damage your Cognex hardware, your camera, or both, and void your warranty.
Cameras and Camera Lenses
You may purchase cameras for use with your frame grabber through Cognex, or you may use your own compatible cameras. Consult with your Cognex representative for cabling and other requirements if you plan to use nonstandard cameras. Failing to do so may affect the warranty coverage on your frame grabber.
In the following tables, the term rapid reset means the camera resets the sync signal the instant a request for an image arrives.
Special Camera Settings and Additional Information
Some cameras require special settings or have have limitations that you should be aware of. You can find information about settings and limitations in the hardware manual for your frame grabber or in the Camera Configuration Files (CCFs) for the video format you are using. In the following tables cameras that require special settings are marked with an asterisk (*).
The Camera Configuration Files are named according to camera manufacturer, camera model, size, and technology. The CCFs are regular text files, with the ccf extension. You can use any text editor to examine them. The contents and parameters inside the file may not be changed otherwise they will no longer function. The comment section at the beginning of each file describes the camera mode of operation, setup requirements, and cables needed.
You can find the Camera Configuration Files in the %VPRO_ROOT%\bin directory. If you are running a vision application, you must quit and restart your application for the changes to take effect.
Supported Cameras by Platform
The following tables show the supported cameras arranged by platform.
Click the vendor name to see a list of video formats that vendor’s cameras support.
Click the camera model to see a description of the camera.
1394 DCAM
| Manufacturer | Model | Video format | Cable Configuration |
|---|---|---|---|
| Allied Vision Technologies | Dolphin F-201B | AVT F201b 1628×1236 IEEE1394 (mono, 12fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
| Marlin F-033B | AVT F033B 656×494 IEEE1394 (mono, 74fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
|
| Marlin F-033C | AVT F033C 640×480 IEEE1394 (raw8, 74fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
|
| Marlin F-046B | AVT F046B 780×582 IEEE1394 (mono, 53fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
|
| Marlin F-145B2 | AVT F145B2 1392×1040 IEEE1394 (mono, 10fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
|
| Marlin F-145B2-15fps | AVT F145B2-15fps 1392×1040 IEEE1394 (mono, 15fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
|
| Marlin F-146C | AVT F146C 1390×1036 IEEE1394 (raw8, 17fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
|
| Oscar F-510C | AVT OscarF510C 2588×1958 IEEE1394 (mono, 3fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
|
| Pike F-421B | AVT F421B 2048×2048 IEEE1394 (mono, 15fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
|
| Stingray F-146B | AVT F146B 1392×1040 IEEE1394 (mono, 17fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
|
| Basler | A102f | Basler A102f 1392×1040 IEEE1394 (mono, 15fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
| A311f | Basler A311f 640×480 IEEE1394 (mono, 74fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
|
| A312f | Basler A312f 768×580 IEEE1394 (mono, 53fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
|

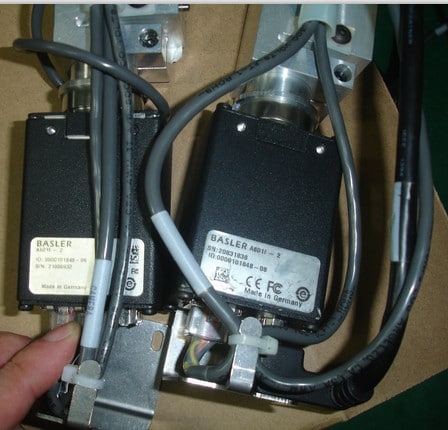

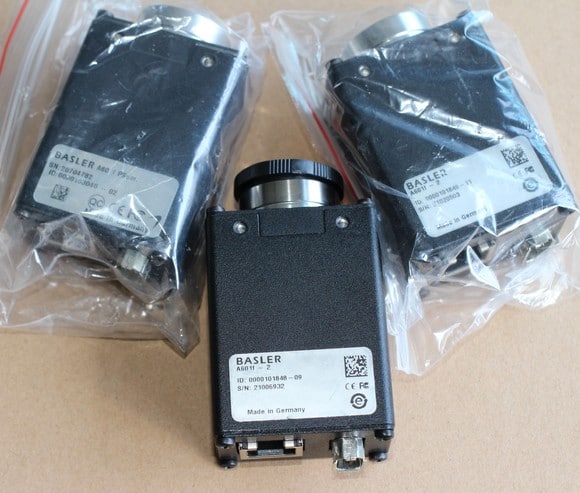

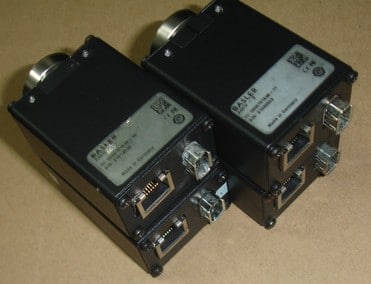

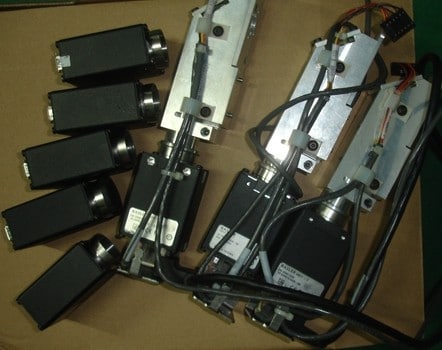

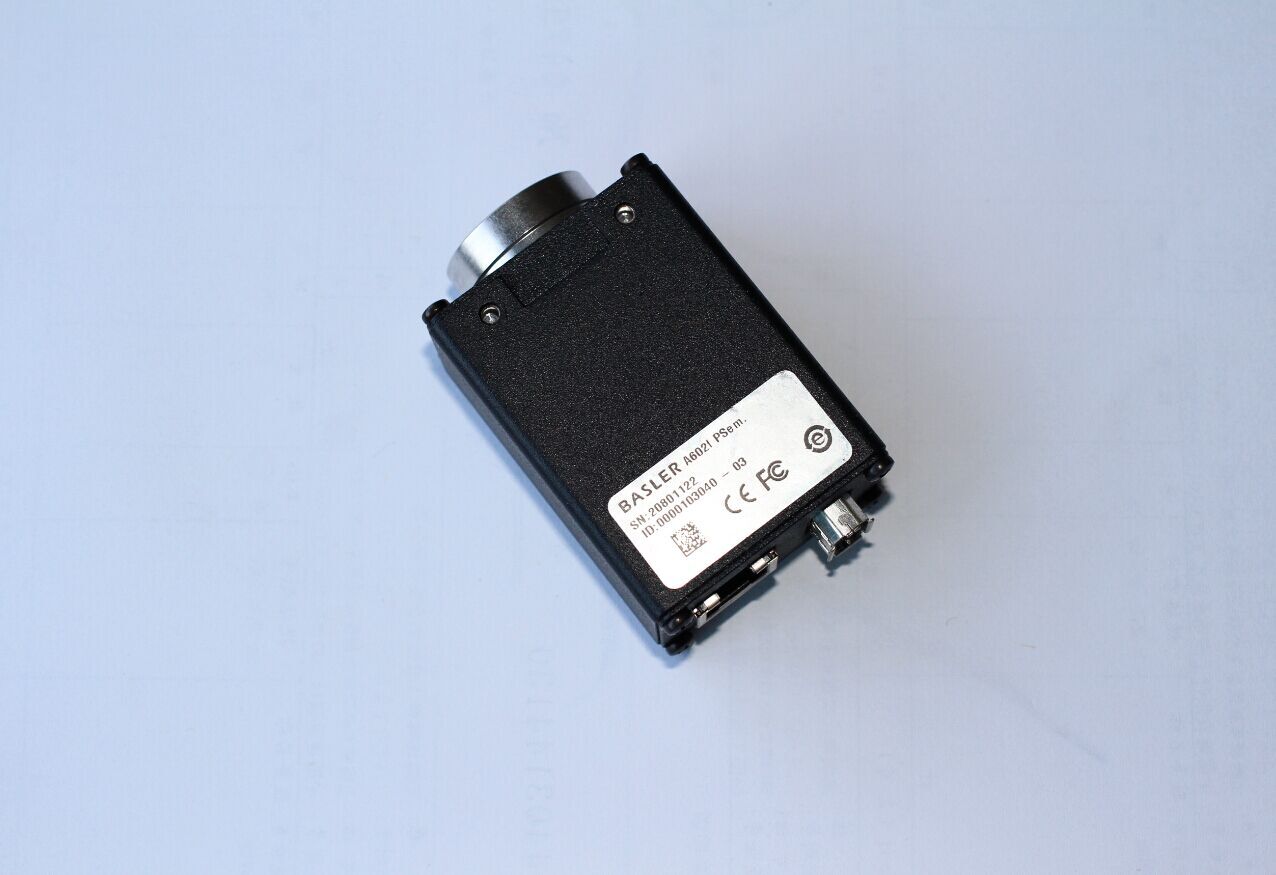

| A601f | Basler A601f 640×480 IEEE1394 (mono, 60fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
|
| Basler A601f 640×480 IEEE1394 (mono, 60fps, shutter-hw-triggermode0, centered) CCF |
Standard Cable 6-pin 1394a cable |
||
| Basler A601f 640×480 IEEE1394 (mono, 60fps, shutter-hw-triggermode0, mirrored, centered) CCF |
Standard Cable 6-pin 1394a cable |
||
| A602fc | Basler A602fc 640×480 IEEE1394 (raw8, 100fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
|
| A622f | Basler A622f 1024×1024 IEEE1394 (mono, 31fps, shutter-hw-triggermode0, centered) CCF |
Standard Cable 6-pin 1394a cable |
|
| Basler A622f 1280×1024 IEEE1394 (mono, 25fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
||
| A631f | Basler A631f 1392×1040 IEEE1394 (mono, 18fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
|
| A631fc | Basler A631fc 1386×1038 IEEE1394 (raw8, 18fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
|
| A641f | Basler A641f 1624×1236 IEEE1394 (mono, 14fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
|
| A641fc | Basler A641fc 1622×1232 IEEE1394 (raw8, 14fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
|
| scout scA1000-30fc | Basler scA1000-30fc 1032×776 IEEE1394 (raw8, 30fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
|
| scout scA1000-30fm | Basler scA1000-30fm 1032×778 IEEE1394 (mono, 30fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
|
| scout scA1600-14fc | Basler scA1600-14fc 1624×1232 IEEE1394 (raw8, 14fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
|
| scout scA1600-14fm | Basler scA1600-14fm 1624×1236 IEEE1394 (mono, 14fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
|
| scout scA640-70fc | Basler scA640-70fc 640×480 IEEE1394 (mono, 30fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
|
| Basler scA640-70fc 640×480 IEEE1394 (raw8, 30fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
||
| Basler scA640-70fc 658×490 IEEE1394 (mono, 70fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
||
| Basler scA640-70fc 658×490 IEEE1394 (raw8, 70fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
||
| scout scA640-70fm | Basler scA640-70fm 640×480 IEEE1394 (mono, 30fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
|
| Basler scA640-70fm 658×494 IEEE1394 (mono, 70fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
||
| scout scA640-74fc | Basler scA640-74fc 658×490 IEEE1394 (raw8, 74fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
|
| Generic 1394 DCAM | Generic | Generic 1394DCAM 1024×768 IEEE1394 (mono, 15fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
| Generic 1394DCAM 1024×768 IEEE1394 (mono, 30fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
||
| Generic 1394DCAM 1024×768 IEEE1394 (mono, 60fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
||
| Generic 1394DCAM 1280×960 IEEE1394 (mono, 15fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
||
| Generic 1394DCAM 1280×960 IEEE1394 (mono, 30fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
||
| Generic 1394DCAM 1280×960 IEEE1394 (mono, 7.5fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
||
| Generic 1394DCAM 1600×1200 IEEE1394 (mono, 15fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
||
| Generic 1394DCAM 1600×1200 IEEE1394 (mono, 3.75fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
||
| Generic 1394DCAM 1600×1200 IEEE1394 (mono, 30fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
||
| Generic 1394DCAM 1600×1200 IEEE1394 (mono, 7.5fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
||
| Generic 1394DCAM 640×480 IEEE1394 (mono, 120fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
||
| Generic 1394DCAM 640×480 IEEE1394 (mono, 15fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
||
| Generic 1394DCAM 640×480 IEEE1394 (mono, 30fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
||
| Generic 1394DCAM 640×480 IEEE1394 (mono, 60fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
||
| PixeLINK | PL-A741 | Pixelink PL-A741 1024×1024 IEEE1394 (mono, 28fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
| PL-A781 | Pixelink PL-A781 2208×3000 IEEE1394 (mono, 4.5fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
|
| PL-A782 | Pixelink PL-A782 2208×3000 IEEE1394 (raw8, 4.5fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
|
| Pixelink PL-A782 2208×3000 IEEE1394 (raw8, 4.5fps, shutter-hw-triggermode0, streaming-on) CCF |
Standard Cable 6-pin 1394a cable |
||
| Point Grey Research | Dragonfly Express | PGR DX-BW 640×480 IEEE1394 (mono, 200fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
| Flea FLEA-BW | PGR FLEA-BW 640×480 IEEE1394 (mono, 60fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
|
| Flea FLEA-COL | PGR FLEA-COL 640×480 IEEE1394 (raw8, 60fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
|
| Flea FLEA-HIBW | PGR FLEA-HIBW 1024×768 IEEE1394 (mono, 32fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
|
| Flea FLEA-HICOL | PGR FLEA-HICOL 1020×764 IEEE1394 (raw8, 32fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
|
| Flea2 FL2-03S2C | PGR FLEA2-COL 646×484 IEEE1394 (raw8, 80fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
|
| Flea2 FL2-03S2M | PGR FLEA2-BW 648×484 IEEE1394 (mono, 80fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
|
| Flea2 FL2-08S2C | PGR FLEA2-HICOL 1024×770 IEEE1394 (raw8, 32fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
|
| Flea2 FL2-08S2M | PGR FLEA2-HIBW 1024×770 IEEE1394 (mono, 32fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
|
| Flea2 FL2-14S3C | PGR FLEA2-14SC 1390×1032 IEEE1394 (raw8, 16fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
|
| Flea2 FL2-14S3M | PGR FLEA2-14SM 1390×1032 IEEE1394 (mono, 16fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
|
| Flea2 FL2-20S4C | PGR FLEA2-20SC 1620×1224 IEEE1394 (raw8, 14fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
|
| Flea2 FL2-20S4M | PGR FLEA2-20SM 1624×1224 IEEE1394 (mono, 14fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
|
| Grasshopper GRAS-20S4C | PGR GRAS-20SC 1622×1222 IEEE1394 (raw8, 16fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
|
| PGR GRAS-20SC 1622×1222 IEEE1394 (raw8, 30fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
||
| Grasshopper GRAS-20S4M | PGR GRAS-20SM 1624×1224 IEEE1394 (mono, 16fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
|
| PGR GRAS-20SM 1624×1224 IEEE1394 (mono, 30fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
||
| Grasshopper GRAS-50S5C | PGR GRAS-50SC 2444×2044 IEEE1394 (raw8, 12fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
|
| PGR GRAS-50SC 2444×2044 IEEE1394 (raw8, 6fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
||
| Grasshopper GRAS-50S5M | PGR GRAS-50SM 2448×2048 IEEE1394 (mono, 12fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
|
| PGR GRAS-50SM 2448×2048 IEEE1394 (mono, 6fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
||
| Scorpion SCOR-14SOM | PGR SCOR-14SOM 1392×1032 IEEE1394 (mono, 17fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
|
| Scorpion SCOR-20SOC | PGR SCOR-20SOC 1624×1228 IEEE1394 (raw8, 15fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
|
| Scorpion SCOR-20SOM | PGR SCOR-20SOM 1628×1228 IEEE1394 (mono, 15fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
|
| Toshiba Teli | CSB4000F-10 | Teli CSB4000F-10 2000×2000 IEEE1394 (mono, 7fps, shutter-hw-triggermode0, WOI) CCF |
Standard Cable 6-pin 1394a cable |
| Teli CSB4000F-10 2008×2044 IEEE1394 (mono, 7fps, shutter-hw-triggermode0) CCF |
Standard Cable 6-pin 1394a cable |
||
| CSFV90CC3 | TELI CSFV90CC3 638×478 IEEE1394 (raw8, 95fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
|
| TELI CSFV90CC3 640×480 IEEE1394 (raw8, 95fps, shutter-hw-triggermode0) CCF |
Standard Cable 9-pin 1394b cable |
MVS-8100L
| Manufacturer | Model | Video format | Cable Configuration |
|---|---|---|---|
| JAI | TM-6CN | PULNiX TM-6CN 760×574 |
Standard Cable 300-0264 |
| TM-7EX | Pulnix TM7EX 640×240 |
Standard Cable 300-0155 |
|
| Pulnix TM7EX 640×480 |
Standard Cable 300-0155 |
||
| Sony | XC-75 | Sony XC75 640×240 |
Standard Cable 300-0181 |
| Sony XC75 640×480 |
Standard Cable 300-0181 |
||
| XC-75CE | Sony XC75CE 760×287 |
Standard Cable 300-0181 |
|
| Sony XC75CE 760×574 |
Standard Cable 300-0181 |
||
| XC-ST50 | Sony XC-ST50 640×240 |
Standard Cable 300-0181 |
|
| Sony XC-ST50 640×480 |
Standard Cable 300-0181 |
||
| XC-ST50CE | Sony XC-ST50CE 760×287 |
Standard Cable 300-0181 |
|
| Sony XC-ST50CE 760×574 |
Standard Cable 300-0181 |
MVS-8100M
| Manufacturer | Model | Video format | Cable Configuration |
|---|---|---|---|
| JAI | TM-6CN | PULNiX TM-6CN 760×574 |
Standard Cable 300-0264 |
| TM-7EX | Pulnix TM7EX 640×240 |
Standard Cable 300-0155 |
|
| Pulnix TM7EX 640×480 |
Standard Cable 300-0155 |
||
| TM-9701 | PULNiX TM-9701 640×480 |
Standard Cable 300-5180 Adapter 300-5179 |
|
| Sony | XC-55 | Sony XC-55BB 640×480 |
Standard Cable 300-0239 |
| XC-56 | Sony XC-55BB 640×480 |
Standard Cable 300-0239 300-0239 |
|
| XC-75 | Sony XC75 640×240 |
Standard Cable 300-0181 |
|
| Sony XC75 640×480 |
Standard Cable 300-0181 |
||
| XC-75CE | Sony XC75CE 760×287 |
Standard Cable 300-0181 |
|
| Sony XC75CE 760×574 |
Standard Cable 300-0181 |
||
| XC-ST50 | Sony XC-ST50 640×240 |
Standard Cable 300-0181 |
|
| Sony XC-ST50 640×480 |
Standard Cable 300-0181 |
||
| XC-ST50CE | Sony XC-ST50CE 760×287 |
Standard Cable 300-0181 |
|
| Sony XC-ST50CE 760×574 |
Standard Cable 300-0181 |
MVS-8500Le
| Manufacturer | Model | Video format | Cable Configuration |
|---|---|---|---|
| CIS | VCC-G20S20 | CIS VCC-G20S20 1356×1039 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
| VCC-G20U20 | CIS VCC-G20U20 1608×1216 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
|
| CIS VCC-G20U20 1610×1218 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| VCC-G20U20H1 | CIS VCC-G20U20H1 1616×1216 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
|
| VCC-G20X30T1 | CIS VCC-G20X30T1 1020×227 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Two Cameras breakout cable Cable 300-0386 Breakout 300-9116R (RoHS) Cable |
|
| CIS VCC-G20X30T1 1020×768 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Two Cameras breakout cable Cable 300-0386 Breakout 300-9116R (RoHS) Cable |
||
| JAI | CV-A1 | Jai CV-A1 1364×1035 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
| Jai CV-A1 1364×341 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| Jai CV-A1 1364×513 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| Jai CV-A1 682×501 IntDrv (rapid-reset, shutter-sw-pulseWidth, binning-enabled) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| CV-A2 | Jai CV-A2 1616×1220 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
|
| Jai CV-A2 1616×408 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| CV-A60C | Jai CV-A60C 760×574 IntDrv CCF |
Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
|
| CV-M1 | Jai CV-M1 1280×1024 IntDrv (rapid-reset, shutter-sw-doublePulse) CCF |
Two Cameras breakout cable Cable 300-0282 Breakout 300-9116R (RoHS) Cable |
|
| CV-M10BXC | Jai CV-M10BXC 760×578 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Two Cameras breakout cable Cable 300-0282 Breakout 300-9116R (RoHS) Cable |
|
| Sentech | STC-A152A | SENT STC-A152A 1356×1040 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
| Sony | XC-55 | Sony XC-55 320×240 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Two Cameras breakout cable Cable 300-0136 Breakout 300-9116R (RoHS) Cable |
| Sony XC-55 640×480 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Two Cameras breakout cable Cable 300-0136 Breakout 300-9116R (RoHS) Cable |
||
| XC-56 | Sony XC-56 640×480 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Two Cameras breakout cable Cable 300-0136 Breakout 300-9116R (RoHS) Cable |
|
| XC-HR50 | Sony XC-HR50 640×100 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
|
| Sony XC-HR50 640×105 IntDrv (rapid-reset, shutter-sw-EDONPISHAII, binning-enabled) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-HR50 640×146 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-HR50 640×237 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-HR50 640×480 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-HR50 640×480 IntDrv CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| XC-HR57 | Sony XC-HR57 640×240 IntDrv (rapid-reset, shutter-sw-EDONPISHAII, binning-enabled) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
|
| Sony XC-HR57 640×480 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| XC-HR58 | Sony XC-HR58 756×574 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
|
| XC-HR70 | Sony XC-HR70 1020×152 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
|
| Sony XC-HR70 1020×220 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-HR70 1020×355 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-HR70 1020×766 IntDrv CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-HR70 1020×768 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| XC-HR90 | Sony XC-HR90 1280×960 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
|
| Sony XC-HR90 1280×960 IntDrv (rapid-reset, shutter-sw-EDONPISHAII, 15FPS) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| XC-ST50 | Sony XC-ST50 320×240 ExtPLLCo CCF |
Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
|
| Sony XC-ST50 320×240 IntDrv (rapid-reset, shutter-sw-SDONPISHA) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-ST50 320×240 IntDrv CCF |
Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-ST50 640×240 ExtPLLCo CCF |
Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-ST50 640×240 IntDrv (rapid-reset, shutter-sw-SDONPISHA) CCF |
Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-ST50 640×240 IntDrv CCF |
Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-ST50 640×480 ExtPLLCo CCF |
Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-ST50 640×480 IntDrv CCF |
Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
||
| XC-ST50CE | Sony XC-ST50CE 380×287 ExtPLLCo CCF |
Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
|
| Sony XC-ST50CE 380×287 IntDrv (rapid-reset, shutter-sw-SDONPISHA) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-ST50CE 380×287 IntDrv CCF |
Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-ST50CE 760×287 ExtPLLCo CCF |
Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-ST50CE 760×287 IntDrv CCF |
Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-ST50CE 760×574 ExtPLLCo CCF |
Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-ST50CE 760×574 IntDrv CCF |
Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
||
| XC-ST70 | Sony XC-ST70 640×480 ExtPLLCo CCF |
Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
|
| Sony XC-ST70 640×480 IntDrv CCF |
Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
||
| Toshiba | IK-53V | Toshiba IK-53V 640×134 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Two Cameras breakout cable Cable 300-0386 Breakout 300-9116R (RoHS) Cable |
| Toshiba IK-53V 640×480 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Two Cameras breakout cable Cable 300-0386 Breakout 300-9116R (RoHS) Cable |
||
| IK-54XSL | Toshiba IK-54XSL 640×480 IntDrv (rapid-reset, shutter-hw-random-trigger, exposure-16667) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
|
| Toshiba Teli | CS3951D | Teli CS3951D 1018×768 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
| CS4300B | Teli CS4300B 640×480 IntDrv CCF |
Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
|
| CS8541D | Teli CS8541D 640×227 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Standard Cable 300-0385 |
|
| Teli CS8541D 640×480 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Standard Cable 300-0385 |
||
| Teli CS8541D 640×81 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Standard Cable 300-0385 |
||
| CS8550D | Teli CS8550D 320×240 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
|
| Teli CS8550D 640×480 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| CS8560D | Teli CS8560D 640×480 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
|
| CS8570D | Teli CS8570D 640×240 IntDrv (rapid-reset, shutter-sw-random-trigger, binning-enabled) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
|
| Teli CS8570D 640×480 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| CS8620i | Teli CS8620i 640×480 IntDrv CCF |
Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
MVS-8501
| Manufacturer | Model | Video format | Cable Configuration |
|---|---|---|---|
| CIS | VCC-G20S20 | CIS VCC-G20S20 1356×1039 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
| VCC-G20U20 | CIS VCC-G20U20 1608×1216 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
|
| CIS VCC-G20U20 1610×1218 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| VCC-G20U20H1 | CIS VCC-G20U20H1 1616×1216 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
|
| VCC-G20X30T1 | CIS VCC-G20X30T1 1020×227 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0386 Breakout 300-0230 Breakout cable Cable 300-0386 Breakout 300-0232 Two Cameras breakout cable Cable 300-0386 Breakout 300-9116R (RoHS) Cable |
|
| CIS VCC-G20X30T1 1020×768 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0386 Breakout 300-0230 Breakout cable Cable 300-0386 Breakout 300-0232 Two Cameras breakout cable Cable 300-0386 Breakout 300-9116R (RoHS) Cable |
||
| JAI | CV-A1 | Jai CV-A1 1364×1035 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
| Jai CV-A1 1364×341 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| Jai CV-A1 1364×513 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| Jai CV-A1 682×501 IntDrv (rapid-reset, shutter-sw-pulseWidth, binning-enabled) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| CV-A2 | Jai CV-A2 1616×1220 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
|
| Jai CV-A2 1616×408 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| CV-A60C | Jai CV-A60C 760×574 IntDrv CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
|
| CV-M1 | Jai CV-M1 1280×1024 IntDrv (rapid-reset, shutter-sw-doublePulse) CCF |
Breakout cable with power Cable 300-0282 Breakout 300-0230 Breakout cable Cable 300-0282 Breakout 300-0232 Two Cameras breakout cable Cable 300-0282 Breakout 300-9116R (RoHS) Cable |
|
| CV-M10BXC | Jai CV-M10BXC 760×578 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0282 Breakout 300-0230 Breakout cable Cable 300-0282 Breakout 300-0232 Two Cameras breakout cable Cable 300-0282 Breakout 300-9116R (RoHS) Cable |
|
| Sentech | STC-A152A | SENT STC-A152A 1356×1040 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
| Sony | XC-55 | Sony XC-55 320×240 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0136 Breakout 300-0230 Breakout cable Cable 300-0136 Breakout 300-0232 Two Cameras breakout cable Cable 300-0136 Breakout 300-9116R (RoHS) Cable |
| Sony XC-55 640×480 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0136 Breakout 300-0230 Breakout cable Cable 300-0136 Breakout 300-0232 Two Cameras breakout cable Cable 300-0136 Breakout 300-9116R (RoHS) Cable |
||
| XC-56 | Sony XC-56 640×480 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0136 Breakout 300-0230 Breakout cable Cable 300-0136 Breakout 300-0232 Two Cameras breakout cable Cable 300-0136 Breakout 300-9116R (RoHS) Cable |
|
| XC-HR50 | Sony XC-HR50 640×100 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
|
| Sony XC-HR50 640×105 IntDrv (rapid-reset, shutter-sw-EDONPISHAII, binning-enabled) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-HR50 640×146 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-HR50 640×237 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-HR50 640×480 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-HR50 640×480 IntDrv CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| XC-HR57 | Sony XC-HR57 640×240 IntDrv (rapid-reset, shutter-sw-EDONPISHAII, binning-enabled) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
|
| Sony XC-HR57 640×480 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| XC-HR58 | Sony XC-HR58 756×574 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
|
| XC-HR70 | Sony XC-HR70 1020×152 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
|
| Sony XC-HR70 1020×220 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-HR70 1020×355 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-HR70 1020×766 IntDrv CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-HR70 1020×768 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| XC-HR90 | Sony XC-HR90 1280×960 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
|
| Sony XC-HR90 1280×960 IntDrv (rapid-reset, shutter-sw-EDONPISHAII, 15FPS) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| XC-ST50 | Sony XC-ST50 320×240 ExtPLLCo CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
|
| Sony XC-ST50 320×240 IntDrv (rapid-reset, shutter-sw-SDONPISHA) CCF |
Rapid reset: breakout cable with power Cable 300-0316 Breakout 300-0230 Rapid reset: breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-ST50 320×240 IntDrv CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-ST50 640×240 ExtPLLCo CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-ST50 640×240 IntDrv (rapid-reset, shutter-sw-SDONPISHA) CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-ST50 640×240 IntDrv CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-ST50 640×480 ExtPLLCo CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-ST50 640×480 IntDrv CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
||
| XC-ST50CE | Sony XC-ST50CE 380×287 ExtPLLCo CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
|
| Sony XC-ST50CE 380×287 IntDrv (rapid-reset, shutter-sw-SDONPISHA) CCF |
Rapid reset: breakout cable with power Cable 300-0316 Breakout 300-0230 Rapid reset: breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-ST50CE 380×287 IntDrv CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-ST50CE 760×287 ExtPLLCo CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-ST50CE 760×287 IntDrv CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-ST50CE 760×574 ExtPLLCo CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
||
| Sony XC-ST50CE 760×574 IntDrv CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
||
| XC-ST70 | Sony XC-ST70 640×480 ExtPLLCo CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
|
| Sony XC-ST70 640×480 IntDrv CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
||
| Toshiba | IK-53V | Toshiba IK-53V 640×134 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0386 Breakout 300-0230 Breakout cable Cable 300-0386 Breakout 300-0232 Two Cameras breakout cable Cable 300-0386 Breakout 300-9116R (RoHS) Cable |
| Toshiba IK-53V 640×480 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0386 Breakout 300-0230 Breakout cable Cable 300-0386 Breakout 300-0232 Two Cameras breakout cable Cable 300-0386 Breakout 300-9116R (RoHS) Cable |
||
| IK-54XSL | Toshiba IK-54XSL 640×480 IntDrv (rapid-reset, shutter-hw-random-trigger, exposure-16667) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
|
| Toshiba Teli | CS3951D | Teli CS3951D 1018×768 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
| CS4300B | Teli CS4300B 640×480 IntDrv CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Two Cameras breakout cable Cable 300-0099 Breakout 300-9116R (RoHS) Cable |
|
| CS8541D | Teli CS8541D 640×227 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Standard Cable 300-0385 |
|
| Teli CS8541D 640×480 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Standard Cable 300-0385 |
||
| Teli CS8541D 640×81 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Standard Cable 300-0385 |
||
| CS8550D | Teli CS8550D 320×240 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
|
| Teli CS8550D 640×480 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| CS8560D | Teli CS8560D 640×480 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
|
| CS8570D | Teli CS8570D 640×240 IntDrv (rapid-reset, shutter-sw-random-trigger, binning-enabled) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
|
| Teli CS8570D 640×480 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
||
| CS8620i | Teli CS8620i 640×480 IntDrv CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Two Cameras breakout cable Cable 300-0316 Breakout 300-9116R (RoHS) Cable |
MVS-8504
| Manufacturer | Model | Video format | Cable Configuration |
|---|---|---|---|
| CIS | VCC-G20S20 | CIS VCC-G20S20 1356×1039 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
| VCC-G20U20 | CIS VCC-G20U20 1608×1216 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| CIS VCC-G20U20 1610×1218 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| VCC-G20X30T1 | CIS VCC-G20X30T1 1020×227 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0386 Breakout 300-0230 Breakout cable Cable 300-0386 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0386 Breakout 300-0406 |
|
| CIS VCC-G20X30T1 1020×768 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| JAI | CV-A1 | Jai CV-A1 1364×1035 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
| Jai CV-A1 1364×341 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Jai CV-A1 1364×513 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Jai CV-A1 682×501 IntDrv (rapid-reset, shutter-sw-pulseWidth, binning-enabled) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| CV-A2 | Jai CV-A2 1616×1220 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| Jai CV-A2 1616×408 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 |
||
| CV-A60C | Jai CV-A60C 760×574 IntDrv CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0099 Breakout 300-0406 |
|
| CV-M1 | Jai CV-M1 1280×1024 IntDrv (rapid-reset, shutter-sw-doublePulse) CCF |
Breakout cable with power Cable 300-0282 Breakout 300-0230 Breakout cable Cable 300-0282 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0282 Breakout 300-0406 |
|
| CV-M10BXC | Jai CV-M10BXC 760×578 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0282 Breakout 300-0230 Breakout cable Cable 300-0282 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0282 Breakout 300-0406 |
|
| Sentech | STC-A152A | SENT STC-A152A 1356×1040 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 |
| Sony | DXC-390 | Sony DXC-390 640×480 IntDrv (3 Plane Color) CCF |
Standard Cable 300-0176 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
| DXC-390P | Sony DXC-390P 760×574 IntDrv (3 Plane Color) CCF |
Standard Cable 300-0176 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| XC-003 | Sony XC-003 640×480 IntDrv (3 Plane Color) CCF |
Standard Cable 300-0176 |
|
| XC-55 | Sony XC-55 320×240 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0136 Breakout 300-0230 Breakout cable Cable 300-0136 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0136 Breakout 300-0406 |
|
| Sony XC-55 640×480 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0136 Breakout 300-0230 Breakout cable Cable 300-0136 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0136 Breakout 300-0406 |
||
| XC-56 | Sony XC-56 640×480 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0136 Breakout 300-0230 Breakout cable Cable 300-0136 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0136 Breakout 300-0406 |
|
| XC-HR50 | Sony XC-HR50 640×100 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| Sony XC-HR50 640×105 IntDrv (rapid-reset, shutter-sw-EDONPISHAII, binning-enabled) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-HR50 640×146 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable Cable 300-0316 Breakout 300-0232 |
||
| Sony XC-HR50 640×237 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-HR50 640×480 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-HR50 640×480 IntDrv CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| XC-HR57 | Sony XC-HR57 640×240 IntDrv (rapid-reset, shutter-sw-EDONPISHAII, binning-enabled) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| Sony XC-HR57 640×480 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| XC-HR58 | Sony XC-HR58 756×574 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| XC-HR70 | Sony XC-HR70 1020×152 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| Sony XC-HR70 1020×220 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-HR70 1020×355 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-HR70 1020×766 IntDrv CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-HR70 1020×768 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| XC-HR90 | Sony XC-HR90 1280×960 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| Sony XC-HR90 1280×960 IntDrv (rapid-reset, shutter-sw-EDONPISHAII, 15FPS) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| XC-ST50 | Sony XC-ST50 320×240 ExtPLLCo CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| Sony XC-ST50 320×240 IntDrv (rapid-reset, shutter-sw-SDONPISHA) CCF |
Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 Rapid reset: breakout cable with power Cable 300-0316 Breakout 300-0230 Rapid reset: breakout cable Cable 300-0316 Breakout 300-0232 |
||
| Sony XC-ST50 320×240 IntDrv CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-ST50 640×240 ExtPLLCo CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-ST50 640×240 IntDrv (rapid-reset, shutter-sw-SDONPISHA) CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-ST50 640×240 IntDrv CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-ST50 640×480 ExtPLLCo CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-ST50 640×480 IntDrv CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| XC-ST50CE | Sony XC-ST50CE 380×287 ExtPLLCo CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| Sony XC-ST50CE 380×287 IntDrv (rapid-reset, shutter-sw-SDONPISHA) CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-ST50CE 380×287 IntDrv CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-ST50CE 760×287 ExtPLLCo CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-ST50CE 760×287 IntDrv CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-ST50CE 760×574 ExtPLLCo CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-ST50CE 760×574 IntDrv CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| XC-ST70 | Sony XC-ST70 640×480 ExtPLLCo CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| Sony XC-ST70 640×480 IntDrv CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Toshiba | IK-53V | Toshiba IK-53V 640×134 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0386 Breakout 300-0230 Breakout cable Cable 300-0386 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
| Toshiba IK-53V 640×480 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0386 Breakout 300-0230 Breakout cable Cable 300-0386 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| IK-54XSL | Toshiba IK-54XSL 640×480 IntDrv (rapid-reset, shutter-hw-random-trigger, exposure-16667) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 |
|
| Toshiba Teli | CS3951D | Teli CS3951D 1018×768 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
| CS4300B | Teli CS4300B 640×480 IntDrv CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 |
|
| CS8541D | Teli CS8541D 640×227 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Standard Cable 300-0385 |
|
| Teli CS8541D 640×480 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Standard Cable 300-0385 |
||
| Teli CS8541D 640×81 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Standard Cable 300-0385 |
||
| CS8550D | Teli CS8550D 320×240 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| Teli CS8550D 640×480 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| CS8560D | Teli CS8560D 640×480 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| CS8570D | Teli CS8570D 640×240 IntDrv (rapid-reset, shutter-sw-random-trigger, binning-enabled) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| Teli CS8570D 640×480 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| CS8620i | Teli CS8620i 640×480 IntDrv CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
MVS-8504e
| Manufacturer | Model | Video format | Cable Configuration |
|---|---|---|---|
| CIS | VCC-G20S20 | CIS VCC-G20S20 1356×1039 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
| VCC-G20U20 | CIS VCC-G20U20 1608×1216 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| CIS VCC-G20U20 1610×1218 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| VCC-G20X30T1 | CIS VCC-G20X30T1 1020×227 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0386 Breakout 300-0230 Breakout cable Cable 300-0386 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0386 Breakout 300-0406 |
|
| CIS VCC-G20X30T1 1020×768 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| JAI | CV-A1 | Jai CV-A1 1364×1035 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
| Jai CV-A1 1364×341 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Jai CV-A1 1364×513 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Jai CV-A1 682×501 IntDrv (rapid-reset, shutter-sw-pulseWidth, binning-enabled) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| CV-A2 | Jai CV-A2 1616×1220 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| Jai CV-A2 1616×408 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 |
||
| CV-A60C | Jai CV-A60C 760×574 IntDrv CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0099 Breakout 300-0406 |
|
| CV-M1 | Jai CV-M1 1280×1024 IntDrv (rapid-reset, shutter-sw-doublePulse) CCF |
Breakout cable with power Cable 300-0282 Breakout 300-0230 Breakout cable Cable 300-0282 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0282 Breakout 300-0406 |
|
| CV-M10BXC | Jai CV-M10BXC 760×578 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0282 Breakout 300-0230 Breakout cable Cable 300-0282 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0282 Breakout 300-0406 |
|
| Sentech | STC-A152A | SENT STC-A152A 1356×1040 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 |
| Sony | DXC-390 | Sony DXC-390 640×480 IntDrv (3 Plane Color) CCF |
Standard Cable 300-0176 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
| DXC-390P | Sony DXC-390P 760×574 IntDrv (3 Plane Color) CCF |
Standard Cable 300-0176 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| XC-003 | Sony XC-003 640×480 IntDrv (3 Plane Color) CCF |
Standard Cable 300-0176 |
|
| XC-55 | Sony XC-55 320×240 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0136 Breakout 300-0230 Breakout cable Cable 300-0136 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0136 Breakout 300-0406 |
|
| Sony XC-55 640×480 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0136 Breakout 300-0230 Breakout cable Cable 300-0136 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0136 Breakout 300-0406 |
||
| XC-56 | Sony XC-56 640×480 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0136 Breakout 300-0230 Breakout cable Cable 300-0136 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0136 Breakout 300-0406 |
|
| XC-HR50 | Sony XC-HR50 640×100 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| Sony XC-HR50 640×105 IntDrv (rapid-reset, shutter-sw-EDONPISHAII, binning-enabled) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-HR50 640×146 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable Cable 300-0316 Breakout 300-0232 |
||
| Sony XC-HR50 640×237 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-HR50 640×480 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-HR50 640×480 IntDrv CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| XC-HR57 | Sony XC-HR57 640×240 IntDrv (rapid-reset, shutter-sw-EDONPISHAII, binning-enabled) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| Sony XC-HR57 640×480 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| XC-HR58 | Sony XC-HR58 756×574 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| XC-HR70 | Sony XC-HR70 1020×152 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| Sony XC-HR70 1020×220 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-HR70 1020×355 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-HR70 1020×766 IntDrv CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-HR70 1020×768 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| XC-HR90 | Sony XC-HR90 1280×960 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| Sony XC-HR90 1280×960 IntDrv (rapid-reset, shutter-sw-EDONPISHAII, 15FPS) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| XC-ST50 | Sony XC-ST50 320×240 ExtPLLCo CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| Sony XC-ST50 320×240 IntDrv (rapid-reset, shutter-sw-SDONPISHA) CCF |
Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 Rapid reset: breakout cable with power Cable 300-0316 Breakout 300-0230 Rapid reset: breakout cable Cable 300-0316 Breakout 300-0232 |
||
| Sony XC-ST50 320×240 IntDrv CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-ST50 640×240 ExtPLLCo CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-ST50 640×240 IntDrv (rapid-reset, shutter-sw-SDONPISHA) CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-ST50 640×240 IntDrv CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-ST50 640×480 ExtPLLCo CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-ST50 640×480 IntDrv CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| XC-ST50CE | Sony XC-ST50CE 380×287 ExtPLLCo CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| Sony XC-ST50CE 380×287 IntDrv (rapid-reset, shutter-sw-SDONPISHA) CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-ST50CE 380×287 IntDrv CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-ST50CE 760×287 ExtPLLCo CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-ST50CE 760×287 IntDrv CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-ST50CE 760×574 ExtPLLCo CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Sony XC-ST50CE 760×574 IntDrv CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| XC-ST70 | Sony XC-ST70 640×480 ExtPLLCo CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| Sony XC-ST70 640×480 IntDrv CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| Toshiba | IK-53V | Toshiba IK-53V 640×134 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0386 Breakout 300-0230 Breakout cable Cable 300-0386 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
| Toshiba IK-53V 640×480 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF |
Breakout cable with power Cable 300-0386 Breakout 300-0230 Breakout cable Cable 300-0386 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| IK-54XSL | Toshiba IK-54XSL 640×480 IntDrv (rapid-reset, shutter-hw-random-trigger, exposure-16667) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 |
|
| Toshiba Teli | CS3951D | Teli CS3951D 1018×768 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
| CS4300B | Teli CS4300B 640×480 IntDrv CCF |
Breakout cable with power Cable 300-0099 Breakout 300-0230 Breakout cable Cable 300-0099 Breakout 300-0232 |
|
| CS8541D | Teli CS8541D 640×227 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Standard Cable 300-0385 |
|
| Teli CS8541D 640×480 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Standard Cable 300-0385 |
||
| Teli CS8541D 640×81 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Standard Cable 300-0385 |
||
| CS8550D | Teli CS8550D 320×240 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| Teli CS8550D 640×480 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| CS8560D | Teli CS8560D 640×480 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| CS8570D | Teli CS8570D 640×240 IntDrv (rapid-reset, shutter-sw-random-trigger, binning-enabled) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
|
| Teli CS8570D 640×480 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
||
| CS8620i | Teli CS8620i 640×480 IntDrv CCF |
Breakout cable with power Cable 300-0316 Breakout 300-0230 Breakout cable Cable 300-0316 Breakout 300-0232 Color+Monochrome breakout cable Cable 300-0316 Breakout 300-0406 |
MVS-8600
| Manufacturer | Model | Video format | Cable Configuration |
|---|---|---|---|
| Adimec | 1600m/D | Adimec 1600m/D 1600×1200 CameraLink (8-bit, 2-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
| Basler | A102k | Basler A102k 1392×1040 CameraLink (8-bit, 1-tap, level-controlled) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
| A202k | Basler A202k 1004×1003 CameraLink (8-bit, 2-tap, level-controlled) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| L101k-1K | Basler L101k-1k 1024×512 CameraLink (8-bit, 2-tap, level-controlled) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| L101k-2K | Basler L101k-2k 2048×512 CameraLink (8-bit, 2-tap, level-controlled) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| L103k-1K | Basler L103k-1k 1024×512 CameraLink (8-bit, 2-tap, level-controlled) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| L103k-2K | Basler L103k-2k 2048×512 CameraLink (8-bit, 2-tap, level-controlled) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| L104k-2K | Basler L104k-2k 2048×512 CameraLink (8-bit, 2-tap, level-controlled) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| L304kc | Basler L304kc 4078×512 CameraLink (RGB24, level-controlled) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| L402k | Basler L402k 4078×512 CameraLink (8-bit, 2-tap, level-controlled) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| L802k | Basler L802k 8160×512 CameraLink (8-bit, 2-tap, level-controlled) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| CIS | VCC-F22V39CL | CIS VCC-F22V39CL 638×122 CameraLink (raw8, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
| CIS VCC-F22V39CL 638×220 CameraLink (raw8, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
||
| CIS VCC-F22V39CL 638×308 CameraLink (raw8, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
||
| CIS VCC-F22V39CL 638×478 CameraLink (raw8, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
||
| VCC-F32S29CL (65 MHz) | CIS VCC-F32S29CL-65 1358×1020 CameraLink (raw8, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
|
| CIS VCC-F32S29CL-65 1358×1022 CameraLink (RGB24, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
||
| CIS VCC-F32S29CL-65 1358×1022 CameraLink (RGB24, external-pulseWidth, RB-transposed) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
||
| VCC-F32S29CL (72 MHz) | CIS VCC-F32S29CL 1358×1020 CameraLink (raw8, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
|
| CIS VCC-F32S29CL 1358×1022 CameraLink (RGB24, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
||
| CIS VCC-F32S29CL 1358×1022 CameraLink (RGB24, external-pulseWidth, RB-transposed) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
||
| VCC-F32U29CL | CIS VCC-F32U29CLM 1614×1216 CameraLink (raw8, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
|
| CIS VCC-F32U29CLM 1614×480 CameraLink (raw8, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
||
| CIS VCC-F32U29CLM 1614×600 CameraLink (raw8, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
||
| CIS VCC-F32U29CLM 1618×1216 CameraLink (RGB24, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
||
| VCC-G21V31CL | CIS VCC-G21V31CL 648×494 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
|
| CIS VCC-G22S21CL 1390×1040 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
||
| VCC-G22S21CL | CIS VCC-G22S21CL 1390×1040 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
|
| VCC-G22U21CL | CIS VCC-G22U21CL 1626×1236 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
|
| VCC-G22V31CL | CIS VCC-G22V31CL 648×222 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
|
| CIS VCC-G22V31CL 648×310 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
||
| CIS VCC-G22V31CL 648×494 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
||
| VCC-G32S21CL | CIS VCC-G32S21CL 1358×1024 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
|
| VCC-G32U21CL | CIS VCC-G32U21CL 1618×1220 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
|
| DALSA | Falcon 1.4M100 | Dalsa Falcon-1.4M100 1400×1024 CameraLink (8-bit, 2-tap, smart-exsync) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
| Falcon DS-21-02M30 | Dalsa DS-21-02M30 1600×1200 CameraLink (8-bit, 2-tap, smart-exsync) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Falcon DS-21-04M15 | Dalsa DS-21-04M15 2048×2048 CameraLink (8-bit, 2-tap, smart-exsync) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Falcon DS-24-02M30 | Dalsa DS-24-02M30 1920×1080 CameraLink (8-bit, 2-tap, smart-exsync) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Pantera PT-21-06M08 | Dalsa PT-21-06M08 3072×2048 CameraLink (8-bit, 2-tap, smart-exsync) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Piranha Color PC-30-02K80 | Dalsa PC-30-02K80 2048×512 CameraLink (RGB24, external-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Piranha HS-40-04k40 | Dalsa HS-40-04K40-80 4096×512 CameraLink (8-bit, 2-tap, external-trigger, tdi-mode) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Dalsa HS-40-04K40-80 4096×96 CameraLink (8-bit, 2-tap, external-trigger, area-mode) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
||
| Piranha2 P2-2x-01k40 | Dalsa P2-2x-1K40 1024×512 CameraLink (8-bit, 2-tap, smart-exsync) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Piranha2 P2-2x-02k40 | Dalsa P2-2x-2K40 2048×512 CameraLink (8-bit, 2-tap, smart-exsync) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Piranha2 P2-2x-04k40 | Dalsa P2-2x-4K40 4096×512 CameraLink (8-bit, 2-tap, smart-exsync) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Piranha2 P2-2x-06k40 | Dalsa P2-2x-6K40 6144×512 CameraLink (8-bit, 2-tap, smart-exsync) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Piranha2 P2-2x-08k40 | Dalsa P2-2x-8K40 8192×512 CameraLink (8-bit, 2-tap, smart-exsync) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Spyder2 S2-1x-01K40 | Dalsa S2-1x-01k40 1024×512 CameraLink (8-bit, 1-tap, smart-exsync) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Spyder2 S2-1x-02K40 | Dalsa S2-1x-02k40 2048×512 CameraLink (8-bit, 1-tap, smart-exsync) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Spyder2 S2-1x-05H40 | Dalsa S2-21-05H40 512×512 CameraLink (8-bit, 1-tap, smart-exsync) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Spyder2 S2-2x-04k40 | Dalsa S2-2x-4K40 4096×512 CameraLink (8-bit, 2-tap, smart-exsync) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Spyder3 S3-20-02K40 | Dalsa S3-20-02K40 2048×512 CameraLink (8-bit, 2-tap, smart-exsync) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| e2v | AViiVA M2 CL 0514 | Atmel M2CL0514 512×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
| Atmel M2CL0514-30 512×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
||
| e2v M2CL0514 512×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
||
| e2v M2CL0514-30 512×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
||
| AViiVA M2 CL 1014 | Atmel M2CL1014 1024×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Atmel M2CL1014-30 1024×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
||
| e2v M2CL1014 1024×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
||
| e2v M2CL1014-30 1024×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
||
| AViiVA M2 CL 2014 | Atmel M2CL2014 2048×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Atmel M2CL2014-30 2048×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
||
| e2v M2CL2014 2048×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
||
| e2v M2CL2014-30 2048×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
||
| AViiVA M2 CL 4010 | Atmel M2CL4010 4096×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| e2v M2CL4010 4096×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
||
| Flovel | ADK-1100B | Flovel ADK-1100B 4016×2672 CameraLink (8-bit, 2-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
| Hitachi | HV-F22CL-S1 | Hitachi HV-F22CL-S1 1360×1024 CameraLink (RGB24, external-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
| KP-F100BCL | Hitachi KP-F100BCL 1390×1040 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| KP-F200SCL | Hitachi KP-F200SCL 1626×1236 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Hitachi KP-F200SCL 1626×410 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
||
| Hitachi KP-F200SCL 1626×618 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
||
| KP-F230SCL | Hitachi KP-F230SCL 1628×1236 CameraLink (2-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| KP-F500SCL | Hitachi KP-F500SCL 2448×1028 CameraLink (8-bit, 2-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Hitachi KP-F500SCL 2448×2058 CameraLink (8-bit, 2-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
||
| Hitachi KP-F500SCL 2448×680 CameraLink (8-bit, 2-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
||
| KP-FR500SCL | Hitachi KP-FR500SCL 2446×2058 CameraLink (raw8, 2-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Imperx | IPX-11M5-L | Imperx IPX-11M5-L 4000×2672 CameraLink (8-bit, 1-tap, external-cc1-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
| Imperx IPX-11M5-L 4000×2672 CameraLink (8-bit, 2-tap, external-cc1-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
||
| IPX-16M3-L | Imperx IPX-16M3-L 4872×3248 CameraLink (8-bit, 1-tap, external-cc1-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| IPX-4M15-L | Imperx IPX-4M15-L 2040×2040 CameraLink (8-bit, 1-tap, external-cc1-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| IPX-VGA210-L | Imperx IPX-VGA210-L 640×480 CameraLink (8-bit, 2-tap, external-cc1-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| JAI | BB-500CL | Jai BB-500CL 2438×2058 CameraLink (raw8, 2-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
| BM-500CL | Jai BM-500CL 2444×2058 CameraLink (8-bit, 2-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| CV-L107CL | Jai CV-L107CL 2048×512 CameraLink (RGB24, external-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| CV-M2CL | Jai CV-M2CL 1600×1200 CameraLink (8-bit, 2-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| CV-M4+CL | Jai CV-M4+CL 1382×1029 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| CV-M7+CL | Jai CV-M7+CL 1374×1028 CameraLink (raw8, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| CV-M9CL | Jai CV-M9CL 1024×768 CameraLink (RGB24, external-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| RM-4100CL | Jai RM-4100CL 2048×2048 CameraLink (8-bit, 2-tap, external-vinit-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Pulnix RM-4100CL 2048×2048 CameraLink (8-bit, 2-tap, external-vinit-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
||
| TM-1402CL | Jai TM-1402CL-25 1388×1040 CameraLink (8-bit, 1-tap, external-vinit-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Jai TM-1402CL-50 1388×1040 CameraLink (8-bit, 1-tap, external-vinit-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
||
| Pulnix TM-1402CL-25 1388×1040 CameraLink (8-bit, 1-tap, external-vinit-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
||
| Pulnix TM-1402CL-50 1388×1040 CameraLink (8-bit, 1-tap, external-vinit-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
||
| TM-4100CL | Jai TM-4100CL 2048×2048 CameraLink (8-bit, 2-tap, external-vinit-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Jai TM-4100CL 2048×250 CameraLink (8-bit, 2-tap, external-vinit-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
||
| Pulnix TM-4100CL 2048×2048 CameraLink (8-bit, 2-tap, external-vinit-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
||
| Pulnix TM-4100CL 2048×250 CameraLink (8-bit, 2-tap, external-vinit-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
||
| TMC-4100CL | Jai TMC-4100CL 2048×2048 CameraLink (raw8, 2-tap, external-vinit-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Pulnix TMC-4100CL 2048×2048 CameraLink (raw8, 2-tap, external-vinit-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
||
| Leutron | PicSight P141M-CL | Leutron P141M-CL 1392×1040 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
| LORD | DVLC2098K | Lord DVLC2098K 2096×512 CameraLink (RGB24, external-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
| NED | EIS640 | NED EIS640 640×512 CameraLink (8-bit, 1-tap) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
| NUCLi7300 | NED NUCLi7300 7300×512 CameraLink (RGB24, 1-tap) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Photonfocus | MV-D1024-28-CL | Photonfocus MV-D1024-28-CL 1024×1024 CameraLink (8-bit, 1-tap, level-controlled) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
| MV-D1024E-40-CL | Photonfocus MV-D1024E-40-CL 1024×1024 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Sentech | STC-CLC202A | Sentech STC-CL202A 1600×1200 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
| Sony | XCL-5000 | Sony XCL-5000 2448×2050 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
| XCL-U1000 | Sony XCL-U1000 1600×1198 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
|
| XCL-U1000C | Sony XCL-U1000C 1600×1198 CameraLink (RGB24, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
|
| XCL-V500 | Sony XCL-V500 648×494 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
|
| XCL-X700 | Sony XCL-X700 1024×768 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-1002R (RoHS) 5 meter cable Cable 185-1001R (RoHS) |
|
| SVS-VISTEK | SVS11002MFCP | SVS-VISTEK SVS11002MFCP 4032×2672 CameraLink (8-bit, 2-tap, external-cc1-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
| SVS11002MSCP | SVS-VISTEK SVS11002MSCP 4008×2672 CameraLink (8-bit, 1-tap, external-cc1-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Takenaka | TL-5150UCL | Takenaka TL-5150UCL 5148×512 CameraLink (8-bit, 2-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
| TL-7450UCL | Takenaka TL-7450UCL 7448×512 CameraLink (8-bit, 2-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Toshiba | IK-TF5C | Toshiba IK-TF5C 648×494 CameraLink (RGB24, external-pulseWidth-syncReset) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
| Toshiba Teli | CS3970CL | Teli CS3970CL 1628×1236 CameraLink (8-bit, 1-tap, random-trigger-shutter) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
| CSB1100CL | Teli CSB1100CL 1236×1023 CameraLink (8-bit, 1-tap, random-trigger-shutter) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| CSB4000CL-10 | Teli CSB4000CL 2008×2047 CameraLink (8-bit, 1-tap, random-trigger-shutter) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| CSCQS15BC23 | Teli CSCQS15BC23 2448×1000 CameraLink (8-bit, 2-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Teli CSCQS15BC23 2448×2050 CameraLink (8-bit, 2-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
||
| Teli CSCQS15BC23 2448×600 CameraLink (8-bit, 2-tap, external-pulseWidth) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
||
| CSCV90BC3 | Teli CSCV90BC3 648×494 CameraLink (8-bit, 1-tap, random-trigger-shutter) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| CSCX30BC3 | Teli CSCX30BC3 1024×768 CameraLink (8-bit, 1-tap, random-trigger-shutter) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
MVS-8602e
| Manufacturer | Model | Video format | Cable Configuration |
|---|---|---|---|
| Basler | A403k | Basler A403k 2352×1726 CameraLink (8-bit, 4-tap, level-controlled) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
| DALSA | Piranha2 P2-4x-04k40 | Dalsa P2-4x-4K40 4096×512 CameraLink (8-bit, 4-tap, smart-exsync) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
| Piranha2 P2-4x-06k40 | Dalsa P2-4x-6K40 6144×512 CameraLink (8-bit, 4-tap, smart-exsync) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| Piranha2 P2-4x-08k40 | Dalsa P2-4x-8K40 8192×512 CameraLink (8-bit, 4-tap, smart-exsync) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
|
| e2v | AViiVA M4 CL 6007 | Atmel M4CL6007 6144×512 CameraLink (8-bit, 4-tap, integration-time-control) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
| e2v M4CL6007 6144×512 CameraLink (8-bit, 4-tap, integration-time-control) CCF |
10 meter cable Cable 185-0242 5 meter cable Cable 185-0241 |
||
| Hitachi | KP-F230PCL (PoCL) | Hitachi KP-F230PCL 1628×1236 CameraLink (2-tap, external-pulseWidth) CCF |
Standard Cable 185-1093R (RoHS) PoCL Cable |
| KP-F39PCL (PoCL) | Hitachi KP-F39PCL 656×484 CameraLink (1-tap, external-pulseWidth) CCF |
Standard Cable 185-1093R (RoHS) PoCL Cable |
|
| Sony | XCL-5005 (PoCL) | Sony XCL-5005 2448×2050 CameraLink (8-bit, 2-tap, external-pulseWidth) CCF |
Standard Cable 185-1093R (RoHS) PoCL Cable |
GigE Vision
| Manufacturer | Model | Video format | Cable Configuration |
|---|---|---|---|
| Basler | pilot piA1000-48gc | Generic GigEVision (Bayer Color) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
| Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| pilot piA1000-48gm | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| pilot piA1600-35gc | Generic GigEVision (Bayer Color) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| pilot piA1600-35gm | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| pilot piA1900-32gc | Generic GigEVision (Bayer Color) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| pilot piA1900-32gm | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| pilot piA2400-12gc | Generic GigEVision (Bayer Color) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| pilot piA2400-12gm | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| pilot piA2400-17gm | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| pilot piA640-210gc | Generic GigEVision (Bayer Color) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| pilot piA640-210gm | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| runner ruL1024-19gm | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| runner ruL1024-57gm | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| runner ruL2048-30gm | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| scout scA1000-30gc | Generic GigEVision (Bayer Color) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| Generic GigEVision (Bayer Color) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| scout scA1000-30gm | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| scout scA1390-17gc | Generic GigEVision (Bayer Color) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| Generic GigEVision (Bayer Color) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| scout scA1390-17gm | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| scout scA1600-14gc | Generic GigEVision (Bayer Color) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| Generic GigEVision (Bayer Color) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| scout scA1600-14gm | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| scout scA640-70gc | Generic GigEVision (Bayer Color) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| Generic GigEVision (Bayer Color) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| scout scA640-70gm | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| JAI | CM-030GE | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
| CM-040GE | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| CM-080GE | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| CM-140GE | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| CM-200GE | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| Prosilica | GC1020 | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
| GC1280 | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| GC1290 | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| GC1350 | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| GC1380 | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| GC1380H | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| GC1600 | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| GC1600H | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| GC2450 | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| GC640 | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| GC650 | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| GC655 | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| GC660 | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| GC750 | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| GE1350 | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| GE1350C | Generic GigEVision (Bayer Color) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| GE1380 | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| GE1380C | Generic GigEVision (Bayer Color) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| GE1600 | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| GE1600C | Generic GigEVision (Bayer Color) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| GE1900 | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| GE1900C | Generic GigEVision (Bayer Color) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| GE4000 | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| GE4000C | Generic GigEVision (Bayer Color) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| GE4900 | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| GE4900C | Generic GigEVision (Bayer Color) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| GE640 | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| GE640C | Generic GigEVision (Bayer Color) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
||
| GE650 | Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| GE650C | Generic GigEVision (Bayer Color) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
|
| Generic GigEVision (Mono) |
Standard Cable Cat 5e or Cat 6 Ethernet Cable |
Camera Descriptions by Vendor
The following tables describe each of the cameras by vendor along with the platforms that support them.
Click the Xs in the platform columns to see the video formats supported on the platform.
Adimec
| Model | Description | 8600 |
|---|---|---|
| 1600m/D | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 1600×1200 | X |
Allied Vision Technologies
| Model | Description | 1394 DCAM |
|---|---|---|
| Dolphin F-201B | IEEE 1394 DCAM format 7 | X |
| Marlin F-033B | IEEE 1394 DCAM format 7 | X |
| Marlin F-033C | IEEE 1394 DCAM format 7 | X |
| Marlin F-046B | IEEE 1394 DCAM format 7 | X |
| Marlin F-145B2 | IEEE 1394 DCAM format 7 | X |
| Marlin F-145B2-15fps | IEEE 1394 DCAM format 7 | X |
| Marlin F-146C | IEEE 1394 DCAM format 7 | X |
| Oscar F-510C | IEEE 1394 DCAM format 7 | X |
| Pike F-421B | IEEE 1394 DCAM format 7 | X |
| Stingray F-146B | IEEE 1394 DCAM format 7 | X |
Basler
| Model | Description | 1394 DCAM | 8600 | 8602e | GigE Vision |
|---|---|---|---|---|---|
| A102f | IEEE 1394 DCAM format 7 | X | |||
| A102k | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 1392×1040 | X | |||
| A202k | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 1004×1003 | X | |||
| A311f | IEEE 1394 DCAM format 7 | X | |||
| A312f | IEEE 1394 DCAM format 7 | X | |||
| A403k | Digitial, CMOS sensor, Medium Config Camera Link, Area Scan, rapid reset, 2352×1726 | X | |||
| A601f | IEEE 1394 DCAM format 7 | X | |||
| A602fc | IEEE 1394 DCAM format 7 | X | |||
| A622f | IEEE 1394 DCAM format 7 | X | |||
| A631f | IEEE 1394 DCAM format 7 | X | |||
| A631fc | IEEE 1394 DCAM format 7 | X | |||
| A641f | IEEE 1394 DCAM format 7 | X | |||
| A641fc | IEEE 1394 DCAM format 7 | X | |||
| L101k-1K | Digital, CCD sensor, Camera Link, Line Scan, line width 1024 pixels | X | |||
| L101k-2K | Digital, CCD sensor, Camera Link, Line Scan, line width 2048 pixels | X | |||
| L103k-1K | Digital, CCD sensor, Camera Link, Line Scan, line width 1024 pixels | X | |||
| L103k-2K | Digital, CCD sensor, Camera Link, Line Scan, line width 2048 pixels | X | |||
| L104k-2K | Digital, CCD sensor, Camera Link, Line Scan, line width 2048 pixels | X | |||
| L304kc | Digital, 3x CCD sensor, Camera Link, Line Scan, color, line width 4078 pixels | X | |||
| L402k | Digital, CCD sensor, Camera Link, Line Scan, line width 4078 pixels | X | |||
| L802k | Digital, CCD sensor, Camera Link, Line Scan, line width 8160 pixels | X | |||
| pilot piA1000-48gc | pilot series, 1004×1004 Kodak sensor | X | |||
| pilot piA1000-48gm | pilot series, 1004×1004 Kodak sensor | X | |||
| pilot piA1600-35gc | pilot series, 1608×1208 Kodak sensor | X | |||
| pilot piA1600-35gm | pilot series, 1608×1208 Kodak sensor | X | |||
| pilot piA1900-32gc | pilot series, 1920×1080 Kodak sensor | X | |||
| pilot piA1900-32gm | pilot series, 1920×1080 Kodak sensor | X | |||
| pilot piA2400-12gc | pilot series, 2448×2050 Sony sensor | X | |||
| pilot piA2400-12gm | pilot series, 2448×2050 Sony sensor | X | |||
| pilot piA2400-17gm | pilot series, 2448×2050 Sony sensor | X | |||
| pilot piA640-210gc | pilot series, 640×480 Kodak sensor | X | |||
| pilot piA640-210gm | pilot series, 640×480 Kodak sensor | X | |||
| runner ruL1024-19gm | line width 1024 pixels, 18.7 KHz | X | |||
| runner ruL1024-57gm | line width 1024 pixels, 56.1 KHz | X | |||
| runner ruL2048-30gm | line width 2048 pixels, 29.2 KHz | X | |||
| scout scA1000-30fc | IEEE 1394 DCAM format 7 | X | |||
| scout scA1000-30fm | IEEE 1394 DCAM format 7 | X | |||
| scout scA1000-30gc | Color GigE Vision Vision Camera | X | |||
| scout scA1000-30gm | Monochrome GigE Vision Vision Camera | X | |||
| scout scA1390-17gc | Color GigE Vision Vision Camera | X | |||
| scout scA1390-17gm | Monochrome GigE Vision Vision Camera | X | |||
| scout scA1600-14fc | IEEE 1394 DCAM format 7 | X | |||
| scout scA1600-14fm | IEEE 1394 DCAM format 7 | X | |||
| scout scA1600-14gc | Color GigE Vision Vision Camera | X | |||
| scout scA1600-14gm | Monochrome GigE Vision Vision Camera | X | |||
| scout scA640-70fc | IEEE 1394 DCAM format 7 | X | |||
| scout scA640-70fm | IEEE 1394 DCAM format 7 | X | |||
| scout scA640-70gc | Color GigE Vision Vision Camera | X | |||
| scout scA640-70gm | Monochrome GigE Vision Vision Camera | X | |||
| scout scA640-74fc | IEEE 1394 DCAM format 7 | X |
CIS
| Model | Description | 8500Le | 8501 | 8504 | 8504e | 8600 |
|---|---|---|---|---|---|---|
| VCC-F22V39CL | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, color, 640×480 | X | ||||
| VCC-F32S29CL (65 MHz) | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, color, 1358×1022 | X | ||||
| VCC-F32S29CL (72 MHz) | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, color, 1358×1022 | X | ||||
| VCC-F32U29CL | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, color, 1618×1216 | X | ||||
| VCC-G20S20 | Analog, CCD sensor, double speed, progressive scan, rapid reset, 1356×1039 | X | X | X | X | |
| VCC-G20U20 | Analog, CCD sensor, double speed, progressive scan, rapid reset, 1608×1216 | X | X | X | X | |
| VCC-G20U20H1 | Analog, CCD sensor, double speed, progressive scan, rapid reset, 1616×1216 | X | X | |||
| VCC-G20X30T1 | Analog, CCD sensor, double speed, progressive scan, rapid reset, 1020×768 | X | X | X | X | |
| VCC-G21V31CL | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 648×494 | X | ||||
| VCC-G22S21CL | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 1390×1040 | X | ||||
| VCC-G22U21CL | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 1626×1236 | X | ||||
| VCC-G22V31CL | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 648×494 | X | ||||
| VCC-G32S21CL | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 1392×1040 | X | ||||
| VCC-G32U21CL | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 1628×1236 | X |
DALSA
| Model | Description | 8600 | 8602e |
|---|---|---|---|
| Falcon 1.4M100 | Digital, CMOS sensor, Camera Link, Area Scan, rapid reset, 1400×1024 | X | |
| Falcon DS-21-02M30 | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 1600×1200 | X | |
| Falcon DS-21-04M15 | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 2048×2048 | X | |
| Falcon DS-24-02M30 | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 1920×1080 | X | |
| Pantera PT-21-06M08 | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 3072×2048 | X | |
| Piranha Color PC-30-02K80 | Digital, CCD sensor, Camera Link, Line Scan,line width 2048 pixels | X | |
| Piranha HS-40-04k40 | Digital, CCD TDI sensor, Camera Link (Base), Line Scan,line width 4096 pixels | X | |
| Piranha2 P2-2x-01k40 | Digital, CCD sensor, Camera Link, Line Scan, line width 1024 pixels | X | |
| Piranha2 P2-2x-02k40 | Digital, CCD sensor, Camera Link, Line Scan, line width 2048 pixels | X | |
| Piranha2 P2-2x-04k40 | Digital, CCD sensor, Camera Link, Line Scan, line width 4096 pixels | X | |
| Piranha2 P2-2x-06k40 | Digital, CCD sensor, Camera Link, Line Scan, line width 6144 pixels | X | |
| Piranha2 P2-2x-08k40 | Digital, CCD sensor, Camera Link, Line Scan, line width 8192 pixels | X | |
| Piranha2 P2-4x-04k40 | Digital, CCD sensor, Medium Configuration Camera Link, Line Scan, line width 4096 pixels | X | |
| Piranha2 P2-4x-06k40 | Digital, CCD sensor, Medium Configuration Camera Link, Line Scan, line width 6144 pixels | X | |
| Piranha2 P2-4x-08k40 | Digital, CCD sensor, Medium Configuration Camera Link, Line Scan, line width 8192 pixels | X | |
| Spyder2 S2-1x-01K40 | Digital, CCD sensor, Camera Link, Line Scan,line width 1024 pixels | X | |
| Spyder2 S2-1x-02K40 | Digital, CCD sensor, Camera Link, Line Scan,line width 2048 pixels | X | |
| Spyder2 S2-1x-05H40 | Digital, CCD sensor, Camera Link, Line Scan,line w | X | |
| Spyder2 S2-2x-04k40 | Digital, CCD sensor, Camera Link, Line Scan,line w | X | |
| Spyder3 S3-20-02K40 | Digital, CCD sensor, Camera Link, Line Scan,line width 2048 pixels | X |
e2v
| Model | Description | 8600 | 8602e |
|---|---|---|---|
| AViiVA M2 CL 0514 | Digital, CCD sensor, Camera Link, Line Scan, line width 512 pixels | X | |
| AViiVA M2 CL 1014 | Digital, CCD sensor, Camera Link, Line Scan, line width 1024 pixels | X | |
| AViiVA M2 CL 2014 | Digital, CCD sensor, Camera Link, Line Scan, line width 2048 pixels | X | |
| AViiVA M2 CL 4010 | Digital, CCD sensor, Camera Link, Line Scan, line width 4096 pixels | X | |
| AViiVA M4 CL 6007 | Digital, CCD sensor, Medium Configuration Camera Link, Line Scan, line width 6144 pixels | X |
Flovel
| Model | Description | 8600 |
|---|---|---|
| ADK-1100B | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 4016×2672 | X |
Generic 1394 DCAM
| Model | Description | 1394 DCAM |
|---|---|---|
| Generic | Generic IEEE 1394 DCAM | X |
Hitachi
| Model | Description | 8600 | 8602e |
|---|---|---|---|
| HV-F22CL-S1 | Digital, 3x CCD sensor, Camera Link, Area Scan, color, 1360×1024 | X | |
| KP-F100BCL | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 1390×1040 | X | |
| KP-F200SCL | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 1627×1235 | X | |
| KP-F230PCL (PoCL) | Digital, CCD sensor, Camera Link PoCL, Area Scan, rapid reset, 1628×1236 | X | |
| KP-F230SCL | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 1628×1236 | X | |
| KP-F39PCL (PoCL) | Digital, CCD sensor, Camera Link PoCL, Area Scan, rapid reset, 656×484 | X | |
| KP-F500SCL | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 2448×2058 | X | |
| KP-FR500SCL | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 2448×2058 | X |
Imperx
| Model | Description | 8600 |
|---|---|---|
| IPX-11M5-L | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 4000×2672 | X |
| IPX-16M3-L | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 4872×3248 | X |
| IPX-4M15-L | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 2048×2048 | X |
| IPX-VGA210-L | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 640×480 | X |
JAI
| Model | Description | 8100L | 8100M | 8500Le | 8501 | 8504 | 8504e | 8600 | GigE Vision |
|---|---|---|---|---|---|---|---|---|---|
| BB-500CL | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, color, 2456×2058 | X | |||||||
| BM-500CL | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 2456×2058 | X | |||||||
| CM-030GE | 90fps | X | |||||||
| CM-040GE | 60fps | X | |||||||
| CM-080GE | 30fps | X | |||||||
| CM-140GE | 31fps | X | |||||||
| CM-200GE | 25fps | X | |||||||
| CV-A1 | Analog, CCD sensor, double speed, progressive scan, rapid reset, 1364×1035 | X | X | X | X | ||||
| CV-A2 | Analog, CCD sensor, double speed, progressive scan, rapid reset, 1616×1220 | X | X | X | X | ||||
| CV-A60C | Analog, CCD sensor, interlaced, CCIR, 760×574 | X | X | X | X | ||||
| CV-L107CL | Digital, 3x CCD sensor, Camera Link, Line Scan, color, line width 2048 pixels | X | |||||||
| CV-M1 | Analog, CCD sensor, double speed, progressive scan, rapid reset, 1280×1024 | X | X | X | X | ||||
| CV-M10BXC | Analog, CCD sensor, progressive scan, rapid reset, 760×578 | X | X | X | X | ||||
| CV-M2CL | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 1600×1200 | X | |||||||
| CV-M4+CL | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 1382×1029 | X | |||||||
| CV-M7+CL | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, color, 1374×1028 | X | |||||||
| CV-M9CL | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 1024×768 | X | |||||||
| RM-4100CL | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 2048×2048 | X | |||||||
| TM-1402CL | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 1388×1040 | X | |||||||
| TM-4100CL | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 2048×2048 | X | |||||||
| TM-6CN | Analog, CCD sensor, interlaced, CCIR, 760×574 (768×570 with 8100M and 8100C) | X | X | ||||||
| TM-7EX | Analog, CCD sensor, interlaced, EIA RS-170, 640×480 or 320×240 | X | X | ||||||
| TM-9701 | Analog, CCD sensor, progressive scan, rapid reset, 640×480 | X | |||||||
| TMC-4100CL | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, color, 2048×2048 | X |
Leutron
| Model | Description | 8600 |
|---|---|---|
| PicSight P141M-CL | Digital, CCD sensor, Camera Link, Area Scan, 1392×1040 | X |
LORD
| Model | Description | 8600 |
|---|---|---|
| DVLC2098K | Digital, CCD sensor, Camera Link, Line Scan, line width 2096 pixels | X |
NED
| Model | Description | 8600 |
|---|---|---|
| EIS640 | Digital, CCD sensor, Camera Link, Line Scan, line width 640 pixels | X |
| NUCLi7300 | Digital, CCD sensor, Camera Link, Line Scan, line width 7300 pixels | X |
Photonfocus
| Model | Description | 8600 |
|---|---|---|
| MV-D1024-28-CL | Digital, CMOS sensor, Camera Link, Area Scan, rapid reset, 1024×1024 | X |
| MV-D1024E-40-CL | Digital, CMOS sensor, Camera Link, Area Scan, rapid reset, 1024×1024 | X |
PixeLINK
| Model | Description | 1394 DCAM |
|---|---|---|
| PL-A741 | IEEE 1394 DCAM format 7 | X |
| PL-A781 | IEEE 1394 DCAM format 7 | X |
| PL-A782 | IEEE 1394 DCAM format 7 | X |
Point Grey Research
| Model | Description | 1394 DCAM |
|---|---|---|
| Dragonfly Express | IEEE 1394 DCAM format 7 | X |
| Flea FLEA-BW | IEEE 1394 DCAM format 7 | X |
| Flea FLEA-COL | IEEE 1394 DCAM format 7 | X |
| Flea FLEA-HIBW | IEEE 1394 DCAM format 7 | X |
| Flea FLEA-HICOL | IEEE 1394 DCAM format 7 | X |
| Flea2 FL2-03S2C | IEEE 1394 DCAM format 7 | X |
| Flea2 FL2-03S2M | IEEE 1394 DCAM format 7 | X |
| Flea2 FL2-08S2C | IEEE 1394 DCAM format 7 | X |
| Flea2 FL2-08S2M | IEEE 1394 DCAM format 7 | X |
| Flea2 FL2-14S3C | IEEE 1394 DCAM format 7 | X |
| Flea2 FL2-14S3M | IEEE 1394 DCAM format 7 | X |
| Flea2 FL2-20S4C | IEEE 1394 DCAM format 7 | X |
| Flea2 FL2-20S4M | IEEE 1394 DCAM format 7 | X |
| Grasshopper GRAS-20S4C | Color FireWire camera | X |
| Grasshopper GRAS-20S4M | FireWire camera | X |
| Grasshopper GRAS-50S5C | Color FireWire camera | X |
| Grasshopper GRAS-50S5M | FireWire camera | X |
| Scorpion SCOR-14SOM | IEEE 1394 DCAM format 7 | X |
| Scorpion SCOR-20SOC | IEEE 1394 DCAM format 7 | X |
| Scorpion SCOR-20SOM | IEEE 1394 DCAM format 7 | X |
Prosilica
| Model | Description | GigE Vision |
|---|---|---|
| GC1020 | 30fps | X |
| GC1280 | 27fps | X |
| GC1290 | 30fps | X |
| GC1350 | 20fps | X |
| GC1380 | 20fps | X |
| GC1380H | 30fps | X |
| GC1600 | 15fps | X |
| GC1600H | 25fps | X |
| GC2450 | 15fps | X |
| GC640 | 200fps | X |
| GC650 | 90fps | X |
| GC655 | 90fps | X |
| GC660 | 120fps | X |
| GC750 | 60fps | X |
| GE1350 | 20fps | X |
| GE1350C | 20fps | X |
| GE1380 | 20fps | X |
| GE1380C | 20fps | X |
| GE1600 | 15fps | X |
| GE1600C | 15fps | X |
| GE1900 | 30fps | X |
| GE1900C | 30fps | X |
| GE4000 | 5fps | X |
| GE4000C | 5fps | X |
| GE4900 | 3fps | X |
| GE4900C | 3fps | X |
| GE640 | 196fps | X |
| GE640C | 196fps | X |
| GE650 | 90fps | X |
| GE650C | 90fps | X |
Sentech
| Model | Description | 8500Le | 8501 | 8504 | 8504e | 8600 |
|---|---|---|---|---|---|---|
| STC-A152A | Analog, CCD sensor, double speed, progressive scan, rapid reset, 1392×1040 | X | X | X | X | |
| STC-CLC202A | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 1628×1236 | X |
Sony
| Model | Description | 8100L | 8100M | 8500Le | 8501 | 8504 | 8504e | 8600 | 8602e |
|---|---|---|---|---|---|---|---|---|---|
| DXC-390 | Analog, CCD sensor, interlaced, RGB color, 640×480 | X | X | ||||||
| DXC-390P | Analog, CCD sensor, interlaced, RGB color, 760×574 | X | X | ||||||
| XC-003 | Analog, CCD sensor, interlaced, RGB color, 640×480 | X | X | ||||||
| XC-55 | Analog, CCD sensor, progressive scan, rapid reset, 640×480. XC-55BB is the remote head version. | X | X | X | X | X | |||
| XC-56 | Analog, CCD sensor, progressive scan, rapid reset, 640×480. | X | X | X | X | X | |||
| XC-75 | Analog, CCD sensor, interlaced, EIA RS-170, 640×480, 640×240, or 320×240 | X | X | ||||||
| XC-75CE | Analog, CCD sensor, interlaced, CCIR, 760×574 (768×570 with 8100M and 8100C), 760×287, or 380×287 | X | X | ||||||
| XC-HR50 | Analog, CCD sensor, double speed, progressive scan, rapid reset, 640×480 | X | X | X | X | ||||
| XC-HR57 | Analog, CCD sensor, double speed, progressive scan, rapid reset, 640×480 | X | X | X | X | ||||
| XC-HR58 | Analog, CCD sensor, double speed, progressive scan, rapid reset, 756×574 | X | X | X | X | ||||
| XC-HR70 | Analog, CCD sensor, double speed, progressive scan, rapid reset, 1020×768 | X | X | X | X | ||||
| XC-HR90 | Analog, CCD sensor, double speed, progressive scan, rapid reset, 1280×960 | X | X | X | X | ||||
| XCL-5000 | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 2448×2050 | X | |||||||
| XCL-5005 (PoCL) | Digital, CCD sensor, Camera Link PoCL, Area Scan, rapid reset, 2448×2050 | X | |||||||
| XCL-U1000 | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 1600×1200 | X | |||||||
| XCL-U1000C | Digital, color CCD sensor, Camera Link, Area Scan, rapid reset, 1600×1200 | X | |||||||
| XCL-V500 | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 648×494 | X | |||||||
| XCL-X700 | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 1024×768 | X | |||||||
| XC-ST50 | Analog, CCD sensor, interlaced, EIA RS-170, 640×480, 640×240, or 320×240. XC-ES50 is the small form factor version. | X | X | X | X | X | X | ||
| XC-ST50CE | Analog, CCD sensor, interlaced, CCIR, 760×574 (768×570 with 8100M and 8100C), 760×287, or 380×287. XC-ES50CE is the small form factor version. | X | X | X | X | X | X | ||
| XC-ST70 | Analog, CCD sensor, interlaced, EIA RS-170, 640×480. | X | X | X | X |
SVS-VISTEK
| Model | Description | 8600 |
|---|---|---|
| SVS11002MFCP | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 4032×2672 | X |
| SVS11002MSCP | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 4008×2672 | X |
Takenaka
| Model | Description | 8600 |
|---|---|---|
| TL-5150UCL | Digital, CCD sensor, Camera Link, Line Scan,line width 5148 pixels | X |
| TL-7450UCL | Digital, CCD sensor, Camera Link, Line Scan,line width 7448 pixels | X |
Toshiba
| Model | Description | 8500Le | 8501 | 8504 | 8504e | 8600 |
|---|---|---|---|---|---|---|
| IK-53V | Analog, CCD sensor, double speed, progressive scan, rapid reset, 640×480 or 640×134 | X | X | X | X | |
| IK-54XSL | Analog, CCD sensor, interlaced, rapid reset, 640×480 | X | X | X | X | |
| IK-TF5C | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, color, 648×494 | X |
Toshiba Teli
| Model | Description | 1394 DCAM | 8500Le | 8501 | 8504 | 8504e | 8600 |
|---|---|---|---|---|---|---|---|
| CS3951D | Analog, CCD sensor, double speed, progressive scan, rapid reset, 1018×768 | X | X | X | X | ||
| CS3970CL | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 1628×1236 | X | |||||
| CS4300B | Analog, CCD sensor, interlaced, EIA RS-170, 640×480 | X | X | X | X | ||
| CS8541D | Analog, CCD sensor, double speed, progressive scan, rapid reset, 640×480 | X | X | X | X | ||
| CS8550D | Analog, CCD sensor, double speed, progressive scan, rapid reset, 640×480 | X | X | X | X | ||
| CS8560D | Analog, CCD sensor, double speed, progressive scan, rapid reset, 640×480 | X | X | X | X | ||
| CS8570D | Analog, CCD sensor, double speed, progressive scan, rapid reset, 640×480 | X | X | X | X | ||
| CS8620i | Analog, CCD sensor, interlaced, EIA RS-170, 640×480. | X | X | X | X | ||
| CSB1100CL | Digital, CMOS sensor, Camera Link, Area Scan, rapid reset, 1236×1023 | X | |||||
| CSB4000CL-10 | Digital, CMOS sensor, Camera Link, Area Scan, rapid reset, 2008×2047 | X | |||||
| CSB4000F-10 | IEEE 1394 DCAM format 7 | X | |||||
| CSCQS15BC23 | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 2448×2050 | X | |||||
| CSCV90BC3 | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 648×494 | X | |||||
| CSCX30BC3 | Digital, CCD sensor, Camera Link, Area Scan, rapid reset, 1024×768 | X | |||||
| CSFV90CC3 | IEEE 1394 DCAM format 7 | X |
Video Formats by Vendor
The following tables list each of the video formats sorted by camera vendor along with the platforms that support them.
Click the camera model to see a description of the camera.
Click the Xs in the platform columns to see the video formats supported on the platform.
Adimec
| Model | Video format | 8600 |
|---|---|---|
| 1600m/D | Adimec 1600m/D 1600×1200 CameraLink (8-bit, 2-tap, external-pulseWidth) CCF | X |
Allied Vision Technologies
| Model | Video format | 1394 DCAM |
|---|---|---|
| Dolphin F-201B | AVT F201b 1628×1236 IEEE1394 (mono, 12fps, shutter-hw-triggermode0) CCF | X |
| Marlin F-033B | AVT F033B 656×494 IEEE1394 (mono, 74fps, shutter-hw-triggermode0) CCF | X |
| Marlin F-033C | AVT F033C 640×480 IEEE1394 (raw8, 74fps, shutter-hw-triggermode0) CCF | X |
| Marlin F-046B | AVT F046B 780×582 IEEE1394 (mono, 53fps, shutter-hw-triggermode0) CCF | X |
| Marlin F-145B2 | AVT F145B2 1392×1040 IEEE1394 (mono, 10fps, shutter-hw-triggermode0) CCF | X |
| Marlin F-145B2-15fps | AVT F145B2-15fps 1392×1040 IEEE1394 (mono, 15fps, shutter-hw-triggermode0) CCF | X |
| Marlin F-146C | AVT F146C 1390×1036 IEEE1394 (raw8, 17fps, shutter-hw-triggermode0) CCF | X |
| Oscar F-510C | AVT OscarF510C 2588×1958 IEEE1394 (mono, 3fps, shutter-hw-triggermode0) CCF | X |
| Pike F-421B | AVT F421B 2048×2048 IEEE1394 (mono, 15fps, shutter-hw-triggermode0) CCF | X |
| Stingray F-146B | AVT F146B 1392×1040 IEEE1394 (mono, 17fps, shutter-hw-triggermode0) CCF | X |
Basler
| Model | Video format | 1394 DCAM | 8600 | 8602e | GigE Vision |
|---|---|---|---|---|---|
| A102f | Basler A102f 1392×1040 IEEE1394 (mono, 15fps, shutter-hw-triggermode0) CCF | X | |||
| A102k | Basler A102k 1392×1040 CameraLink (8-bit, 1-tap, level-controlled) CCF | X | |||
| A202k | Basler A202k 1004×1003 CameraLink (8-bit, 2-tap, level-controlled) CCF | X | |||
| A311f | Basler A311f 640×480 IEEE1394 (mono, 74fps, shutter-hw-triggermode0) CCF | X | |||
| A312f | Basler A312f 768×580 IEEE1394 (mono, 53fps, shutter-hw-triggermode0) CCF | X | |||
| A403k | Basler A403k 2352×1726 CameraLink (8-bit, 4-tap, level-controlled) CCF | X | |||
| A601f | Basler A601f 640×480 IEEE1394 (mono, 60fps, shutter-hw-triggermode0) CCF | X | |||
| Basler A601f 640×480 IEEE1394 (mono, 60fps, shutter-hw-triggermode0, centered) CCF | X | ||||
| Basler A601f 640×480 IEEE1394 (mono, 60fps, shutter-hw-triggermode0, mirrored, centered) CCF | X | ||||
| A602fc | Basler A602fc 640×480 IEEE1394 (raw8, 100fps, shutter-hw-triggermode0) CCF | X | |||
| A622f | Basler A622f 1024×1024 IEEE1394 (mono, 31fps, shutter-hw-triggermode0, centered) CCF | X | |||
| Basler A622f 1280×1024 IEEE1394 (mono, 25fps, shutter-hw-triggermode0) CCF | X | ||||
| A631f | Basler A631f 1392×1040 IEEE1394 (mono, 18fps, shutter-hw-triggermode0) CCF | X | |||
| A631fc | Basler A631fc 1386×1038 IEEE1394 (raw8, 18fps, shutter-hw-triggermode0) CCF | X | |||
| A641f | Basler A641f 1624×1236 IEEE1394 (mono, 14fps, shutter-hw-triggermode0) CCF | X | |||
| A641fc | Basler A641fc 1622×1232 IEEE1394 (raw8, 14fps, shutter-hw-triggermode0) CCF | X | |||
| L101k-1K | Basler L101k-1k 1024×512 CameraLink (8-bit, 2-tap, level-controlled) CCF | X | |||
| L101k-2K | Basler L101k-2k 2048×512 CameraLink (8-bit, 2-tap, level-controlled) CCF | X | |||
| L103k-1K | Basler L103k-1k 1024×512 CameraLink (8-bit, 2-tap, level-controlled) CCF | X | |||
| L103k-2K | Basler L103k-2k 2048×512 CameraLink (8-bit, 2-tap, level-controlled) CCF | X | |||
| L104k-2K | Basler L104k-2k 2048×512 CameraLink (8-bit, 2-tap, level-controlled) CCF | X | |||
| L304kc | Basler L304kc 4078×512 CameraLink (RGB24, level-controlled) CCF | X | |||
| L402k | Basler L402k 4078×512 CameraLink (8-bit, 2-tap, level-controlled) CCF | X | |||
| L802k | Basler L802k 8160×512 CameraLink (8-bit, 2-tap, level-controlled) CCF | X | |||
| pilot piA1000-48gc | Generic GigEVision (Bayer Color) | X | |||
| Generic GigEVision (Mono) | X | ||||
| pilot piA1000-48gm | Generic GigEVision (Mono) | X | |||
| pilot piA1600-35gc | Generic GigEVision (Bayer Color) | X | |||
| Generic GigEVision (Mono) | X | ||||
| pilot piA1600-35gm | Generic GigEVision (Mono) | X | |||
| pilot piA1900-32gc | Generic GigEVision (Bayer Color) | X | |||
| Generic GigEVision (Mono) | X | ||||
| pilot piA1900-32gm | Generic GigEVision (Mono) | X | |||
| pilot piA2400-12gc | Generic GigEVision (Bayer Color) | X | |||
| Generic GigEVision (Mono) | X | ||||
| pilot piA2400-12gm | Generic GigEVision (Mono) | X | |||
| pilot piA2400-17gm | Generic GigEVision (Mono) | X | |||
| pilot piA640-210gc | Generic GigEVision (Bayer Color) | X | |||
| Generic GigEVision (Mono) | X | ||||
| pilot piA640-210gm | Generic GigEVision (Mono) | X | |||
| runner ruL1024-19gm | Generic GigEVision (Mono) | X | |||
| runner ruL1024-57gm | Generic GigEVision (Mono) | X | |||
| runner ruL2048-30gm | Generic GigEVision (Mono) | X | |||
| scout scA1000-30fc | Basler scA1000-30fc 1032×776 IEEE1394 (raw8, 30fps, shutter-hw-triggermode0) CCF | X | |||
| scout scA1000-30fm | Basler scA1000-30fm 1032×778 IEEE1394 (mono, 30fps, shutter-hw-triggermode0) CCF | X | |||
| scout scA1000-30gc | Generic GigEVision (Bayer Color) | X | |||
| Generic GigEVision (Bayer Color) | X | ||||
| Generic GigEVision (Mono) | X | ||||
| Generic GigEVision (Mono) | X | ||||
| scout scA1000-30gm | Generic GigEVision (Mono) | X | |||
| Generic GigEVision (Mono) | X | ||||
| scout scA1390-17gc | Generic GigEVision (Bayer Color) | X | |||
| Generic GigEVision (Bayer Color) | X | ||||
| Generic GigEVision (Mono) | X | ||||
| Generic GigEVision (Mono) | X | ||||
| scout scA1390-17gm | Generic GigEVision (Mono) | X | |||
| Generic GigEVision (Mono) | X | ||||
| scout scA1600-14fc | Basler scA1600-14fc 1624×1232 IEEE1394 (raw8, 14fps, shutter-hw-triggermode0) CCF | X | |||
| scout scA1600-14fm | Basler scA1600-14fm 1624×1236 IEEE1394 (mono, 14fps, shutter-hw-triggermode0) CCF | X | |||
| scout scA1600-14gc | Generic GigEVision (Bayer Color) | X | |||
| Generic GigEVision (Bayer Color) | X | ||||
| Generic GigEVision (Mono) | X | ||||
| Generic GigEVision (Mono) | X | ||||
| scout scA1600-14gm | Generic GigEVision (Mono) | X | |||
| Generic GigEVision (Mono) | X | ||||
| scout scA640-70fc | Basler scA640-70fc 640×480 IEEE1394 (mono, 30fps, shutter-hw-triggermode0) CCF | X | |||
| Basler scA640-70fc 640×480 IEEE1394 (raw8, 30fps, shutter-hw-triggermode0) CCF | X | ||||
| Basler scA640-70fc 658×490 IEEE1394 (mono, 70fps, shutter-hw-triggermode0) CCF | X | ||||
| Basler scA640-70fc 658×490 IEEE1394 (raw8, 70fps, shutter-hw-triggermode0) CCF | X | ||||
| scout scA640-70fm | Basler scA640-70fm 640×480 IEEE1394 (mono, 30fps, shutter-hw-triggermode0) CCF | X | |||
| Basler scA640-70fm 658×494 IEEE1394 (mono, 70fps, shutter-hw-triggermode0) CCF | X | ||||
| scout scA640-70gc | Generic GigEVision (Bayer Color) | X | |||
| Generic GigEVision (Bayer Color) | X | ||||
| Generic GigEVision (Mono) | X | ||||
| Generic GigEVision (Mono) | X | ||||
| scout scA640-70gm | Generic GigEVision (Mono) | X | |||
| Generic GigEVision (Mono) | X | ||||
| scout scA640-74fc | Basler scA640-74fc 658×490 IEEE1394 (raw8, 74fps, shutter-hw-triggermode0) CCF | X |
CIS
| Model | Video format | 8500Le | 8501 | 8504 | 8504e | 8600 |
|---|---|---|---|---|---|---|
| VCC-F22V39CL | CIS VCC-F22V39CL 638×122 CameraLink (raw8, 1-tap, external-pulseWidth) CCF | X | ||||
| CIS VCC-F22V39CL 638×220 CameraLink (raw8, 1-tap, external-pulseWidth) CCF | X | |||||
| CIS VCC-F22V39CL 638×308 CameraLink (raw8, 1-tap, external-pulseWidth) CCF | X | |||||
| CIS VCC-F22V39CL 638×478 CameraLink (raw8, 1-tap, external-pulseWidth) CCF | X | |||||
| VCC-F32S29CL (65 MHz) | CIS VCC-F32S29CL-65 1358×1020 CameraLink (raw8, 1-tap, external-pulseWidth) CCF | X | ||||
| CIS VCC-F32S29CL-65 1358×1022 CameraLink (RGB24, external-pulseWidth) CCF | X | |||||
| CIS VCC-F32S29CL-65 1358×1022 CameraLink (RGB24, external-pulseWidth, RB-transposed) CCF | X | |||||
| VCC-F32S29CL (72 MHz) | CIS VCC-F32S29CL 1358×1020 CameraLink (raw8, 1-tap, external-pulseWidth) CCF | X | ||||
| CIS VCC-F32S29CL 1358×1022 CameraLink (RGB24, external-pulseWidth) CCF | X | |||||
| CIS VCC-F32S29CL 1358×1022 CameraLink (RGB24, external-pulseWidth, RB-transposed) CCF | X | |||||
| VCC-F32U29CL | CIS VCC-F32U29CLM 1614×1216 CameraLink (raw8, 1-tap, external-pulseWidth) CCF | X | ||||
| CIS VCC-F32U29CLM 1614×480 CameraLink (raw8, 1-tap, external-pulseWidth) CCF | X | |||||
| CIS VCC-F32U29CLM 1614×600 CameraLink (raw8, 1-tap, external-pulseWidth) CCF | X | |||||
| CIS VCC-F32U29CLM 1618×1216 CameraLink (RGB24, external-pulseWidth) CCF | X | |||||
| VCC-G20S20 | CIS VCC-G20S20 1356×1039 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF | X | X | X | X | |
| VCC-G20U20 | CIS VCC-G20U20 1608×1216 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF | X | X | X | X | |
| CIS VCC-G20U20 1610×1218 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF | X | X | X | X | ||
| VCC-G20U20H1 | CIS VCC-G20U20H1 1616×1216 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF | X | X | |||
| VCC-G20X30T1 | CIS VCC-G20X30T1 1020×227 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF | X | X | X | X | |
| CIS VCC-G20X30T1 1020×768 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF | X | X | X | X | ||
| VCC-G21V31CL | CIS VCC-G21V31CL 648×494 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF | X | ||||
| CIS VCC-G22S21CL 1390×1040 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF | X | |||||
| VCC-G22S21CL | CIS VCC-G22S21CL 1390×1040 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF | X | ||||
| VCC-G22U21CL | CIS VCC-G22U21CL 1626×1236 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF | X | ||||
| VCC-G22V31CL | CIS VCC-G22V31CL 648×222 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF | X | ||||
| CIS VCC-G22V31CL 648×310 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF | X | |||||
| CIS VCC-G22V31CL 648×494 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF | X | |||||
| VCC-G32S21CL | CIS VCC-G32S21CL 1358×1024 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF | X | ||||
| VCC-G32U21CL | CIS VCC-G32U21CL 1618×1220 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF | X |
DALSA
| Model | Video format | 8600 | 8602e |
|---|---|---|---|
| Falcon 1.4M100 | Dalsa Falcon-1.4M100 1400×1024 CameraLink (8-bit, 2-tap, smart-exsync) CCF | X | |
| Falcon DS-21-02M30 | Dalsa DS-21-02M30 1600×1200 CameraLink (8-bit, 2-tap, smart-exsync) CCF | X | |
| Falcon DS-21-04M15 | Dalsa DS-21-04M15 2048×2048 CameraLink (8-bit, 2-tap, smart-exsync) CCF | X | |
| Falcon DS-24-02M30 | Dalsa DS-24-02M30 1920×1080 CameraLink (8-bit, 2-tap, smart-exsync) CCF | X | |
| Pantera PT-21-06M08 | Dalsa PT-21-06M08 3072×2048 CameraLink (8-bit, 2-tap, smart-exsync) CCF | X | |
| Piranha Color PC-30-02K80 | Dalsa PC-30-02K80 2048×512 CameraLink (RGB24, external-pulseWidth) CCF | X | |
| Piranha HS-40-04k40 | Dalsa HS-40-04K40-80 4096×512 CameraLink (8-bit, 2-tap, external-trigger, tdi-mode) CCF | X | |
| Dalsa HS-40-04K40-80 4096×96 CameraLink (8-bit, 2-tap, external-trigger, area-mode) CCF | X | ||
| Piranha2 P2-2x-01k40 | Dalsa P2-2x-1K40 1024×512 CameraLink (8-bit, 2-tap, smart-exsync) CCF | X | |
| Piranha2 P2-2x-02k40 | Dalsa P2-2x-2K40 2048×512 CameraLink (8-bit, 2-tap, smart-exsync) CCF | X | |
| Piranha2 P2-2x-04k40 | Dalsa P2-2x-4K40 4096×512 CameraLink (8-bit, 2-tap, smart-exsync) CCF | X | |
| Piranha2 P2-2x-06k40 | Dalsa P2-2x-6K40 6144×512 CameraLink (8-bit, 2-tap, smart-exsync) CCF | X | |
| Piranha2 P2-2x-08k40 | Dalsa P2-2x-8K40 8192×512 CameraLink (8-bit, 2-tap, smart-exsync) CCF | X | |
| Piranha2 P2-4x-04k40 | Dalsa P2-4x-4K40 4096×512 CameraLink (8-bit, 4-tap, smart-exsync) CCF | X | |
| Piranha2 P2-4x-06k40 | Dalsa P2-4x-6K40 6144×512 CameraLink (8-bit, 4-tap, smart-exsync) CCF | X | |
| Piranha2 P2-4x-08k40 | Dalsa P2-4x-8K40 8192×512 CameraLink (8-bit, 4-tap, smart-exsync) CCF | X | |
| Spyder2 S2-1x-01K40 | Dalsa S2-1x-01k40 1024×512 CameraLink (8-bit, 1-tap, smart-exsync) CCF | X | |
| Spyder2 S2-1x-02K40 | Dalsa S2-1x-02k40 2048×512 CameraLink (8-bit, 1-tap, smart-exsync) CCF | X | |
| Spyder2 S2-1x-05H40 | Dalsa S2-21-05H40 512×512 CameraLink (8-bit, 1-tap, smart-exsync) CCF | X | |
| Spyder2 S2-2x-04k40 | Dalsa S2-2x-4K40 4096×512 CameraLink (8-bit, 2-tap, smart-exsync) CCF | X | |
| Spyder3 S3-20-02K40 | Dalsa S3-20-02K40 2048×512 CameraLink (8-bit, 2-tap, smart-exsync) CCF | X |
e2v
| Model | Video format | 8600 | 8602e |
|---|---|---|---|
| AViiVA M2 CL 0514 | Atmel M2CL0514 512×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF | X | |
| Atmel M2CL0514-30 512×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF | X | ||
| e2v M2CL0514 512×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF | X | ||
| e2v M2CL0514-30 512×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF | X | ||
| AViiVA M2 CL 1014 | Atmel M2CL1014 1024×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF | X | |
| Atmel M2CL1014-30 1024×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF | X | ||
| e2v M2CL1014 1024×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF | X | ||
| e2v M2CL1014-30 1024×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF | X | ||
| AViiVA M2 CL 2014 | Atmel M2CL2014 2048×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF | X | |
| Atmel M2CL2014-30 2048×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF | X | ||
| e2v M2CL2014 2048×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF | X | ||
| e2v M2CL2014-30 2048×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF | X | ||
| AViiVA M2 CL 4010 | Atmel M2CL4010 4096×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF | X | |
| e2v M2CL4010 4096×512 CameraLink (8-bit, 2-tap, integration-time-control) CCF | X | ||
| AViiVA M4 CL 6007 | Atmel M4CL6007 6144×512 CameraLink (8-bit, 4-tap, integration-time-control) CCF | X | |
| e2v M4CL6007 6144×512 CameraLink (8-bit, 4-tap, integration-time-control) CCF | X |
Flovel
| Model | Video format | 8600 |
|---|---|---|
| ADK-1100B | Flovel ADK-1100B 4016×2672 CameraLink (8-bit, 2-tap, external-pulseWidth) CCF | X |
Generic 1394 DCAM
| Model | Video format | 1394 DCAM |
|---|---|---|
| Generic | Generic 1394DCAM 1024×768 IEEE1394 (mono, 15fps, shutter-hw-triggermode0) CCF | X |
| Generic 1394DCAM 1024×768 IEEE1394 (mono, 30fps, shutter-hw-triggermode0) CCF | X | |
| Generic 1394DCAM 1024×768 IEEE1394 (mono, 60fps, shutter-hw-triggermode0) CCF | X | |
| Generic 1394DCAM 1280×960 IEEE1394 (mono, 15fps, shutter-hw-triggermode0) CCF | X | |
| Generic 1394DCAM 1280×960 IEEE1394 (mono, 30fps, shutter-hw-triggermode0) CCF | X | |
| Generic 1394DCAM 1280×960 IEEE1394 (mono, 7.5fps, shutter-hw-triggermode0) CCF | X | |
| Generic 1394DCAM 1600×1200 IEEE1394 (mono, 15fps, shutter-hw-triggermode0) CCF | X | |
| Generic 1394DCAM 1600×1200 IEEE1394 (mono, 3.75fps, shutter-hw-triggermode0) CCF | X | |
| Generic 1394DCAM 1600×1200 IEEE1394 (mono, 30fps, shutter-hw-triggermode0) CCF | X | |
| Generic 1394DCAM 1600×1200 IEEE1394 (mono, 7.5fps, shutter-hw-triggermode0) CCF | X | |
| Generic 1394DCAM 640×480 IEEE1394 (mono, 120fps, shutter-hw-triggermode0) CCF | X | |
| Generic 1394DCAM 640×480 IEEE1394 (mono, 15fps, shutter-hw-triggermode0) CCF | X | |
| Generic 1394DCAM 640×480 IEEE1394 (mono, 30fps, shutter-hw-triggermode0) CCF | X | |
| Generic 1394DCAM 640×480 IEEE1394 (mono, 60fps, shutter-hw-triggermode0) CCF | X |
Hitachi
| Model | Video format | 8600 | 8602e |
|---|---|---|---|
| HV-F22CL-S1 | Hitachi HV-F22CL-S1 1360×1024 CameraLink (RGB24, external-pulseWidth) CCF | X | |
| KP-F100BCL | Hitachi KP-F100BCL 1390×1040 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF | X | |
| KP-F200SCL | Hitachi KP-F200SCL 1626×1236 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF | X | |
| Hitachi KP-F200SCL 1626×410 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF | X | ||
| Hitachi KP-F200SCL 1626×618 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF | X | ||
| KP-F230PCL (PoCL) | Hitachi KP-F230PCL 1628×1236 CameraLink (2-tap, external-pulseWidth) CCF | X | |
| KP-F230SCL | Hitachi KP-F230SCL 1628×1236 CameraLink (2-tap, external-pulseWidth) CCF | X | |
| KP-F39PCL (PoCL) | Hitachi KP-F39PCL 656×484 CameraLink (1-tap, external-pulseWidth) CCF | X | |
| KP-F500SCL | Hitachi KP-F500SCL 2448×1028 CameraLink (8-bit, 2-tap, external-pulseWidth) CCF | X | |
| Hitachi KP-F500SCL 2448×2058 CameraLink (8-bit, 2-tap, external-pulseWidth) CCF | X | ||
| Hitachi KP-F500SCL 2448×680 CameraLink (8-bit, 2-tap, external-pulseWidth) CCF | X | ||
| KP-FR500SCL | Hitachi KP-FR500SCL 2446×2058 CameraLink (raw8, 2-tap, external-pulseWidth) CCF | X |
Imperx
| Model | Video format | 8600 |
|---|---|---|
| IPX-11M5-L | Imperx IPX-11M5-L 4000×2672 CameraLink (8-bit, 1-tap, external-cc1-pulseWidth) CCF | X |
| Imperx IPX-11M5-L 4000×2672 CameraLink (8-bit, 2-tap, external-cc1-pulseWidth) CCF | X | |
| IPX-16M3-L | Imperx IPX-16M3-L 4872×3248 CameraLink (8-bit, 1-tap, external-cc1-pulseWidth) CCF | X |
| IPX-4M15-L | Imperx IPX-4M15-L 2040×2040 CameraLink (8-bit, 1-tap, external-cc1-pulseWidth) CCF | X |
| IPX-VGA210-L | Imperx IPX-VGA210-L 640×480 CameraLink (8-bit, 2-tap, external-cc1-pulseWidth) CCF | X |
JAI
| Model | Video format | 8100L | 8100M | 8500Le | 8501 | 8504 | 8504e | 8600 | GigE Vision |
|---|---|---|---|---|---|---|---|---|---|
| BB-500CL | Jai BB-500CL 2438×2058 CameraLink (raw8, 2-tap, external-pulseWidth) CCF | X | |||||||
| BM-500CL | Jai BM-500CL 2444×2058 CameraLink (8-bit, 2-tap, external-pulseWidth) CCF | X | |||||||
| CM-030GE | Generic GigEVision (Mono) | X | |||||||
| CM-040GE | Generic GigEVision (Mono) | X | |||||||
| CM-080GE | Generic GigEVision (Mono) | X | |||||||
| CM-140GE | Generic GigEVision (Mono) | X | |||||||
| CM-200GE | Generic GigEVision (Mono) | X | |||||||
| CV-A1 | Jai CV-A1 1364×1035 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF | X | X | X | X | ||||
| Jai CV-A1 1364×341 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF | X | X | X | X | |||||
| Jai CV-A1 1364×513 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF | X | X | X | X | |||||
| Jai CV-A1 682×501 IntDrv (rapid-reset, shutter-sw-pulseWidth, binning-enabled) CCF | X | X | X | X | |||||
| CV-A2 | Jai CV-A2 1616×1220 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF | X | X | X | X | ||||
| Jai CV-A2 1616×408 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF | X | X | X | X | |||||
| CV-A60C | Jai CV-A60C 760×574 IntDrv CCF | X | X | X | X | ||||
| CV-L107CL | Jai CV-L107CL 2048×512 CameraLink (RGB24, external-pulseWidth) CCF | X | |||||||
| CV-M1 | Jai CV-M1 1280×1024 IntDrv (rapid-reset, shutter-sw-doublePulse) CCF | X | X | X | X | ||||
| CV-M10BXC | Jai CV-M10BXC 760×578 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF | X | X | X | X | ||||
| CV-M2CL | Jai CV-M2CL 1600×1200 CameraLink (8-bit, 2-tap, external-pulseWidth) CCF | X | |||||||
| CV-M4+CL | Jai CV-M4+CL 1382×1029 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF | X | |||||||
| CV-M7+CL | Jai CV-M7+CL 1374×1028 CameraLink (raw8, 1-tap, external-pulseWidth) CCF | X | |||||||
| CV-M9CL | Jai CV-M9CL 1024×768 CameraLink (RGB24, external-pulseWidth) CCF | X | |||||||
| RM-4100CL | Jai RM-4100CL 2048×2048 CameraLink (8-bit, 2-tap, external-vinit-pulseWidth) CCF | X | |||||||
| Pulnix RM-4100CL 2048×2048 CameraLink (8-bit, 2-tap, external-vinit-pulseWidth) CCF | X | ||||||||
| TM-1402CL | Jai TM-1402CL-25 1388×1040 CameraLink (8-bit, 1-tap, external-vinit-pulseWidth) CCF | X | |||||||
| Jai TM-1402CL-50 1388×1040 CameraLink (8-bit, 1-tap, external-vinit-pulseWidth) CCF | X | ||||||||
| Pulnix TM-1402CL-25 1388×1040 CameraLink (8-bit, 1-tap, external-vinit-pulseWidth) CCF | X | ||||||||
| Pulnix TM-1402CL-50 1388×1040 CameraLink (8-bit, 1-tap, external-vinit-pulseWidth) CCF | X | ||||||||
| TM-4100CL | Jai TM-4100CL 2048×2048 CameraLink (8-bit, 2-tap, external-vinit-pulseWidth) CCF | X | |||||||
| Jai TM-4100CL 2048×250 CameraLink (8-bit, 2-tap, external-vinit-pulseWidth) CCF | X | ||||||||
| Pulnix TM-4100CL 2048×2048 CameraLink (8-bit, 2-tap, external-vinit-pulseWidth) CCF | X | ||||||||
| Pulnix TM-4100CL 2048×250 CameraLink (8-bit, 2-tap, external-vinit-pulseWidth) CCF | X | ||||||||
| TM-6CN | PULNiX TM-6CN 760×574 | X | X | ||||||
| TM-7EX | Pulnix TM7EX 640×240 | X | X | ||||||
| Pulnix TM7EX 640×480 | X | X | |||||||
| TM-9701 | PULNiX TM-9701 640×480 | X | |||||||
| TMC-4100CL | Jai TMC-4100CL 2048×2048 CameraLink (raw8, 2-tap, external-vinit-pulseWidth) CCF | X | |||||||
| Pulnix TMC-4100CL 2048×2048 CameraLink (raw8, 2-tap, external-vinit-pulseWidth) CCF | X |
Leutron
| Model | Video format | 8600 |
|---|---|---|
| PicSight P141M-CL | Leutron P141M-CL 1392×1040 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF | X |
LORD
| Model | Video format | 8600 |
|---|---|---|
| DVLC2098K | Lord DVLC2098K 2096×512 CameraLink (RGB24, external-pulseWidth) CCF | X |
NED
| Model | Video format | 8600 |
|---|---|---|
| EIS640 | NED EIS640 640×512 CameraLink (8-bit, 1-tap) CCF | X |
| NUCLi7300 | NED NUCLi7300 7300×512 CameraLink (RGB24, 1-tap) CCF | X |
Photonfocus
| Model | Video format | 8600 |
|---|---|---|
| MV-D1024-28-CL | Photonfocus MV-D1024-28-CL 1024×1024 CameraLink (8-bit, 1-tap, level-controlled) CCF | X |
| MV-D1024E-40-CL | Photonfocus MV-D1024E-40-CL 1024×1024 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF | X |
PixeLINK
| Model | Video format | 1394 DCAM |
|---|---|---|
| PL-A741 | Pixelink PL-A741 1024×1024 IEEE1394 (mono, 28fps, shutter-hw-triggermode0) CCF | X |
| PL-A781 | Pixelink PL-A781 2208×3000 IEEE1394 (mono, 4.5fps, shutter-hw-triggermode0) CCF | X |
| PL-A782 | Pixelink PL-A782 2208×3000 IEEE1394 (raw8, 4.5fps, shutter-hw-triggermode0) CCF | X |
| Pixelink PL-A782 2208×3000 IEEE1394 (raw8, 4.5fps, shutter-hw-triggermode0, streaming-on) CCF | X |
Point Grey Research
| Model | Video format | 1394 DCAM |
|---|---|---|
| Dragonfly Express | PGR DX-BW 640×480 IEEE1394 (mono, 200fps, shutter-hw-triggermode0) CCF | X |
| Flea FLEA-BW | PGR FLEA-BW 640×480 IEEE1394 (mono, 60fps, shutter-hw-triggermode0) CCF | X |
| Flea FLEA-COL | PGR FLEA-COL 640×480 IEEE1394 (raw8, 60fps, shutter-hw-triggermode0) CCF | X |
| Flea FLEA-HIBW | PGR FLEA-HIBW 1024×768 IEEE1394 (mono, 32fps, shutter-hw-triggermode0) CCF | X |
| Flea FLEA-HICOL | PGR FLEA-HICOL 1020×764 IEEE1394 (raw8, 32fps, shutter-hw-triggermode0) CCF | X |
| Flea2 FL2-03S2C | PGR FLEA2-COL 646×484 IEEE1394 (raw8, 80fps, shutter-hw-triggermode0) CCF | X |
| Flea2 FL2-03S2M | PGR FLEA2-BW 648×484 IEEE1394 (mono, 80fps, shutter-hw-triggermode0) CCF | X |
| Flea2 FL2-08S2C | PGR FLEA2-HICOL 1024×770 IEEE1394 (raw8, 32fps, shutter-hw-triggermode0) CCF | X |
| Flea2 FL2-08S2M | PGR FLEA2-HIBW 1024×770 IEEE1394 (mono, 32fps, shutter-hw-triggermode0) CCF | X |
| Flea2 FL2-14S3C | PGR FLEA2-14SC 1390×1032 IEEE1394 (raw8, 16fps, shutter-hw-triggermode0) CCF | X |
| Flea2 FL2-14S3M | PGR FLEA2-14SM 1390×1032 IEEE1394 (mono, 16fps, shutter-hw-triggermode0) CCF | X |
| Flea2 FL2-20S4C | PGR FLEA2-20SC 1620×1224 IEEE1394 (raw8, 14fps, shutter-hw-triggermode0) CCF | X |
| Flea2 FL2-20S4M | PGR FLEA2-20SM 1624×1224 IEEE1394 (mono, 14fps, shutter-hw-triggermode0) CCF | X |
| Grasshopper GRAS-20S4C | PGR GRAS-20SC 1622×1222 IEEE1394 (raw8, 16fps, shutter-hw-triggermode0) CCF | X |
| PGR GRAS-20SC 1622×1222 IEEE1394 (raw8, 30fps, shutter-hw-triggermode0) CCF | X | |
| Grasshopper GRAS-20S4M | PGR GRAS-20SM 1624×1224 IEEE1394 (mono, 16fps, shutter-hw-triggermode0) CCF | X |
| PGR GRAS-20SM 1624×1224 IEEE1394 (mono, 30fps, shutter-hw-triggermode0) CCF | X | |
| Grasshopper GRAS-50S5C | PGR GRAS-50SC 2444×2044 IEEE1394 (raw8, 12fps, shutter-hw-triggermode0) CCF | X |
| PGR GRAS-50SC 2444×2044 IEEE1394 (raw8, 6fps, shutter-hw-triggermode0) CCF | X | |
| Grasshopper GRAS-50S5M | PGR GRAS-50SM 2448×2048 IEEE1394 (mono, 12fps, shutter-hw-triggermode0) CCF | X |
| PGR GRAS-50SM 2448×2048 IEEE1394 (mono, 6fps, shutter-hw-triggermode0) CCF | X | |
| Scorpion SCOR-14SOM | PGR SCOR-14SOM 1392×1032 IEEE1394 (mono, 17fps, shutter-hw-triggermode0) CCF | X |
| Scorpion SCOR-20SOC | PGR SCOR-20SOC 1624×1228 IEEE1394 (raw8, 15fps, shutter-hw-triggermode0) CCF | X |
| Scorpion SCOR-20SOM | PGR SCOR-20SOM 1628×1228 IEEE1394 (mono, 15fps, shutter-hw-triggermode0) CCF | X |
Prosilica
| Model | Video format | GigE Vision |
|---|---|---|
| GC1020 | Generic GigEVision (Mono) | X |
| GC1280 | Generic GigEVision (Mono) | X |
| GC1290 | Generic GigEVision (Mono) | X |
| GC1350 | Generic GigEVision (Mono) | X |
| GC1380 | Generic GigEVision (Mono) | X |
| GC1380H | Generic GigEVision (Mono) | X |
| GC1600 | Generic GigEVision (Mono) | X |
| GC1600H | Generic GigEVision (Mono) | X |
| GC2450 | Generic GigEVision (Mono) | X |
| GC640 | Generic GigEVision (Mono) | X |
| GC650 | Generic GigEVision (Mono) | X |
| GC655 | Generic GigEVision (Mono) | X |
| GC660 | Generic GigEVision (Mono) | X |
| GC750 | Generic GigEVision (Mono) | X |
| GE1350 | Generic GigEVision (Mono) | X |
| GE1350C | Generic GigEVision (Bayer Color) | X |
| Generic GigEVision (Mono) | X | |
| GE1380 | Generic GigEVision (Mono) | X |
| GE1380C | Generic GigEVision (Bayer Color) | X |
| Generic GigEVision (Mono) | X | |
| GE1600 | Generic GigEVision (Mono) | X |
| GE1600C | Generic GigEVision (Bayer Color) | X |
| Generic GigEVision (Mono) | X | |
| GE1900 | Generic GigEVision (Mono) | X |
| GE1900C | Generic GigEVision (Bayer Color) | X |
| Generic GigEVision (Mono) | X | |
| GE4000 | Generic GigEVision (Mono) | X |
| GE4000C | Generic GigEVision (Bayer Color) | X |
| Generic GigEVision (Mono) | X | |
| GE4900 | Generic GigEVision (Mono) | X |
| GE4900C | Generic GigEVision (Bayer Color) | X |
| Generic GigEVision (Mono) | X | |
| GE640 | Generic GigEVision (Mono) | X |
| GE640C | Generic GigEVision (Bayer Color) | X |
| Generic GigEVision (Mono) | X | |
| GE650 | Generic GigEVision (Mono) | X |
| GE650C | Generic GigEVision (Bayer Color) | X |
| Generic GigEVision (Mono) | X |
Sentech
| Model | Video format | 8500Le | 8501 | 8504 | 8504e | 8600 |
|---|---|---|---|---|---|---|
| STC-A152A | SENT STC-A152A 1356×1040 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF | X | X | X | X | |
| STC-CLC202A | Sentech STC-CL202A 1600×1200 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF | X |
Sony
| Model | Video format | 8100L | 8100M | 8500Le | 8501 | 8504 | 8504e | 8600 | 8602e |
|---|---|---|---|---|---|---|---|---|---|
| DXC-390 | Sony DXC-390 640×480 IntDrv (3 Plane Color) CCF | X | X | ||||||
| DXC-390P | Sony DXC-390P 760×574 IntDrv (3 Plane Color) CCF | X | X | ||||||
| XC-003 | Sony XC-003 640×480 IntDrv (3 Plane Color) CCF | X | X | ||||||
| XC-55 | Sony XC-55 320×240 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF | X | X | X | X | ||||
| Sony XC-55 640×480 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF | X | X | X | X | |||||
| Sony XC-55BB 640×480 | X | ||||||||
| XC-56 | Sony XC-55BB 640×480 | X | |||||||
| Sony XC-56 640×480 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF | X | X | X | X | |||||
| XC-75 | Sony XC75 640×240 | X | X | ||||||
| Sony XC75 640×480 | X | X | |||||||
| XC-75CE | Sony XC75CE 760×287 | X | X | ||||||
| Sony XC75CE 760×574 | X | X | |||||||
| XC-HR50 | Sony XC-HR50 640×100 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF | X | X | X | X | ||||
| Sony XC-HR50 640×105 IntDrv (rapid-reset, shutter-sw-EDONPISHAII, binning-enabled) CCF | X | X | X | X | |||||
| Sony XC-HR50 640×146 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF | X | X | X | X | |||||
| Sony XC-HR50 640×237 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF | X | X | X | X | |||||
| Sony XC-HR50 640×480 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF | X | X | X | X | |||||
| Sony XC-HR50 640×480 IntDrv CCF | X | X | X | X | |||||
| XC-HR57 | Sony XC-HR57 640×240 IntDrv (rapid-reset, shutter-sw-EDONPISHAII, binning-enabled) CCF | X | X | X | X | ||||
| Sony XC-HR57 640×480 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF | X | X | X | X | |||||
| XC-HR58 | Sony XC-HR58 756×574 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF | X | X | X | X | ||||
| XC-HR70 | Sony XC-HR70 1020×152 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF | X | X | X | X | ||||
| Sony XC-HR70 1020×220 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF | X | X | X | X | |||||
| Sony XC-HR70 1020×355 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF | X | X | X | X | |||||
| Sony XC-HR70 1020×766 IntDrv CCF | X | X | X | X | |||||
| Sony XC-HR70 1020×768 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF | X | X | X | X | |||||
| XC-HR90 | Sony XC-HR90 1280×960 IntDrv (rapid-reset, shutter-sw-EDONPISHAII) CCF | X | X | X | X | ||||
| Sony XC-HR90 1280×960 IntDrv (rapid-reset, shutter-sw-EDONPISHAII, 15FPS) CCF | X | X | X | X | |||||
| XCL-5000 | Sony XCL-5000 2448×2050 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF | X | |||||||
| XCL-5005 (PoCL) | Sony XCL-5005 2448×2050 CameraLink (8-bit, 2-tap, external-pulseWidth) CCF | X | |||||||
| XCL-U1000 | Sony XCL-U1000 1600×1198 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF | X | |||||||
| XCL-U1000C | Sony XCL-U1000C 1600×1198 CameraLink (RGB24, external-pulseWidth) CCF | X | |||||||
| XCL-V500 | Sony XCL-V500 648×494 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF | X | |||||||
| XCL-X700 | Sony XCL-X700 1024×768 CameraLink (8-bit, 1-tap, external-pulseWidth) CCF | X | |||||||
| XC-ST50 | Sony XC-ST50 320×240 ExtPLLCo CCF | X | X | X | X | ||||
| Sony XC-ST50 320×240 IntDrv (rapid-reset, shutter-sw-SDONPISHA) CCF | X | X | X | X | |||||
| Sony XC-ST50 320×240 IntDrv CCF | X | X | X | X | |||||
| Sony XC-ST50 640×240 | X | X | |||||||
| Sony XC-ST50 640×240 ExtPLLCo CCF | X | X | X | X | |||||
| Sony XC-ST50 640×240 IntDrv (rapid-reset, shutter-sw-SDONPISHA) CCF | X | X | X | X | |||||
| Sony XC-ST50 640×240 IntDrv CCF | X | X | X | X | |||||
| Sony XC-ST50 640×480 | X | X | |||||||
| Sony XC-ST50 640×480 ExtPLLCo CCF | X | X | X | X | |||||
| Sony XC-ST50 640×480 IntDrv CCF | X | X | X | X | |||||
| XC-ST50CE | Sony XC-ST50CE 380×287 ExtPLLCo CCF | X | X | X | X | ||||
| Sony XC-ST50CE 380×287 IntDrv (rapid-reset, shutter-sw-SDONPISHA) CCF | X | X | X | X | |||||
| Sony XC-ST50CE 380×287 IntDrv CCF | X | X | X | X | |||||
| Sony XC-ST50CE 760×287 | X | X | |||||||
| Sony XC-ST50CE 760×287 ExtPLLCo CCF | X | X | X | X | |||||
| Sony XC-ST50CE 760×287 IntDrv CCF | X | X | X | X | |||||
| Sony XC-ST50CE 760×574 | X | X | |||||||
| Sony XC-ST50CE 760×574 ExtPLLCo CCF | X | X | X | X | |||||
| Sony XC-ST50CE 760×574 IntDrv CCF | X | X | X | X | |||||
| XC-ST70 | Sony XC-ST70 640×480 ExtPLLCo CCF | X | X | X | X | ||||
| Sony XC-ST70 640×480 IntDrv CCF | X | X | X | X |
SVS-VISTEK
| Model | Video format | 8600 |
|---|---|---|
| SVS11002MFCP | SVS-VISTEK SVS11002MFCP 4032×2672 CameraLink (8-bit, 2-tap, external-cc1-pulseWidth) CCF | X |
| SVS11002MSCP | SVS-VISTEK SVS11002MSCP 4008×2672 CameraLink (8-bit, 1-tap, external-cc1-pulseWidth) CCF | X |
Takenaka
| Model | Video format | 8600 |
|---|---|---|
| TL-5150UCL | Takenaka TL-5150UCL 5148×512 CameraLink (8-bit, 2-tap, external-pulseWidth) CCF | X |
| TL-7450UCL | Takenaka TL-7450UCL 7448×512 CameraLink (8-bit, 2-tap, external-pulseWidth) CCF | X |
Toshiba
| Model | Video format | 8500Le | 8501 | 8504 | 8504e | 8600 |
|---|---|---|---|---|---|---|
| IK-53V | Toshiba IK-53V 640×134 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF | X | X | X | X | |
| Toshiba IK-53V 640×480 IntDrv (rapid-reset, shutter-sw-pulseWidth) CCF | X | X | X | X | ||
| IK-54XSL | Toshiba IK-54XSL 640×480 IntDrv (rapid-reset, shutter-hw-random-trigger, exposure-16667) CCF | X | X | X | X | |
| IK-TF5C | Toshiba IK-TF5C 648×494 CameraLink (RGB24, external-pulseWidth-syncReset) CCF | X |
Toshiba Teli
| Model | Video format | 1394 DCAM | 8500Le | 8501 | 8504 | 8504e | 8600 |
|---|---|---|---|---|---|---|---|
| CS3951D | Teli CS3951D 1018×768 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF | X | X | X | X | ||
| CS3970CL | Teli CS3970CL 1628×1236 CameraLink (8-bit, 1-tap, random-trigger-shutter) CCF | X | |||||
| CS4300B | Teli CS4300B 640×480 IntDrv CCF | X | X | X | X | ||
| CS8541D | Teli CS8541D 640×227 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF | X | X | X | X | ||
| Teli CS8541D 640×480 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF | X | X | X | X | |||
| Teli CS8541D 640×81 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF | X | X | X | X | |||
| CS8550D | Teli CS8550D 320×240 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF | X | X | X | X | ||
| Teli CS8550D 640×480 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF | X | X | X | X | |||
| CS8560D | Teli CS8560D 640×480 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF | X | X | X | X | ||
| CS8570D | Teli CS8570D 640×240 IntDrv (rapid-reset, shutter-sw-random-trigger, binning-enabled) CCF | X | X | X | X | ||
| Teli CS8570D 640×480 IntDrv (rapid-reset, shutter-sw-random-trigger) CCF | X | X | X | X | |||
| CS8620i | Teli CS8620i 640×480 IntDrv CCF | X | X | X | X | ||
| CSB1100CL | Teli CSB1100CL 1236×1023 CameraLink (8-bit, 1-tap, random-trigger-shutter) CCF | X | |||||
| CSB4000CL-10 | Teli CSB4000CL 2008×2047 CameraLink (8-bit, 1-tap, random-trigger-shutter) CCF | X | |||||
| CSB4000F-10 | Teli CSB4000F-10 2000×2000 IEEE1394 (mono, 7fps, shutter-hw-triggermode0, WOI) CCF | X | |||||
| Teli CSB4000F-10 2008×2044 IEEE1394 (mono, 7fps, shutter-hw-triggermode0) CCF | X | ||||||
| CSCQS15BC23 | Teli CSCQS15BC23 2448×1000 CameraLink (8-bit, 2-tap, external-pulseWidth) CCF | X | |||||
| Teli CSCQS15BC23 2448×2050 CameraLink (8-bit, 2-tap, external-pulseWidth) CCF | X | ||||||
| Teli CSCQS15BC23 2448×600 CameraLink (8-bit, 2-tap, external-pulseWidth) CCF | X | ||||||
| CSCV90BC3 | Teli CSCV90BC3 648×494 CameraLink (8-bit, 1-tap, random-trigger-shutter) CCF | X | |||||
| CSCX30BC3 | Teli CSCX30BC3 1024×768 CameraLink (8-bit, 1-tap, random-trigger-shutter) CCF | X | |||||
| CSFV90CC3 | TELI CSFV90CC3 638×478 IEEE1394 (raw8, 95fps, shutter-hw-triggermode0) CCF | X | |||||
| TELI CSFV90CC3 640×480 IEEE1394 (raw8, 95fps, shutter-hw-triggermode0) CCF | X |
评价
目前还没有评价
