10 years THT expert provide Auto insertion machine training

S4000 Axial Insertion Machine Training plan

No.

Training programs

 Time (hour)

Date

Trainee

1

introduce overall structure of machine，operational principle ，safe operation rules

2

2

operation interface，menu groups

2

3

programming

6

4

feeder dis assembly and adjustment

2

5

feeder common fault and solution

2

6

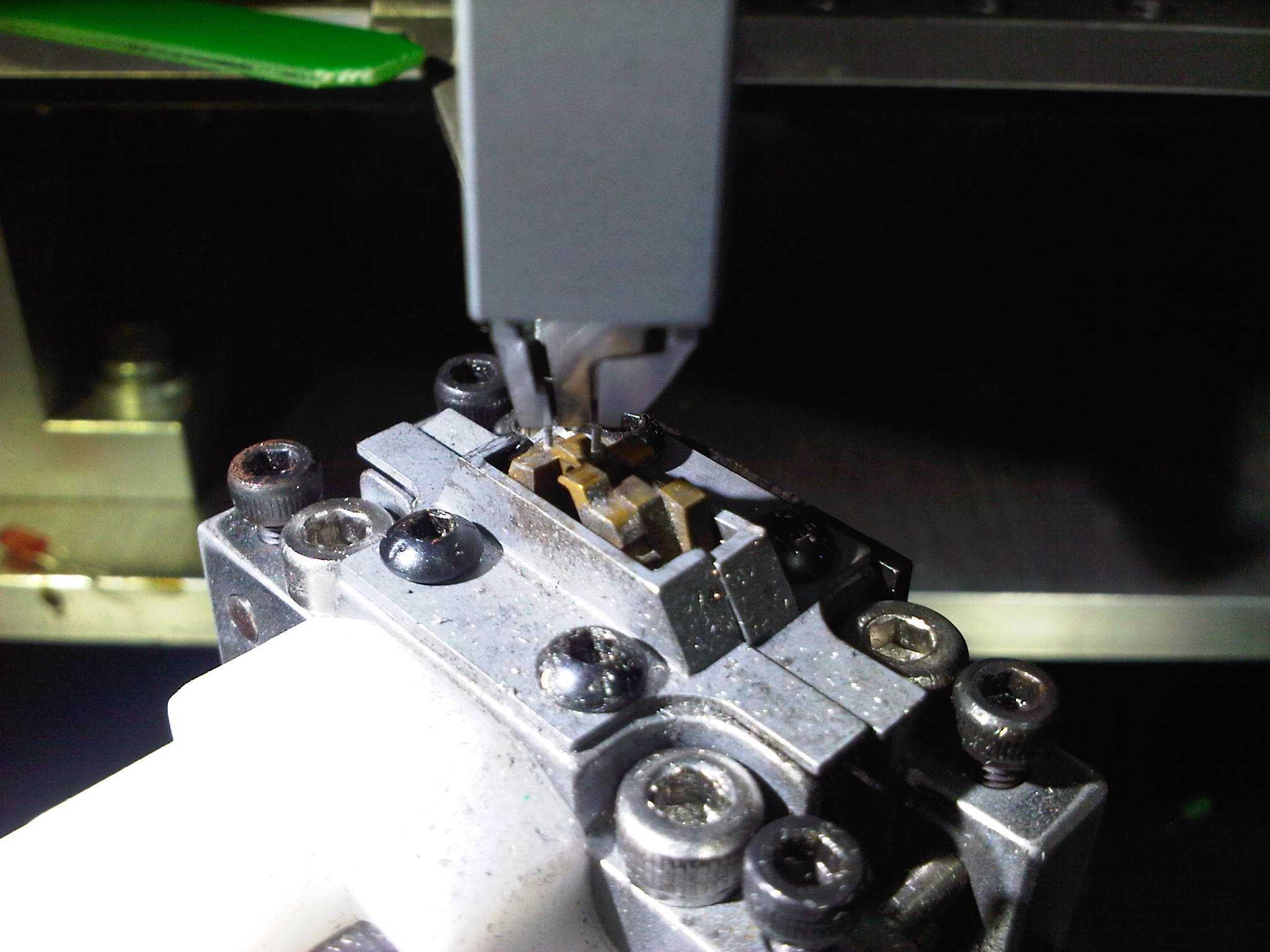

insert head dis assembly and adjustment

3

7

insert head common fault and solution

2

8

jumper wire assembly dismounting and adjustment

1

9

base cutter dis assembly and adjustment

3

10

component gear adjustment

2

12

chain maintain and adjustment

1

13

centering assembly adjustment，miss check sensor adjustment

1

14

base and head concentric adjustment，camera adjustment

4

15

span adjustment

2

16

forming guiding adjustment

1

17

table maintain and adjustment

1

18

trainee exam and instructor summarize

1

18

trainee exam and instructor summarize

4

Total (Hours)

40

Trainer
