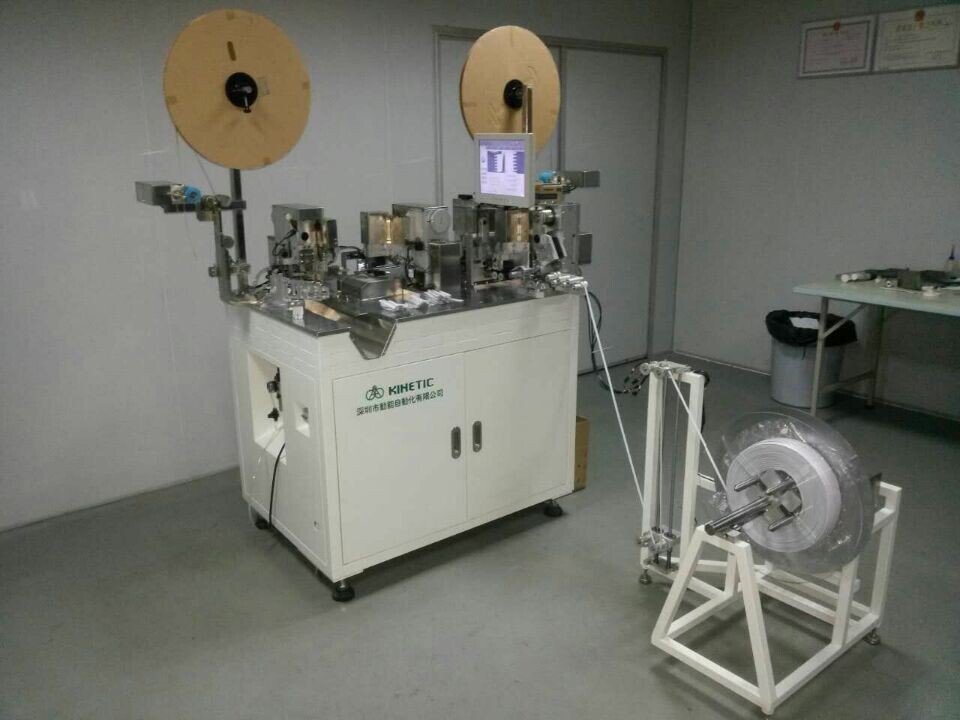

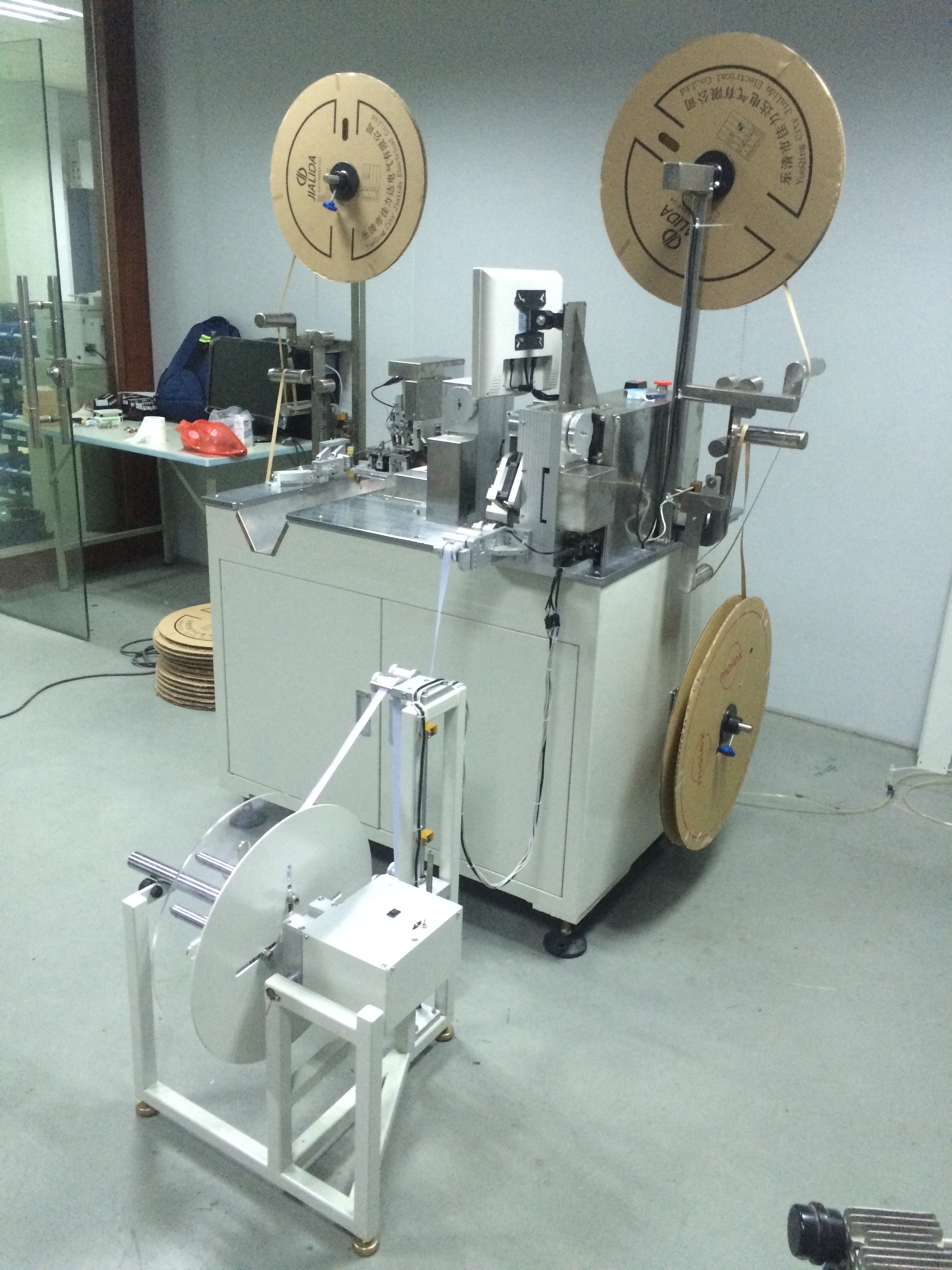

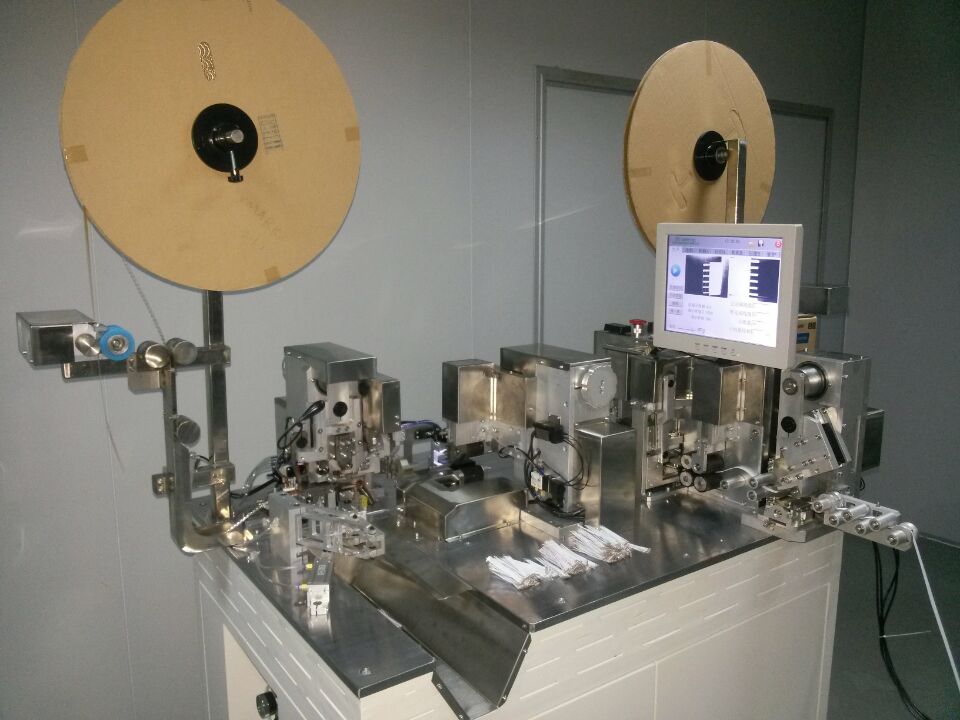

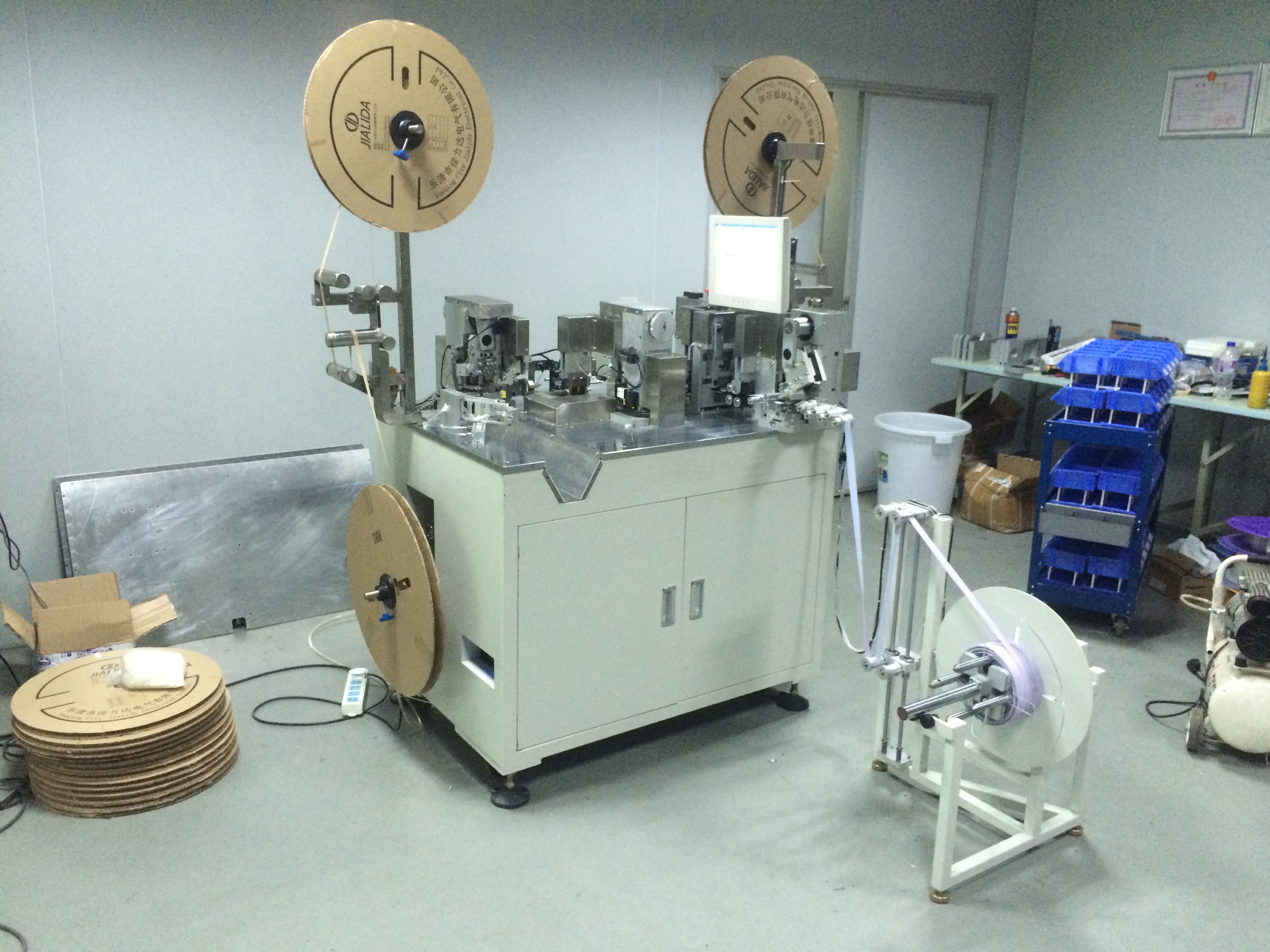

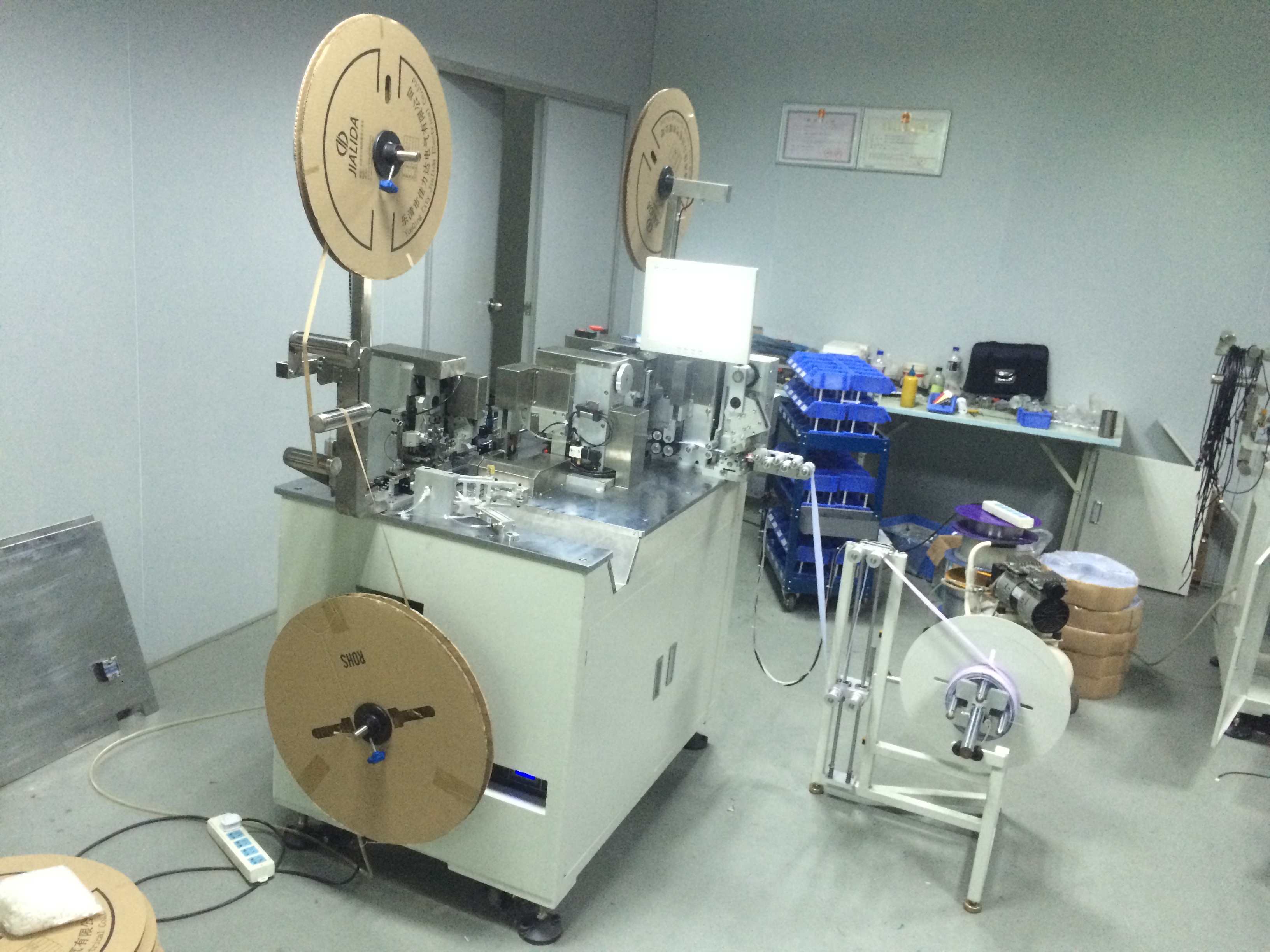

Full automatic cable/wire harness processing equipment for cable/wire cutting, stripping and terminal crimping. It’s feeding system, cutting and stripping system, mechanical hand clamping and transmitting system, twisting system, terminal crimping system and screen touch operation display, all integration technology of light, machine, air, magnetic were unified by the computer control. This technology is the most advanced at home or abroad.
Advanced detector which can detect no wires, wire overload ,wire deviation abnormal, less pressure ,stripping and crimping missing and other abnormalities with alarms.
Features
1.Wide capability: cable terminals like JC,PH,XH,EH,ZH, SCN,SM,VH,Dupont,etc.
2. Cost-saving: all process complete automatically, save a lot of production cost.

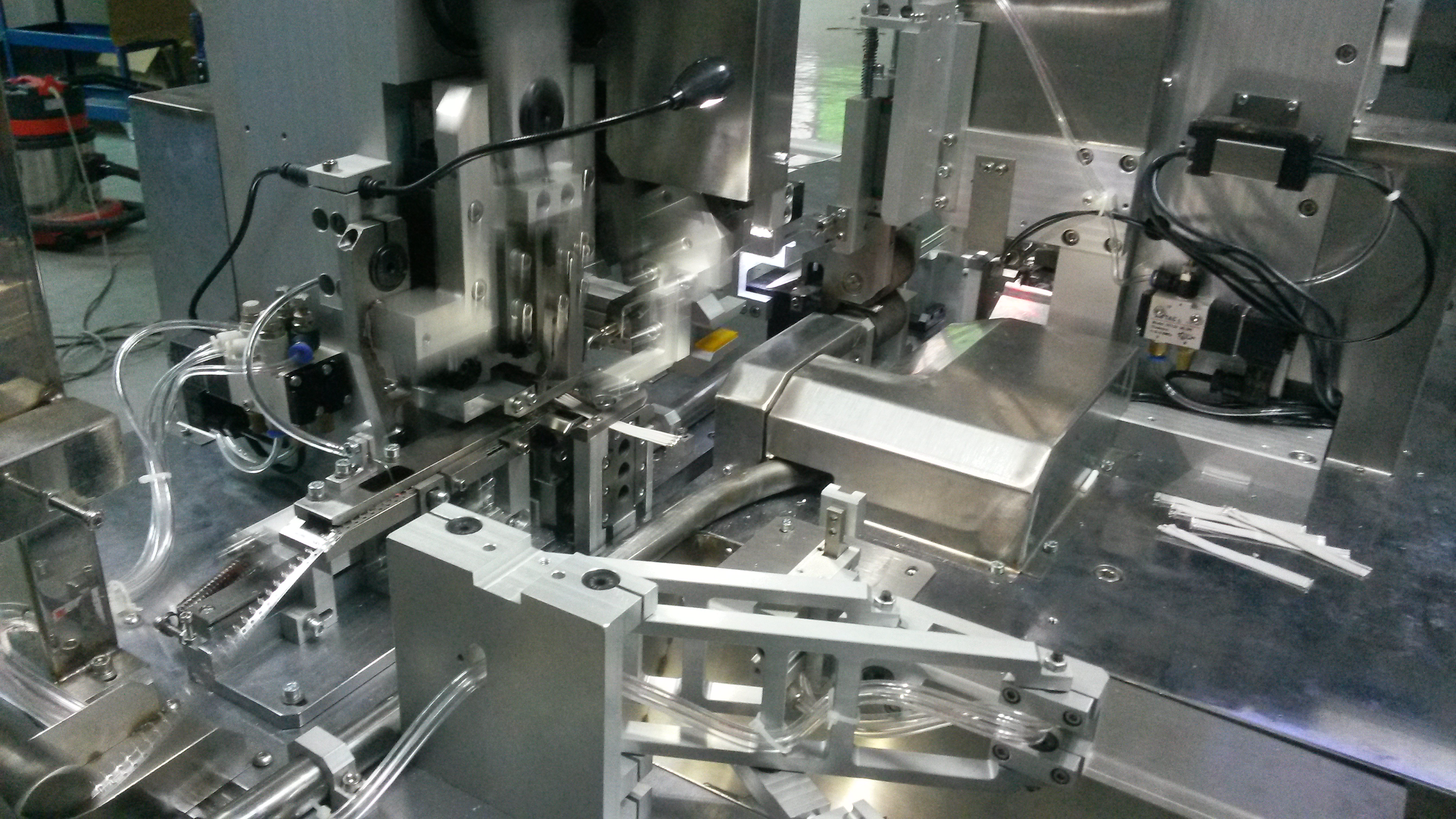

3. High stability: employ eccentric shaft mechanism for crimping, has balanced consistant crimping force to achieve high yield.
4.High precision: use stepping motor for cutting, branching and peeling length. Accuracy up to 0.1 mm.
5. Accurate positioning: use Panasonic servo motor to control cable location, ensure the conductivity of cables and winding displacement.
6.Crimping method: employ flipping structure enable upside down of cable.
