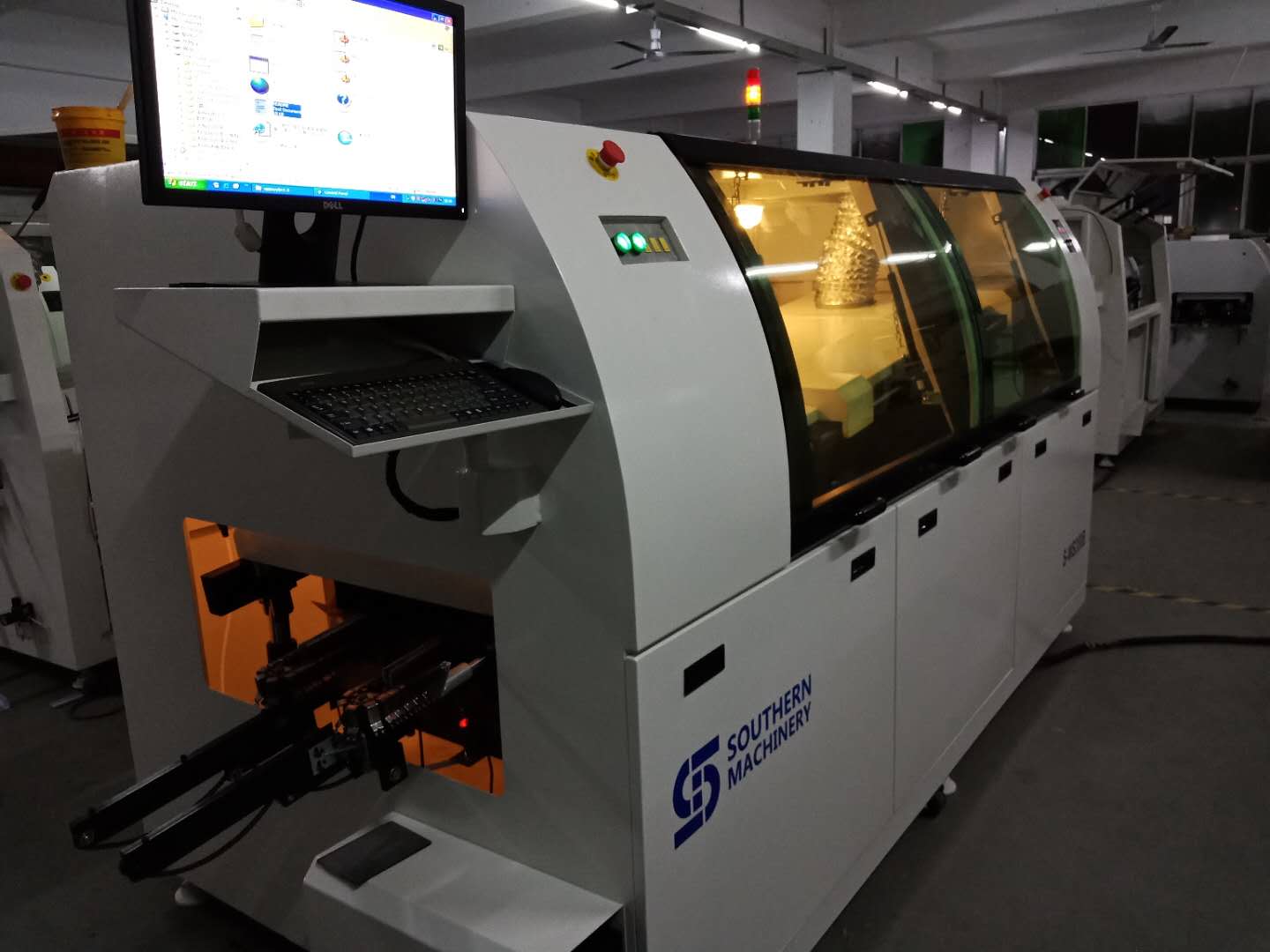

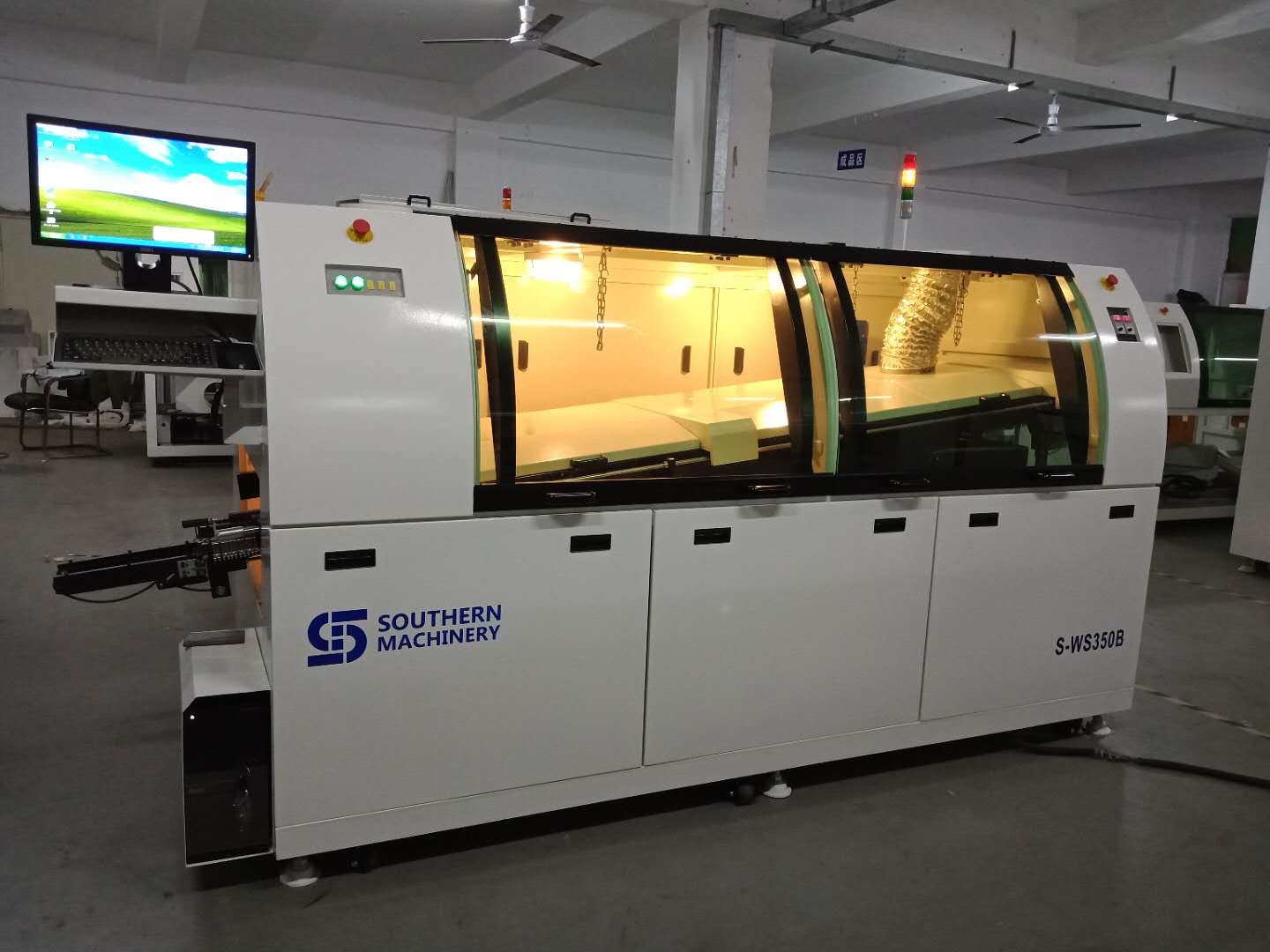

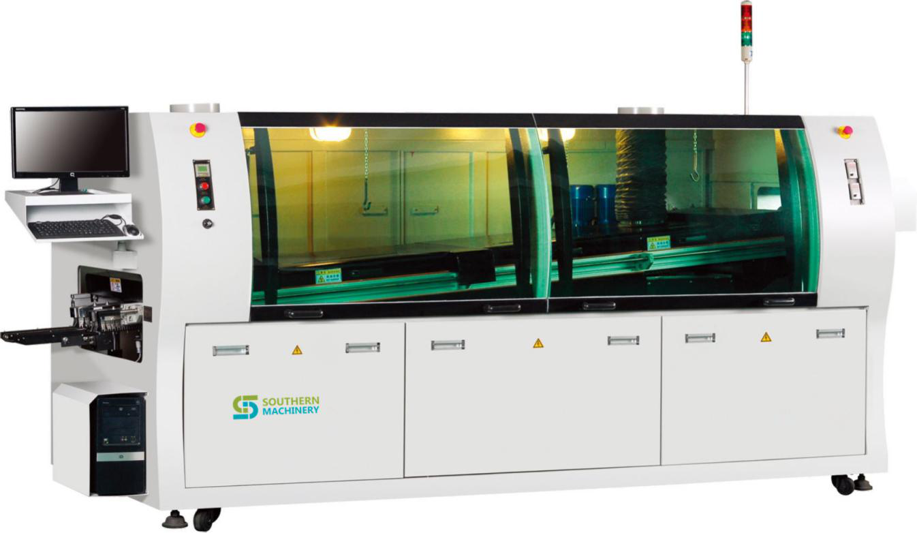

Specifications

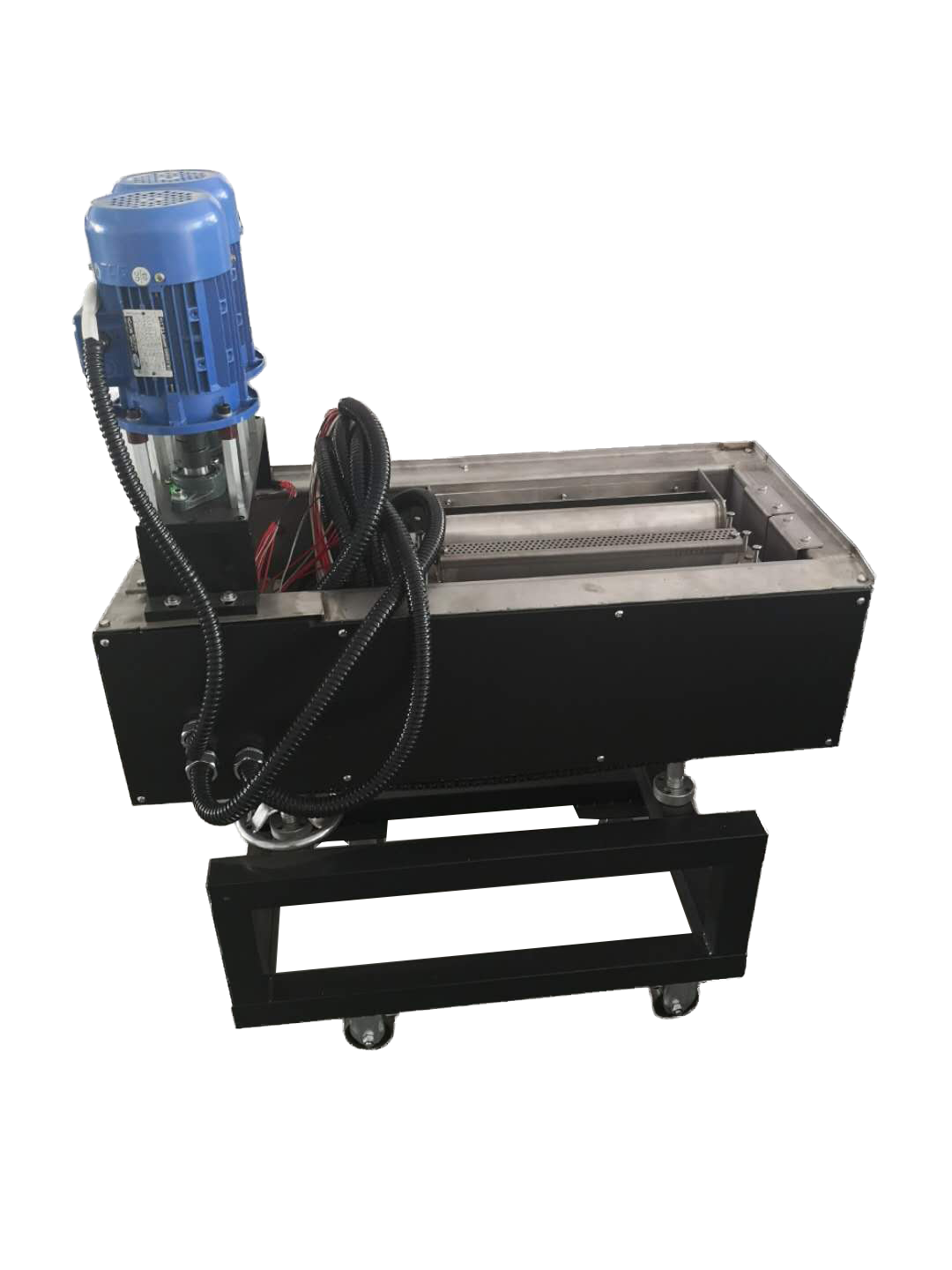

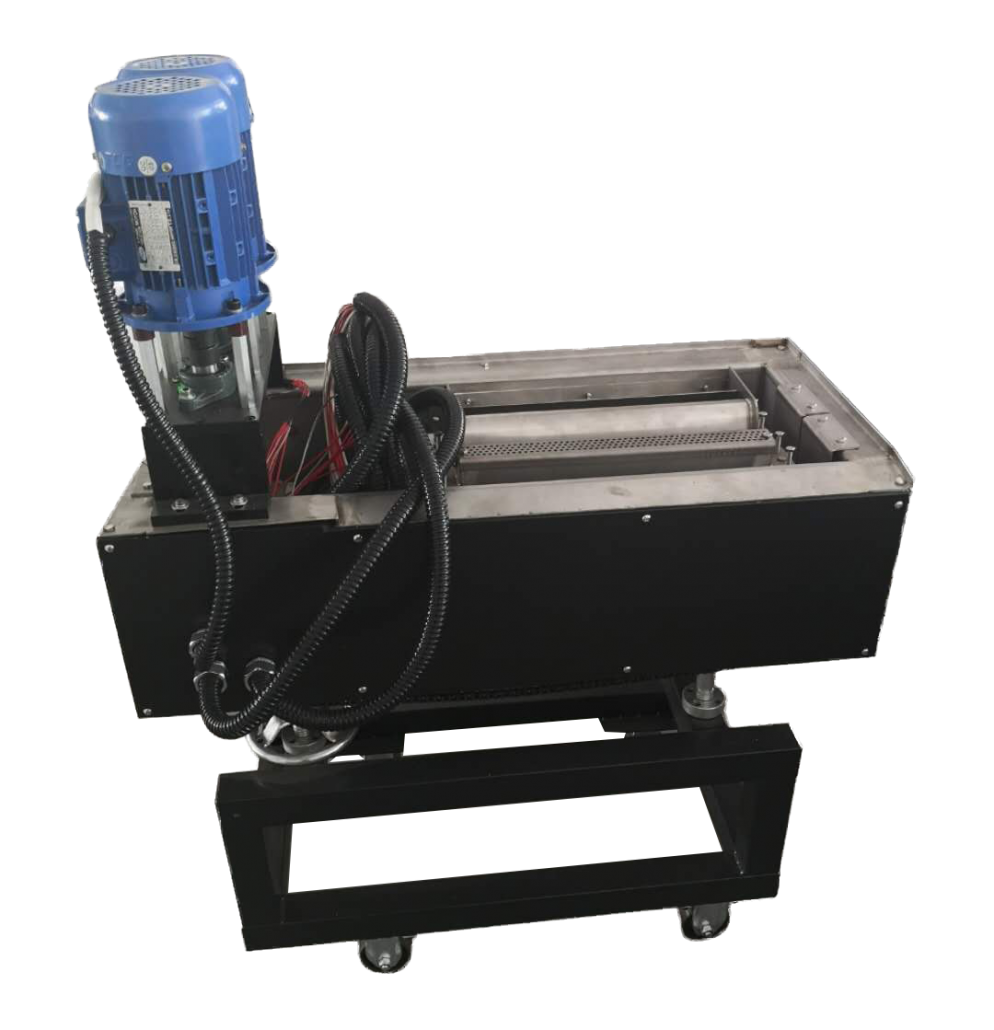

| Model | S-WS350 B |
| Control Method | PC + PLC /Auto Add. Tin.(Option) |
| Conveyor Motor | 1P AC220V 90W |
| Conveyor Speed | 300-1800mm/Min |
| Direction | L-R / R-L |
| PCB size | 50-350 mm |
| Preheating length | 15KW,1800mm Three PID control |
| Preheating zone & tempreature | 3 zone ；Room temp~250℃ adjustable |
| Heating method | Infrared (hot air optional) |
| Cooling method | Centrifugal wind convection cooling knife up and down |
| Solder type | Lead free solder/common solder |
| Tin stove power | 9kw |
| Tin amount | Approx.320KG |
| Tin stove tempreature | Room temp~300℃、Control accuracy ±1-2℃ |
| Tempreature control | P.I.D+SSR |

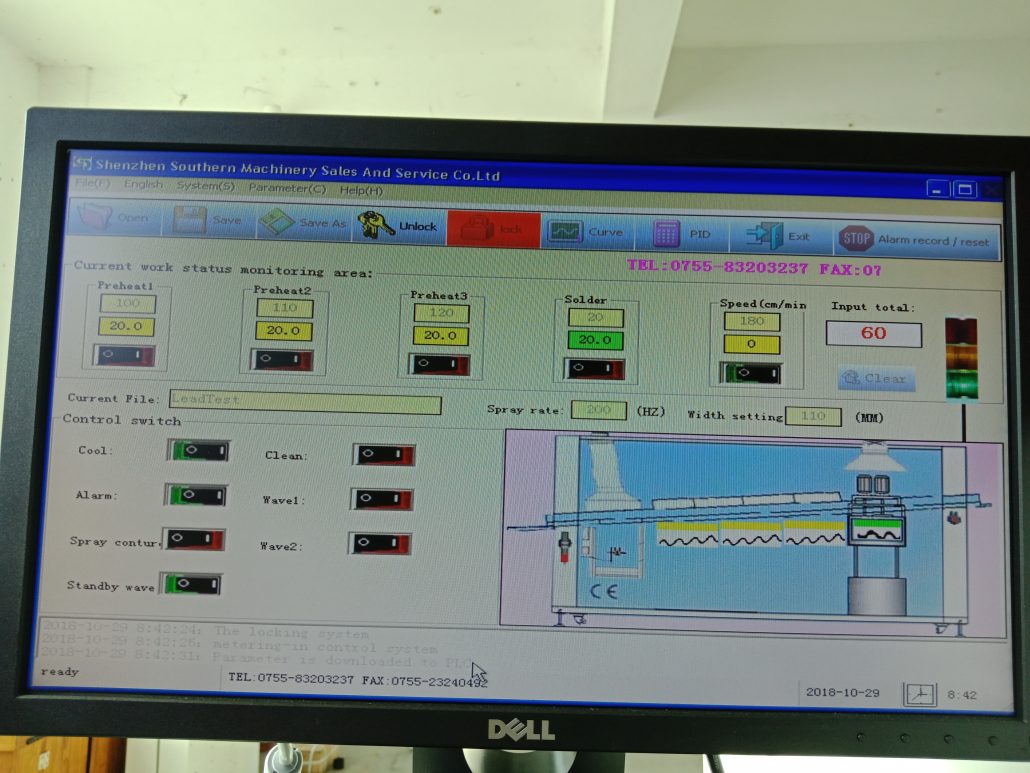

| Machine control method | Siemens PLCcontrol +4.6 touching screen control |
| Flux capacity | Max5﹒2L |
| Flux flow | 10~100ml/min |
| Fluxing method | Japan MSC rodless cylinder + Japan Meiji A – 100 Sprayer |
| Power | 3 phase 5lines 380V(Can be suitable for 415V) |
| Start Power | Max.9kw |
| Normal operation power | Approx.2.5kw |
| Dimension size (L*W*H) | 3500x1400x1650MM |
| Weight | Approx.1200kg |
Assembly part list
| NO | Name | Brand | Quantity |
| 1 | PLC | Siemens | 1 SET |
| 2 | Computer | Dell | 1 SET |

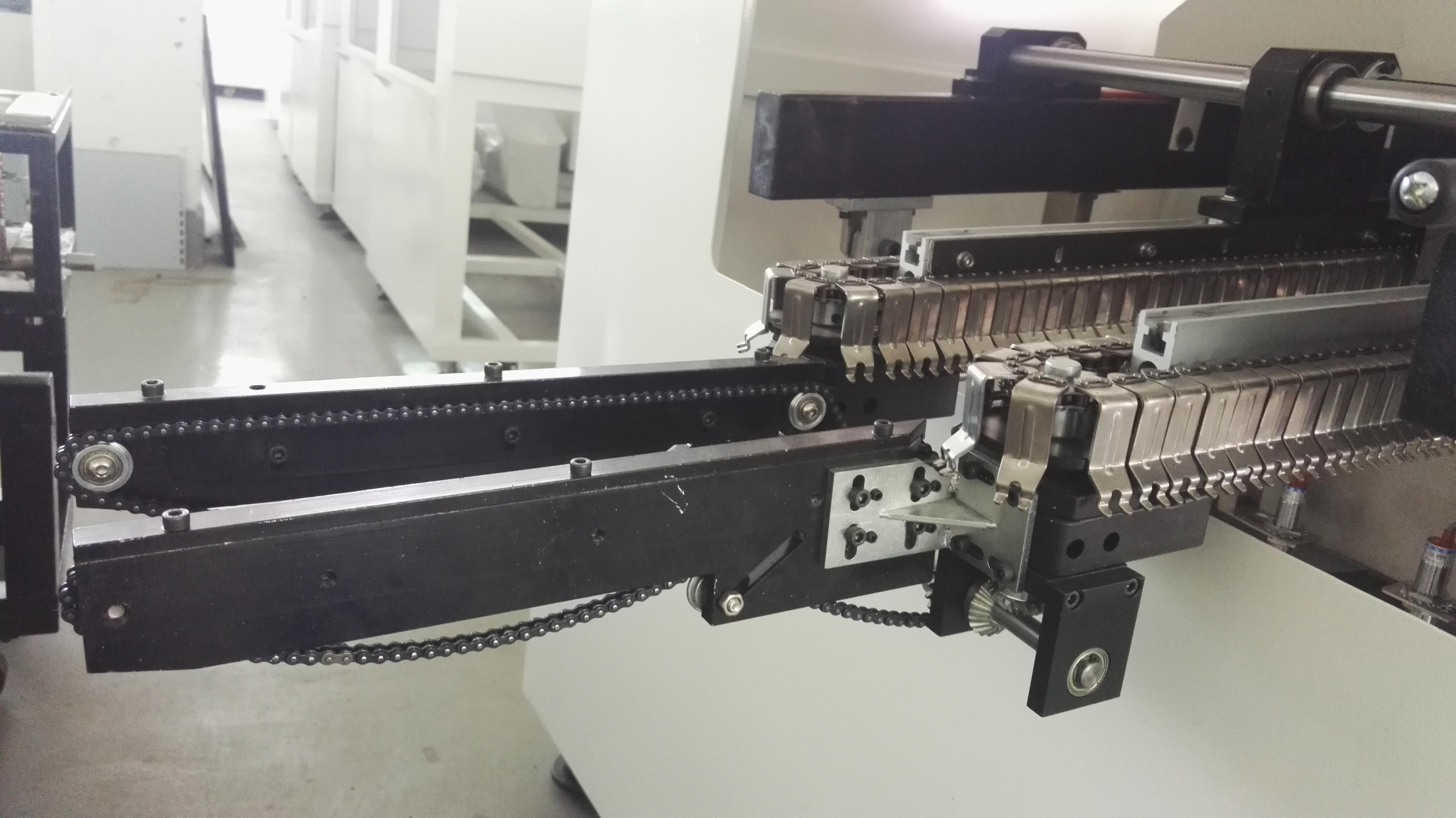

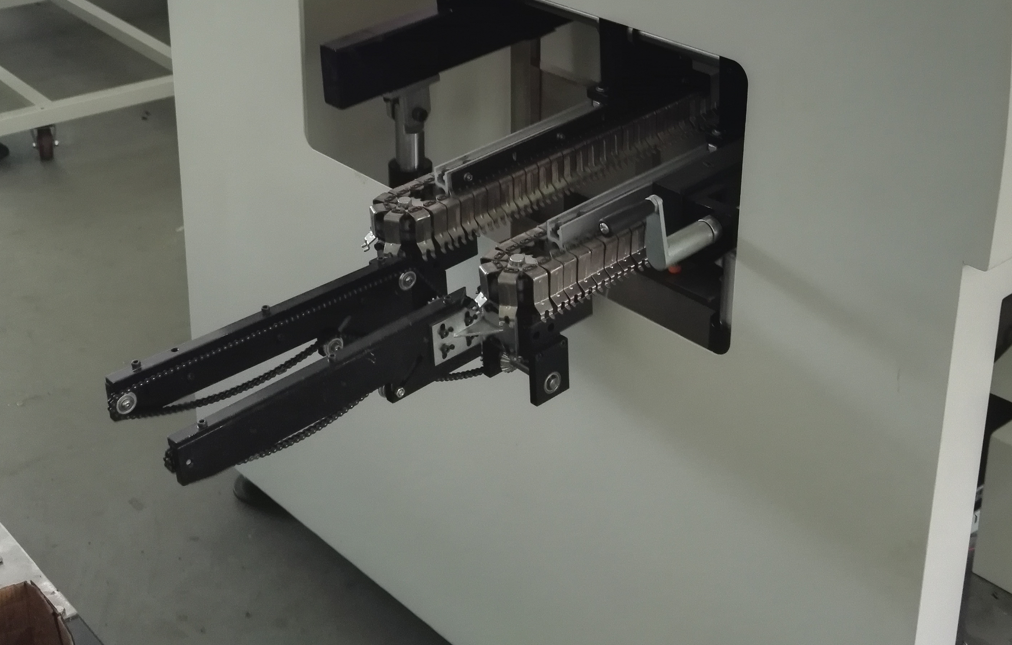

| 3 | Guide rail | temperature resistant guide rail | 1 SET |
| 4 | Chain claws | Titanium alloy stamping parts 2.0mm thickening | 1 SET |
| 5 | Solid State Relays | Jiale | 6 PCS |
| 6 | Power supply system | Chint | 1 SET |
| 7 | Power Circuit Breaker | Chint | 10 PCS |
| 8 | Contactor | Chint | 3PCS |
| 9 | Intermediate relay | OMRON | 10 PCS |
| 10 | Switching power supply | MEANWELL | 1 PCS |
| 11 | Flux pump | SMC | 1 PCS |
| 12 | Inverter | Taiwan Delta | 3 PCS |
| 13 | Proximity switch | OMRON | 2 PCS |
| 14 | Photoelectric sensor | OMRON | 1 PCS |
| 15 | Transmission motor | OUTA | 1 PCS |
| 16 | Wave motor, | Tai Chuang | 1 PCS |
| 17 | Preheating hot air motor | Taiwan Sanyue | 1 PCS |
| 18 | Nozzle | Meiji, Japan | 1 PCS |
| 19 | Preheating zone heating | taizhan | 3 SET |
| 20 | furnace heating plate | taizhan | 9 PCS |
| 21 | Tin furnace protection temperature control table | OMRON | 1 PCS |
