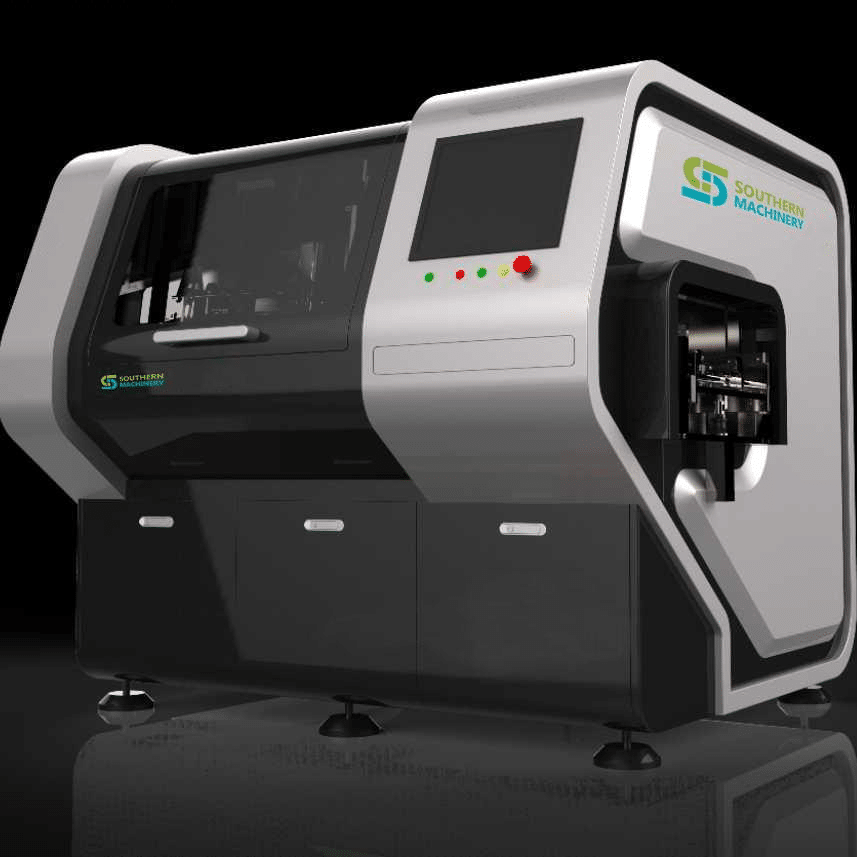

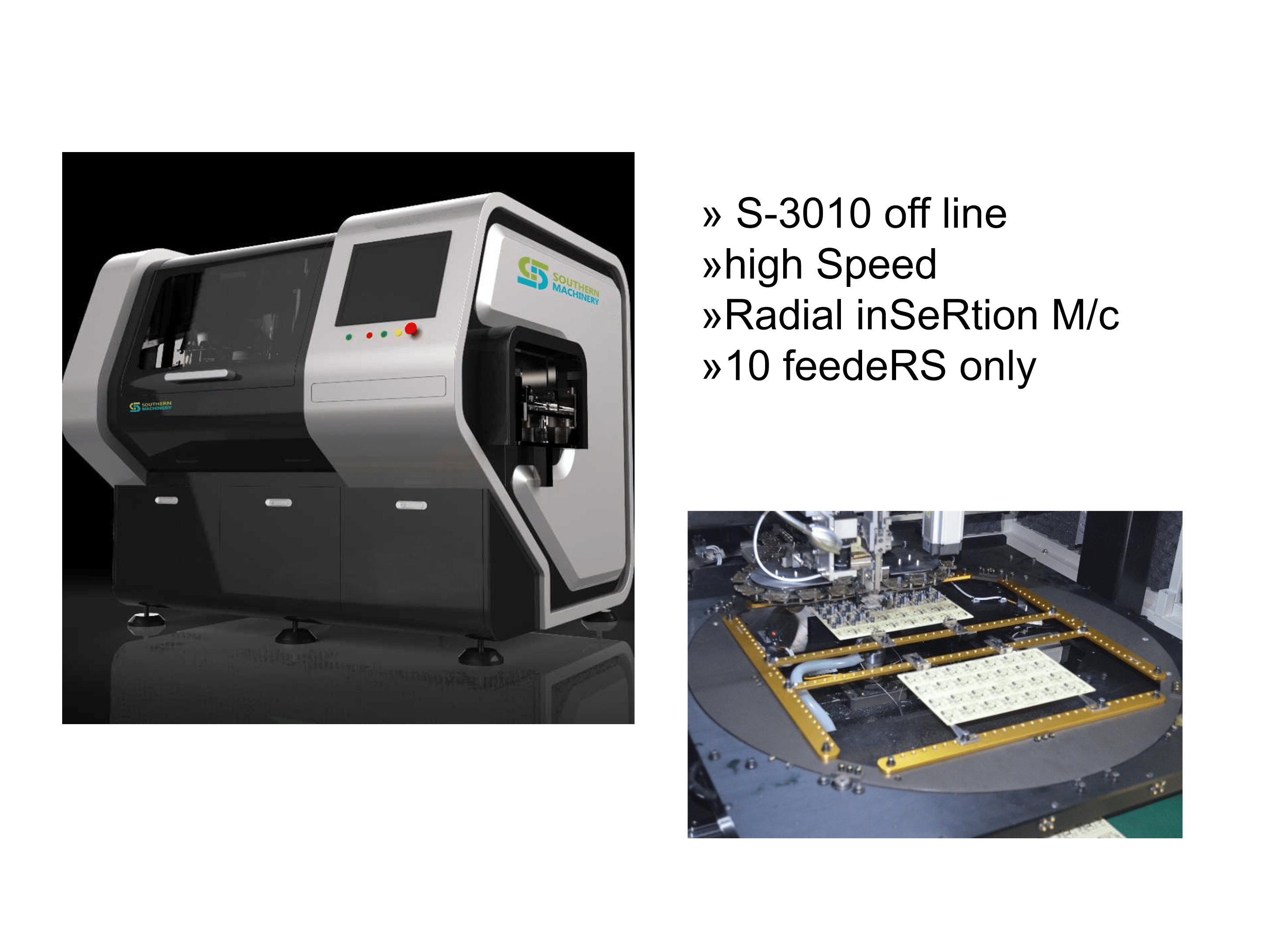

S-3010B Radial insertion machine（off line）

The s-3010 offers consistently high throughput regardless of component type, with single-, dual-, triple-, and quad-span insertion variants. Lead span capability up to 10mm virtually eliminates tedious manual assembly requirements to improve throughput, product quality and output per floor space, while reducing associated labor costs and time requirements to provide greater returns.

Labor costs are getting higher and higher;
• General labor force continued to decline;
• Lack of skilled workers, training costs have been rising;
• Quality is not stable and consistent;
• The problems of capacity and reliability;
• Take up a lot of production space …etc.
Contact us to reduce costs by 40%
shaoyong@smthelp.net
WhatsApp：+8613760481664

描述

S-3010A Radial insertion machine（off line）
1)four Span 2.5/5.0/7.5/10.0mm
2) 22000 CPH,actual speed 13000 CPH

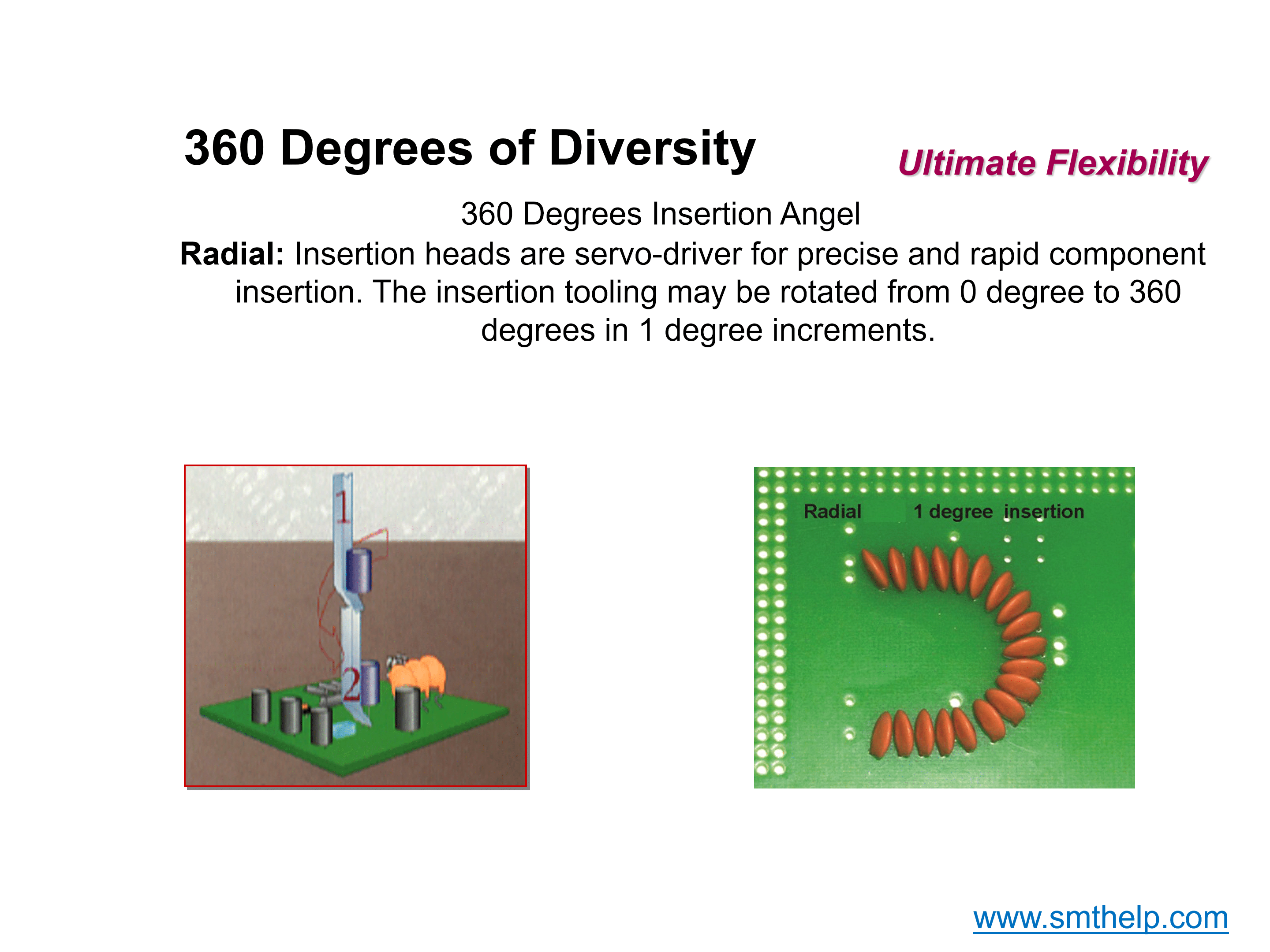

3) Insert direction:0° -360°, 1°increasment

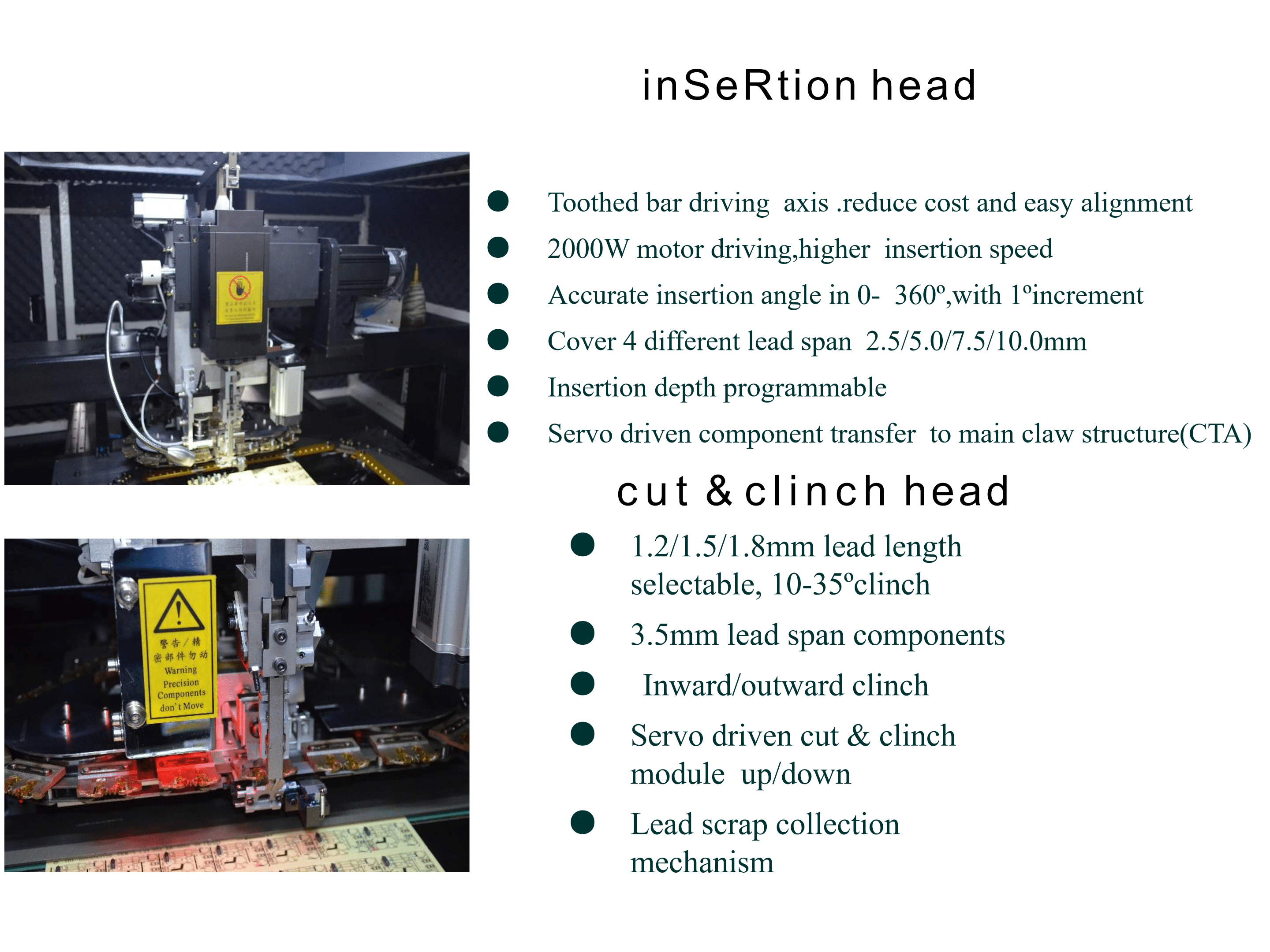

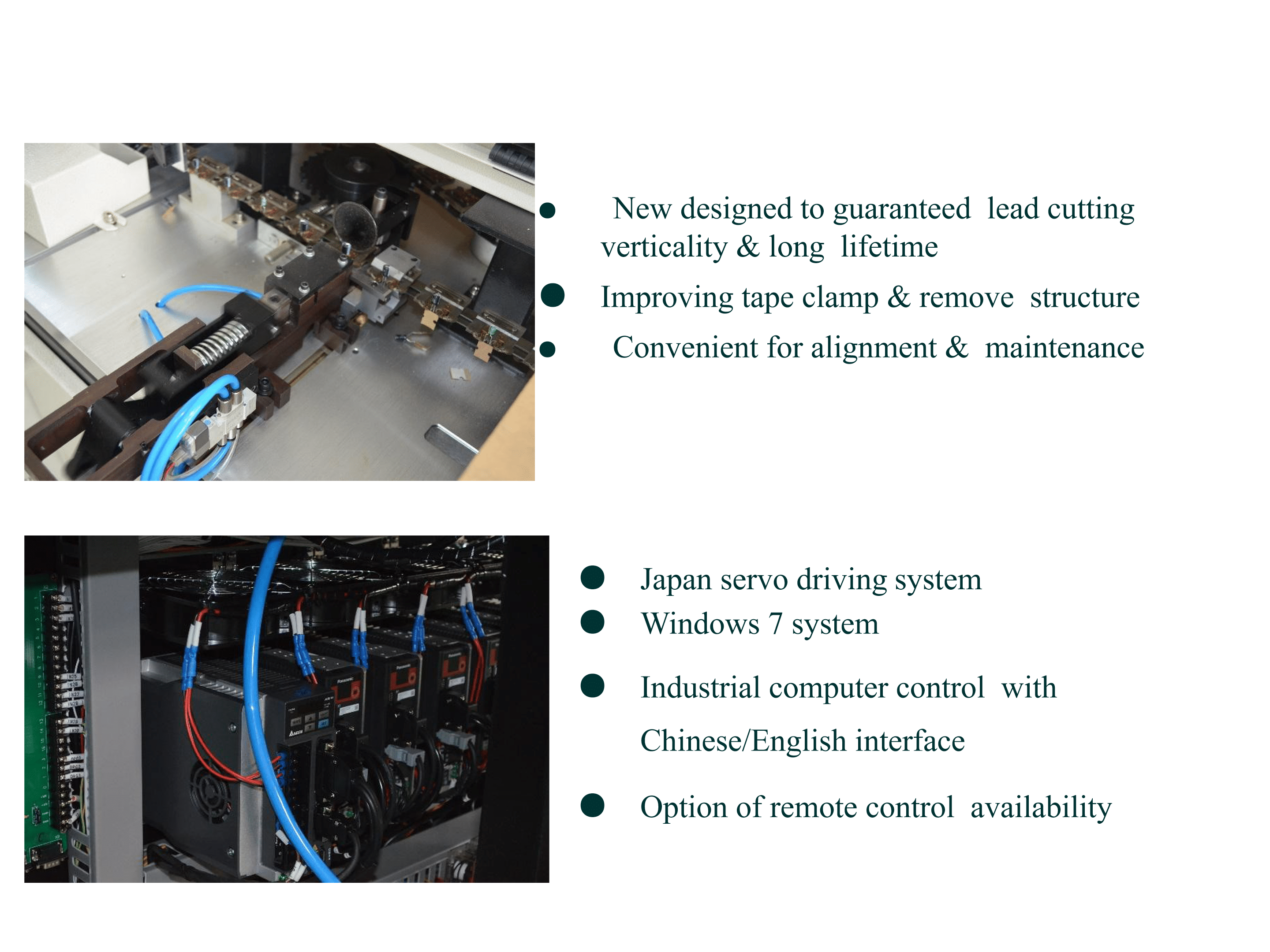

4) Servo motor drived insertion head（13.0mm）and clinch
base “N” type. –

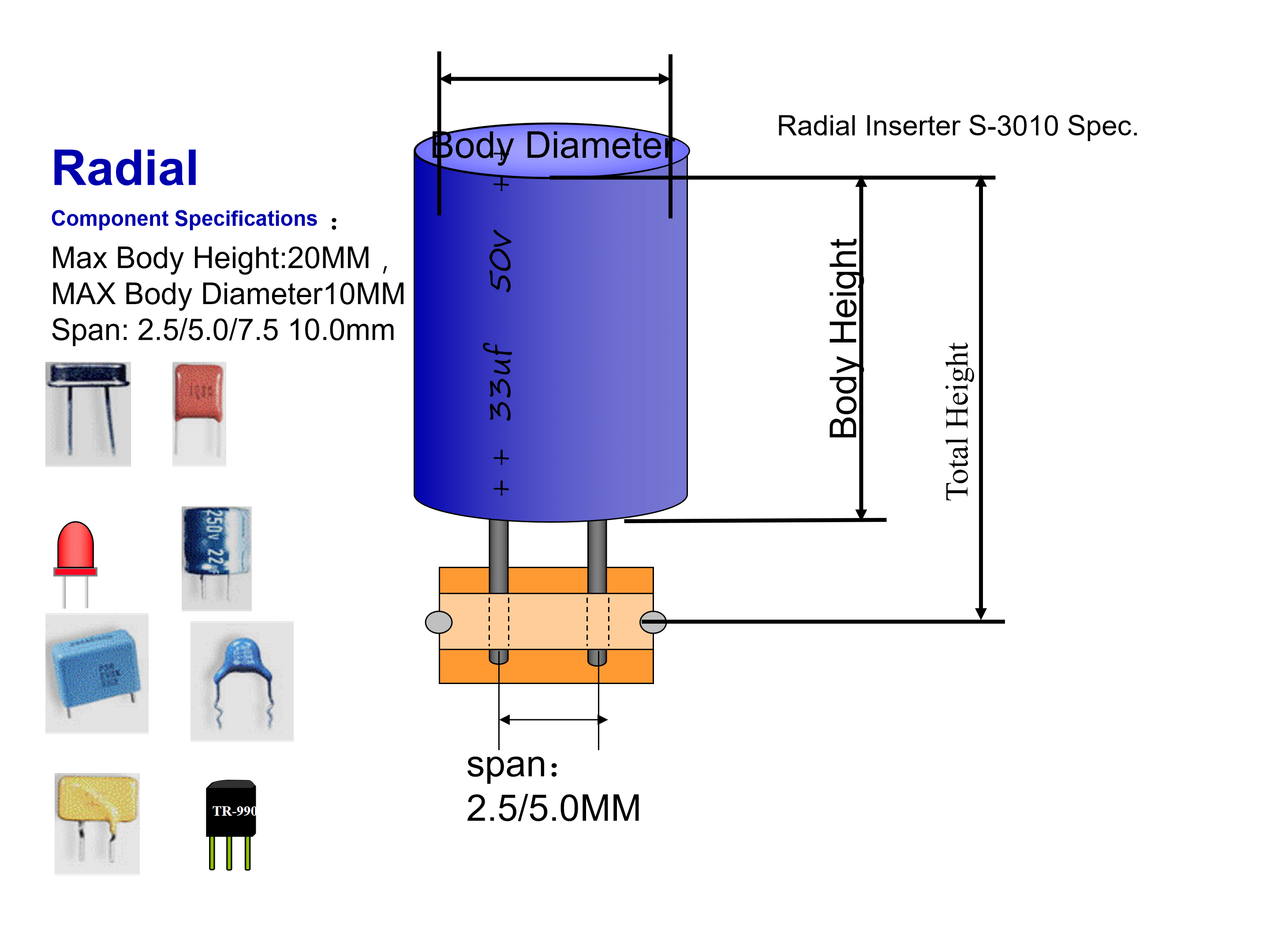

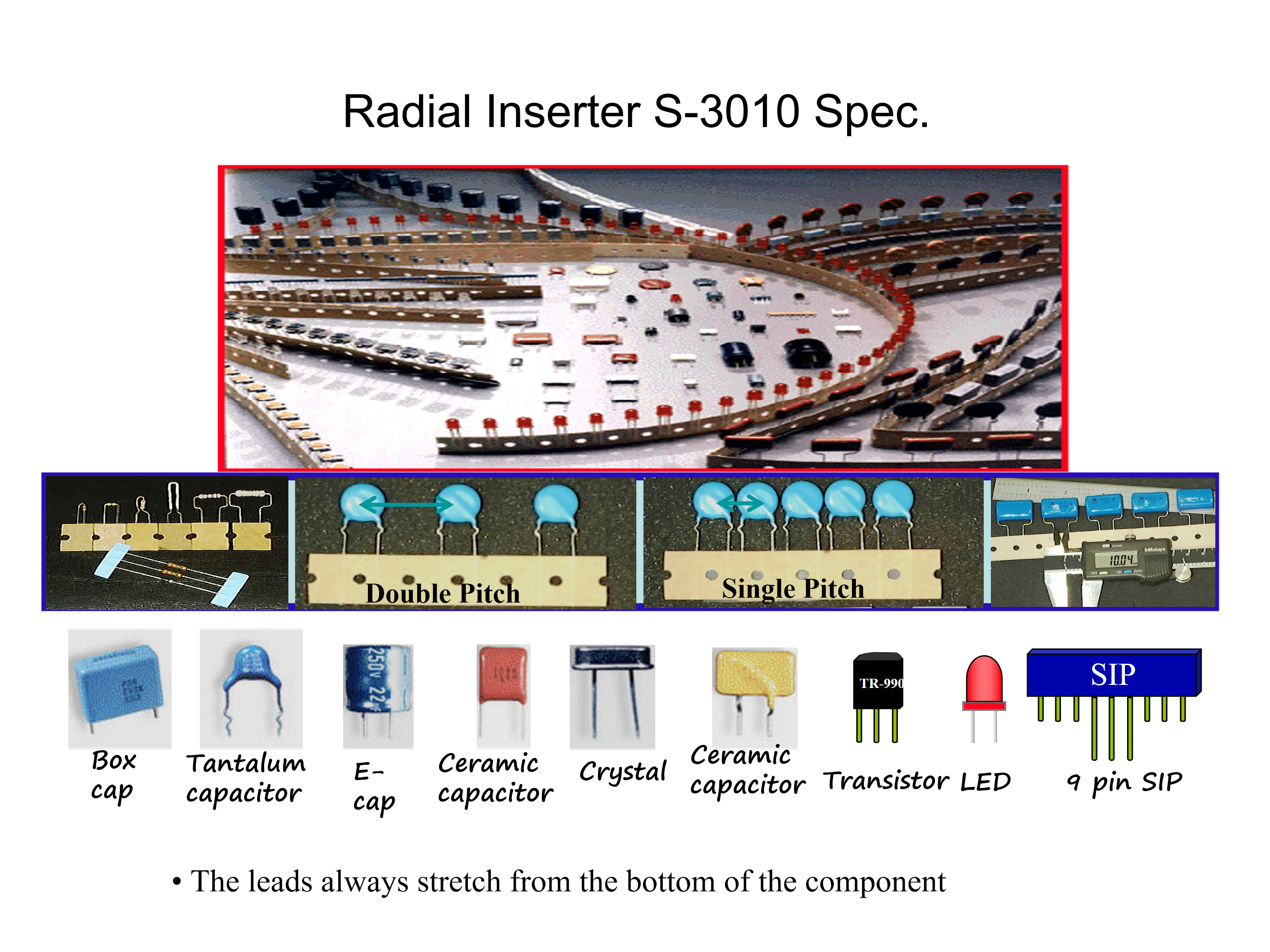

5) Components available:Capacitor, Transistor, LED lights, Key Switch, standard tape packed radial leads components
6)Core Machine Size (LxWxH)1800x1600x1800mm,
7) Machine Weight:1000KG –

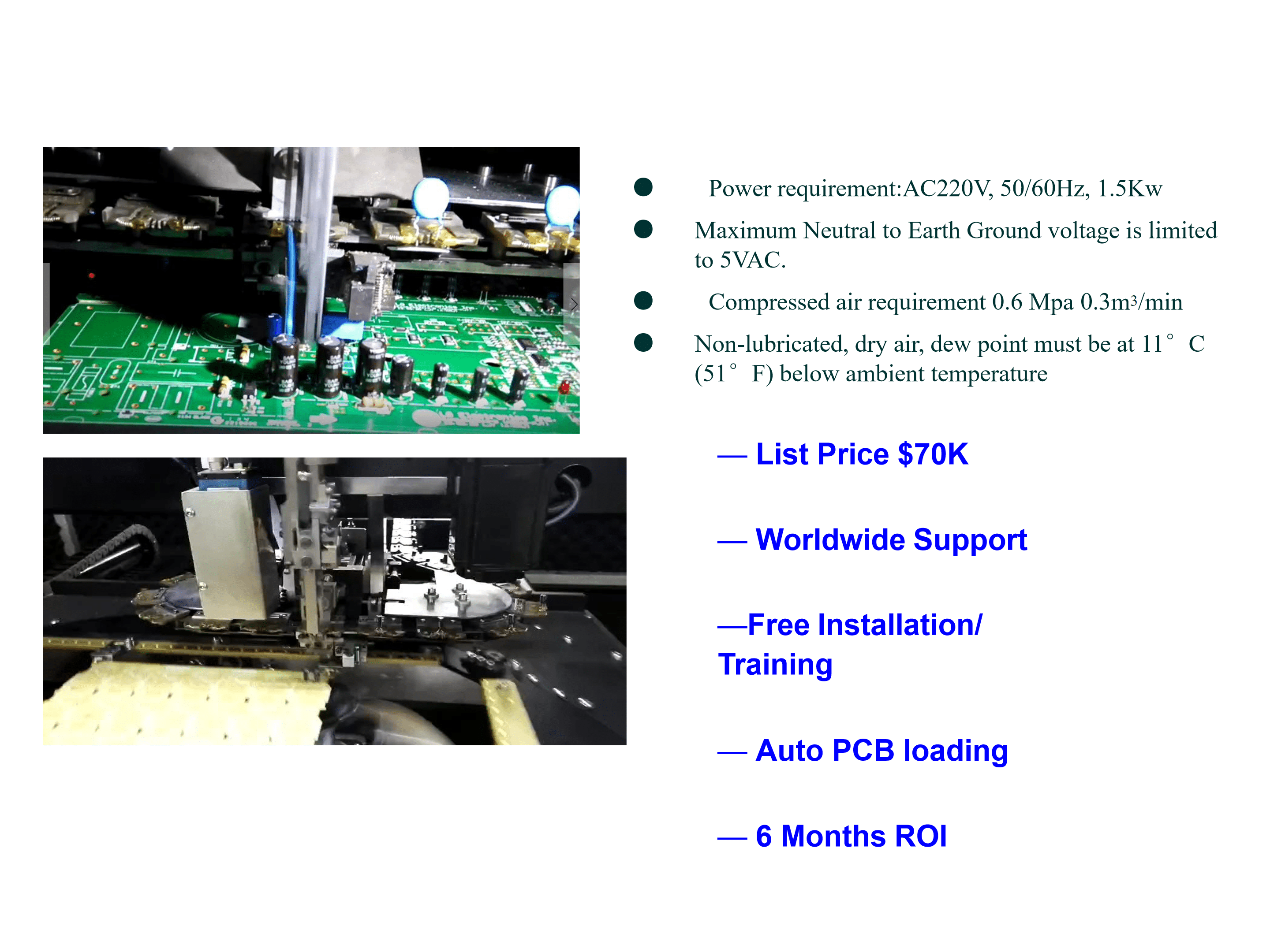

8) Power supply:220V, AC (single phase) 50/60 HZ –
9) Air pressure:0.6MPA;0.3M3/MIN –
10) Circumstance temperature: 10° C. to 35° C. –
11) PCB Size:(Min)50 mm x50mm、(Max)400mm x 400mm –
12) PCB thickness:0.79-2.36MM –

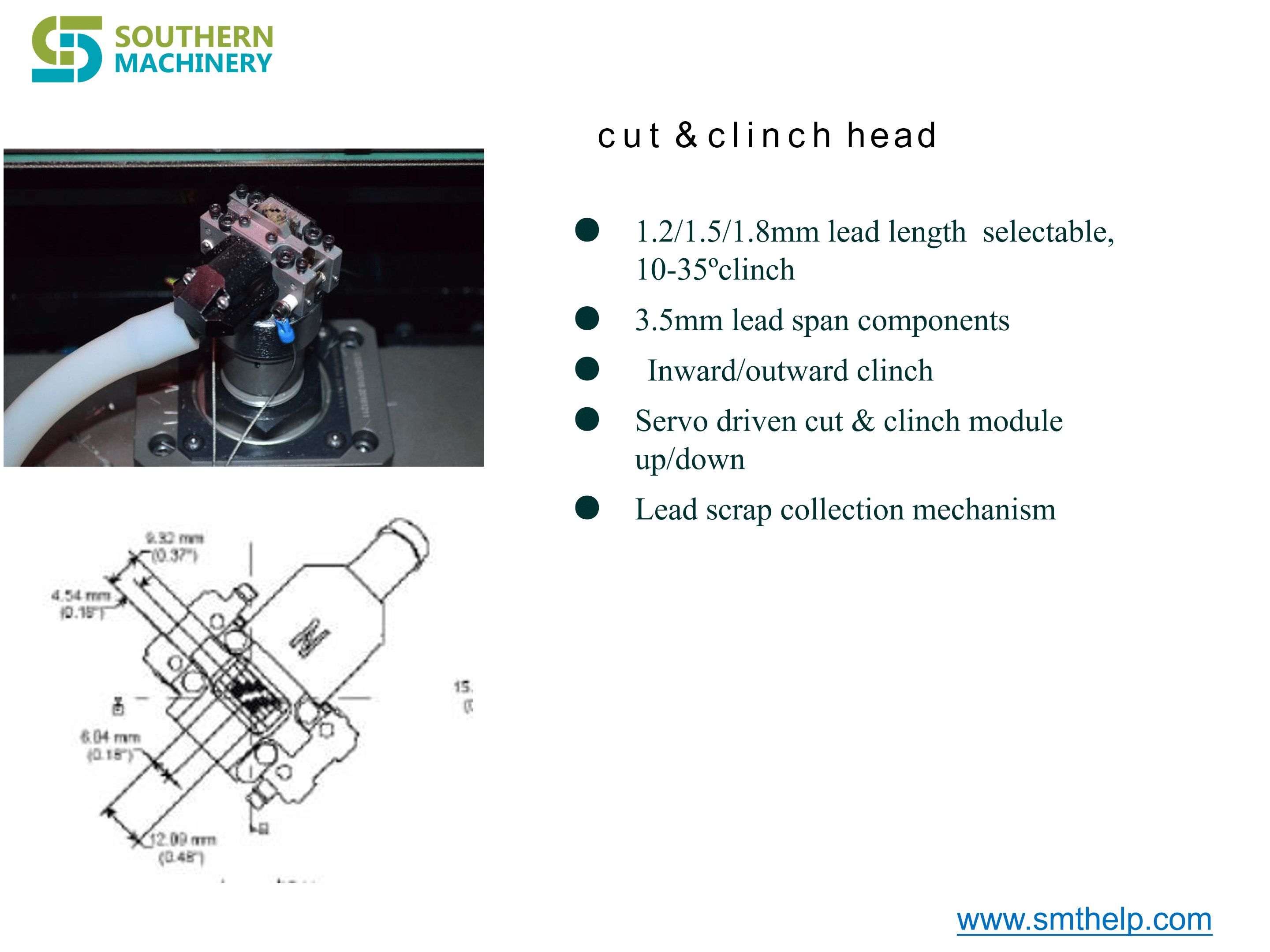

13) Clinch Length:1.5-2.2MM –
14) Clinch degree: 10-35 degree –

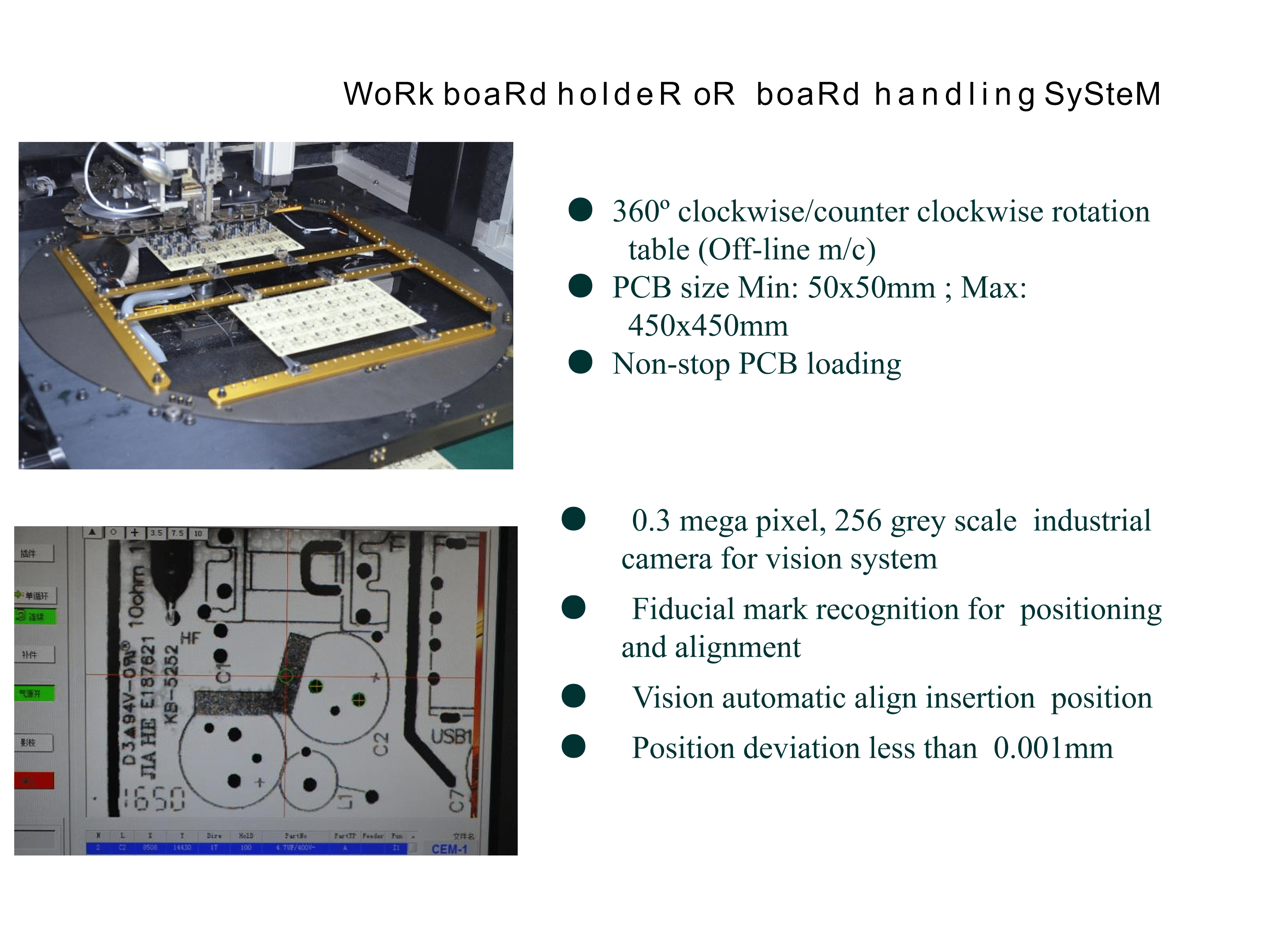

15) Coordinate correction:Machine vision systems –
16)Non rotary table –
17) Machine vision caliberation systems

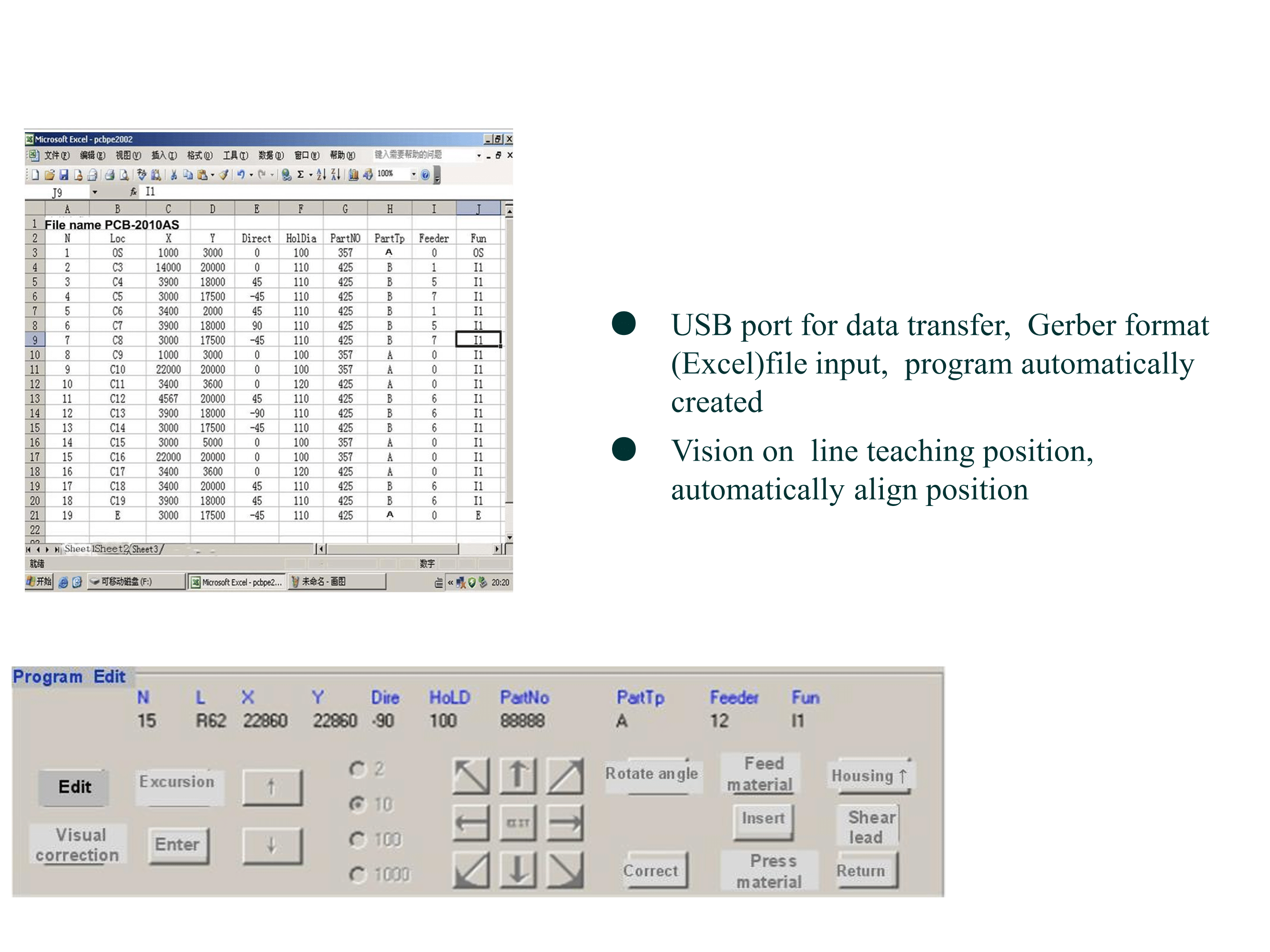

18) Control System:English or Chinese version interface
19) Southern Machinery platform software
20) LCD monitor
21) Indutrial-control computer

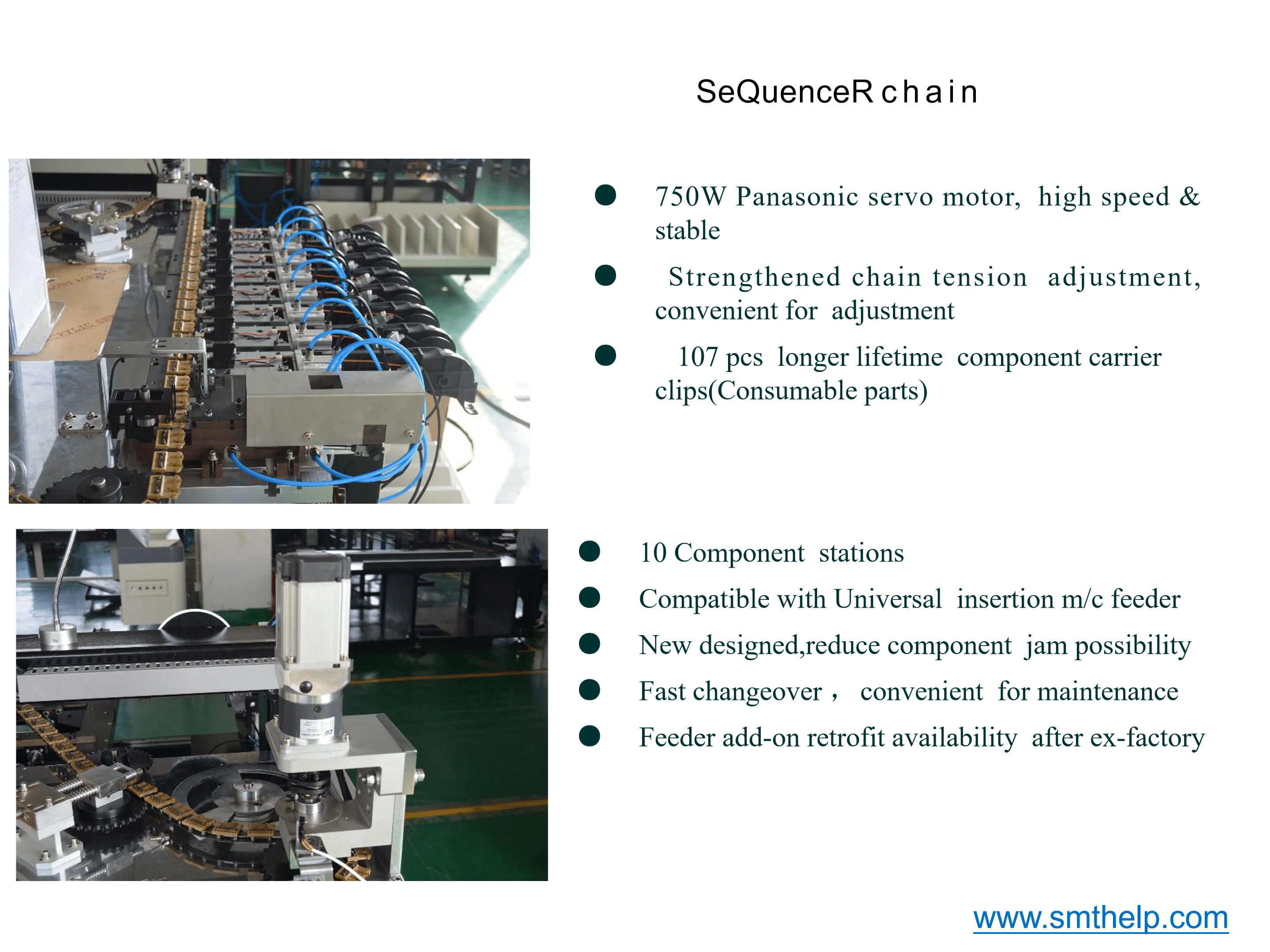

22) Feeder
