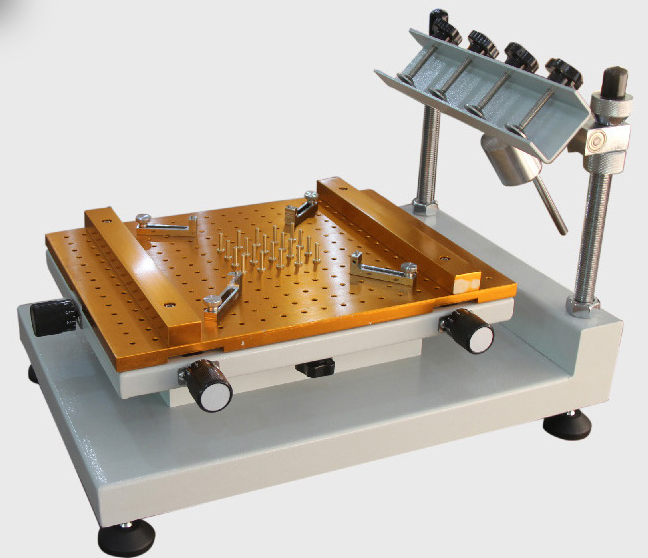

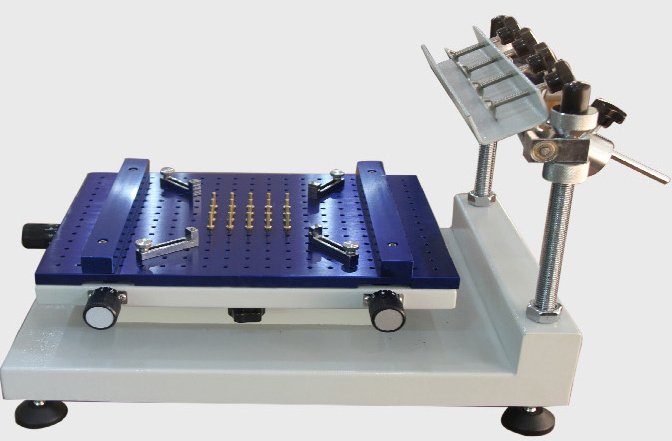

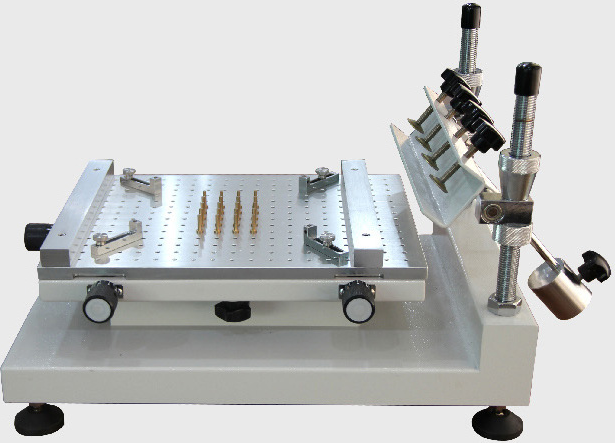

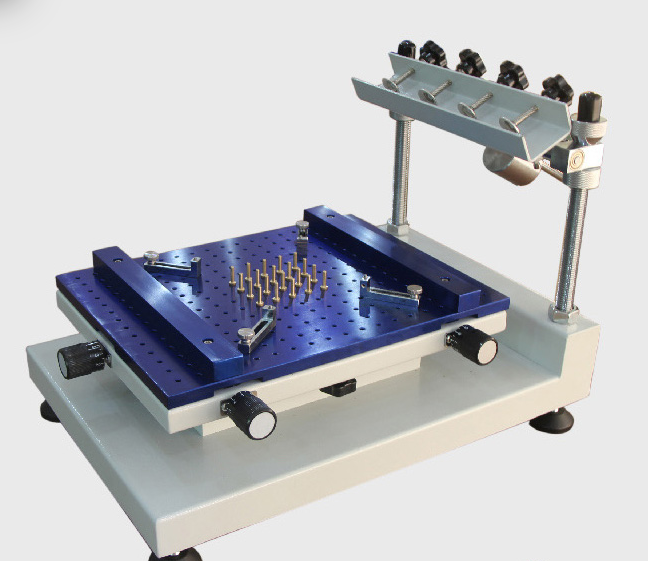

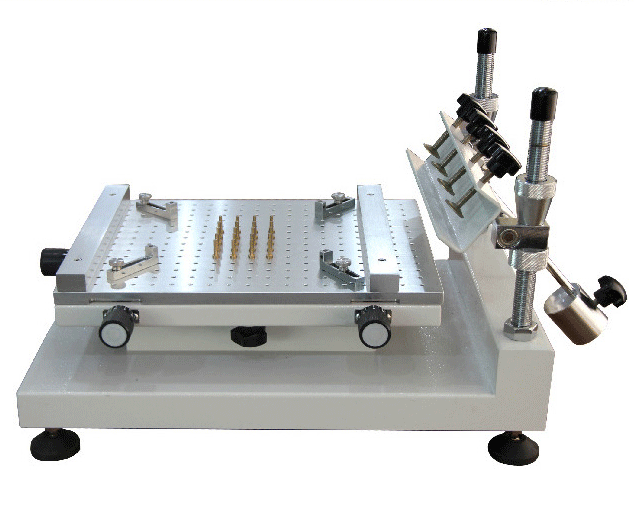

high precious manual smt PCB stencil printer for 0402 and 0.4mm chip :
|
Model |
S-MP3040 |
|
frame size |
370×470mm |
|
Printing table area |
300x400mm |
|
maximum printing size for PCB |
250×400mm |
|
PCB thickness |
0.2-2.0mm |
|
position fixing |
PCB Outer Or Pin Positioning |
|
Micro adjusting of table |
Front/back ±10mm R/L ±10mm |
|
printing accuracy |
±0.05mm |
|
repeating accuracy |
±0.02mm |
|
Minimum gap |
0.35mm |
|
Machine size |
L540×W380×H390mm |
|
weight |
About 20kgs |
Features:
1. high precious, handle 0402 or 0.4mm chips
2. easy operation.
Specifications:
Operation:

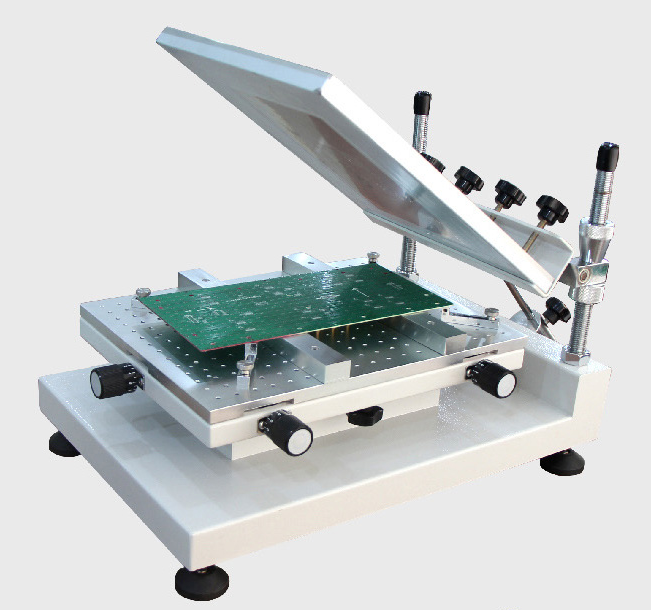

1. Mount the stencil by tightening the clamps on the back of the stencil printer.

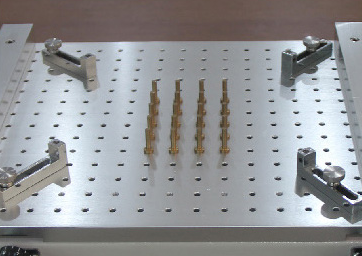

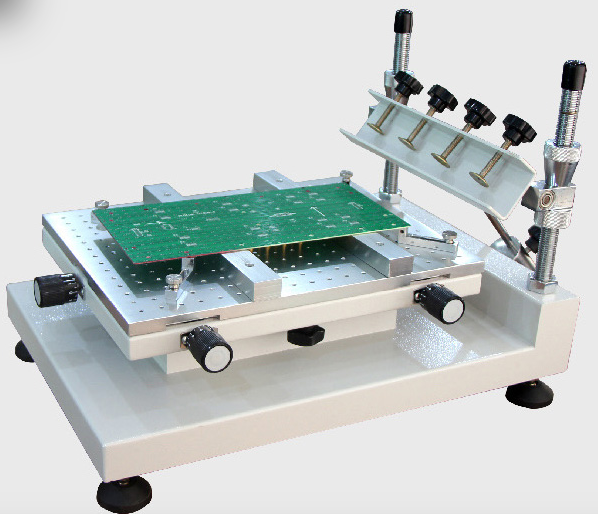

2. Align the PCB with the stencil by using the four L shaped blocks supplied.
3. Fine adjustment is achieved by turning the knobs around the base. Z direction adjustment knob is at the back.
4. Apply a thin layer of solder paste. Too much paste will cause short circuits.
