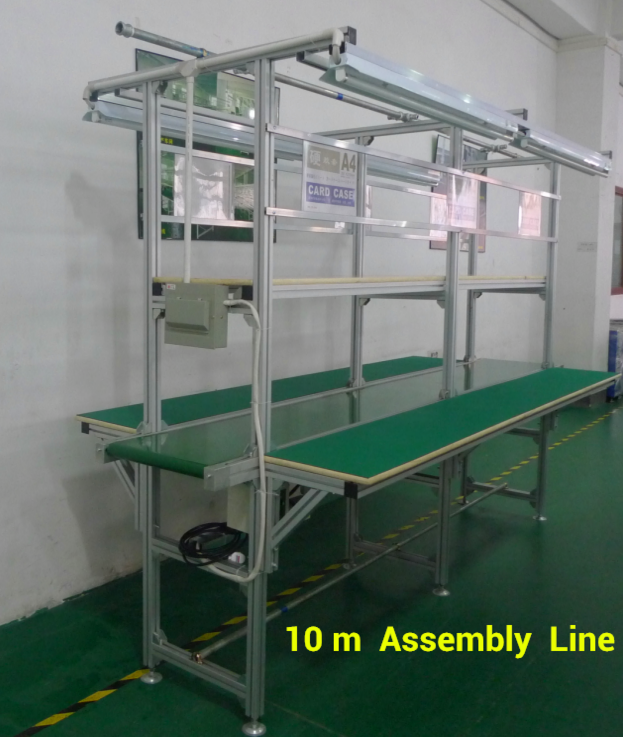

Components and Specifications of the 10m Assembly Line
1. Driving System
l DPG Motor Speed Governor (From Taiwan)
l Gear Box : 120 W / 1: 20
2. Conveying System ( The Middle Moving Belt)
l Conveying Belt
- Color: Green
- Seamless connection
- δ2*350 mm PVC
l Conveying Speed:
1.0~6 m/ min (adjustable)
2.Can be adjusted by a speed governor
3.Conveying in a safe and low noise way
3. Line Frame Structure
l The frame is made of 38*38 mm iron square tube

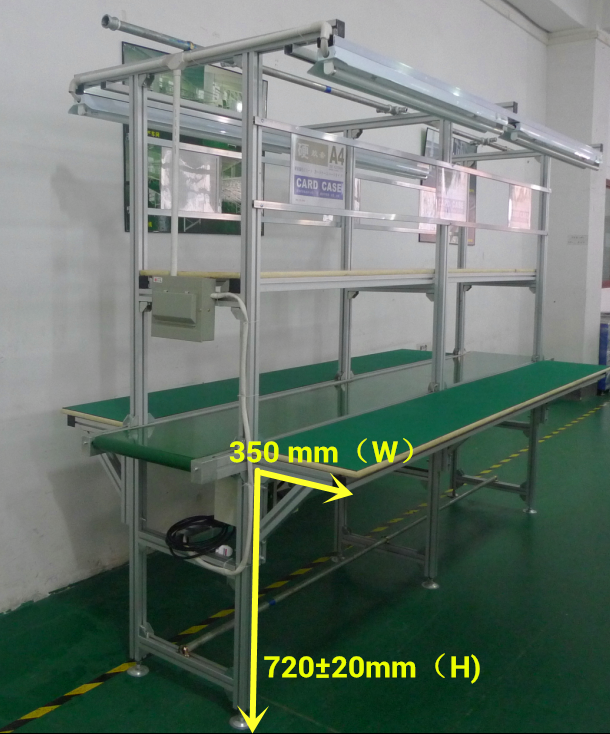

l The height of the work bench is : 720 ± 20 mm
l The Frame is connected by standard screws which is easy to assembly and dis assembly and ensure the whole frame solid and stable.
l The frame of the middle conveying belt is made of 40* 60 mm aluminum alloy square tube which can prevent the contamination of the electronic products
4. Assembly Power System
l In each working position it has equipted with a squire multiple socket-outlet , 1 m has one
5. Long Work Bench (beside the middle conveying belt)
l Width: 350 mm
l The density of the wood board is δ18mm and covered by the green anti-static belt
6. Lighting System
l Energy saving lights (28W/ T5)
l Each light has its independent control
