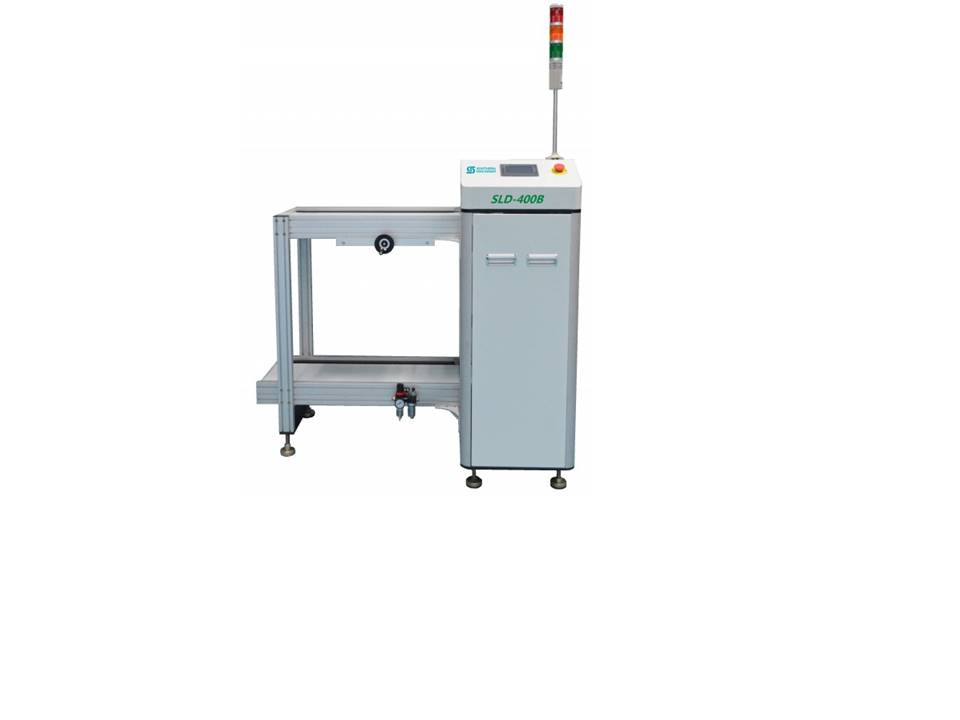

Automatic PCB Board Handling System Loader SLD-400B for SMT electronics manufacturing

Specification :

Model SLD-400B  SLD-400C  SLD-400D
Dimension (L*W*H) 1646*726*1250mm
2071*806*1250mm
2359*866*1250mm
PCB Size 330*(60-250)mm
400*(60-330)mm
525*(60-400)mm
Conveyor Height 900±20mm
PCB Direction L→R (Or R→L Option)
Pitch Selective 10, 20, 30, 40, 50mm
Magazine Size (L*W*H) 350*320*565mm
460*400*565mm
 535*460*570mm
Power Supply Single Phase 220V 50/60Hz
Power Consumption 180W
Air Supply 5-7kg/cm2
Communication Plug SMEMA Signal
Net Weight 200KG  230KG  260KG
分类： 标签： , , , , , , , , , , , ,

描述

Specification :

Model

SLD-400B  SLD-400C
SLD-400D

Dimension
(L*W*H)

1646*726*1250mm

2071*806*1250mm

2359*866*1250mm

PCB
Size

330*(60-250)mm

400*(60-330)mm

525*(60-400)mm

Conveyor
Height

900±20mm

PCB
Direction

L→R
(Or R→L Option)

Pitch
Selective

10,
20, 30, 40, 50mm

Magazine
Size (L*W*H)

350*320*565mm

460*400*565mm

 535*460*570mm

Power
Supply

Single
Phase 220V 50/60Hz

Power
Consumption

180W

Air
Supply

5-7kg/cm2

Communication
Plug

SMEMA
Signal

Net
Weight

200KG  230KG
260KG
