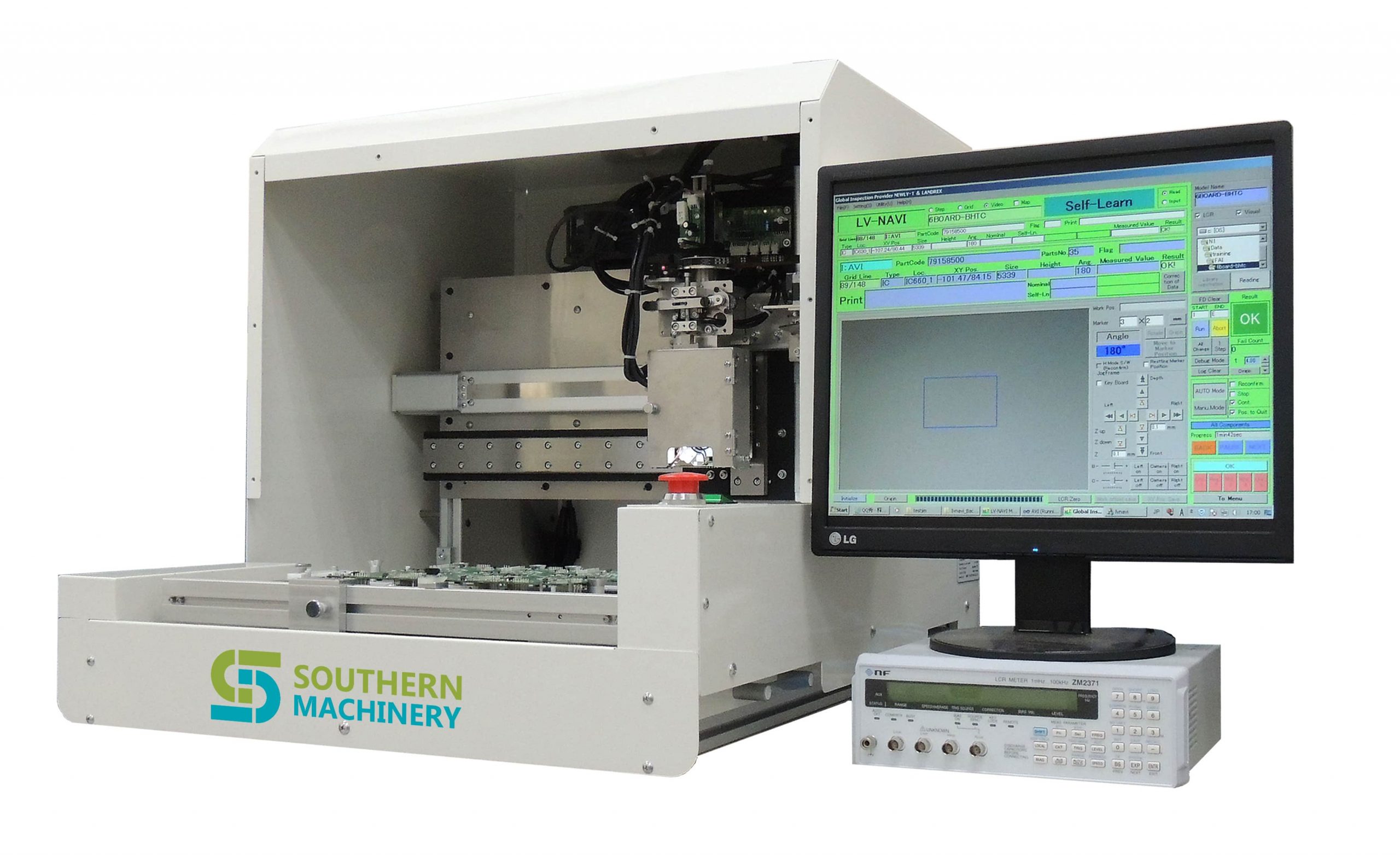

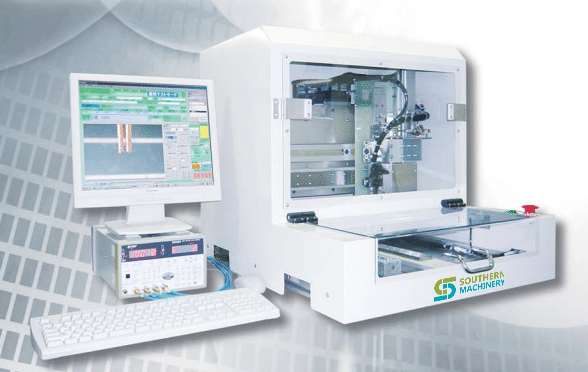

High Speed In-line Circuit Board Test Machine

描述

Functions

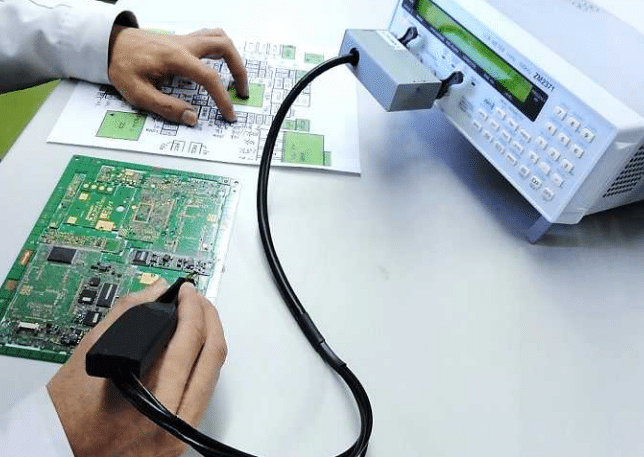

Performs automatic impedance measurement and judgment of components (chip resistors and capacitors) Incorporates with a visual inspection function that allows mounting status checks on each component (e.g.: typo descriptions in alphanumeric characters, orientation, size) on the operator monitor. Automatically generates test data from mounting data and component list.

Benefits

1. Detects mounting faults on the pilot run PCB within a short period, thus supporting quicker and smoother production setup.
2. Preventing production of products types, thus contributing to productivity improvement in PCB mounting lines.
3. Automatically records test results and allows their use for a variety of data management as well as quality references.

Test Area Information Desktop model

Medium size (330mm x 250mm)

Large size (510mm x 380mm)

Extra Large size (530mm x 460mm)

CLICK HERE TO SEND ME A EMAIL
※English and Chinese version are available.
