SME5600 PCBA cleaning machine is energy-saving environmental protection, batch cleaning, integrated high-end cleaning machine. It can automatically complete the cleaning, rinsing, drying process by just push the start key.
Mainly used for aviation, aerospace, medical, new energy, automotive electronics, and other products. This machine can effectively clean residual rosin flux, water-soluble flux, No-clean flux/solder paste ball, and other organic and inorganic pollution materials on SMT / THT PCBA.
Features
1.Through clean rosin flux, water-soluble flux, non-clean flux, solder paste, and other organic and inorganic contaminations on PCBA.
2.2-layers cleaning basket: 610mm(L) ×560mm(W) × 100mm(H) x2 layers.
3.State of the process is visible through a large observation window.
4.Clean detergent heat system heat cleaning detergent to a certain temp, raise cleaning efficiency and reduce clean time.
5.Easy operation interface, quick setting clean parameters. Different passwords can be set.
6.Inner filter makes detergent used repeated. Real-time measure DI water resistivity and monitoring cleaning effect. The resistivity range is 0~18 MΩ.
7.The remaining detergent in the pump and pipes are blown off by compressed air and flows back to the cleaning tank. This function saves detergent up to 50%.
8.High standard cleanliness, ionic contamination completely meets the requirement of the IIPC-610D I class.
9.Totally SUS304 structure, very firm and attractive.
Machine Overview
Machine details

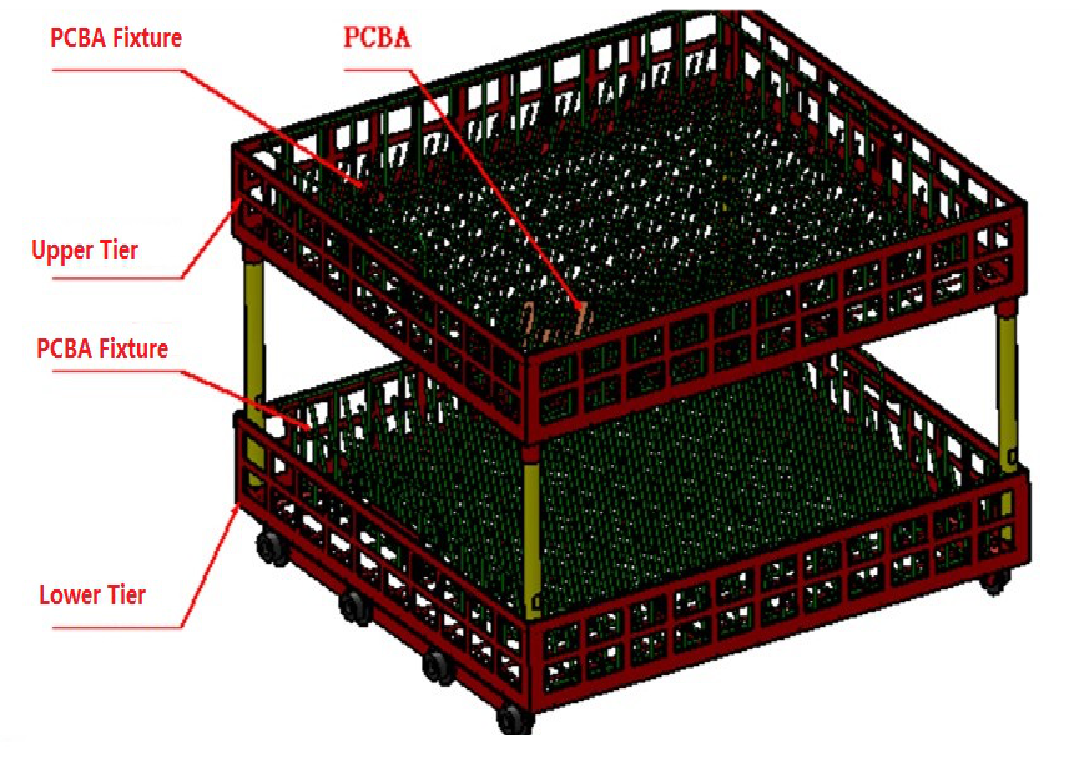

SUS 304 Stainless Steel structure including Fixtures
PCBA Fixture Overall Dimension:610mm * 560mm* 480mm
Biggest PCBA dimension:560mm*550mm * 130mm
Smallest PCBA dimension:80mm*50mm , up to 200pcs
Cleaning Process
Chemical detergent clean —- DI water Rinse —- Hot-air Drying
Upper/middle/lower 3 360° rotation spray rods, 2 layers cleaning basket
Flow chart
In general, the cleaning process time is 40-60 min in total, under special circumstances according to the actual situation
Cleaning time:10-20 min; cleaning temperature:40 ℃- 60 ℃
Rinse time:1-2 min, rinse 3-5 times; rinse temperature:70-75℃
Drying time:20-30 min, drying temperature:70 ℃-95 ℃,
Cleaning Method
Cleaning result
Specification
| No. | Item | Parameters | No. | Item | Parameters |
| 1 | Cleaning basket size | 610mm(L)*560mm(W)*100mm(H)
x 2 layers |
14 | Drying Heater/KW | 6KW |
| 2 | Liquid tank capacity | 30L | 15 | Spray Pressure | 30PSI – 80PSI/(Adjustable） |
| 3 | Dilution tank capacity | 60L | 16 | Chemical liquid level filter | 0.22μm (filter microparticles solder paste, rosin, flux and contaminants) |
| 4 | Spray tank capacity | 18L | 17 | DI water Filter | 0.22μm (filter microparticles solder paste, rosin, flux and contaminants) |
| 5 | Temporary tank heater | 6KW | 18 | water inlet | 1 inch fast junction interface |
| 6 | Cleaning time | 0~99min(adjustable) | 19 | Water outlet | 1 inch fast junction interface |
| 7 | liquid temp | Room temp -75℃ / (adjustable) | 20 | Chemical Inlet | 1 inch fast junction interface |
| 8 | Rinse time | 1-99 times / 1~2min each time | 21 | Real-time pressure gauge | 3PCS (nozzle / DI water / waste liquid) |
| 9 | Rinse water temp | Room temp -75℃ / (adjustable) | 22 | pump | 5.5KW |
| 10 | Drying time | 0 to 99 minutes / (adjustable) | 23 | Aire Outlet size | Φ100XH30(mm) |
| 11 | Resistivity meter monitoring range | 0~18MΩ | 24 | Power source | AC380V 50HZ 65A/0.45MPa~0.7MPa |
| 12 | liquid tank heater | 9KW | 25 | Weight | 600Kg |
| 13 | Drying Temperature | Room Temp–99℃/（Adjustable） | 26 | Machine Dimension | 1300mm(L)*1200mm(W)* 1850mm(H) |
