描述

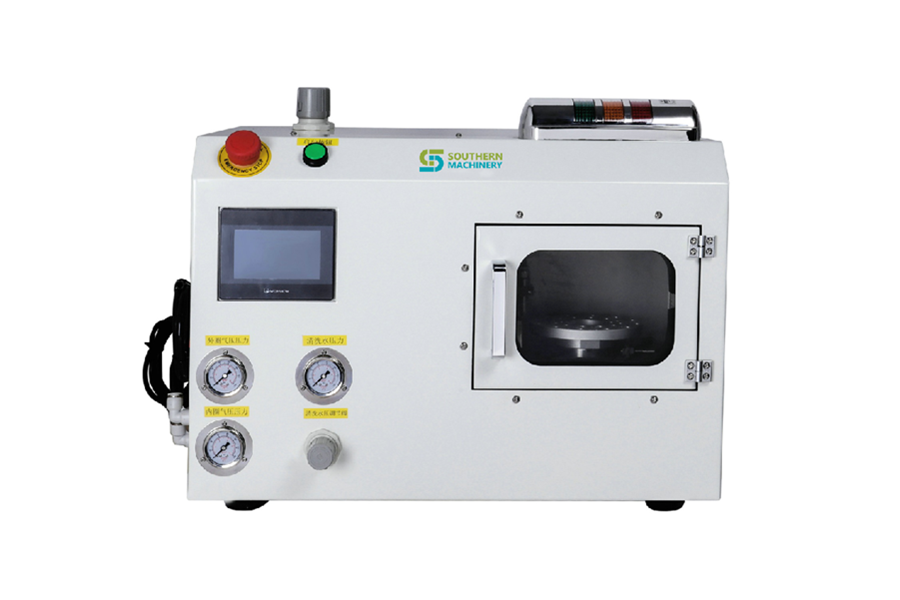

Overview：
SCM-24 using the hydrodynamic water fragmentation，producing very fine water mist，with the speed of sound (V = 360m/s) to form a strong momentum jet to the nozzle, nozzle for cleaning at the top of the formation of a continuous field，crushing the internal surface of the dirt (the nozzle will not be damaged because of its independent device)，during the cleaning process the used cleaning water (deionized water or distilled water) automatic direct emissions.
Functions:

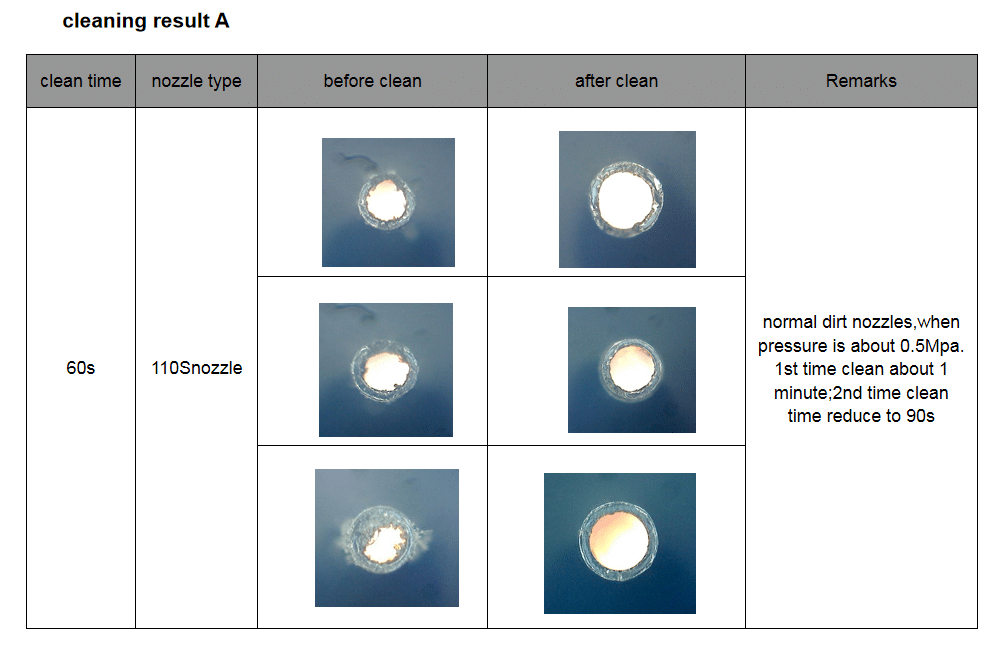

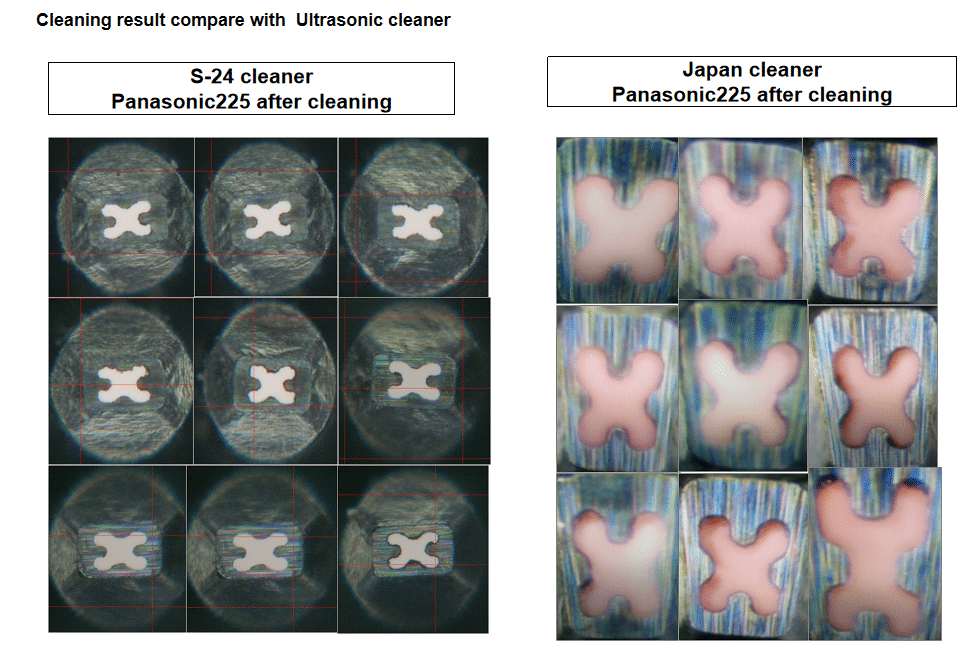

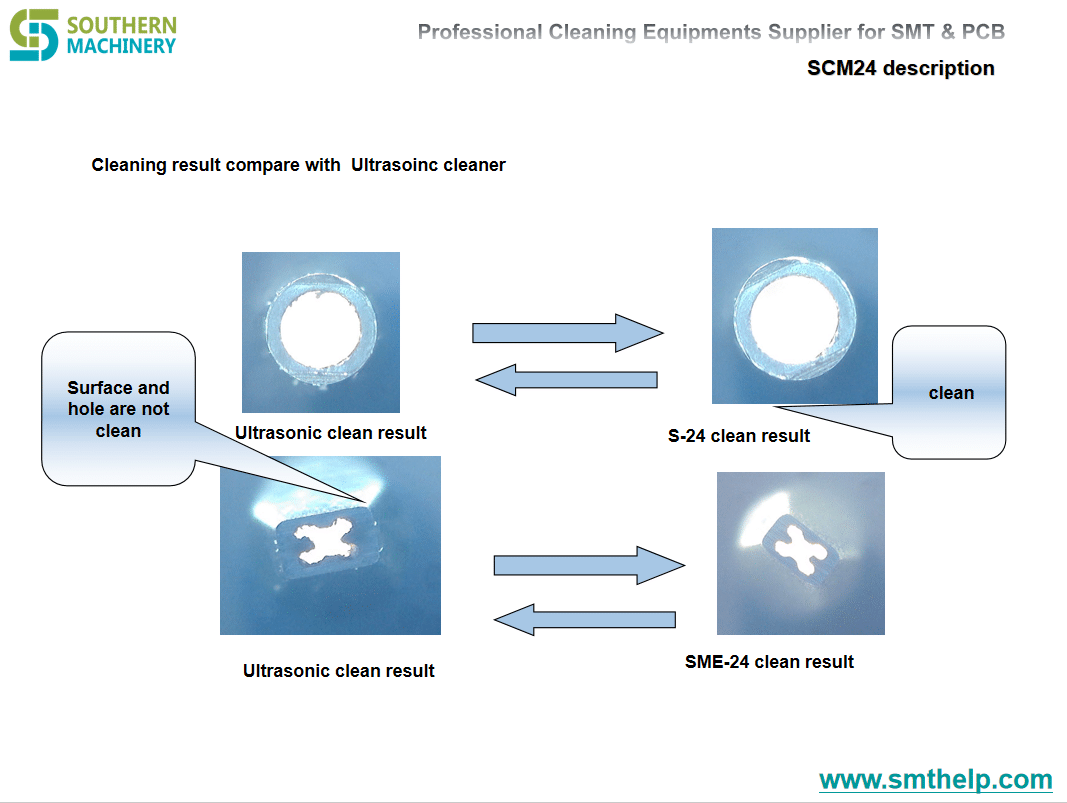

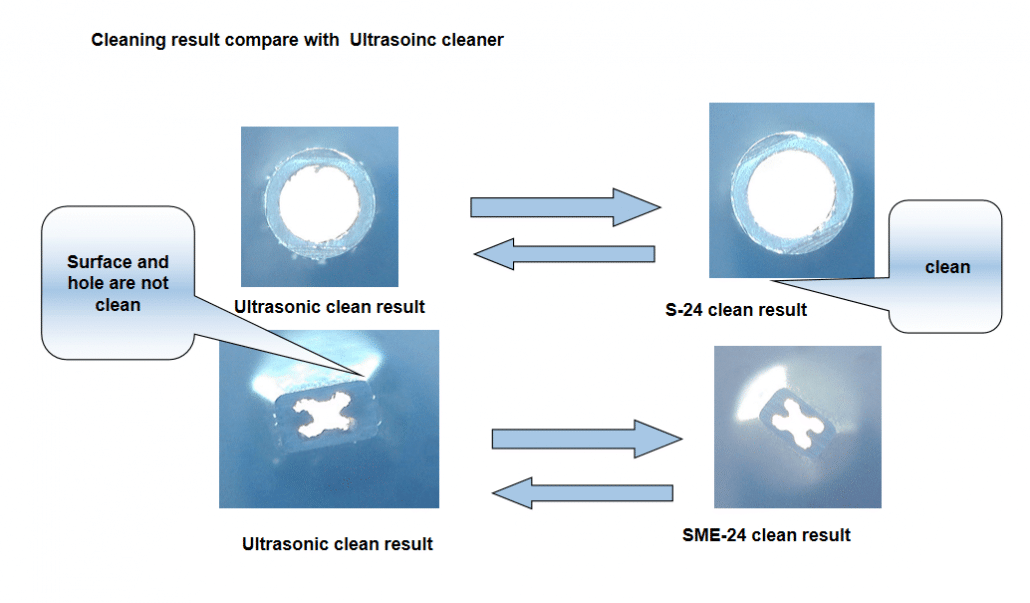

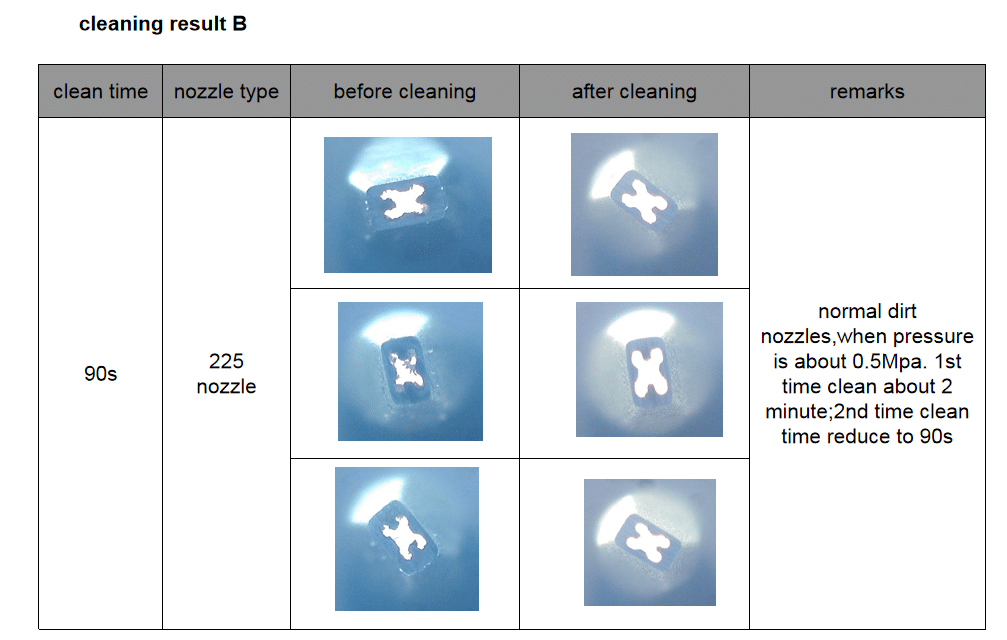

1. Thoroughly clean the dirt on nozzles which ultrasonic cleaner can not clean.
2. Strong clean power for nozzles ,even the smallest nozzle hole.
3. Very good cleaning effectiveness, extend lifespan of the nozzles.
4. No damage to the coating layer of the nozzle and its reflector panel.
5. Only use DI water or distilled water .
6. Auto clean and dry.
7. Easy operation.
8. Right for all kind of mounter nozzles .
Multifunctional Humanized Functions:
1. With TP operation interface, PLC programme control；easy operation.
2. Pneumatic parts are Japan SMC ，this gurantee the stability and efficiency of the machine.
3. Main parts of the machine, like cleaning room; water tank; nozzle and jet head rotation mechanism and installation base are made of SUS304，special parts used SUS 316 from Japan，to ensure that the machine will not rust due to the water，to avoid other security risks and get longer life；
Cleaning Principle:
Withit special mechanical design，SCM-24 using the hydrodynamic water fragmentation，producing very fine water mist，with the speed of sound (V = 360m/s) to form a strong momentum jet to the nozzle, nozzle for cleaning at the top of the formation of a continuous field，crushing the internal surface of the dirt (the nozzle will not be damaged because of its independent device)，during the cleaning process the used cleaning water (deionized water or distilled water) automatic direct emissions.
Specification
| ITEM | SME-24 SPEC |
| Air supply | 0.5~0.7Mpa |
| Power supply | AC220V,1A |
| Clean liquid | Purified water or DI water |
| Clean time | 3~6min |
| Dry time | 1~3min |
| Spray pressure | ≤0.55Mpa |
| Clean liquid consumption | ≤150cc/Hour |
| Nozzle range | Min01005~Max hole diameter￠2.0mm |
| Jig spec | 24holes |
| Machine size | L665*W555*H475(mm) |
| Machine weight | 30KG |
