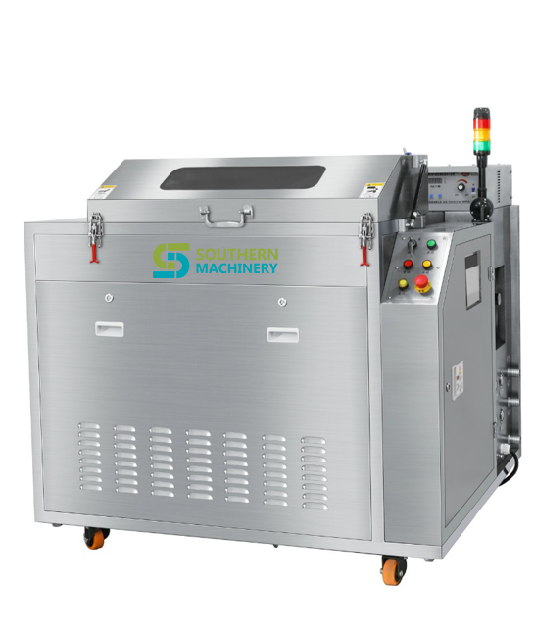

SME220 squeegee cleaning machine
Feature
1，The overall use of SUS304 stainless steel fuselage, acid, and alkali corrosion resistance, durable.
2，It is suitable for cleaning the scrapers of most automatic solder paste printers.
3，Ultrasound vibration + spraying and spraying two cleaning methods, cleaning more thoroughly.
4，Rotary scraper rotating system.
5，One-button operation, cleaning, rinsing, and drying are automatically completed in one time according to the set procedure.
6，The cleaning room is equipped with a visual window, and the cleaning process is clear at a glance.
7，Point rotation, fixture clamping mode, easy to take and place the scraper.

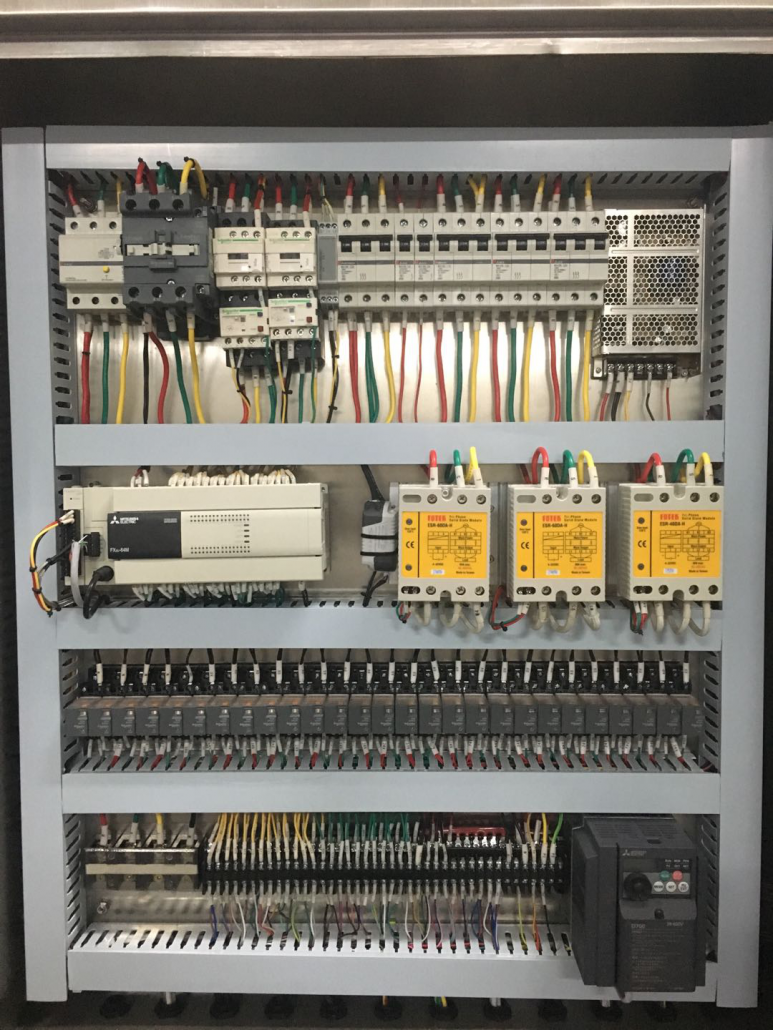

The color touch screen is controlled by PCL and operates according to the program.
The parameters of solution temperature, cleaning time, rinsing times/time, drying time, and drying temperature can be set.,

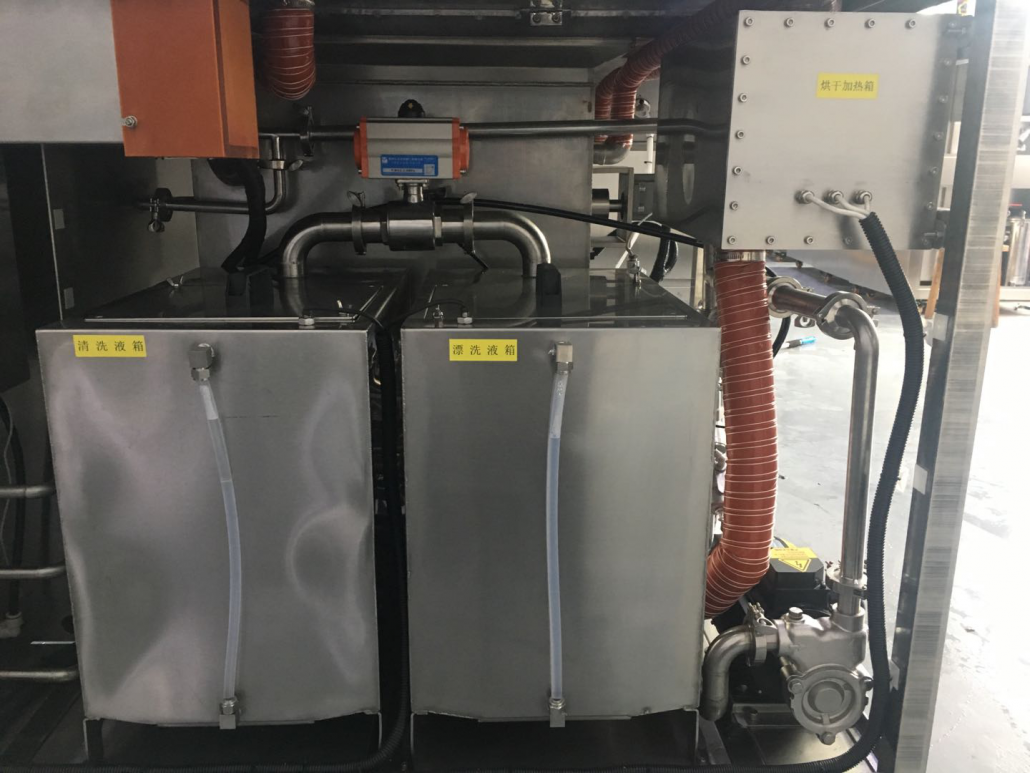

8，Cleaning, rinsing double pumps, double online double filtration system, double tanks, and their respective independent pipelines.
9，Hot air drying, double-layer design of the upper cover, good insulation effect.,
10，Equipped with a diaphragm pump, automatic filling, and drainage.
11，Japan, Germany, the United States, and other top-quality electric, pneumatic components, durable, safe, and reliable.
Structural description

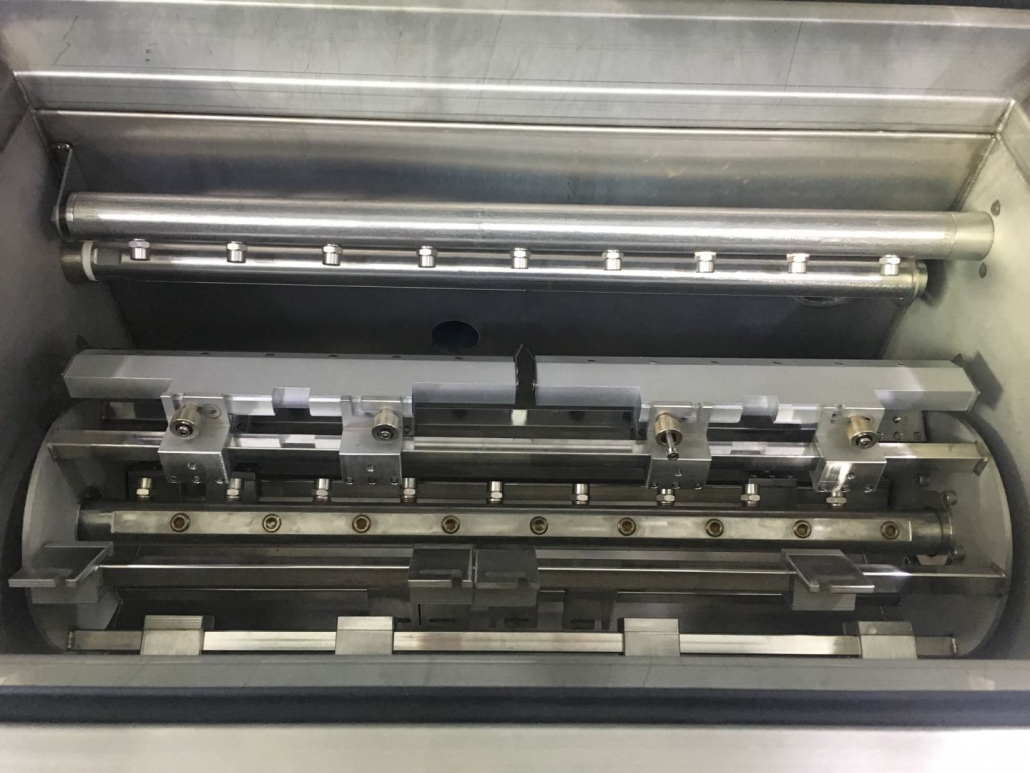

2. Rotary cleaning can clean 6 600mm long scraper and 12 10-inch scrapers at the same time.
3. The scraper is fixed by fixture, which is convenient to take and put.

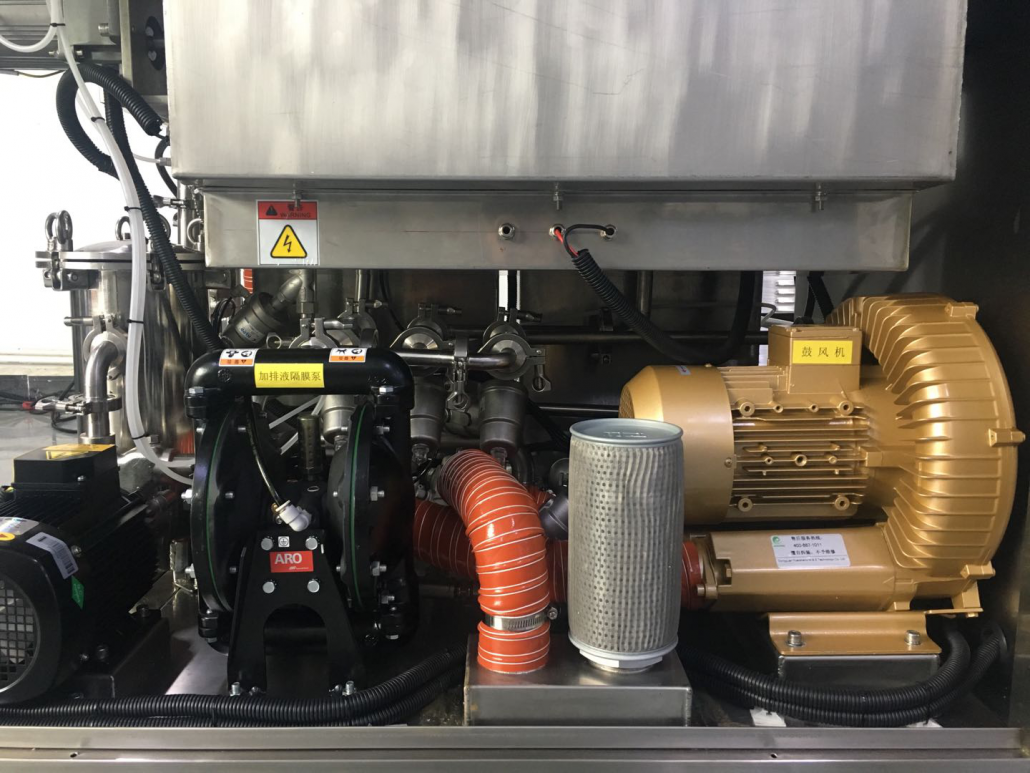

- Independent cleaning pump, rinsing pump and add, drain pneumatic pump.
-
Ingersoll rand automatic feed, discharge pneumatic diaphragm pump.
2. High air volume can greatly improve the drying efficiency of steel mesh.
3. SUS304 stainless steel liquid pipe, Angle seat valve, never use any slimming rubber tube, need not worry about pipe pressure, leakage and service life.
4. Uniform distribution of ultrasonic oscillator, vibration frequency adjustable, good cleaning effect.
Working process
Specification
| Item | Spec | Mark |
| Applicable Scraper Size | L600mm | longest |
| Number of Scrapers Cleaned at One Time | 6 handles | |
| Storage tank capacity | 75Lx2 | |
| Cleaning time | 3~20min | |
| Rinse time | 1~2min | |
| drying time | 5~20min | |
| Cleaning liquid | Water-based cleaning fluid | |
| Rinse liquid | Clean water | |
| Drying method | High pressure hot air drying | |
| Liquid heating temperature | Room temperature ~60 C | |
| Drying temperature | Room temperature ~90 C | |
| filter | Class 1 100um filter net + Class 2 1um filter core | |
| Ultrasound power | 1.2KW | |
| Cleaning/rinsing pump power | 1.1KW+1.1KW | |
| Total power | 28KW | |
| Power/Gas Source | AC380V, 50/60HZ, 63A/0.5-0.7Mpa | |
| Machine size | About L1400xW1300xH1300 (mm) | |
| weight | About 5600KG |
