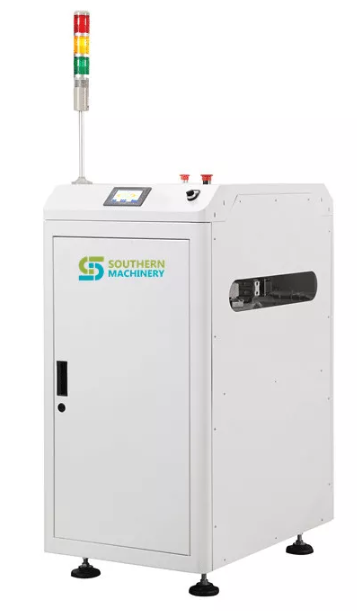

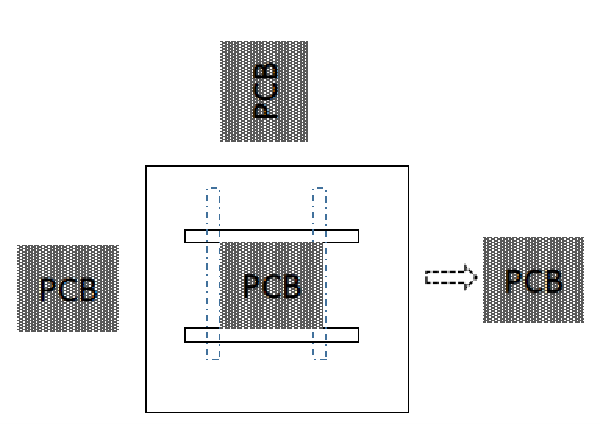

This unit is used to redirect PCBs in a production line, usually used for two combined one assembly line, L or U type SMT assembly line.
Features
User-friendly ‘soft-touch’ LED control membrane control panel
Enclosed design with built-in torque limiter ensures the highest level of safety
The top cover can be opened for easy access to hardware during maintenance
Parallel and smooth width adjustment (leadscrew)
Steady and precise scaling (retractable motor)
Minimize transmission clearance between conveyor
Different sizes available upon request
PCB traffic flows can be customized
SMEMA compatible
Technical specifications
Transport height:900mm ±20mm or specify
Transfer direction:L to R or specify R to L
Belt type: ESD belt (round belt)
Cycle time: 15 seconds approx.
Power supply: AC 110 Volts Or 220 Volts; Single Phase
Power consumption:150VA max. or specify
PCB Thickness：0.6~4 mm
| Model | Dimension (L*W*H.MM) | PCB size(MM) | Weight(KG) | PCB Thickness |
| SCN250 | 500*563*1200 | 50*50-330*250 | 150KG | 0.6~4 mm |
| SCN330 | 580*643*1200 | 50*50-400*330 | 170KG | 0.6~4 mm |
