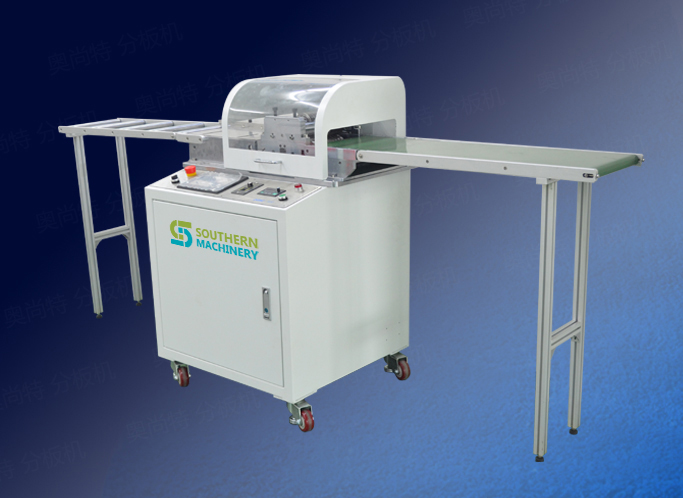

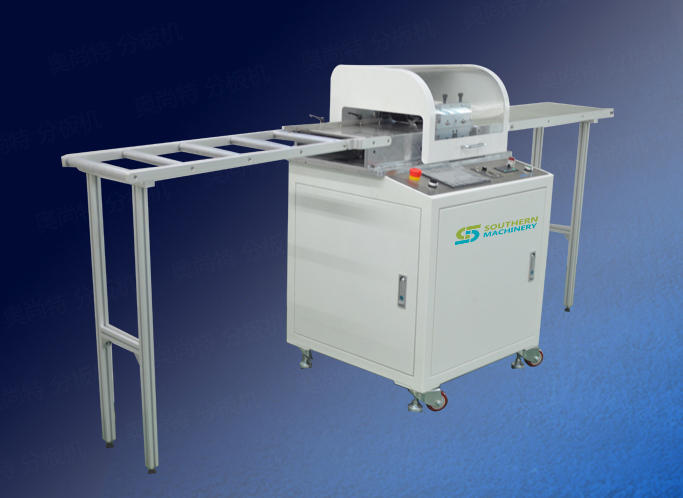

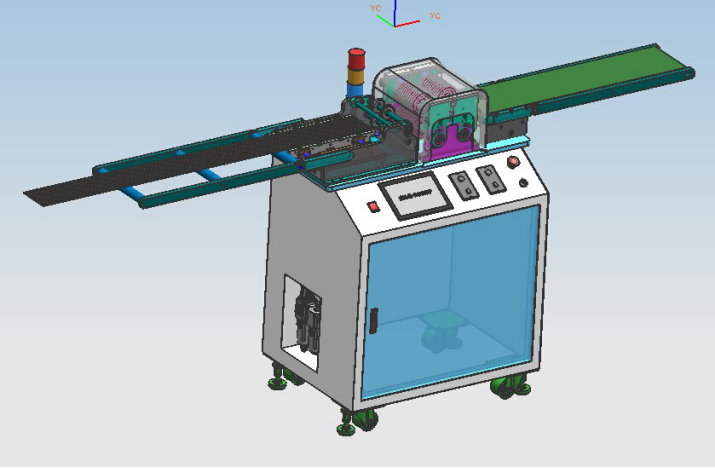

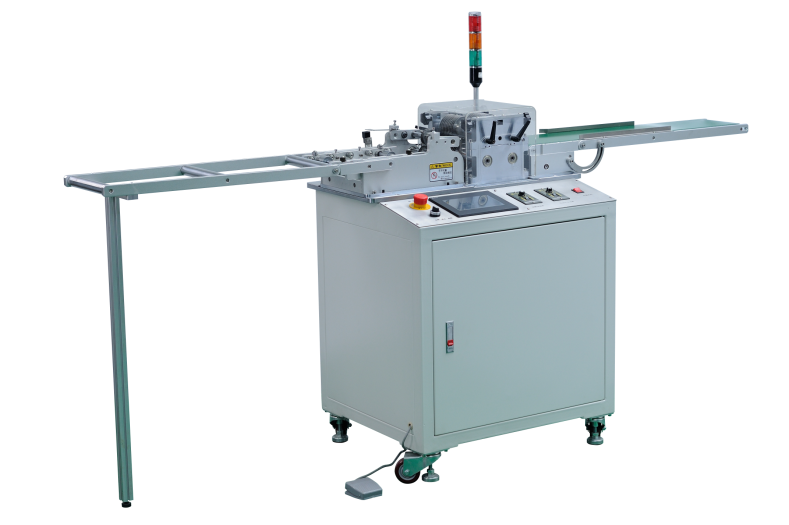

Product Name: SC-900 Groups-blade Separator for LED Aluminum board V-cut machine
Product Number:SC-900
Video:
[videopress fYwvdQaQ w=”800″ at=”800″ hd=”true” loop=”true” autoplay=”true”]
Features:
- The equipment is used for multiple groups of multi-knife automatic board splitting, which can meet the light bar board with a width of 8MM or more, and the moveable cutter can meet the light bar board with a width of 4MM or more;
- The machine can be changed quickly;
- The electrical control part can be selected in the man-machine interface, which is convenient to open or shield;
- Man-machine interface, acrylic cover on the table to ensure safety;
- The floor-standing structure is adopted as a whole;
Description:
Outer Size: 25606851160 mm
Weight: 250 kg
Blade Length: 100mm or more
Blade Width: 8mm – 230mm
Blade Speed: 0-300mm can adjustable
V-Cut thickness: 0.2-3mm
Component height: <=12.5mm
The Space of Component and V-Cut position: >=3mm
Working Voltage: 220V/50HZ [110V/60HZ]
Working Gas Pressure: 0.5-0.7Mpa Dry Air Supply
Equipment Power: 800W
Blade Size: 80358(SKH-11, Import HSS(high-speed steels), Made by TW, Can reuse after polish)
Standard Blade Num.: 40 pieces
Usage: T5, T8 LED board
Details Image:

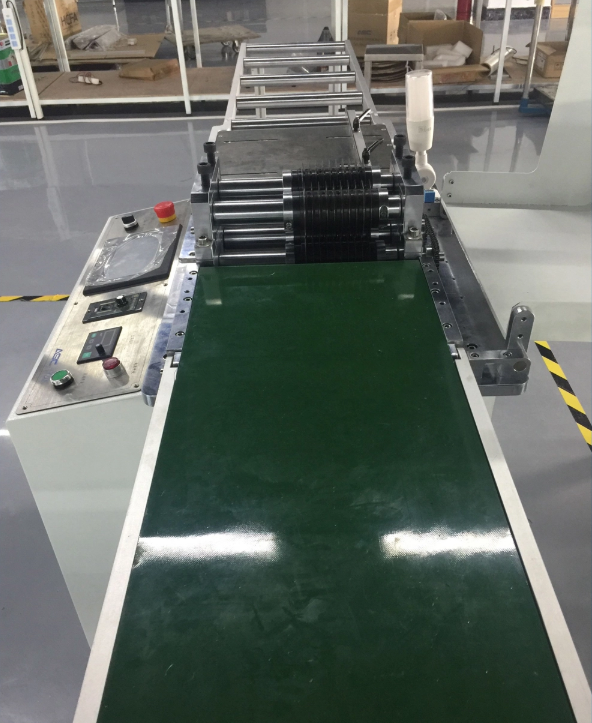

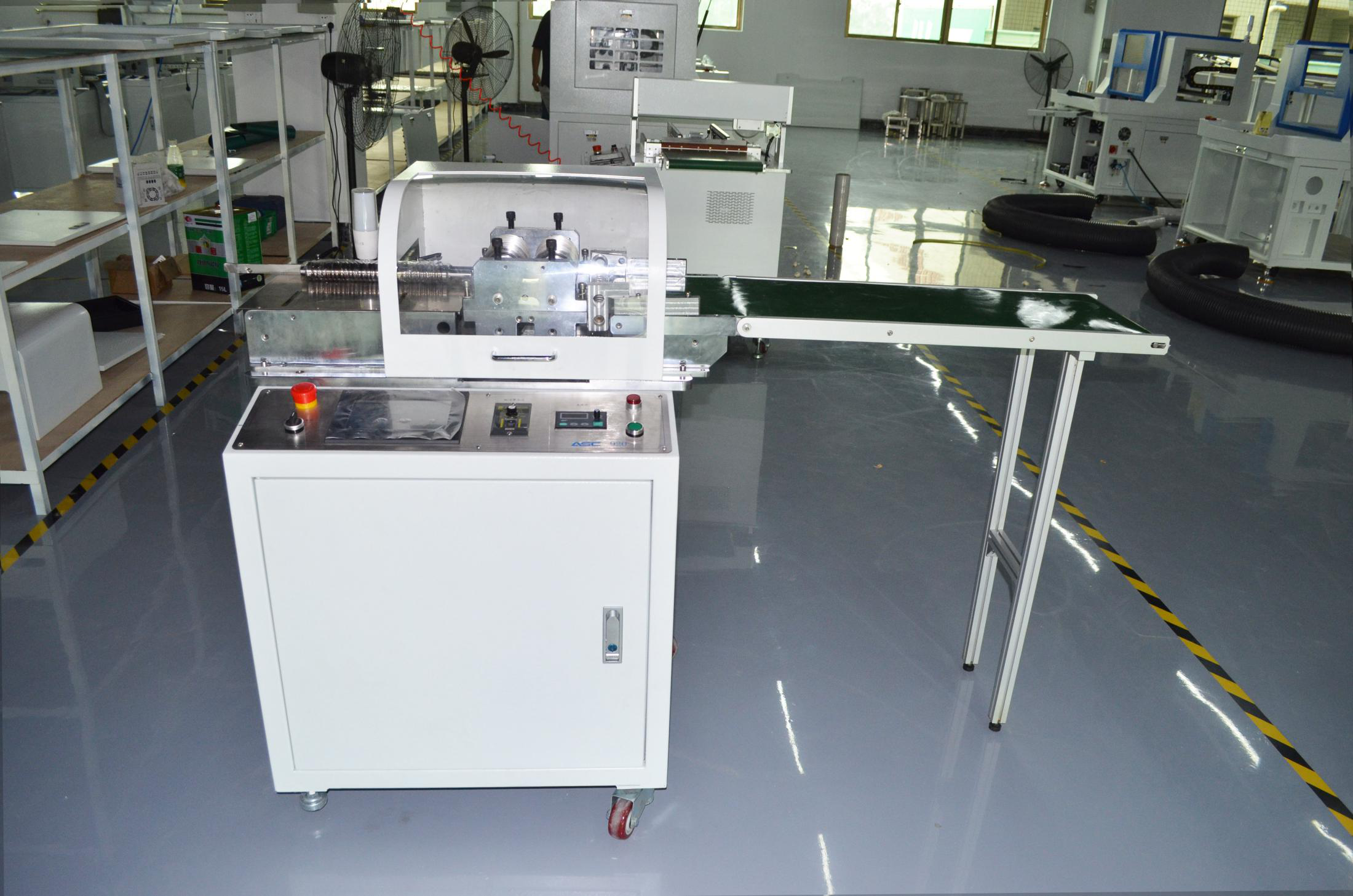

Physical Picture:
Our Service:
1.Your inquiry about our products and price will be replied to within 24 hours;
2.Well-trained and experienced staffs to answer all your enquires in fluent English;
3.Best products and price to offer;
4.Shortest time to deliver the products ;
5.Strict QC before shipping the products;
6.OEM & ODM services offered;
7.With 1 year warranty!
8.Good packing!
FAQ:
Q: What we can do for you?
A: We provide SMT&DIP machines, we can also provide a Production line scheme, such as a Whole coating line, SMT line, DIP line, and so on.Professional Technical Support and Service.
Q: What is your delivery date?
A: The delivery date is about 3-5 working days after receiving the payment.
Q: What are your payment terms?
A: TT 100% payment in advance.
Q: This machine is easy to use? If I have no experience, I can also operate it well?
A: Yes, our machine is designed to use easily, Normally it will take you 1 day to learn how to operate, if you are a technician, it will much faster to learn.
Q: Do you provide the user manual and operating videos to support us?
A: We will provide the English user manual for free, and the operation video is available. Our software is all in English.
Q: If we come to your factory, you will provide free training?
A: Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
Q: What service you can provide when we have some problem during the operation?
A: We can invite our engineers to your company for guidance, but you are responsible for the air tickets and accommodation, we can also provide remote guidance
Q: What is the payment way?
A: We accept the payment terms: T/T, Paypal, etc.
