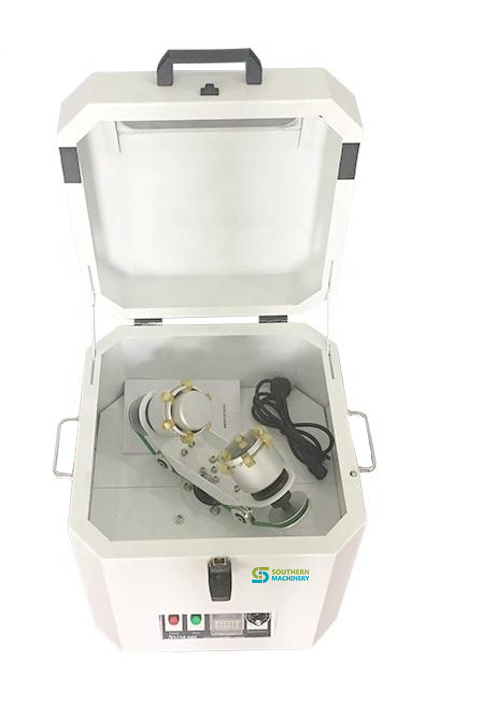

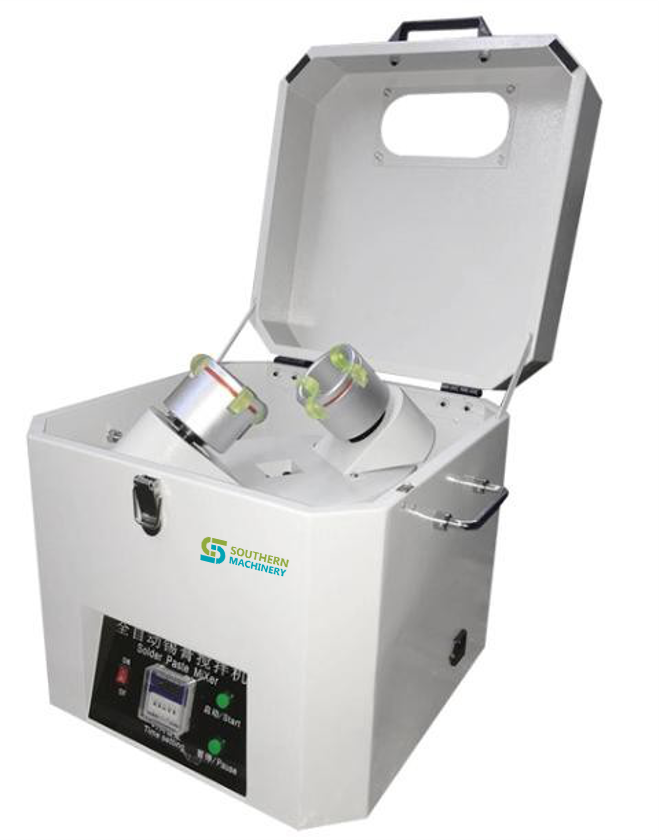

S-SPM01 Solder Paste Mixer
Features

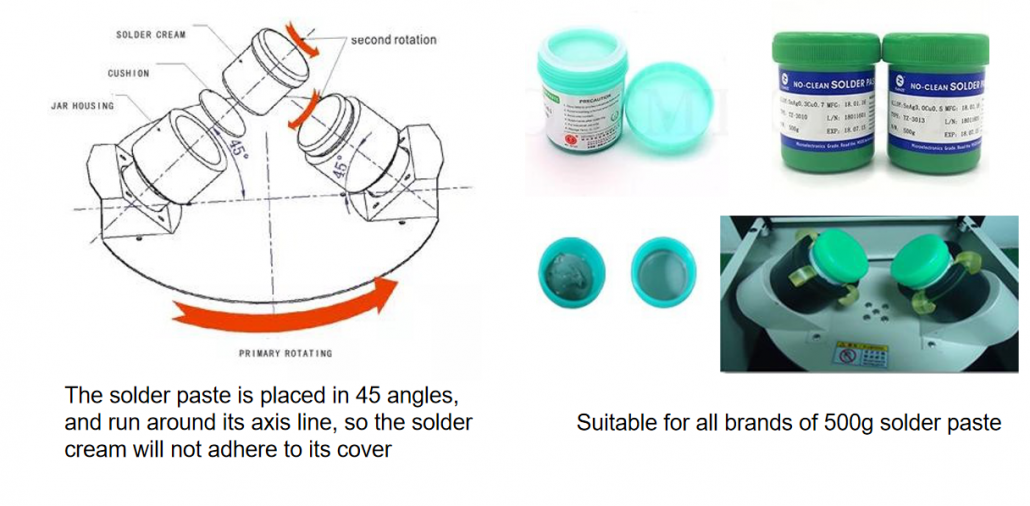

- Put the solder paste at 45 degrees ,rotate along the axis direction, solder paste no longer adhere to the Cover.
- With double safety devices to ensure personal security.
- Remove air bubbles while stirring,
- Using a dedicated control circuit, fully taking process control in consideration.
- Proven speed ratio,avoiding too much solder powder and temperature rise impacts solder paste quality.
- Don’ t need to remove cold storage of solder paste out of ice.
- 500 g solder paste mixing two cans at the same time. Save time.
- Mixing process, no need to open the solder paste box.
Parts description
| Specification | |
| Working Capacity | 500g*2 units OR customized |
| Rotation speed | 900/minute |
| Dimensions | 440*440*550mm |
| Weight | 35KG |
| Time setting | 0.1~9.9 Min,each 0.1 min; 10~30 Min,each 1.0 min |
| Repeat delay error | < 0.1% |
| Reset method | Power reset |
| Control methods | electricity latency |
| Repeat | The time interval is not less than 0.5 s |
| Output capacity | AC250V 3 A; DC24V 3A (resistance) |
| Insulation strength | 100 M Ω/ 500 DC |
| Dielectric strength | 2.5 KV/min |
| Power supply | AC 220V, Or AC 110V |
| Power consumption | MAX300W |
| Mechanical life | 1*1000000 |
| Electrical life | 5*100000 |
| Using the environment temperature | –23 ℃ to 60℃ |
| Using the environment humidity | 35-80% RH |
| Packing size | 500*470*580mm |
Packing & Delivery
Packing Details :Plywood case, for export!
Port:Shenzhen
Delivery Details :7-10 days
Our Service
1.Your inquiry about our products and price will be replied within 24 hours;
2.Well-trained and experienced staffs to answer all your enquires in fluent English;
3.Best products and price to offer;
4.Shortest time to delivery the products ;
5.Strict QC before shipping the products;
6.OEM & ODM services offered;
7.With 1 year warranty !
8.Good packing!
FAQ:
Q: What we can do for you?
A: We provide SMT&DIP machine,we can aslo provide Production line scheme,such as Whole coating line,SMT line,DIP line and so on.Professional Technical Support and Service.
Q: What is your delivery date?
A: The delivery date is about 3-5 working days after receive the payment.
Q: What is your payment terms?
A: TT 100% payment in advance.
Q:This machine is easy to use ? if I have no experience, I can also operate it well ?
A:Yes, our machine is designed to use easily, Normally it will take you 1 day to learn how to operate, if you are a technician, it will much faster to learn.
Q:Do you provide the user manual and operating videos to support us ?
A:We will provide the English user manual for free , and the operation video is available.Our software is all English.
Q: If we come to your factory, you will provide the free training ?
A:Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
Q:What service you can provide when we have some problem during the operation?
A:We can invite our engineers to your company for guidance, but you are responsible for the air tickets and accommodation,we can also provide remote guidance
Q:What is the payment way ?
A:We accept the payment terms: T/T, Paypal, etc.
