Destacker PCB loader // Stacker PCB unloader use in bare board

描述

We design and manufacture Auto Insertion and SMT Machines for Electronic PCB Assembly.

Specialize in Auto Insertion machine and SMT equipments, providing spare parts, sub-assembly, retrofit kit, repair kit, upgrading, training,overhaul service.



[Canvasio3DPro templateID=”14″ objectID=”17″][/Canvasio3DPro]

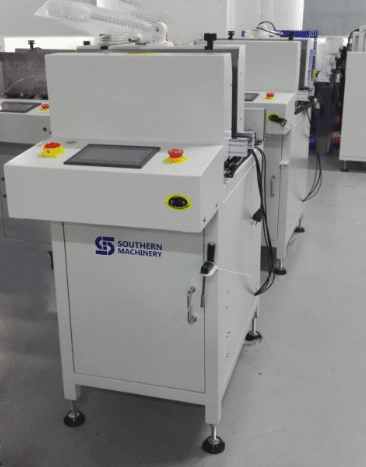

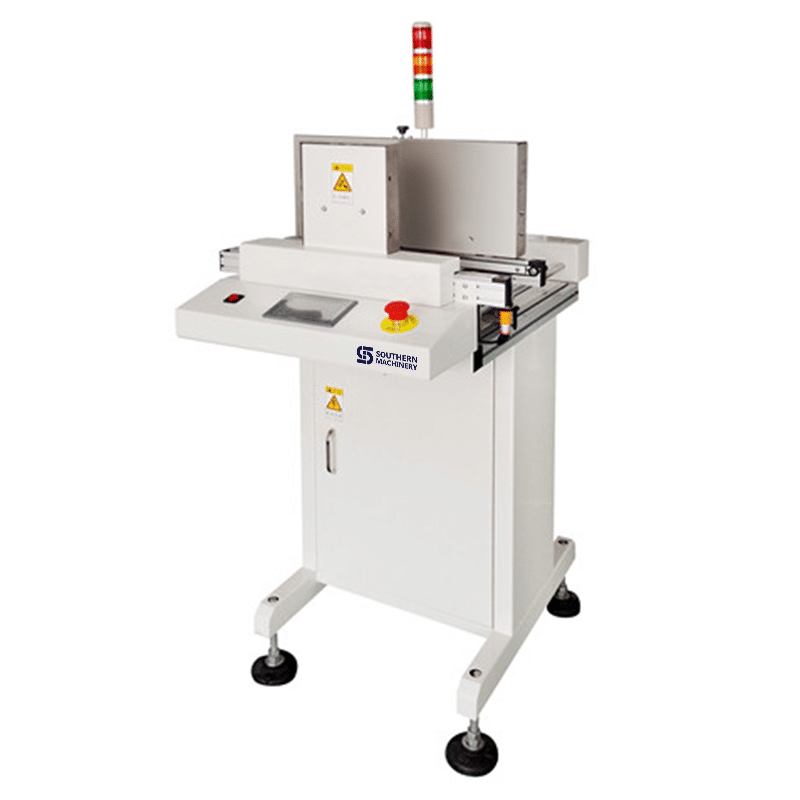

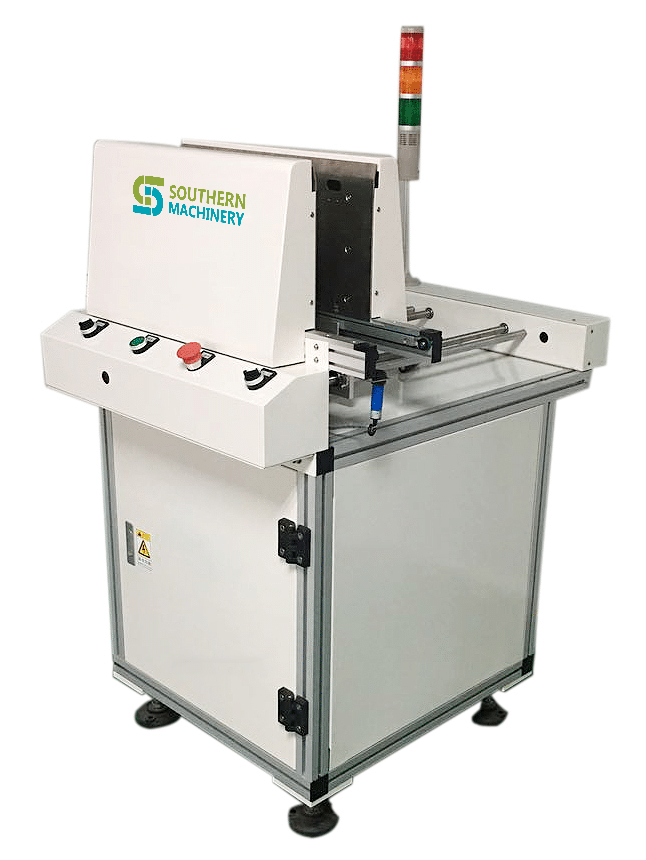

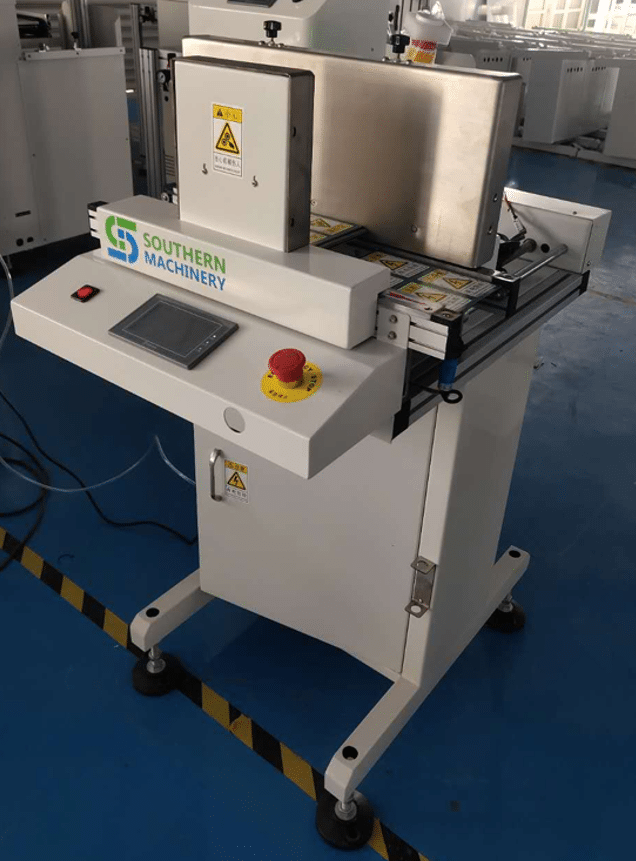

Bare board Destacker; PCB loader

Capacity:200 board stack capability with 0.4 mm board thickness Model:SLC460 1.PCB Width ：Max 460mm 2.Conveyor Height：900±20mm 3.PCB Direction：L→R 4.Conveyor Speed ：0-10000mm/min 5.Power Supply:Single Phase 220V,50/60Hz 80W 6.Control System ：PLC 7.No. of Drives ： 1 Belt 8.Communication Plug: SMEMA Signal 9.Dimension：889*589*1200mm (L*W*H) 10.Net Weight: 180Kg

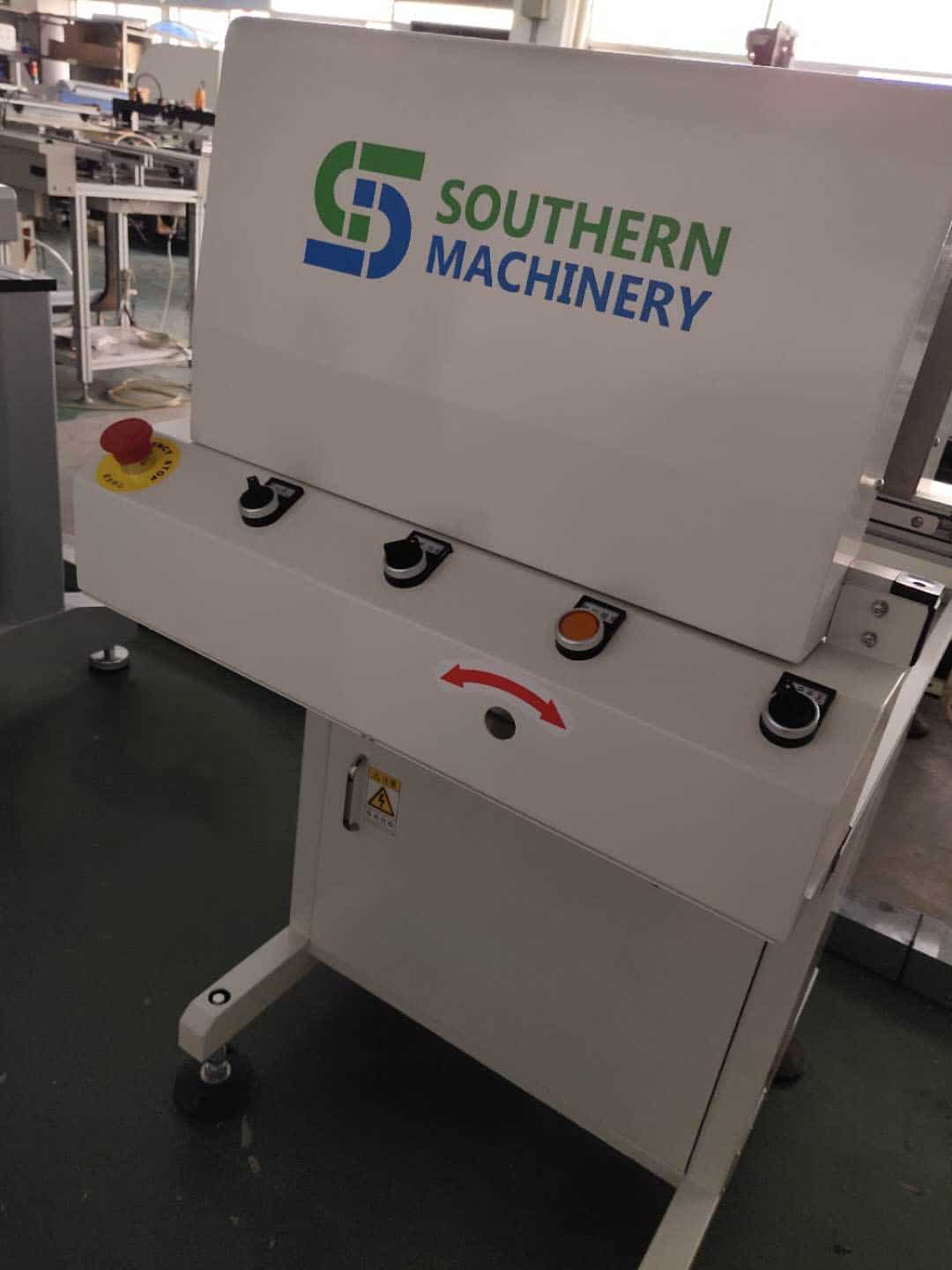

PCB bare board stacker,PCB unloader

Model:SLC460W-T

Capacity:200 board stack capability with 0.4 mm board thickness

PCB Width:50*50-503*460mm

Power Supply:AC 110V OR 220V,single-phase

Air Supply:5kgf/m2

PCB Direction:Left to Right (Or Right to Left)

Variable speed in/speed out

PLC control System

Board unload or pass-through mode

Variable thickness adjust dial

Slide-width adjust

SMC Cylinder

Communication: SMEMA

Conveyor Height:900±20mm

Conveyor Speed:7s/pcs

Dimension (L*W*H):600*900*1200mm

Weight:100KG
