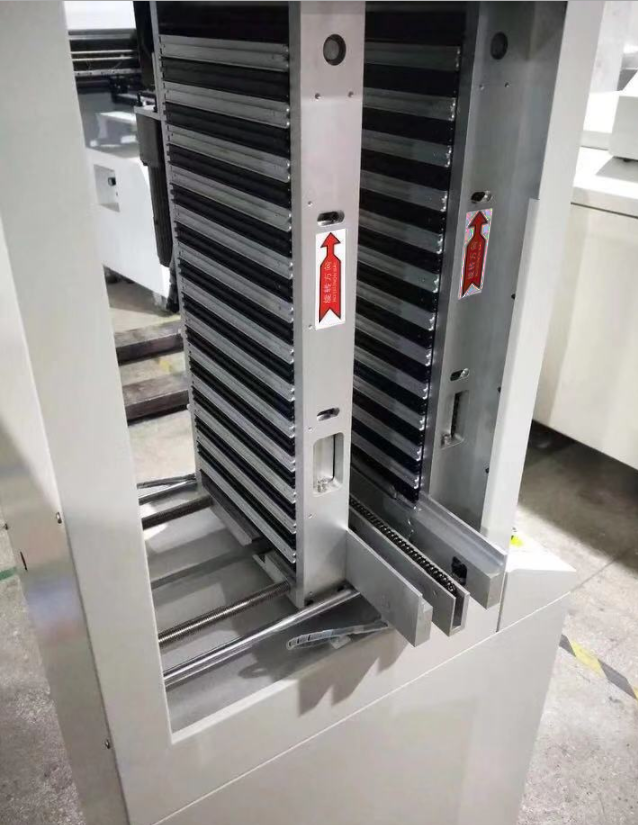

Mini PCB Unloader SMT unloader with small footprint
It’s suitable for SMT, FPC production line, providing semi-automatic unloading, a small volume designed to save space.
The advantage of Mini unloader
1, small footprint.

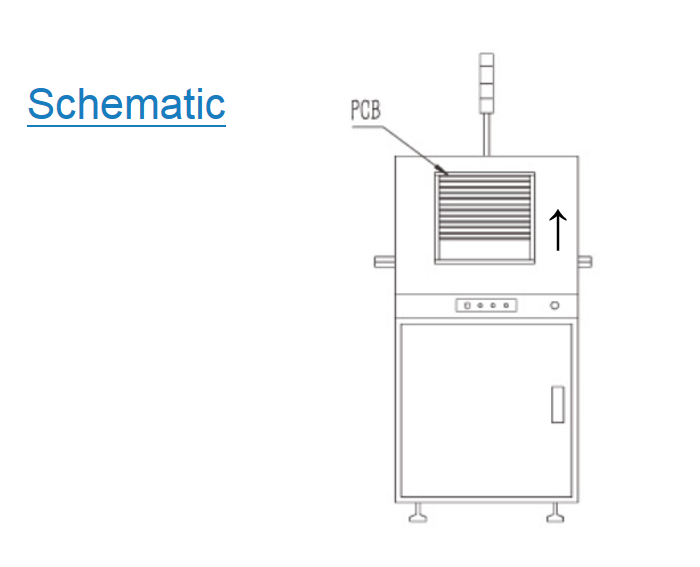

2, The conveyor belt can continuously transport PCB up.
3, It can adjust PCB automatically when PCB is tilted.
The disadvantage
No magazine, so it will need operators to unload PCB from the track.
Feature
- Small footprint
Easy to operate key control interface
Closed fuselage structure ensures safe operation
Smooth and parallel width adjustment (leadscrew)
Fast, stable and accurate retrieval positioning
Double circulation tank chain structure
SMEMA compatible
Technical parameters
- Transfer direction:L to R or specify R to L
Transport height:900mm ±20mm
Conveyor speed: 6 seconds
Power supply:110 VAC or 220VAC/50 Hz/1 Ph
Power consumption:100VA max.
Belt type: ESD flat belt
PCB max weight: ≤2kg
Model
| Model | Dimension (L*W*H.MM) | PCB size(MM) | Weight(KG) | Max PCB capacity |
| S-MUL250 | 600*475*1400 | 50*50- 330*250 | 100KG | 50pcs (Cyclic) |
| S-MUL350 | 700*650*1400 | 50*50- 445*350 | 110KG | 50pcs (Cyclic) |
