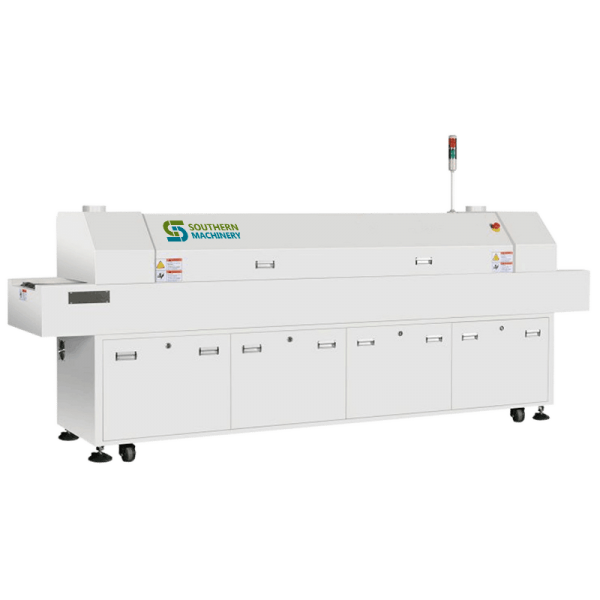

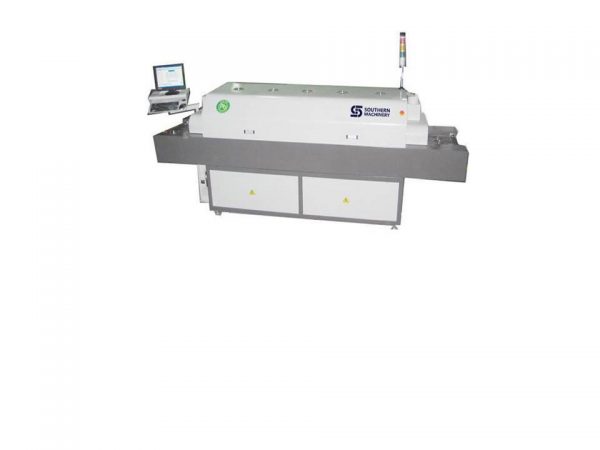

Lead Free Reflow Oven S-6600-PC
Specification :
| Heating Zones :Top 6/Bottom 6 |
| Heating length :2300mm |
| Cooling zone :2 |
| Max.width of PCB :350mm |
| Conveyordirection:L→R（R→L.option） |
| Height of conveyor :Mesh belt 880±20mm |
| Transport system :Mesh belt |
| Conveyor speed :0-2000mm/min |
| Power supply : 5 Wire 3 phase 380V 50/60HZ |
| Power of start up :24KW |
| Power of consumption of operation :Approx.5-7KW |
| Control fashion :PC |
| Warm-up time :About 20 minutes |
| Rangeoftemperaturecontrol:RoomTemperature-350℃ |
| Temperature control :Industrial temperature control module to control the SSR drive |
| Precisionoftemperaturecontrol:±1℃ |
| Temperaturedistributingerror:±3℃ |
| Trouble alarm: Temperature anomaly(Ultra high temperature or ultralow temperature after constant temperature) |
| Weight :Approx.900kg |
| Dimension(mm): L3600×W700×H1430 |
