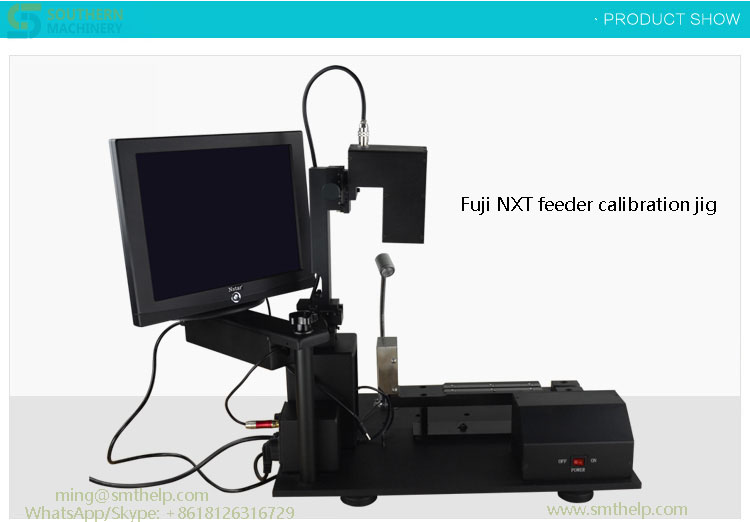

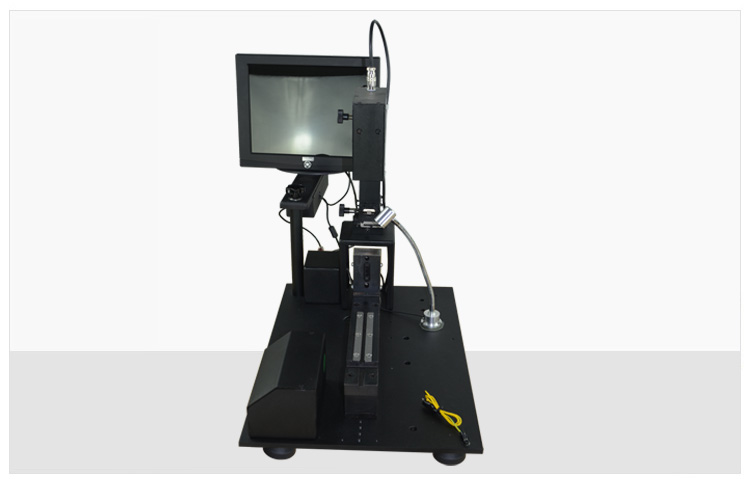

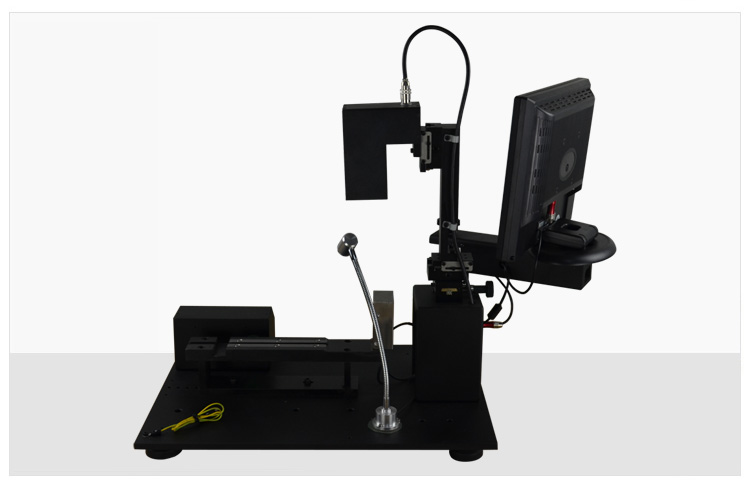

Fuji NXT feeder calibration jig
smt spare parts manufacturer and supplier.Fuji spare parts for sales:
We manufacturer and supplier Fuji SMT spare parts .such as feeder parts , machine parts , nozzles, filter, dispensor, belt, Feeder Carts, feeder calibration jig AI part ,etc.
We have good source and large ready stock for major brand SMT automotive spare parts.
Brand: Fuji, Hitachi/Sanyo,Juki, Panasonic(KME), Assembleon/Phillips, Sanyo, SIPLACE/SIEMENS, Universal, DEK , I pulse ,Samsung and Yamaha.
For those Fuji spare parts which are not listed, please email us. ming@smthelp.net
WhatsApp/Skype: +8618126316729
Fuji NXT feeder calibration jig for sales :
|
Model: |
S-FFCJ10 |
|
Name: |
Fuji NXT feeder calibration jig |
|
Model Year: |
2019 |
|
Uses for: |
Fuji NXT feeder calibration |
|
Location: |
China |

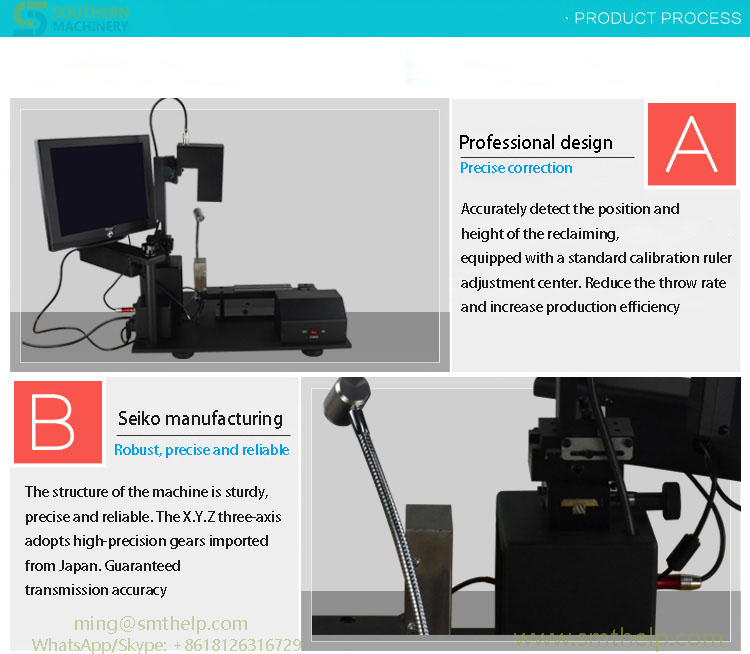

- 1, Simple structure, easy operation, function optimization. And the use of high-precision 0 gap guide, to ensure positional stability, greatly improve work efficiency
- 2, Accurate detection. Reclaimer position, height, strut height can be done accurately measured. To better grasp the quality status;

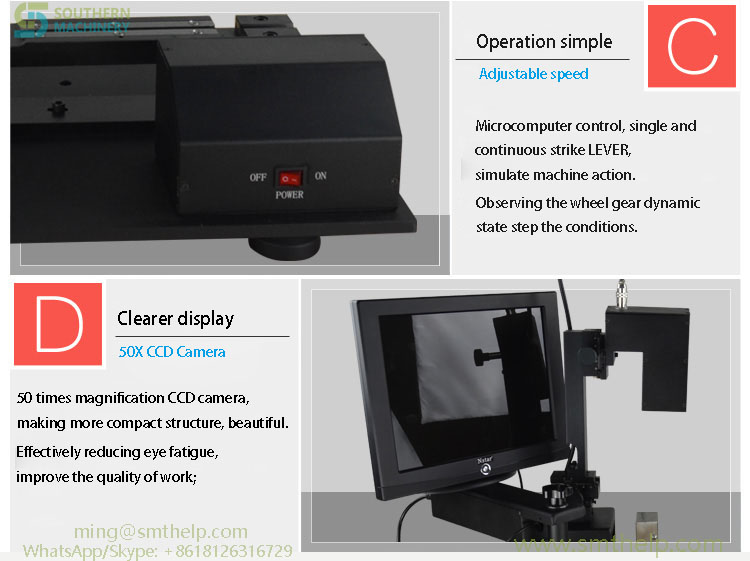

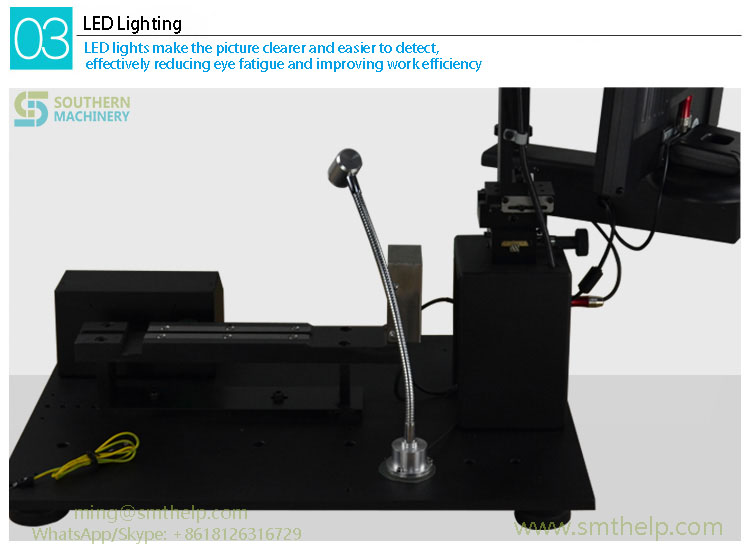

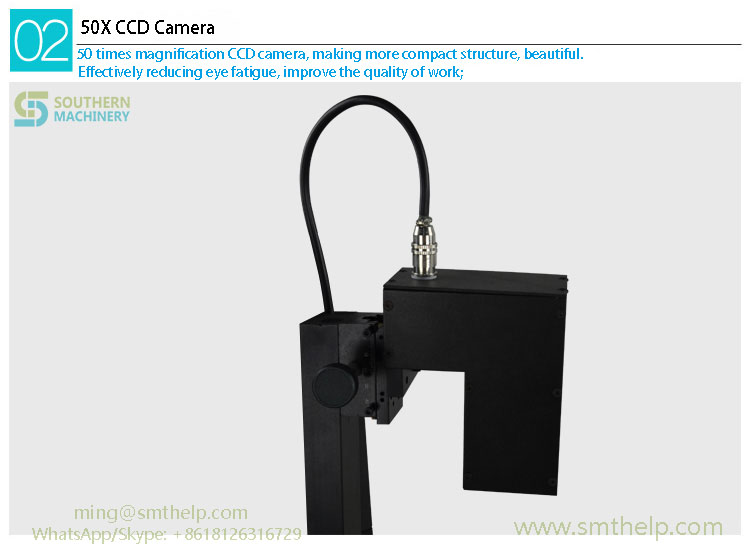

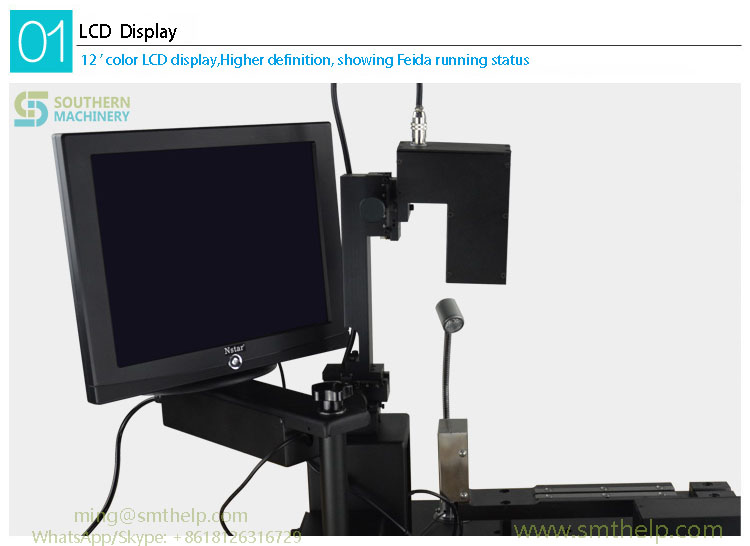

- 3, The use of 12 ‘color LED display, LED lighting ring, 50 times magnification CCD camera, making more compact structure, beautiful. Effectively reducing eye fatigue, improve the quality of work;
- 4, Easy to operate, and can simulate the placement machine, automatic continuous observation reclaimer position, a clearer grasp FEEDER continuous operation quality, and thus more effective control of polishing material ratio;
- 5. The dynamic state adjustable method.(single /
- continuous strike.
- FEEDER calibration jig for calibration of various models
| Specification | |
| Working Voltage | 220V/AC(50Hz) 60W |
| Material | aluminum and iron |
| Air Pressure | 5KG/c㎡ |
| Visual System | 50 times magnification CCD camera |
| Lighting system | Ring the LED lighting |
| Display system | Ultra bright LCD color display |
| Feeding control | Precise 8 *2mm /12 *4 mm / 16 * 8mm and 24*8mm feeder control zone |
| Power supply | 220V, 50Hz |
| Machine Size | 350*500*550 mm |
| Weight | 45Kg |
Characteristics：
- The operation is simple, the external appearance is simple and cleverly.
- X, Y, H -three stalks, adoption Japan importing and the high accuracy wheel gear drive, precision and credibility.
- 50X CCD;with LED lighting, appearance clearer.
- Install dynamoelectric, single and continuous strike LEVER, simulate machine action.
- Observing the wheel gear dynamic state step the conditions.
- With standard calibration Ruler to adjust component centeral.
1.Switch on: use the Jig. correct signal wire connects into the display VIDEO plug,confirming power supply, correct connects into the power supply and monitor.
2.Press power switch, the Jig. Press-pole has not original position, will return to original position automatically. The display will show cross cursor, The Jig.
Completed self-check.
3.POWER (ON/OFF) power switch: Use to control machine power switch,
Press ON direction, the machine connects into power supply, pressing OFF
direction, breaking the machine power supply .
