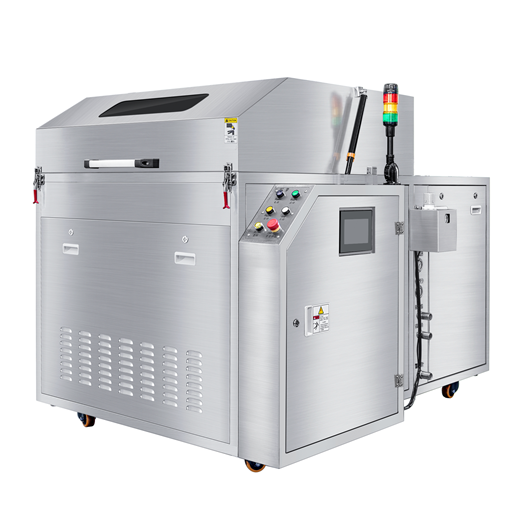

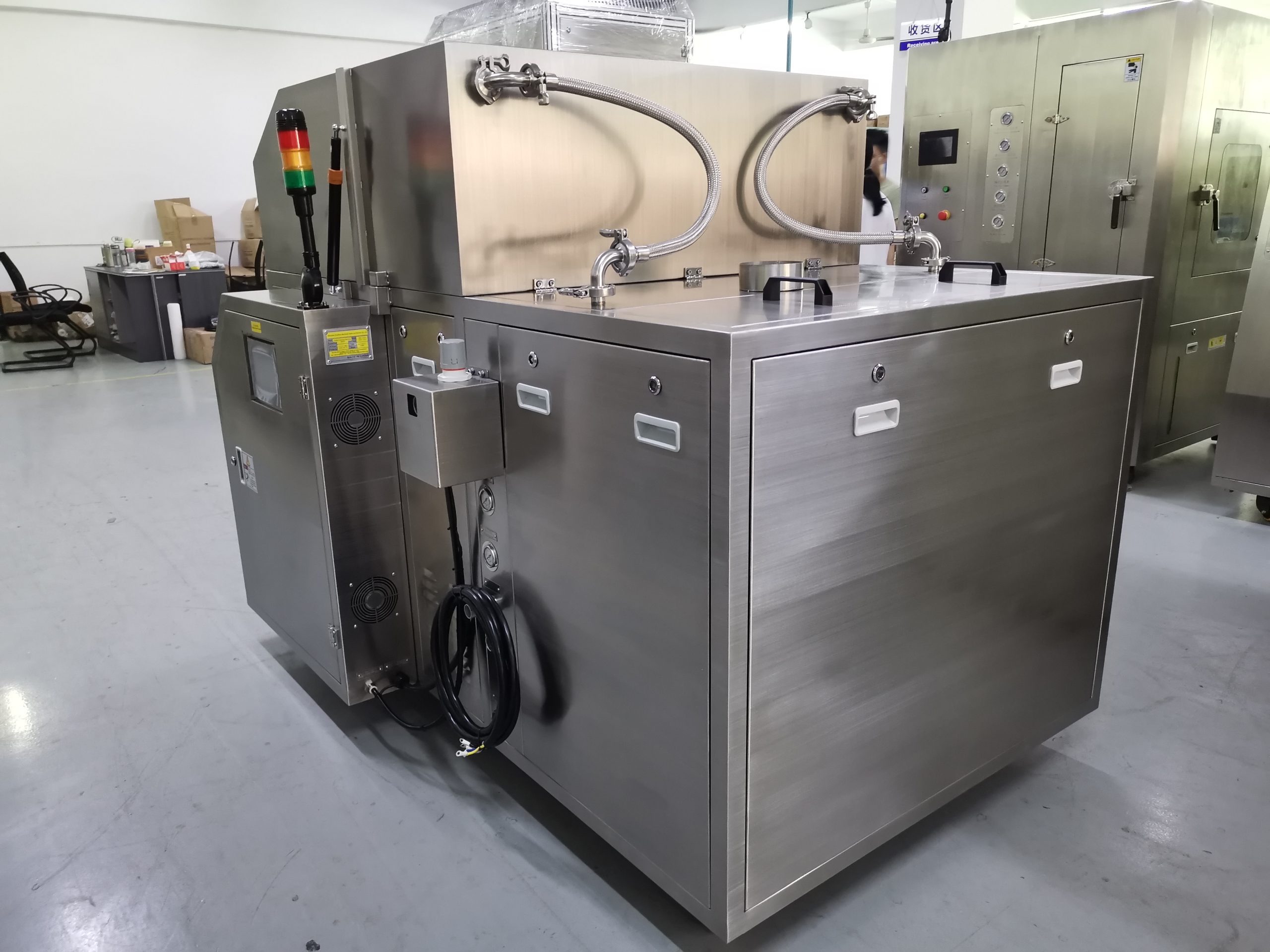

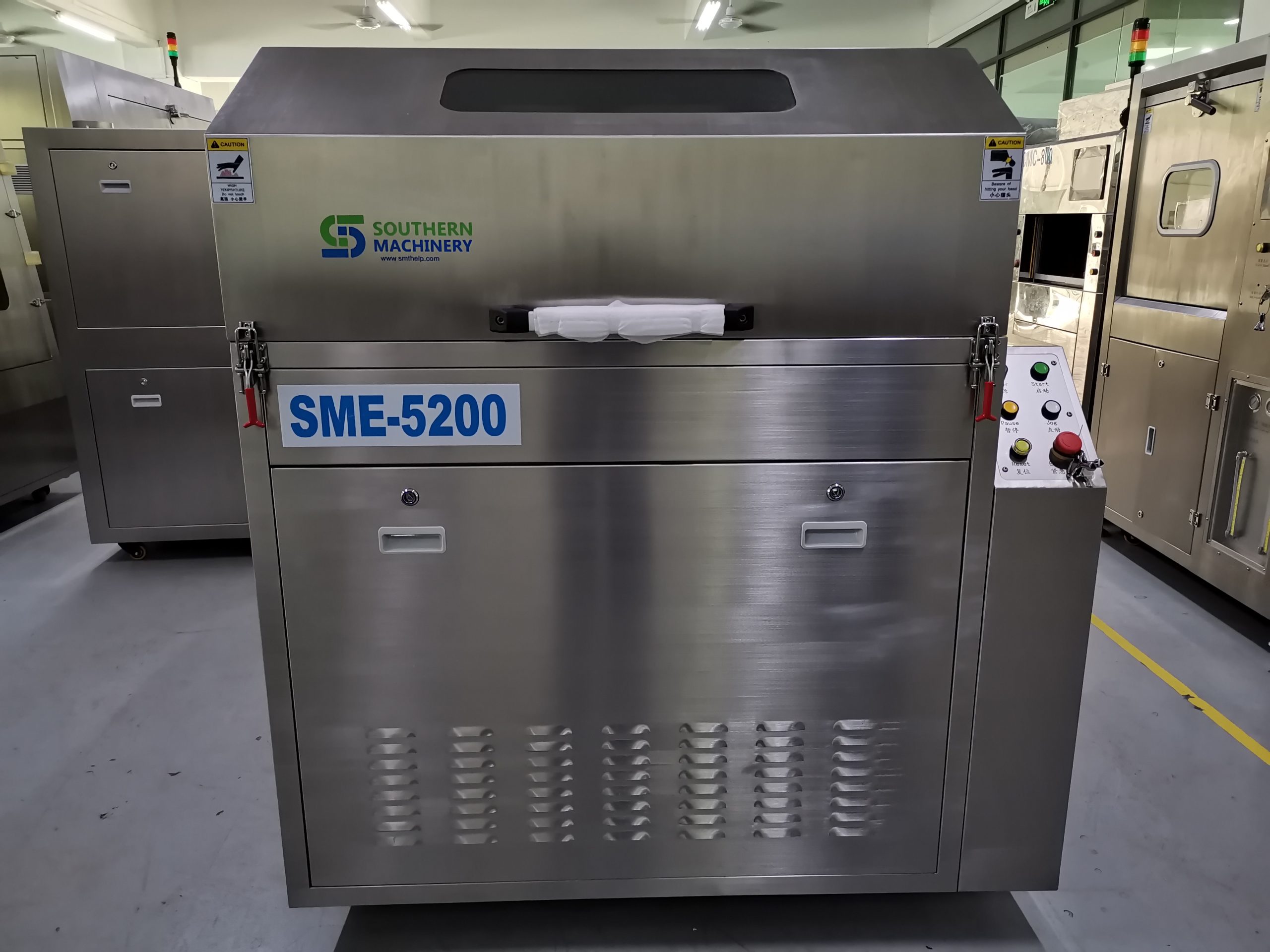

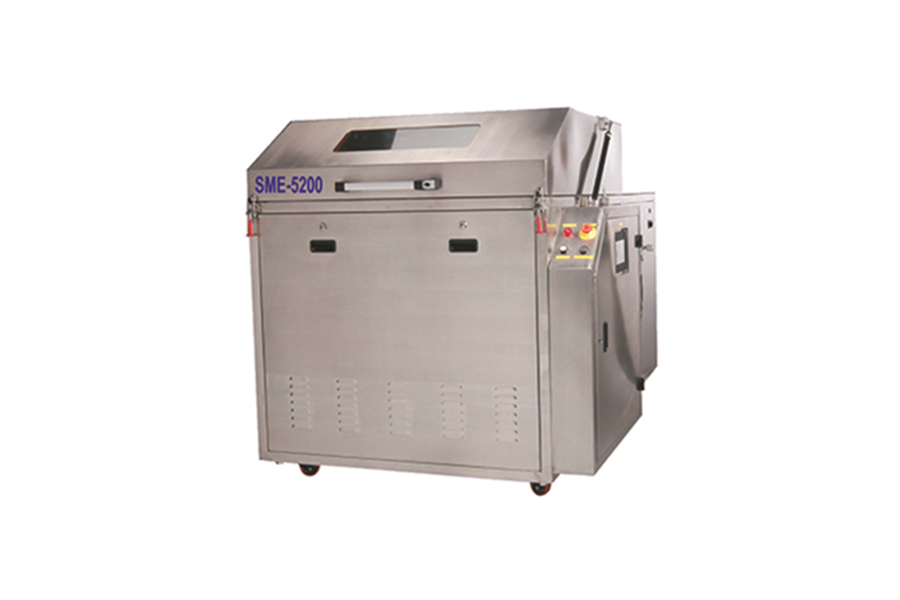

SME5200 Pallete cleaning machine fixture cleaner
Feature
SME5200 Fixture Cleaning Machine is used to clean grease, flux, dust on the surface of
all kinds of SMT fixtures，tray, reflow oven cooler and filter, wave-soldering oven claw, chains, and nets…etc.

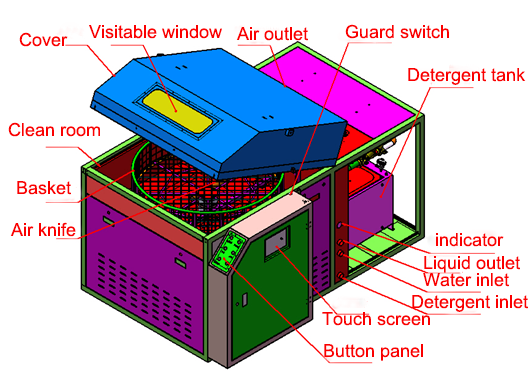

SME5200 is made up of a wash unit, rinse unit, dry unit, rotation cleaning basket unit, and control unit.
Put the dirt SMT fixtures onto the cleaning basket, setting the cleaning parameters,
the machine will automatically complete the wash, rinse, and the dry process by just pushing the start key.
The fixtures after cleaning are very clean and dry, ready to use at any time.

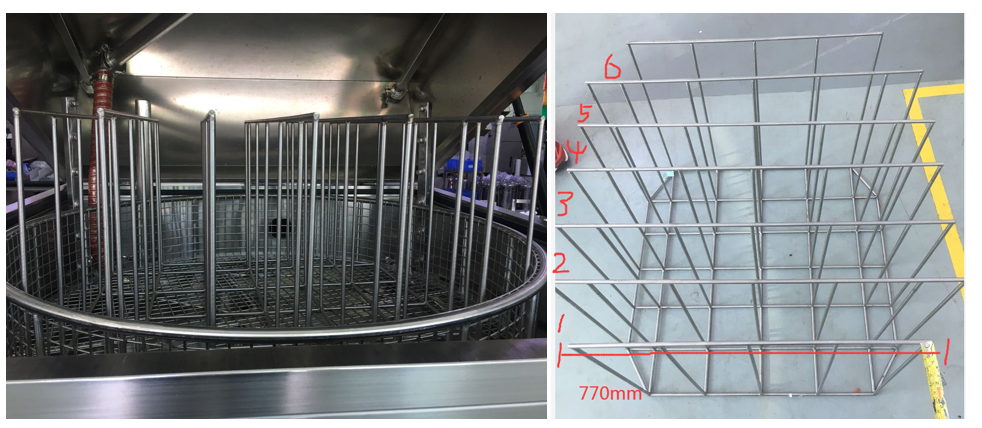

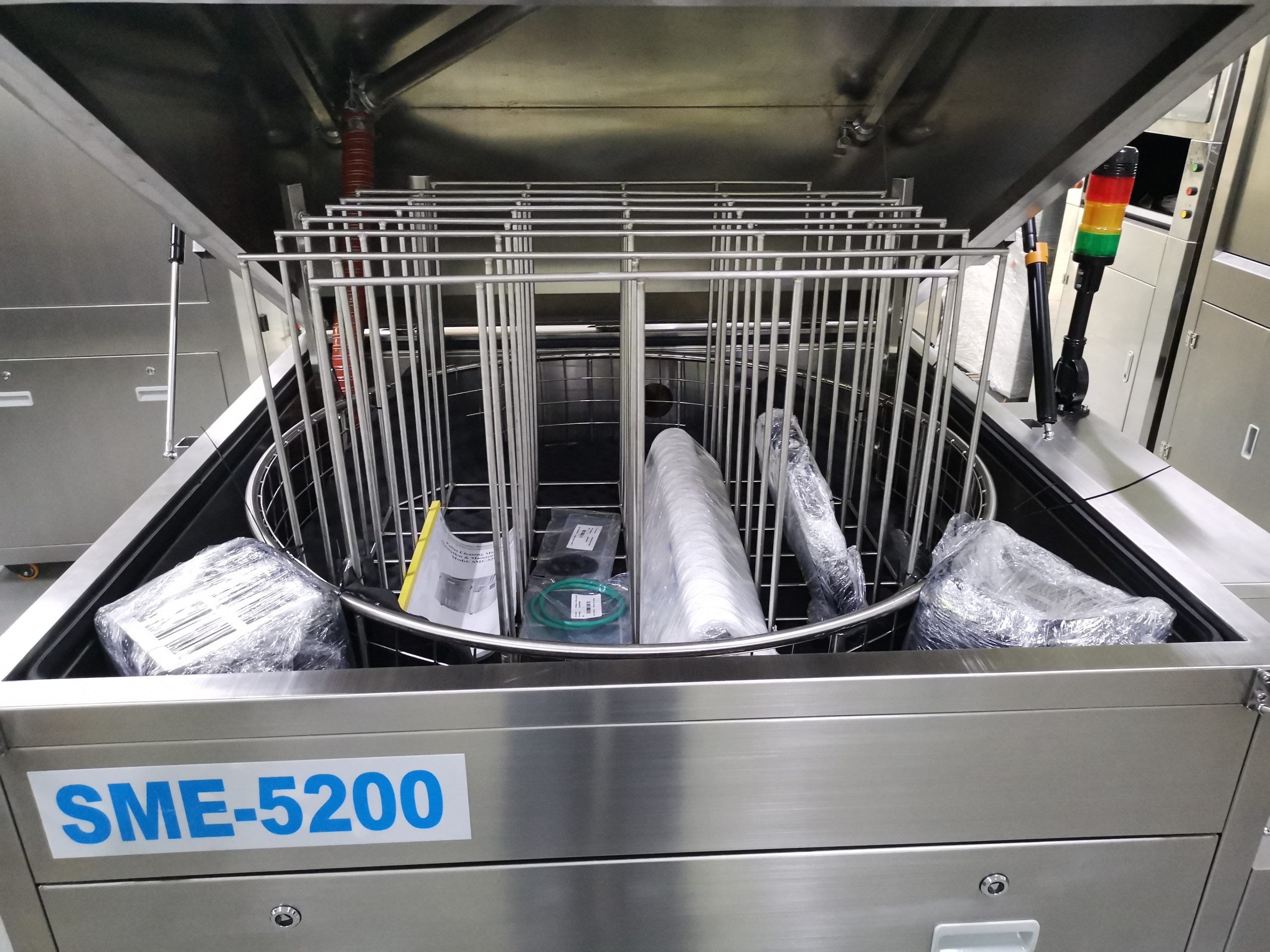

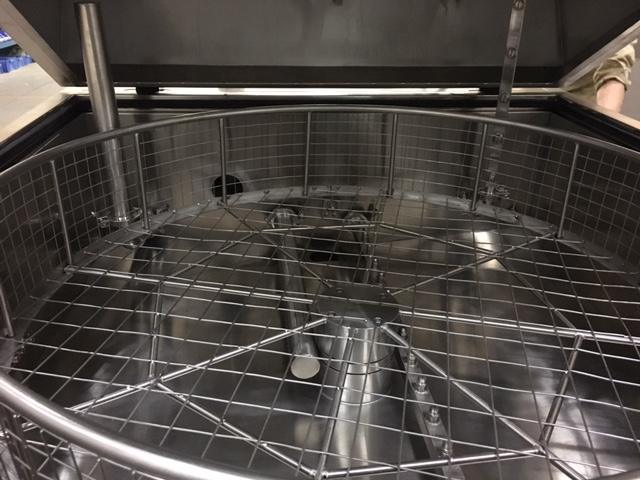

A. 1m diameter round cleaning basket, batch clean fixture, basket turns during clean, rinse and dry process
B. clean-rinse- dry, the total process time is 30~40min
A.High quality, big flow cleaning pumps

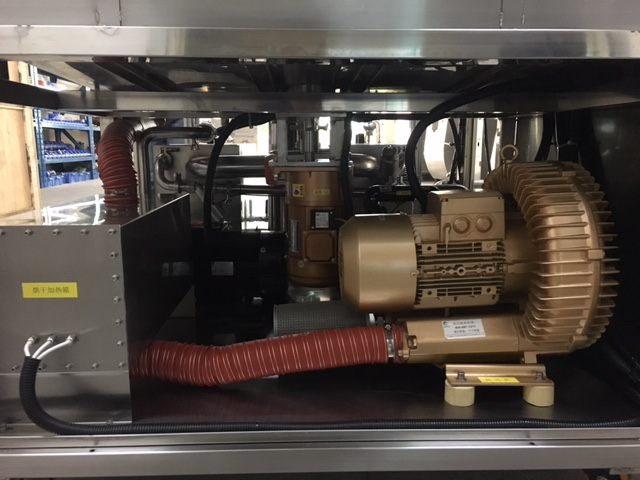

B. High flow rate blower, reduce hot air dry time
A. Total SUS304 machine
B. Auto liquid/water fill in and drain out

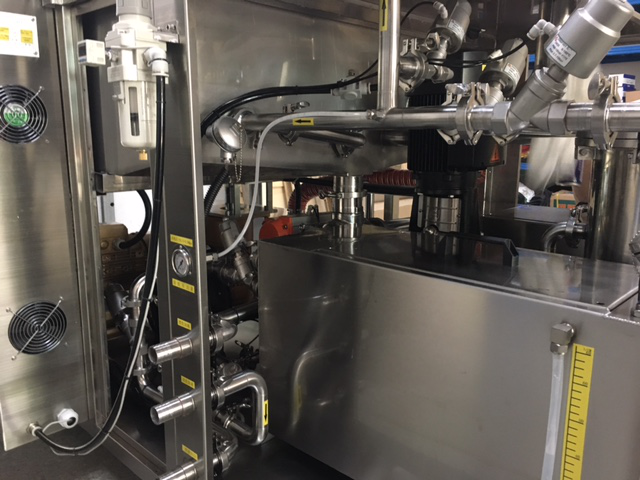

C. Liquid tank and water tank and separated pipe system
D. Cleaning, rinsing spray bar and pipe are separated

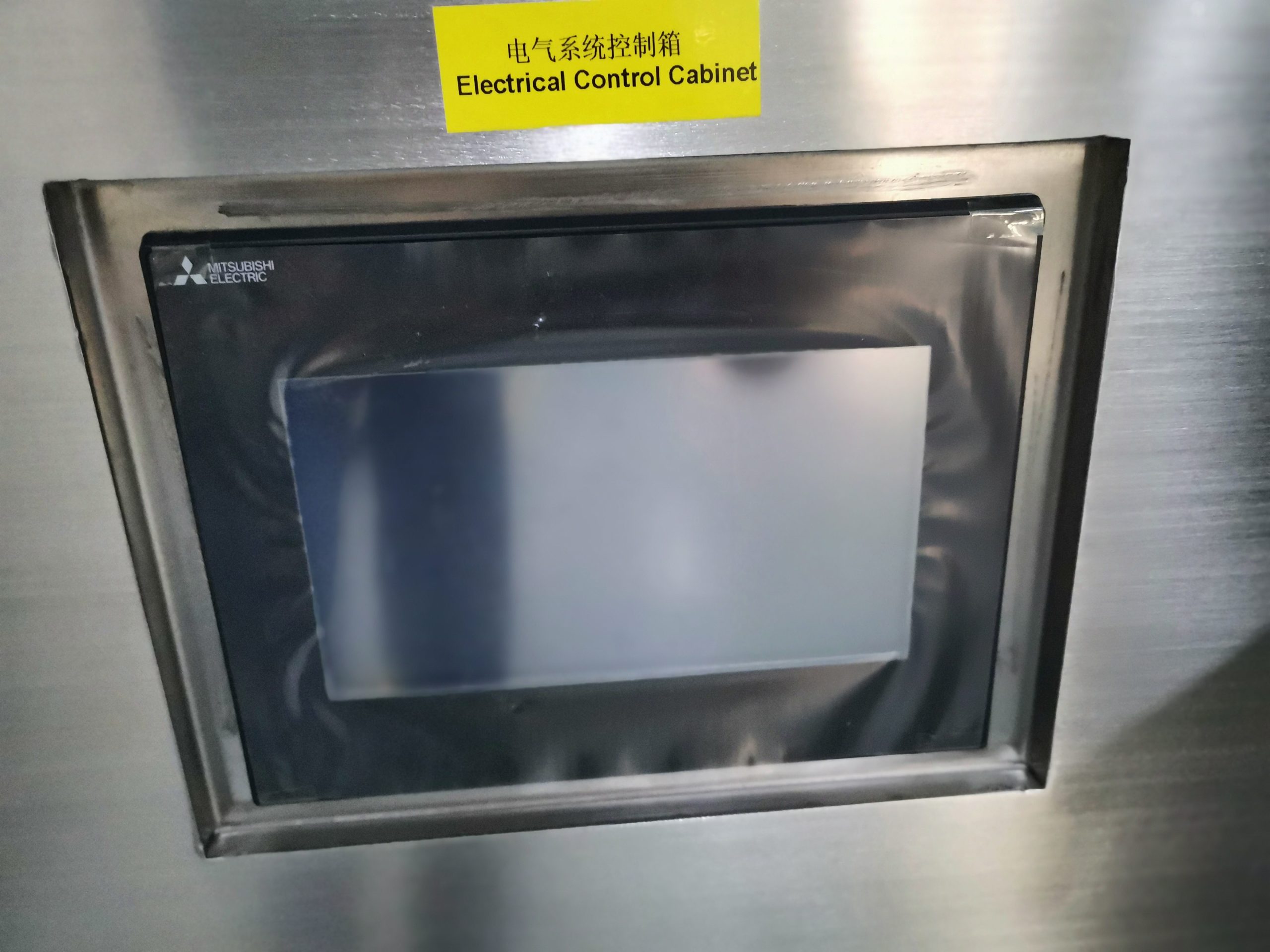

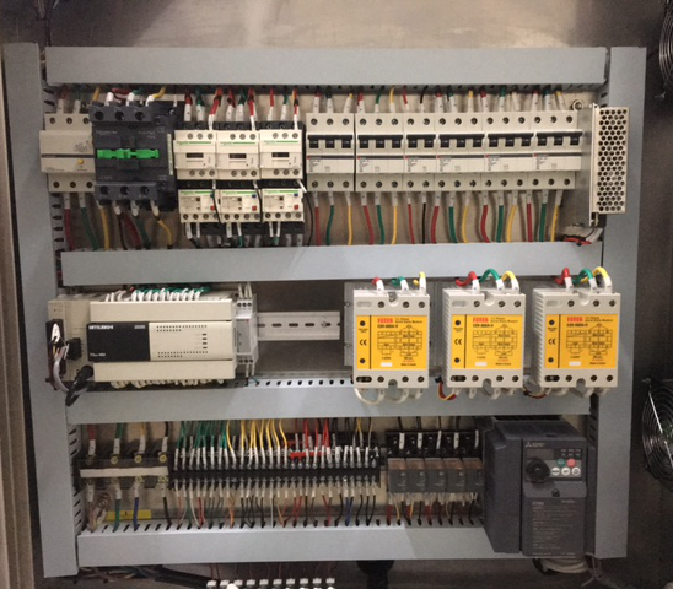

A. Famous electric devices: Mitsubishi PLC, Touch panel, Inventor,
Schneider Contactor, Relay, CKD solenoid valve, OMRON power unit
B. Isolated and protected power supply and distribution system

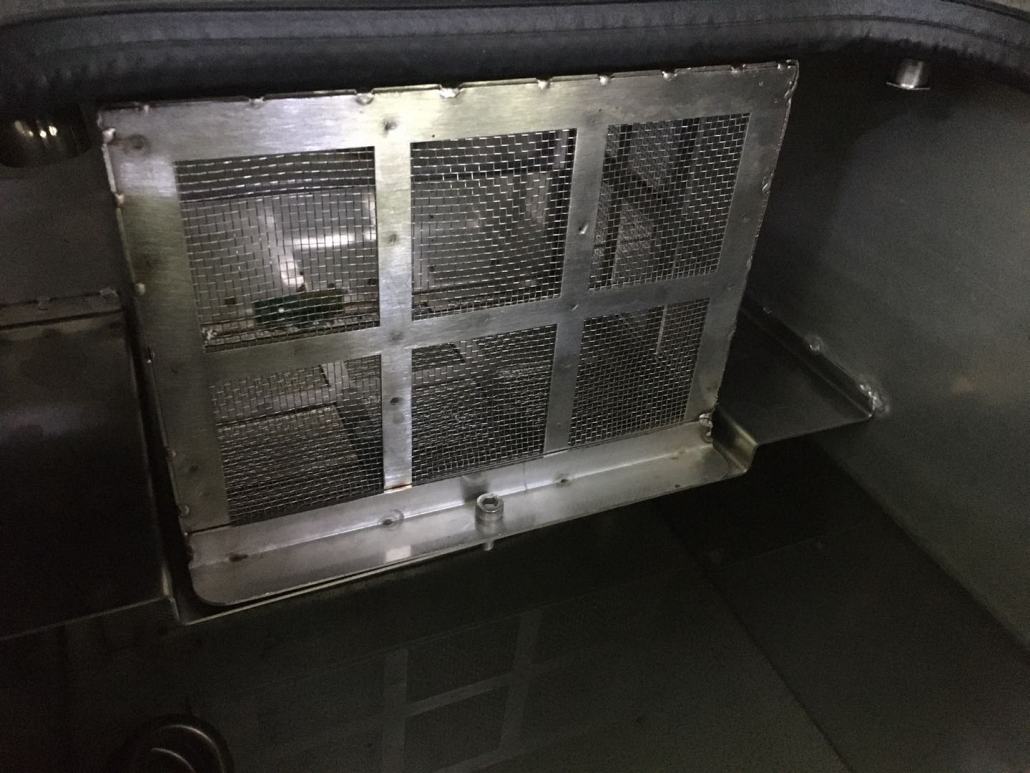

Filter screen for rinsing Its stainless steel, which can be cleaned regularly

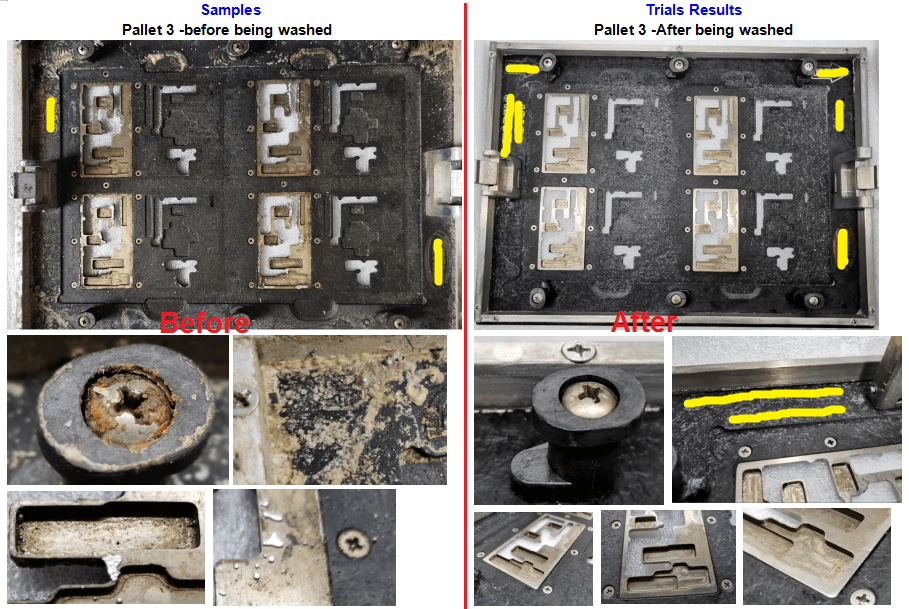

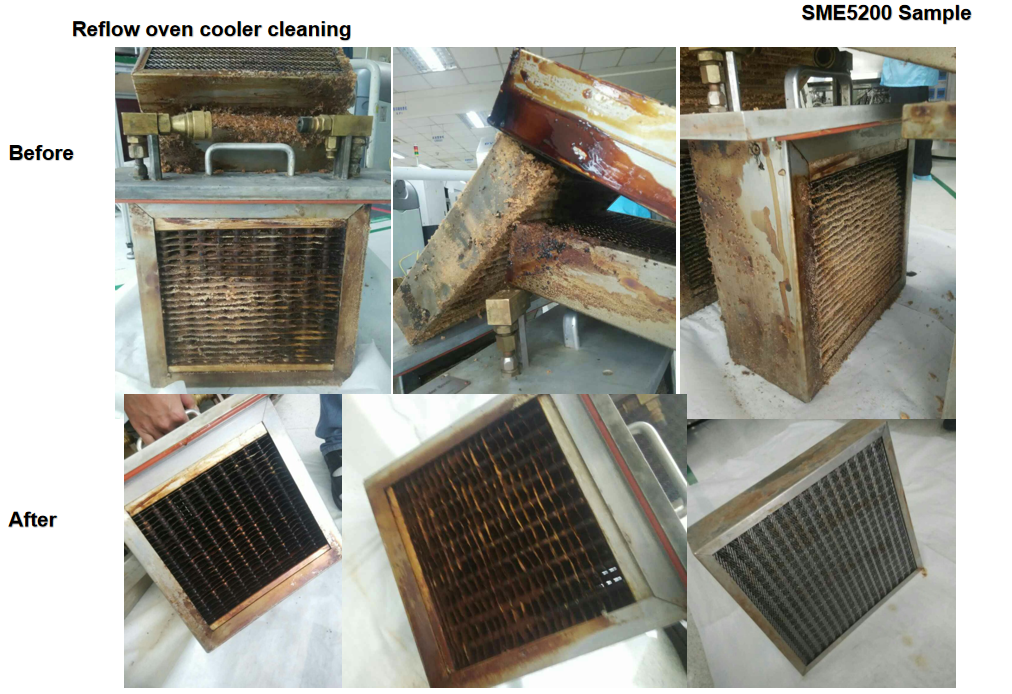

Cleaning case

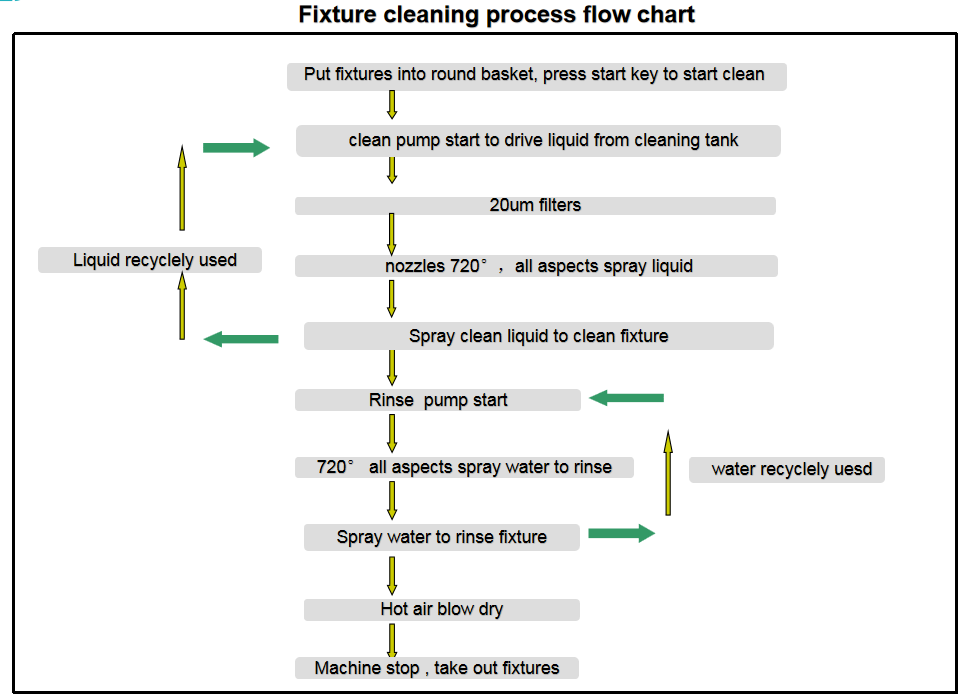

Fixture cleaning process flow chart
Specification
| Items | Description | SME5200 Specifications | Note |
| 1 | Cleaning basket size | ￠1000 mm x H200mm | |
| 2 | Cleaning fluid tank capacity | 80 L | Cleaning fluid |
| 3 | Capacity of rinse tank | 80 L | Clear water |
| 4 | Cleaning method | Top, bottom, front spray cleaning | Complete coverage of 720 ° |
| 5 | Drying methods | Compressed air cut, hot air dry | clean and fast |

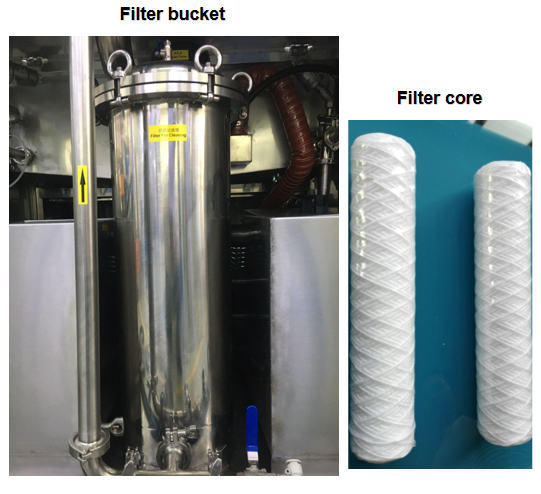

| 6 | Cleaning filter | Grade 1：2mm filter screen for protect the pump | Higher liquid utilization |
| Grade 2：100um filter screen-filtering solid particles | Greatly save the operation cost | ||
| Grade 3：20um filter core for filter flux. | |||
| 7 | Rinse filter | Grade 1:2mm filter screen for protect the pump | Water recycling |
| Grade 2:100um filter screen for filter solid particles | |||
| 8 | Clean time | 3 ~ 20 min | |
| 9 | Rinse time | 1 ~ 2 min | |
| 10 | Dry time | 10 ~ 20 min | |
| 11 | Cleaning/rinsing pump power | 2.2/1.1 KW | |
| 12 | Blower power | 3.7 KW | |
| 13 | Diaphragm pump | Pneumatic, 1 inch | Automatically add fluid and drain fluid |
| 14 | Liquid heating | 9KW, room temperature ~90℃ | |
| 15 | Hot air heating | 9KW, room temperature ~90℃ | |
| 16 | A rotary motor | 400 w. | |
| 17 | Vent size | 120 xh30mm Φ | |
| 18 | Air supply | 0.5 ~ 0.7 Mpa, 800-1000 l/min | |
| 19 | The power supply | 380 vac, 3 p, 50/60 hz, 34 kw | 13KW during normal operation |
| 20 | The machine size | 1380 mm (L) x 2000 mm (W) x 1400 mm (H) | |
| 21 | Machine net weight | 600 kg |
