Fully Automatic SMT Screen Printer for PCB
Southern Machinery provides professional SMT peripheral equipment

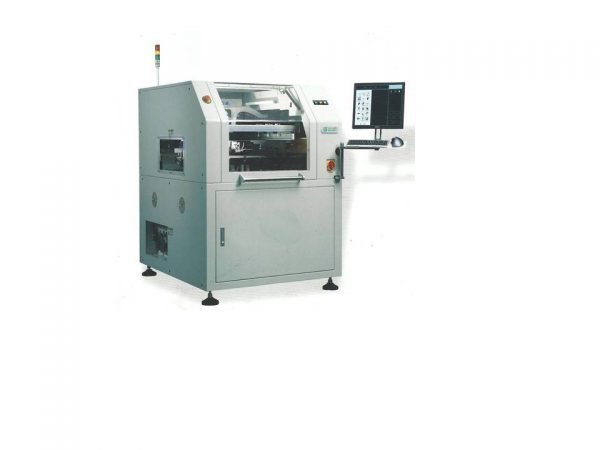

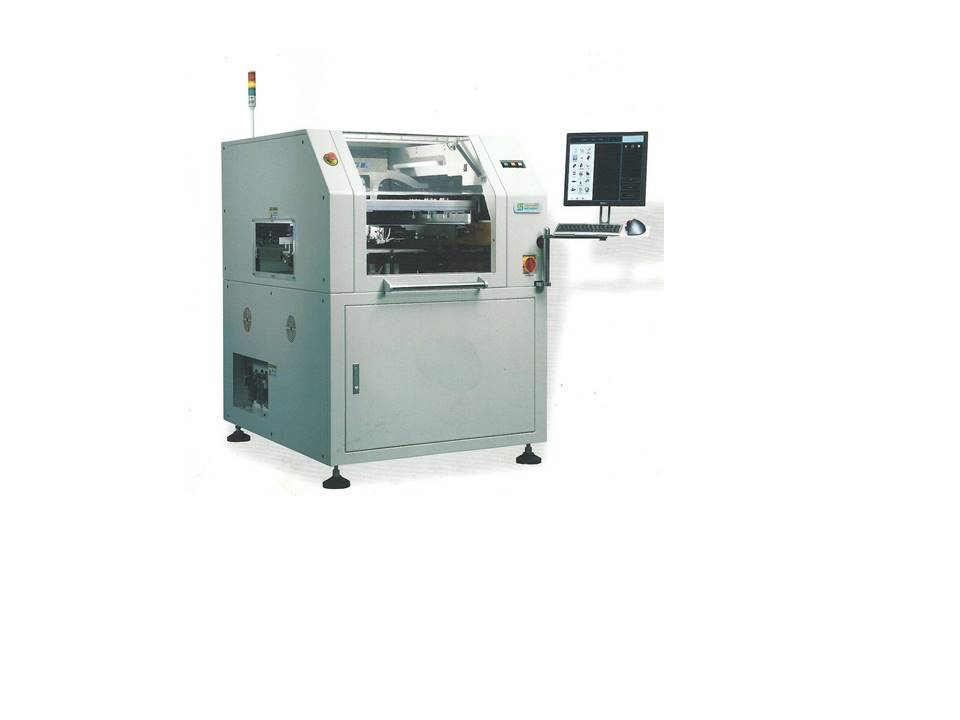

Automatic Screen Printer SP-1008
This equipment is a high accuracy printing machine designed for high precision screen printing or stencil printing in SMT industry.
applicable to: mobile phone,communication,LCD TV,STB,vehicle electronics,medical power equipment,aerospace&aviation,besides general electronics products
SYSTEM
○Automatic stencil positioning system
○Hommization operation interface (teached by the software notes).
Specification :
| Stencil Frames | 470 X 380-737*737mm |
| Stencil Clamping | Air Valve |
| Stencil Positioning | Automatic |
| PCB Size | 50*50-400 X 340mm |
| PCB Thickness | 0.4-5.0mm |
| Transport Direction | Left – Right, Right -Left |
| Transport Speed | Stepper Motor, 100-1500mm/s Program Control |
| PCB weight | 0-3KG |
| Transport Height | 900+-40mm |
| Printing Accuracy | ±0.025mm |
| Repeating Accuracy | ±0.01mm |
| Air Source | 4.5-6kg |
| Power Supply | Single Phase 220V, 50/60Hz 100W |
| Control Method | PC Control |
| Operating System | Windows XP |
| Dimension | L 1140 X W 1360 X H l500mm |
| Machine Weight | Approx: 1000kg |
