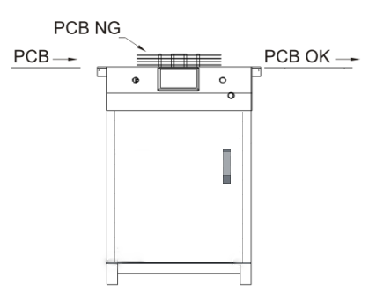

Reject conveyor 1M reject conveyor (350mm max PCB width)
Feature
- This unit is used for faulty boards which can be lifted up for a visual inspection without interrupting the PCBs flow.
- Modular design, touchscreen control.
- Includes 3 modes: ‘reject’, ‘inspect’ and ‘pass-through‘ .
- Stability enhanced by ‘robust design’
- Ergonomically designed armrest
- Smooth and parallel width adjustment
- Different lengths available upon request
- Variable speed control
- SMEMA compatible
Technical parameters
- PCB size: 50*50-445*350mm
- Transport height:900mm ±20mm or specify
- Transfer direction:L to R or specify R to L
- Belt type: ESD belt (round belt)
- Speed:0.5-20m/min adjustable
- Power supply: AC 110 Volts Or 220 Volts; Single Phase
- Power consumption:100VA max. or specify
- Buffering capacity: 5 PCB or specify.
| Product Length(L)mm | Product Width(W)mm | Product Height(H)mm | Product Weight(KG) |
| 1000 | 665 | 900 | 50 |
